Waterproof. Optical magnification: 2x. Digital magnification: 1–8x. Maximum detection range: 2800m (9200ft). Built-in Wi-Fi and Bluetooth modules, recorder, and rangefinder

1400 (person, 1.8x0.5m), 880 (wild boar, 0.9x0.7m), 1150 (deer, 1.5x0.5m), 2800 (car, 2.3x2.3m)
The detection range is the maximum distance at which objects of interest can be observed
640x480
The microbolometer matrix resolution is the number of pixels horizontally and vertically
≤30
Thermal sensitivity (NETD) is an indicator for assessing the degree of clarity of the separation of a thermal object from the external background. The lower it is, the more effective the thermo vision device will be
Availability

Product ID 82084
Brand Levenhuk, Inc., USA
Warranty 2 years
EAN 5905555001890
Package size (LxWxH) 18x35x20 cm
Shipping Weight 1.88 kg
Description

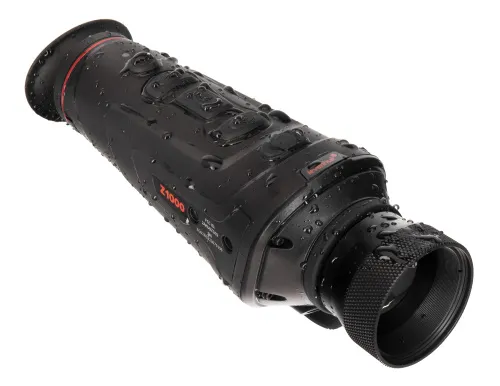

The Levenhuk Fatum Z1000 Thermo Vision Monocular has a professional grade 640x480pix sensor, so it can be used for challenging tasks in total darkness. The detection range is 2800 meters (9200ft) for large objects and up to 1400 meters (4600ft) for medium and small objects. This makes it an essential tool when tracking targets during hunting, search operations, or security activities. In addition, the device is waterproof, which allows you to use it in any weather: heavy rain or a snowstorm.

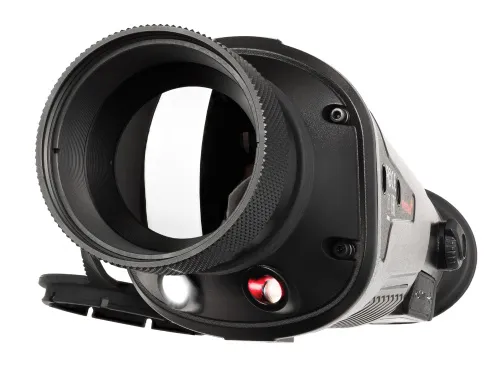

The optics provide 2x magnification, but for very distant targets, you can use additional digital magnification – a smooth magnification adjustment is possible within the 1–8x range. In other words, the maximum magnification of the device is 16x. To get the most contrast and sharp picture, you can select a color palette – there are six color palettes available in total. It also features hot spot detection, a picture-in-picture mode, and a laser designator with a working range of 200 meters (660ft), which makes it easier to detect thermal targets.

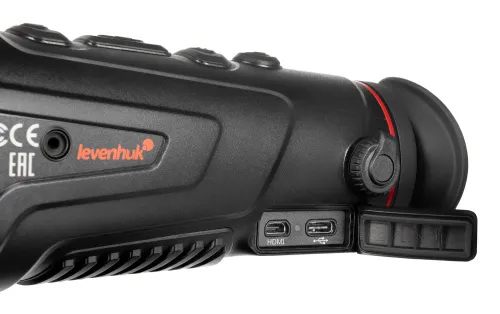

The additional features of the device are also quite impressive. The recorder allows you to capture photos and record videos (16GB of internal memory). The rangefinder is used to quickly calculate the distance to the target of choice. It is possible to view images on your smartphone screen and access the settings remotely via Wi-Fi and the TargetIR mobile app. The image can be displayed on the external screen via the microHDMI port. The Type-C port serves for data transfer and device charging. It is also possible to remote control via Bluetooth.

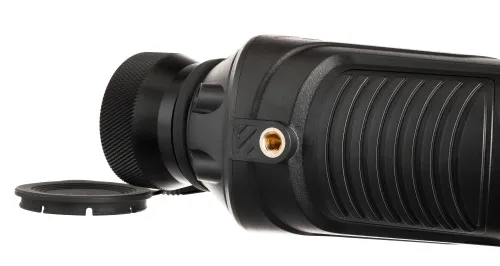

If you need to place the monocular for stationary observations, you can use the 1/4" tripod mount. It is powered by a pair of rechargeable batteries with a total capacity of 6000 mAh, which provide up to 4.5 hours of continuous operation.

Key features:

  • Professional-grade 640x480pix sensor
  • 2x optical magnification, 1–8x smooth digital magnification
  • Detection range in total darkness – up to 2800 meters (9200ft)
  • Wi-Fi and Bluetooth for pairing with mobile devices and remote control
  • MicroHDMI and Type-C connectors for data transfer and device charging
  • Recorder with 16GB of internal memory, built-in rangefinder, and laser designator
  • Waterproof, 1/4" tripod mount
  • Power supply – couple of rechargeable batteries, about 4.5 hours of continuous operation
  • Lightweight – 500g

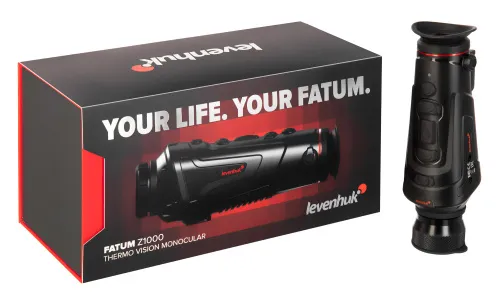

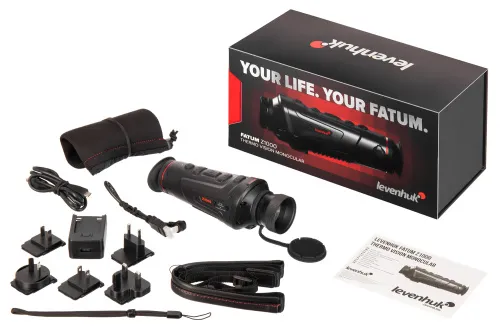

The kit includes:

  • Thermo vision monocular
  • HDMI cable
  • Type-C cable
  • Power adapter
  • Power adapter plugs – 5 pcs (UK, US, EU, AU, CH)

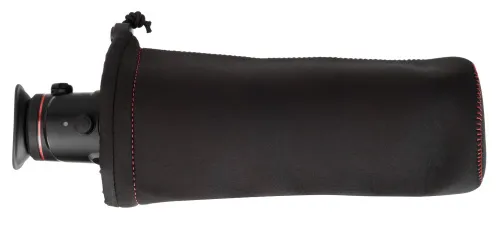

  • Pouch
  • Shoulder strap
  • Eyepiece protective cap
  • User manual and warranty card
Specifications
Product ID 82084
Brand Levenhuk, Inc., USA
Warranty 2 years
EAN 5905555001890
Package size (LxWxH) 18x35x20 cm
Shipping Weight 1.88 kg
Type of thermo vision device monocular, tripod mountable
Detection range, m 1400 (person, 1.8x0.5m), 880 (wild boar, 0.9x0.7m), 1150 (deer, 1.5x0.5m), 2800 (car, 2.3x2.3m)
Recognition range, m 1400 (vehicle, 2.3x2.3m), 700 (person, 1.8x0.5m), 450 (wild boar, 0.9x0.7m), 580 (deer, 1.5x0.5m)
Microbolometer matrix uncooled, vanadium oxide
Resolution of microbolometer matrix, px 640x480
Pixel size, μm 12
Spectral range, μm 8–14
Frame rate 50Hz
Temperature sensitivity (NETD), mK ≤30
Calibration automatic, shutter (shooter), manual
Adjustable parameters brightness (10 levels), contrast (10 levels)
Color palettes hot black, hot white, hot red, hot blue, hot green, customizable hot red, red iron
Laser designator +
Objective germanium
Focal length, mm 35
Focal length, mm 0 to 10
Aperture ratio f/1
Optical magnification 2
Digital magnification 1–8x
Field of view (horizontal)x(vertical), ° 12.5х9.4
Focus manual
Eye relief, mm 10
Eyepiece diopter adjustment, diopters -4/+2
Display 0.4", FLCOS, brightness adjustable (10 levels)
Display resolution, px 1280x960
Power supply 18650 type non-removable battery, 3000mAh – 2 pcs.
Battery life, h 4.5
Moisture resistance
Start-up time, s 2
Operating temperature range, °C -10...+50
Operating humidity range, % 10 — 95
Built-in rangefinder
Ability to connect additional equipment iOS and Android mobile devices (TargetIR app), external screen
Bluetooth
Wi-Fi
Wi-Fi settings 2.4Hz, range – 15m (50ft) (in direct line of sight)
Built-in recorder
Memory 16 GB
Interface connectors Type-C (USB 2.0) for data transfer and charging; HDMI for video output
Adaptable to a tripod standard 1/4" thread
Mounting on a tripod
Pouch/case/bag in set pouch
Additional auto-off function, hot spot detection, auto sleep mode, image enhancement function, picture-in-picture mode, shock-, vibration-, and drop proof (within 1m/3.3ft)
