Meade LXPS 18 Portable Power Supply

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Portable rechargeable lithium-ion battery (up to 17 hours)

Availability

Product ID	75635
Brand	Meade Instruments Corp.
Warranty	2 years
EAN	0709942100747
Shipping Weight	2.075 kg

Description

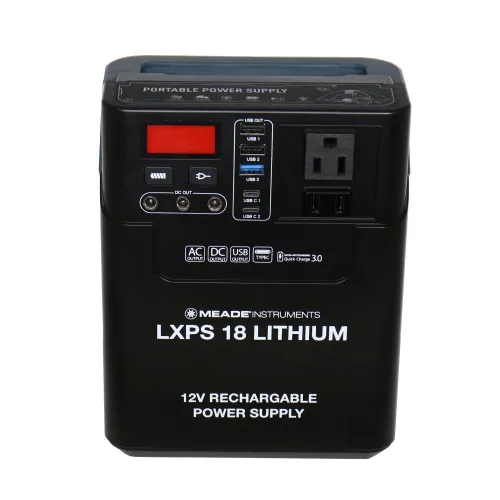

The Meade LXPS 18 Lithium Battery is a 222 watt-hour lithium-ion battery with 12V DC output, ideal for powering your 12V telescope. It features a 110V AC inverter to power your laptop or other 110V AC-powered accessory. It also includes 5V USB charge ports and can power multiple electronic devices at the same time, allowing you the ability to multi-task while observing.

18AH capacity for multiple nights of observing

The Meade LXPS 18 Lithium features a capacity of 18Ah, ideal for powering your 12V telescope. It can also power multiple electronic devices at the same time allowing you the ability to multi-task while observing. Power your telescope, charge your phone or tablet, or power your laptop for a short while.

Compact design with tough structure

Meade's LXPS 18 Lithium is not only ideal for powering your telescope, but is a great source of power during emergencies, camping, road trips, or wherever you need power when on the go.

Bult-in high quality lithium battery

The portable Meade LXPS 18 adopts high quality Lithium batteries, featured with long lifespan, high safety, high-power density, high capacity, high temperature resistance, slim size but more portable weight.

Excellent smart and safe

The portable Meade LXPS 18 is built-in BMS controlled by smart power control processor, features excellent safety, including overcharge proof, over discharge proof, overcurrent proof, overpower proof and short circuit proof.

Bright red LED flashlight

The Meade LXPS 18 is equipped with an ultra-bright red LED light, making it an ideal accessory to help you in the night.

Features:

LED display
Battery capacity indicator
110V/60HZ AC inverter
3 x DC output 12V
2 x USB output
1 x USB output with QuickCharge 3.0
2 x USB-C output with QuickCharge 3.0
On/off switch
Red LED light
Carry handle
Cooling vents

Specifications
Built-in battery	222 watt-hour (18.5 amp-hour at 12V)
Input charging	DC 15V / 2A
Solar panel input	DC 13–24V / 2.2A max
Fully charged time	adapter: approx. 10–11 hours
DC output	3 x DC output 9–12.6V / 10A total 15A max 2 x USB-C 5–9V / 2.1A Qualcomm QuickCharge 3.0 1 x USB 5–9V / 2.1A Qualcomm QuickCharge 3.0 2x USB output 5V / 2.1A (total 3.1A max)
AC outlet	1 x type A (2 prong North America style) 1 x type B (3 prong North America style)
AC output	AC modified sine wave output 110V/60HZ, ±10%
AC continuous output	100W
AC max output	150W @ about 1 second
Bulb type	1W red LED light panel with two levels brightness
Work temperature	−10…+40℃
Storage temperature	−10…+45℃
Lifecycle	>500 times
Multi-safety protections	(A) short-circuit protection (B) over-current protection (C) over-voltage protection (D) low-voltage protection (E) over-load protection (F) over-temperature protection
Certifications	CE, FCC, ROHS, PSE, C-Tick, UN38.3, MSDS, IATA
Power adapter	input: 100–240V AC 50/60Hz, 0.8A output: 15V, 2000mA polarity: center positive

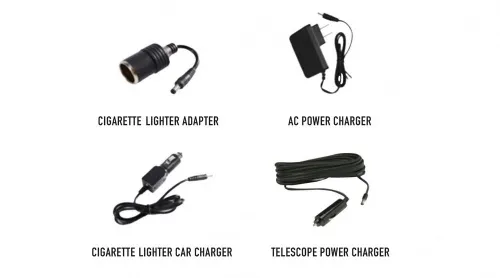

Car charger cable	fused cigarette lighter adapter (DC 5.5mm OD x 2.1mm ID)
Cigarette lighter adapter	yes
Telescope power cable	4 meter DC cord #806009 (cigarette lighter adapter to DC 5.5mm OD x 2.5mm ID)

Specifications

Product ID	75635
Brand	Meade Instruments Corp.
Warranty	2 years
EAN	0709942100747
Shipping Weight	2.075 kg

References
and downloads

User manual: Meade LXPS 18 portable power supply (pdf) EN

(PDF, 727.63 Kb)
