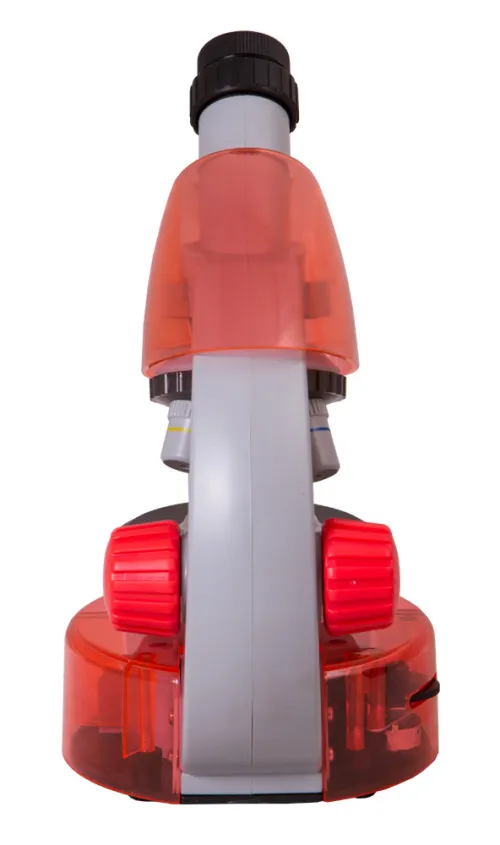

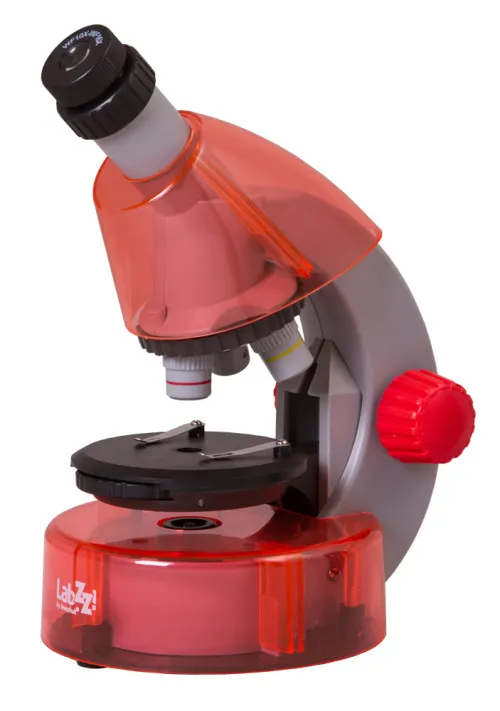

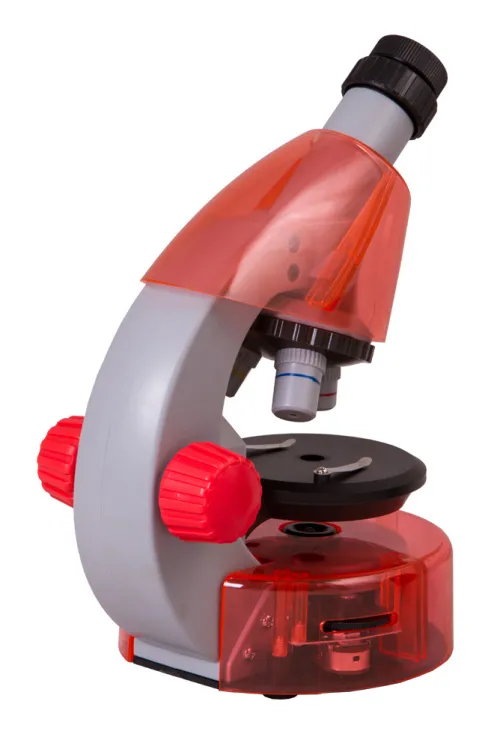

Levenhuk LabZZ M101 Microscope
Bright microscope for an inquisitive child. Comes with an experiment kit. Magnification: 40–640x
Product ID | 69059 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555007281 |
Package size (LxWxH) | 13x18x27 cm |
Shipping Weight | 0.93 kg |
Stylish Levenhuk LabZZ M101 microscope looks like a high-end instrument from a science fiction movie – a perfect choice for an inquisitive child! A young explorer can study the internal structure of indoor plants, observe insects, detect microorganisms in a water drop and many other exciting things! The kit includes everything needed for very first biological experiments. The design looks very unusual – such a gift is not only useful but engaging as well!
High-quality optics

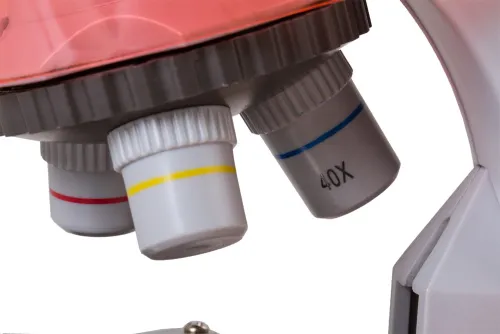

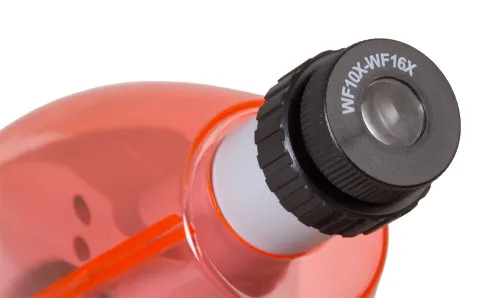

Although this microscope is designed for kids, in terms of optical performance, it can be compared to many 'adult' microscopes. The microscope is equipped with three objective lenses: 4x, 10x and 40x. To switch the objective, simply turn the revolving nosepiece. The unique feature of this microscope is its sliding two-position eyepiece (10x and 16x). It is very convenient to use. And it’s more convenient than having two standard eyepieces. The microscope provides six levels of magnification: 40x, 64x, 100x, 160x, 400x and 640x.
Studying the microcosm

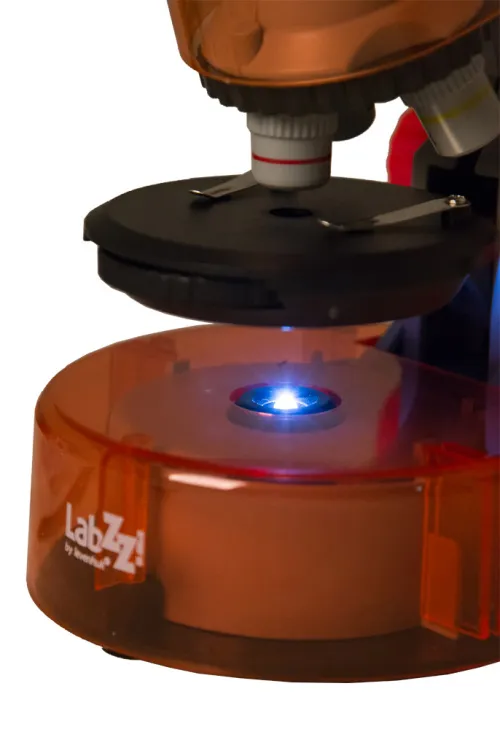

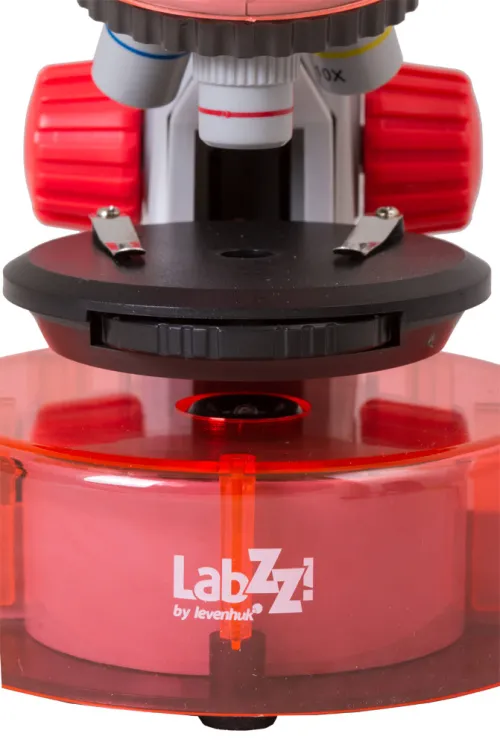

This microscope allows for observing transparent samples – an aquarium water drop, thin slices of plants, or prepared microscope slides. The objects should be placed on the convenient round stage and fixed with two clips. Thanks to those clips, the studied specimen will always stay in place. Light emitted by LED diodes (located below the stage) passes through the specimen, creating the magnified image in the eyepiece. The brightness level can be adjusted.
Smart design

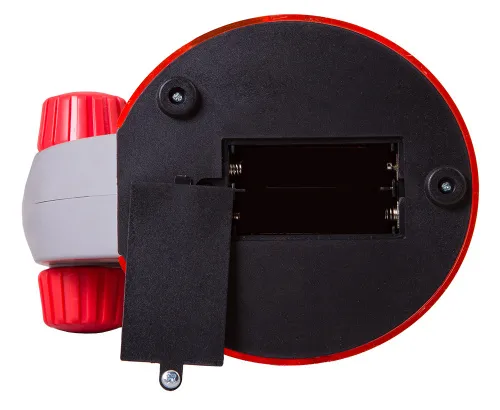

The body is made of durable plastic. That is why it is so lightweight, yet very reliable. For more convenience, the head is inclined 45 degrees. The design is distinguished by its high safety – the illumination is powered by batteries, not a power source. Thanks to that, the microscope can be used outdoors.
Kit for interesting experiments
The microscope comes with a special kit for conducting interesting experiments. It includes prepared slides, tools for microscopic work, and a detailed user guide.
Features:
- Bright children’s microscope with magnification power up to 640x
- Sturdy and lightweight plastic body of interesting shape
- Two eyepieces in one
- Battery powered illumination for outdoor use
- Energy-sufficient lower LED illumination
- Experiment kit included

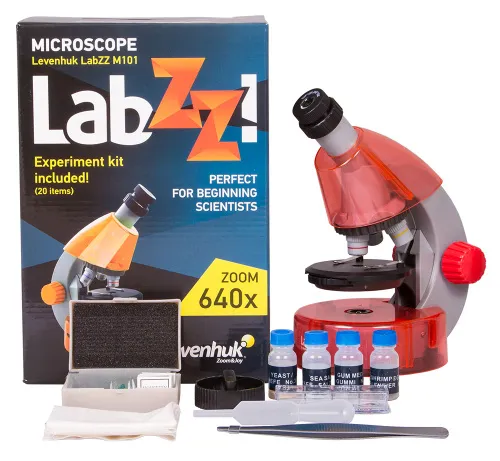

The kit includes:
- Microscope
- Objectives: 4x, 10x and 40x
- Eyepiece: WF10x–16x
- Round stage with clips
- Diaphragm disk
- Built-in lower LED illumination
- Levenhuk K50 Experiment Kit
- User manual and lifetime warranty
Levenhuk K50 Experiment Kit includes:
- "Attractive Microscope. Scrutinizing the Microcosm" User Guide
- Forceps
- Hatchery for Artemia (brine shrimp, or sea-monkeys)
- Microtome
- Flask with yeast
- Flask with pitch
- Flask with sea salt
- Flask with brine shrimp
- 5 ready-to-use specimens
- 5 blank slides
- Dropper
- Dust cover
Some things you can see under Levenhuk LabZZ M101 microscope:
You can find these and many more interesting microscope slides to observe in the Levenhuk K50 Experiment Kit.
Levenhuk LabZZ M101 Microscope is not compatible with external digital cameras due to non-removable eyepiece.
Product ID | 69059 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555007281 |
Package size (LxWxH) | 13x18x27 cm |
Shipping Weight | 0.93 kg |
Type | biological, light/optical |
Head | monocular |
Optics material | optical polymer glass |
Nozzle | fixed (non-rotatable) |
Head inclination angle | 45 ° |
Magnification, x | 40 — 640 |
Eyepiece tube diameter, mm | 29 |
Eyepiece tube length, mm | 140 |
Eyepieces | WF10x–16x (two-position) |
Objectives | 4x, 10x, 40x |
Revolving nosepiece | for 3 objectives |
Stage, mm | Ø82 |
Stage moving range, mm | 0–15, vertical |
Stage features | with clips |
Diaphragm | diaphragm disc (6 apertures) |
Focus | coarse |
Body | plastic |
Illumination | LED |
Brightness adjustment | ✓ |
Power supply | 2 AA batteries (not included) |
Power supply: batteries/built-in battery | yes |
User level | elementary |
Assembly and installation difficulty level | extremely simple |
Application | elementary |
Illumination location | lower |
Research method | bright field |
Experiment kit included | ✓ |
Pouch/case/bag in set | dust cover |
