Magnification: 40–1000x. Trinocular head, achromatic objective lenses, and an Abbe condenser with an iris diaphragm, and a filter holder

Colour Base color
VAT included
The price is valid only for the online store and may differ from the prices in retail stores.
Availability
Specifications
All specifications
Accessories

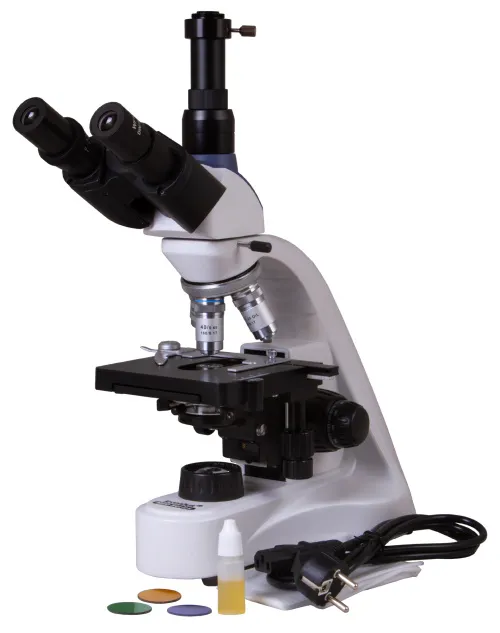

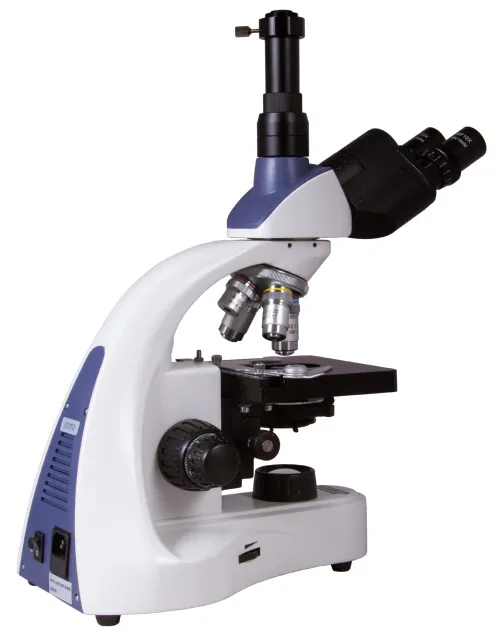

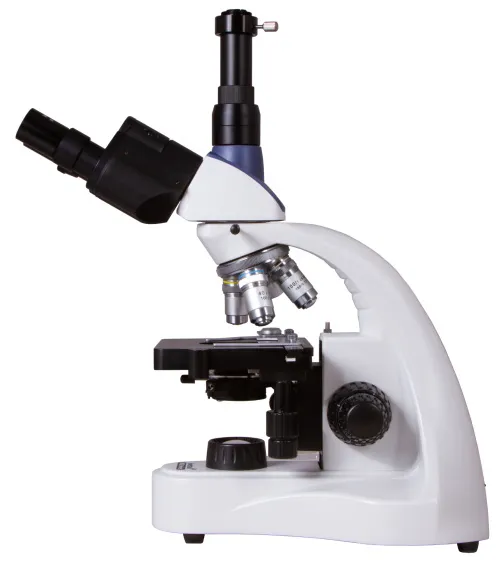

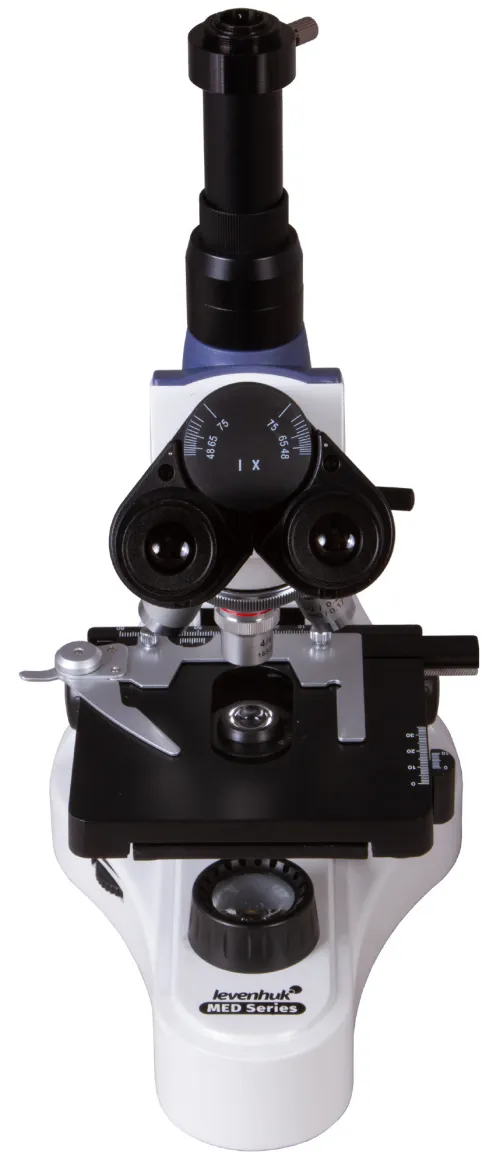

Levenhuk MED 10T Trinocular Microscope is a laboratory model with the achromatic optics for professional micro investigations at magnifications of 40 to 1,000 times. This microscope is a perfect choice for college students, research work in a scientific center, or clinical and diagnostic work in a medical laboratory.

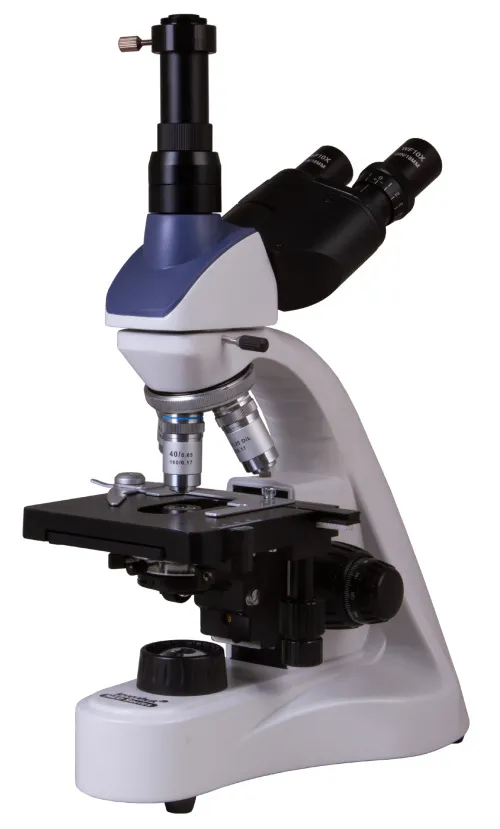

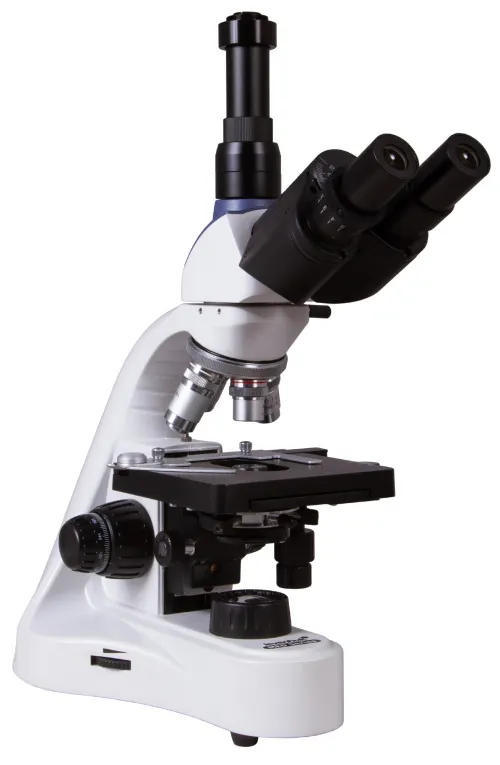

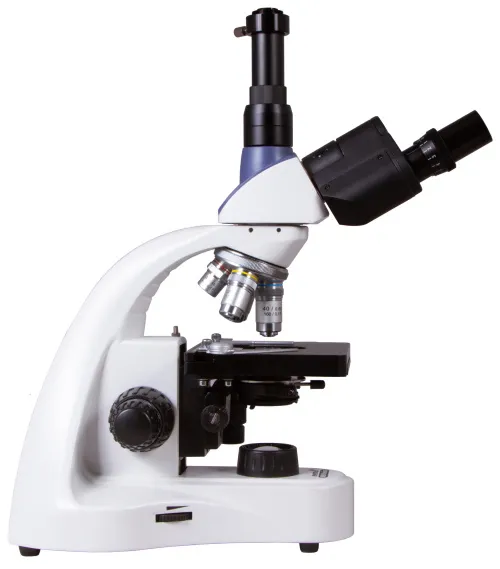

A trinocular head includes a binocular visual node and a tube for installing a digital camera (a digital camera is purchased separately). A visual part is inclined at 30° that provides for comfortable extended observations. The trinocular head is 360° rotatable. Four achromatic objective lenses of various magnifications are installed in the microscope; 40x and 100x objective lenses are equipped with protective spring-loaded frames. Moreover, a 100x objective can be used for oil immersion observations (a vial of immersion oil is included). Wide-field eyepieces feature diopter adjustment and provide good visibility. All of the optical elements are protected with an anti-fungal coating.

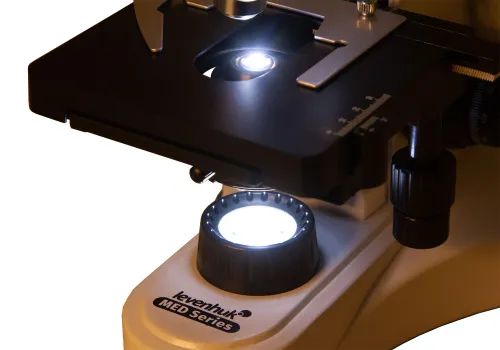

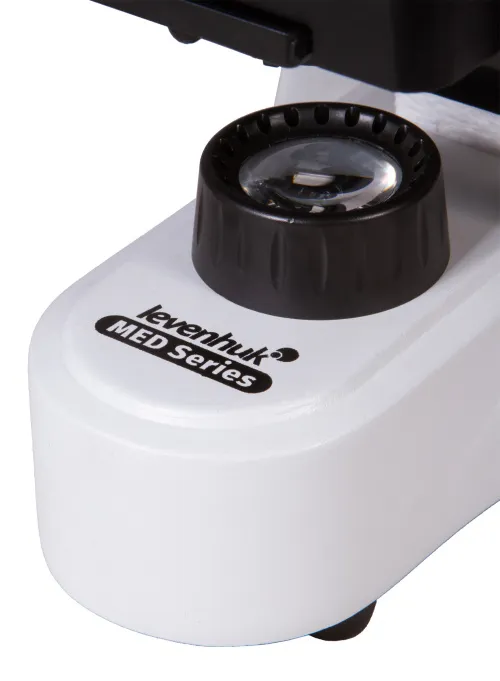

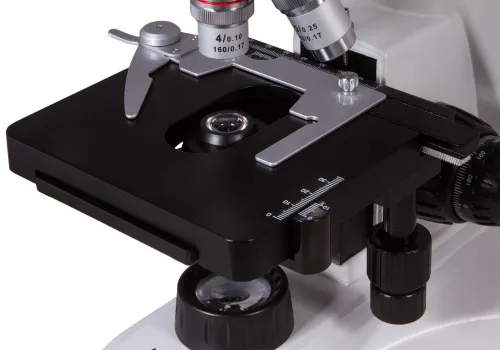

A double-layer stage can be moved along two axes. Specimens are placed under a microscope objective lens and can be moved with the help of a mechanical scale. Coarse and fine focusing are available. The microscope lighting system consists of a bright 5-watt LED light and an Abbe condenser with an iris diaphragm and filter holder. The light is located under the stage and allows for conducting observations using the bright field method in the transmitted light. The light is powered by an AC power supply. The illumination system also features a brightness adjustment.

Features:

  • Laboratory microscope with 40–1000x magnification
  • 360° rotatable trinocular head, inclined at 30°
  • Achromatic optics with an anti-fungal coating

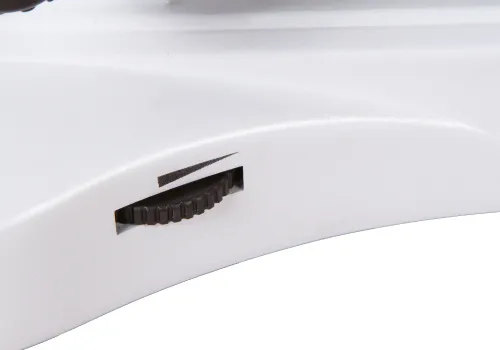

  • Lower 5W LED light with brightness adjustment
  • Powered by an AC power supply

The kit includes:

  • Microscope base with a stand
  • 360° rotatable trinocular head

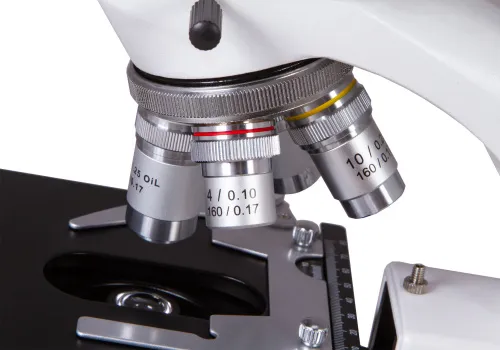

  • Achromatic objective lenses: 4х, 10х, 40xs, 100хs (oil) with an anti-fungal coating

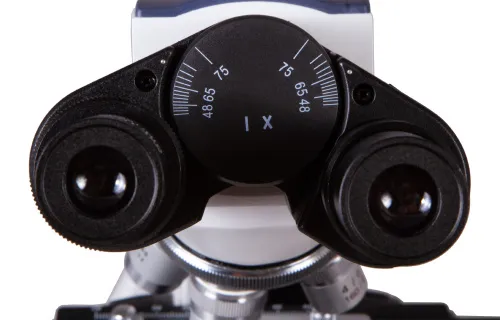

  • Wide-field eyepieces: WF10x/18mm with an anti-fungal coating (2 pcs)
  • Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
  • Filters: blue, green, yellow
  • Vial of immersion oil
  • Fuse (2 pcs)
  • Power cord for microscope
  • Dust cover
  • Camera adapter
  • User manual and lifetime warranty

Caution:

Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Some things you can see under a microscope:


Levenhuk MED 10T Trinocular Microscope is also compatible with other Levenhuk digital cameras (additional cameras are purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece. This microscope is also compatible with any other digital microscope cameras.
