Levenhuk DTX 30 Digital Microscope

USB digital microscope. Magnification: 20–230x. Digital camera: 2Mpx

Digital screen/PC monitor

The microscope head is a core element of the microscope that you look through to see a magnified sample

20 — 230

How much the size of a sample increases when you observe it through a microscope

Elementary, for applied research

Application and use of the microscope

Availability

Product ID	61020
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555004297
Package size (LxWxH)	6x21x15
Shipping Weight	0.35

Description

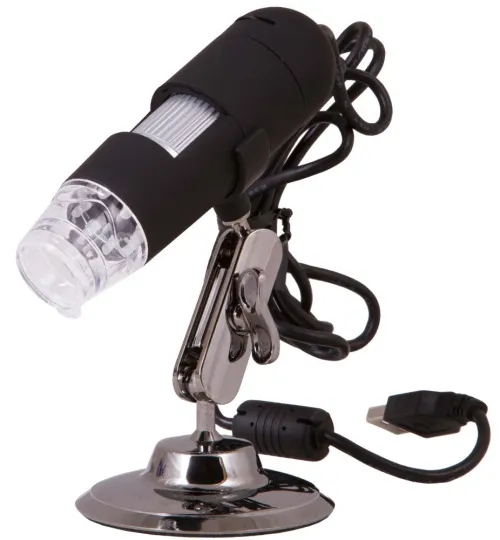

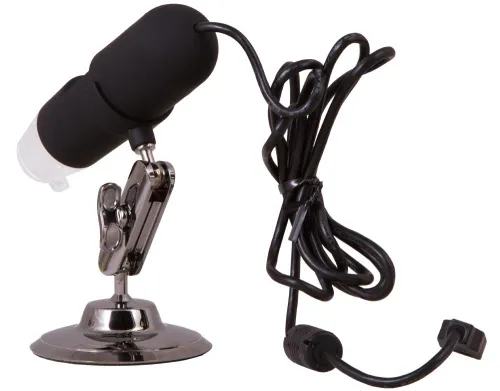

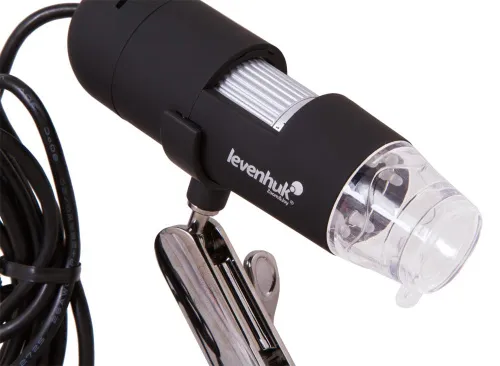

The Levenhuk DTX 30 Digital Microscope is a modern USB digital microscope with a photo and video recording function. It is equipped with a 2Mpx digital camera that provides magnification within the 20-230x range. This model is applicable for many fields of research: electronics, jewelry, biology, zoology, etc.

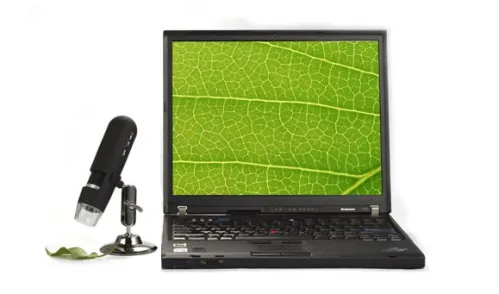

The microscope connects to a PC or laptop via a standard USB 2.0 port. You can study samples and edit images using image processing software (included in the kit). This software has an intuitive interface: The control panel has buttons for image and video editing, printing the picture, saving the data on a hard drive, and many other functions. For example, such functions as measurement and calibration can measure the length of the sample, perimeter, radius or diameter, and its angles.

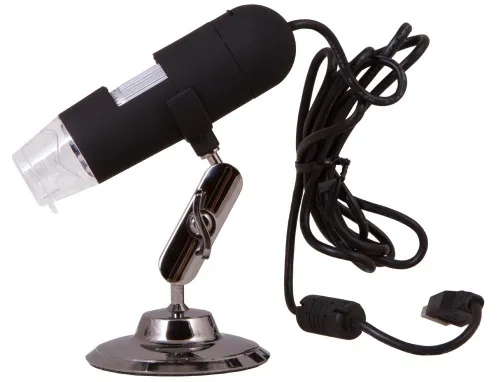

The Levenhuk DTX 30 is very easy to master as it requires no special skills. The compact size of the device makes it very suitable for home use. For better results, it is recommended to mount the microscope on a tripod (included).

The rubberized body of the microscope is pleasant to the touch, and it secures your grip, thereby preventing the device from slipping out of your hands.

Features:

8 white LEDs with adjustable brightness
Real-time observations on your PC monitor
Able to take photos/videos
Comes with special software for measuring linear sizes, areas, angles and radiuses of studied samples
Wide range of applications
Ease of use
Сompatible with Windows and Mac OS

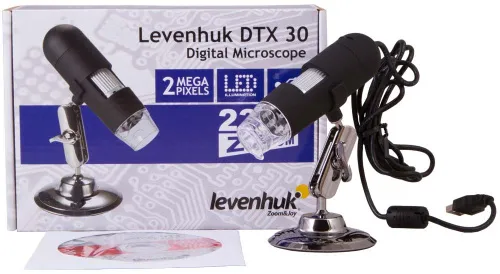

The kit includes:

Levenhuk DTX 30 Digital Microscope

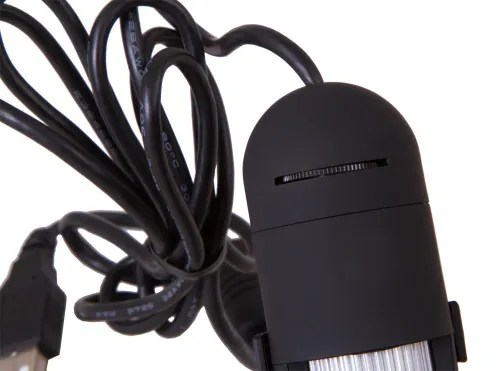

USB cable

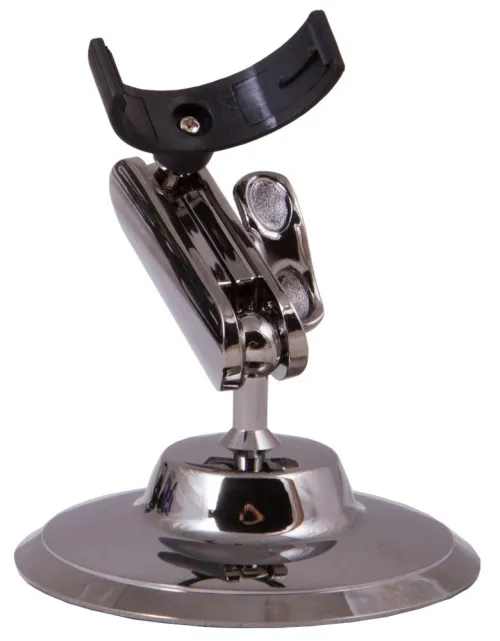

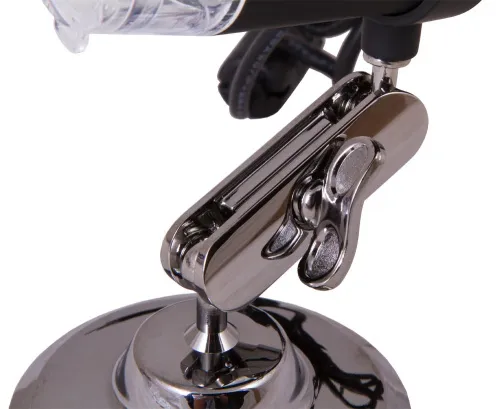

Tripod
Protective plastic objective lens cap
Software CD
User manual and lifetime warranty

Recommendations on using the software:

In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.

Levenhuk DTX 30 Digital Microscope is not compatible with external digital cameras.

Specifications

Product ID	61020
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555004297
Package size (LxWxH)	6x21x15
Shipping Weight	0.35
Type	digital
Head	digital screen/PC monitor
Optics material	optical glass
Magnification, x	20 — 230
Focus	manual, 0–150mm
Body	plastic
Illumination	LED
Brightness adjustment	✓
Power supply	5V DC via USB cable
User level	beginners, elementary
Assembly and installation difficulty level	extremely simple
Image	1600x1200, 1280x720, 640x480
Application	elementary, for applied research
Illumination location	upper
Research method	bright field
Megapixels	2
Video recording	yes
Image format	*.jpg
Video format	*.avi
Software, drivers	photo and video processing software with objects measurement feature
Output	USB 2.0
System requirements	OS Windows 7/8/10, Mac 10.6 ~ 10.15; 1.8GHz Intel P4 and above, 512MB RAM, 64MB video card, USB 2.0, CD-ROM

References
and downloads

User manual: Levenhuk DTX 30/50 digital microscopes (pdf)

(PDF, 2.77 Mb)

Levenhuk DTX 30/50: MicroCapture 2.0 software (zip)

(ZIP, 48.21 Mb)

Levenhuk DTX 30: MicroCapture Plus 1.01 software (zip)

(ZIP, 59.66 Mb)

High-resolution images (zip)

(ZIP, 80.77 Mb)

click to
download

Reviews

Frequently Asked Questions – Microscopes (20.04.2020)
We have gathered answers to the most frequently asked questions to help you sort things out

Eye under a microscope: insects’ photo (20.04.2020)
Find out why studying eyes under a microscope is entertaining; how insects’ and arachnids’ eyes differ and what the best way is to observe such an interesting specimen

What does hair look like under a microscope? (17.05.2020)
Read this review to learn how to observe human hair, what different hair looks like under a microscope and what magnification is required for observations

How does the aperture of a microscope objective lens work? (17.05.2020)
Learn what a numerical aperture is and how to choose a suitable objective lens for your microscope here

A spider under a microscope: photos and peculiarities of studying the slide (18.05.2020)
Learn what a spider looks like under microscope, when the best time is to take photos of it, how to study it properly at magnification and more interesting facts about observing insects and arachnids

What does a microscope consist of? (18.05.2020)
This review for beginner explorers of the micro world introduces you to the optical, illuminating and mechanical parts of a microscope and their functions

Paramecium caudatum - your first friend from the microworld (21.11.2016)

Short article about Paramecium caudatum - a microorganism that is interesting to observe through any microscope

Questions and Answers

Al Valavan (2018.02.19)

I’d like to know the camera sensor size. Thanks.

Customer service:

The manufacturer of the Levenhuk DTX 30 Microscope does not specify this information.

Michael Lobio (2017.11.21)

Hello! Is this model suited for observations of crystal structures of stones, eg granite, tree structure, water molecule? Thank you in advance.

Customer service:

Levenhuk DTX 30 model is not suitable for such observations due to its low magnification power. Please consider Levenhuk 320 BASE Biological Monocular Microscope (https://www.levenhuk.com/catalogue/microscopes/levenhuk-320-base-biological-monocular-microscope/ ) or Levenhuk 700M Monocular Microscope (https://www.levenhuk.com/catalogue/microscopes/levenhuk-700m-monocular-microscope/ ).

Jack Terd (2017.10.09)

Can I connect two microscopes to notebook at once? And get images from both of them?

Customer service:

Unfortunately, it is not possible to connect two Levenhuk DTX 30 microscopes to a notebook and get images simultaneously from both.

Lloyd Hart (2017.06.16)

How does this software work? It doesn't recognize the microscope because Windows already registered it as a simple web-camera.

Customer service:

We recommend installing new drivers. You can find them in the "additional materials" section: https://www.levenhuk.ru/catalogue/microscopes/levenhuk-dtx-30-digital-microscope/

John Pratt (2017.02.27)

The infusorium can be clearly seen in it, right? Hello.

Customer service:

Levenhuk DTX 30 Digital Microscope allows you to clearly see the infusorium. We also recommend that you consider Levenhuk Rainbow 2L Microscope - https://www.levenhuk.com/catalogue/microscopes/levenhuk-rainbow-2l-microscope/ .

Bill Hardy (2017.01.20)

tell me the camera frame rate… for example at 1280x1024?

Customer service:

Levenhuk DTX 30 microscope produces video at 30 frames per second.

Rodger Price (2017.01.01)

Is there a possibility to disassemble the instrument?

Customer service:

Levenhuk DTX 30 model can be removed from the tripod.

Simon Mccray (2016.10.19)

Can I connect this microscope to a PC and save images made with this microscope?

Customer service:

The Levenhuk DTX 30 microscope can be connected to a PC via a USB cable. The included software allows you to save images and videos made with the microscope.

Levi Hughes (2016.10.10)

what is the optical magnification of this model? I've seen something about 20x... is it correct?

Customer service:

The Levenhuk DTX 30 model doesn't have optical magnification, only digital: 20-230x.

Srikanth (2016.05.11)

Need a hand-held microscope to observe ROCK samples in field. 100x is fair. Need to capture image for later download. Can I?

Customer service:

Dear Srikanth, thank you for interest in Levenhuk products! We'd recommend to consider buying the Levenhuk DTX 500 Mobi Digital Microscope (product ID 61023). This model comes with a support of microSD cards (bought separately) with capacity up to 32 Gb. Is there any additional information you might need?

Sabrina Swift (2016.03.02)

Could you please specify the minimum and maximum size of observed object? My purpose: reading small text on solid objects 4.8-24 mm in diameter. It's highly desirable that a large object (24 mm in diameter) can be all seen through the lens (with the edges). If this model is not suitable for that, could you please recommend some other model?

Customer service:

The maximum size of the observed objects is about 2 cm, but with the lowest increase. The minimum size is 10 mm. We recommend Levenhuk DTX 90 Digital Microscope - https://www.levenhuk.com/catalogue/microscopes/levenhuk-dtx-90-digital-microscope/ . It has a larger matrix and more convenient tripod.

Danny (2016.02.12)

Can I observe biomaterial such as a drop of blood, cells, bacteria, ciliate?

Customer service:

Levenhuk DTX 30 Digital Microscope is not suitable for observing transparent biological samples. It is designed for viewing opaque, volume objects. Please consider Levenhuk D320L Digital Biological Microscope - https://www.levenhuk.com/catalogue/microscopes/levenhuk-d320l-plus-3-1m-digital-monocular-microscope/ .

Cameron Sims (2016.02.09)

Will I be able to mirror an image using your software?

Customer service:

Yes, Levenhuk DTX 30 microscope software allows you to change an image's orientation to create a mirror image.

Matt Patel (2015.11.06)

what are the dimensions of the microscope?

Customer service:

The dimensions of the Levenhuk DTX 30 microscope are 11x3 cm or 4.3x1.2 in.

Sia Lor (2015.03.05)

Can I put it in water to detect motion of particles about 1 micrometer in size?

Customer service:

Unfortunately, Levenhuk DTX 30 is not suitable for this purpose.
