Achromatic. 45° inclined 360° rotatable monocular head, LED illumination, precise focusing. 40x to 400x magnification

Monocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 400
How much the size of a sample increases when you observe it through a microscope
School/educational
Application and use of the microscope
Availability

Product ID 77982
Brand Discovery
Warranty 10 years
EAN 5905555013572
Package size (LxWxH) 35x22x17 cm
Shipping Weight 2.325 kg
Description

discovery_logo_02

Discovery Channel informs, entertains and inspires its audiences around the globe about the world in all its wonder, diversity and amazement. Offering millions of people the chance to discover, and satisfy their curiosity, Discovery offers a compelling mix of stories across genres including science and technology, exploration, adventure, history and in depth behind-the-scenes glimpses at the people, places and organisations that shape and share the world we live in.

We proudly present the Discovery optics series that is produced by Levenhuk and endorsed by Discovery.


Check out a brief comparison of the Discovery microscope series »

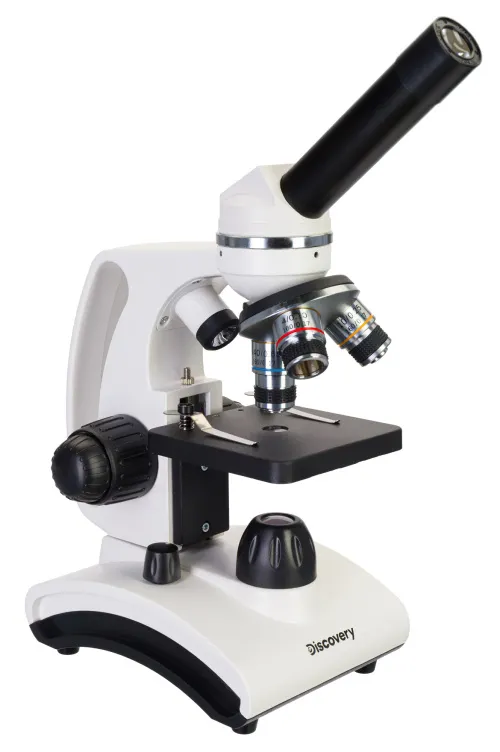

The Levenhuk Discovery Femto Polar is a classic, monocular microscope that enables the examination of the microbial world in transmitted and reflected light with a magnification of 40x-400x. It can show plant and insect cell structure, life in a drop of water, protozoa, and much more. The microscope is an excellent classroom assistant for conducting simple biology experiments. An informative book about the microbial world is included. It makes experiments even more interesting and diverse.

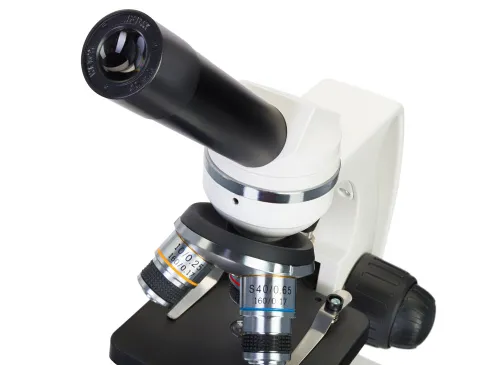

Achromatic optics enable a clear and detailed visualization of specimens. The device’s rotating head comes with three objectives: 4x, 10x, and 40x spring. The wide-field eyepiece provides clear viewing at 10x. The monocular head is inclined at an ergonomic 45° thereby making long periods of observation more comfortable. In addition, the head rotates 360 degrees above the horizontal plane, which is great for group experiments. The microscope doesn’t require moving to share an image with a partner as the head can be turned accordingly. It comes equipped with separate coarse and fine focusing knobs, thereby making the adjustment of the resolution smoother.

The illumination system consists of upper and lower LED illumination with brightness adjustment. The lower light enters through the disc diaphragm which also helps control brightness. The device can be powered by batteries (not included in kit) or plug-in (AC adapter included in kit). The stage comes equipped with clips for fixating slides.

The book entitled "The Invisible World" is a fascinating compliment to the microscope. It reveals the microbial world and scientific experiments. It is written with easy to understand language and vivid illustrations. Historical facts about microscopy and microorganisms are provided as well as experiments that can be conducted in a home setting using the Levenhuk Discovery Femto Polar microscope.

Features:

  • Biological, 40x to 400x magnification.
  • Monocular, rotating head 45° inclined
  • Achromatic objectives, wide-field eyepiece, precise focusing
  • Brightness adjustment, AC or battery powered
  • Stage with clips, metal body
  • Illustrated knowledge book included in kit

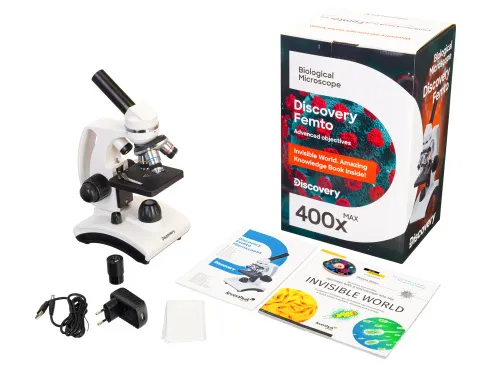

The kit includes:

  • One microscope
  • One eyepiece WF10x
  • Three achromatic objectives 4x, 10x, 40x
  • One AC adapter with power cord
  • One dust cover
  • One illustrated knowledge book, "The Invisible World"
  • User manual and warranty card
Specifications
Product ID 77982
Brand Discovery
Warranty 10 years
EAN 5905555013572
Package size (LxWxH) 35x22x17 cm
Shipping Weight 2.325 kg
Type biological, light/optical
Head monocular
Optics material optical glass
Nozzle 360 ° rotatable
Head inclination angle 45 °
Magnification, x 40 — 400
Eyepiece tube diameter, mm 23.2
Eyepieces WF10x
Objectives achromatic: 4x, 10x, 40xs (spring)
Revolving nosepiece for 3 objectives
Stage, mm 90x90
Stage moving range, mm 0–10, vertical
Stage features with clips
Condenser N.A. 0.65
Diaphragm diaphragm disc (6 apertures)
Focus coaxial, coarse (0.5 mm) and fine (0.002 mm)
Body metal
Illumination LED
Brightness adjustment
Power supply 110–240V, 3 AA batteries (not included)
Power supply: batteries/built-in battery yes
Light source type lower: 0.2W, upper: 0.1W
Operating temperature range, °C 5...+40
User level beginners
Assembly and installation difficulty level easy
Application school/educational
Illumination location dual
Research method bright field
Pouch/case/bag in set dust cover
