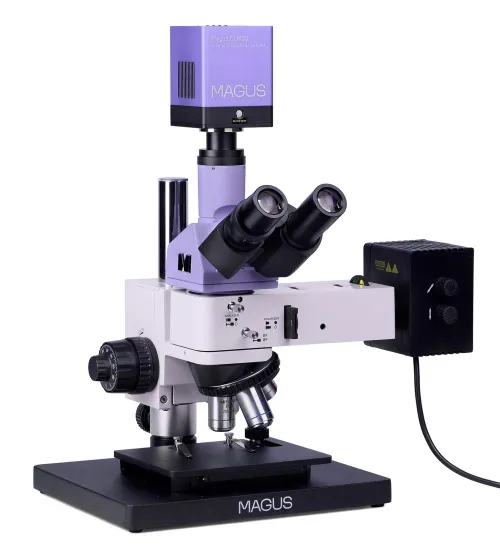

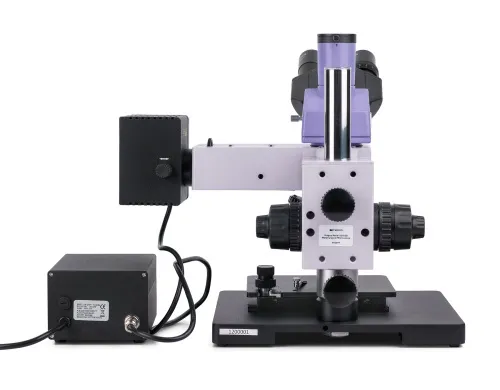

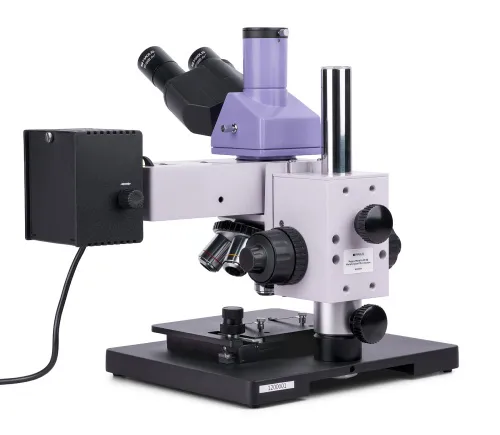

MAGUS Metal D630 BD Metallurgical Digital Microscope
With a camera. Magnification: 50–500х. Compact microscope stand, trinocular head, plan achromatic objectives for brightfield and darkfield microscopy techniques, 50W halogen reflected light illuminator
Product ID | 83030 |
Brand | MAGUS |
Warranty | 5 years |
EAN | 5905555018362 |
Package size (LxWxH) | 39x37x73 cm |
Shipping Weight | 22.3 kg |

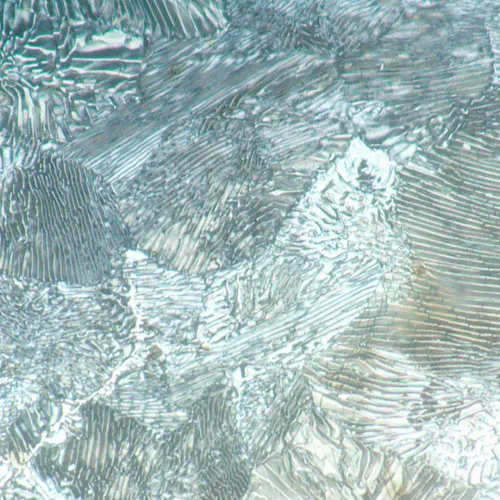

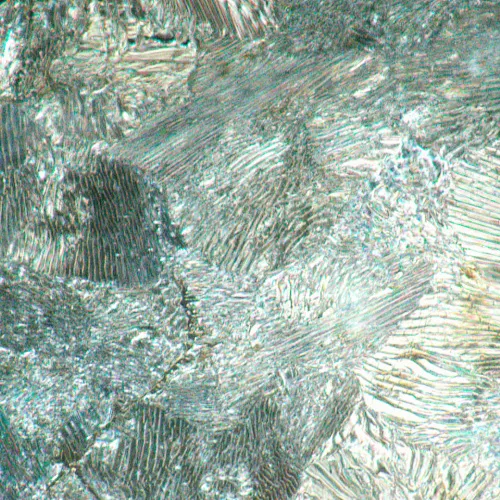

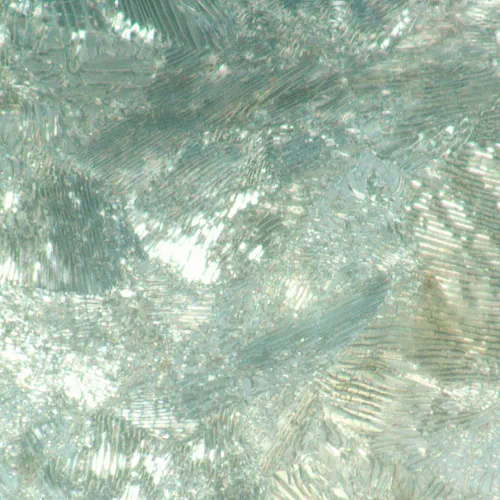

MAGUS Metal D630 BD Metallurgical Digital Microscope for brightfield, darkfield, and polarization microscopy techniques. The powerful halogen illumination produces a quality image with any objective lens and any microscopy method. The microscope is designed for quality control and study of microstructure of metal and semiconductor materials, and opaque objects. It is used to conduct research at production facilities, in the laboratories of research centers, and at university departments.

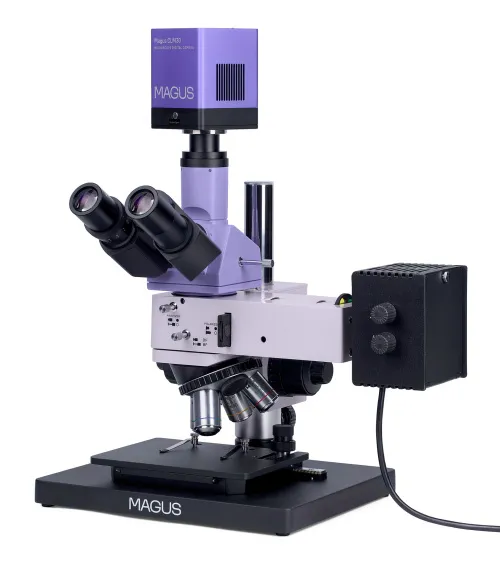

Digital Camera

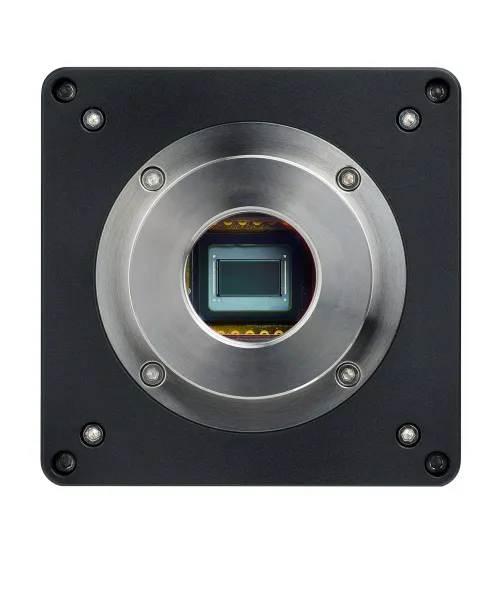

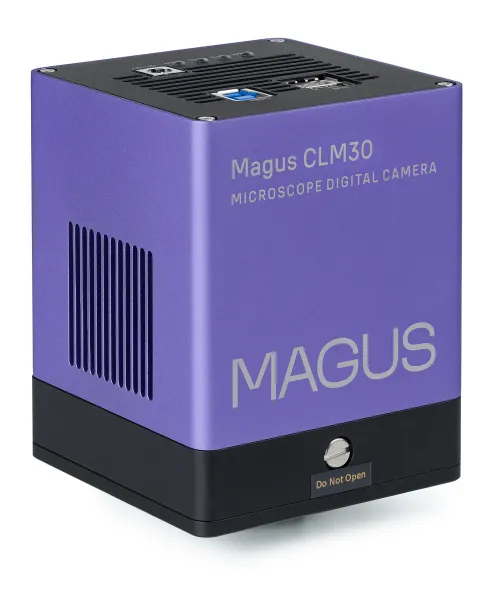

The MAGUS CLM30 digital camera is designed for use in fluorescence and darkfield microscopy techniques.
The camera is equipped with an 8.3MP sensor and produces realistic images at a resolution of 3840x2160px. The camera is recommended for use with 4x, 10x, 20x, and 40x objectives. When working with low magnification objectives, the camera will allow you to see finer details.
Video is recorded at 45fps or 70fps depending on its resolution: They are smooth with soft and subtle transitions between frames. The movement of the sample is displayed in real time with no delays. The camera makes it easy to work with objects that are moving and is suitable for classroom demonstrations.

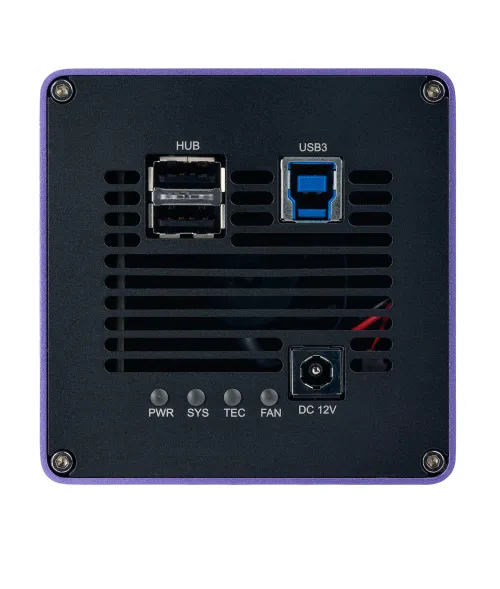

The camera is equipped with a USB3.0 interface. The data transfer speed is 10 times faster than USB2.0 cameras. The high-speed camera is recommended for professional laboratories, research, or university training.
Optics

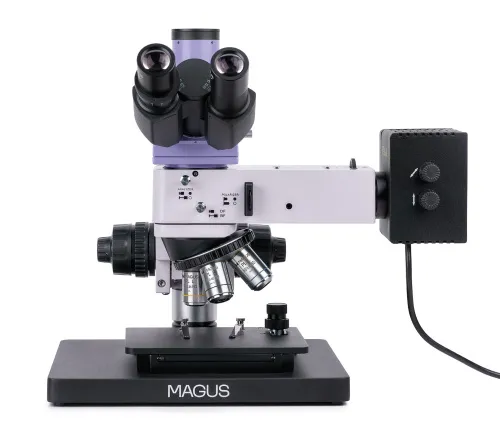

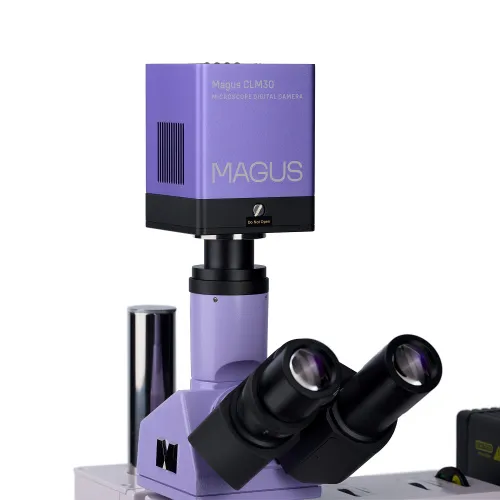

The trinocular head has a trinocular tube into which the digital camera (not included) is mounted. The light beam is directed either to the eyepieces or to the trinocular tube using an eyepiece/camera light path selection knob. The trinocular head is tilted 30° for easy observation. The diopter adjustment ring is located on the left tube.

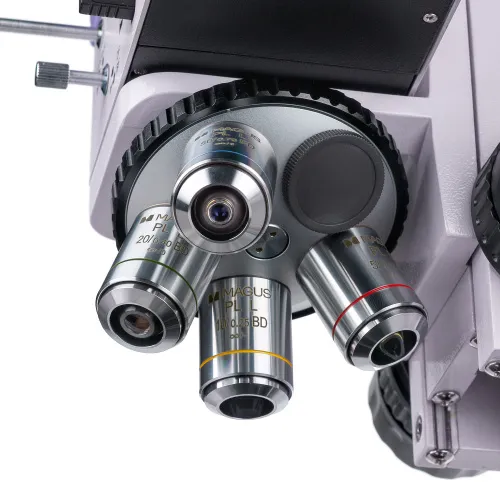

After mounting the supplied objectives in the revolving nosepiece, one slot is left free for an additional objective. All base objectives are plan achromatic, with long working distance and they are suitable for brightfield and darkfield microscopy.

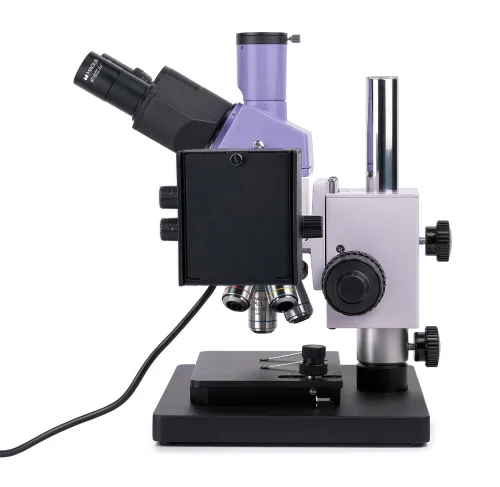

Illumination

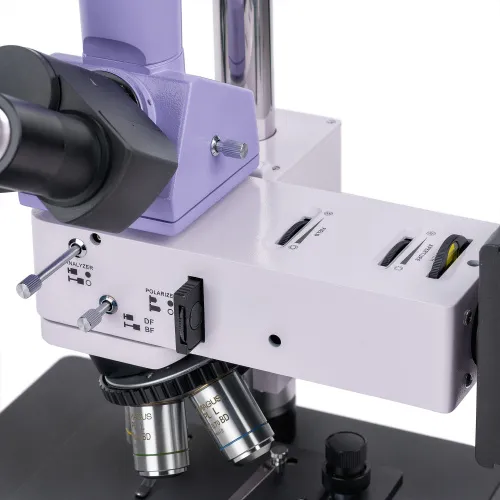

For darkfield observations, the microscope is equipped with a halogen bulb of increased power (50W). In addition, the reflected light illumination system includes: a set of filters, aperture and field diaphragms, a darkfield device, a built-in analyzer, and a removable polarizer. The apertures and the light source can be centered. The Köhler illumination method can be set up.

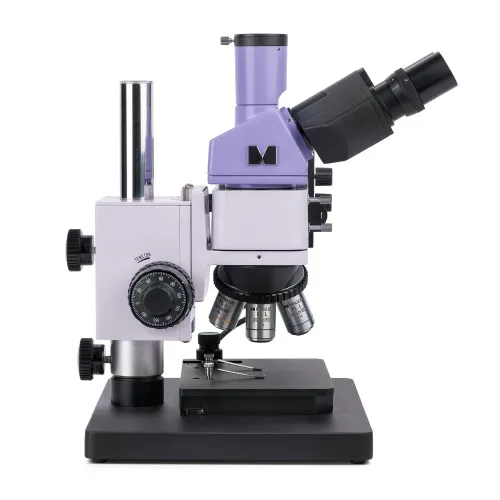

Stage and focusing mechanism

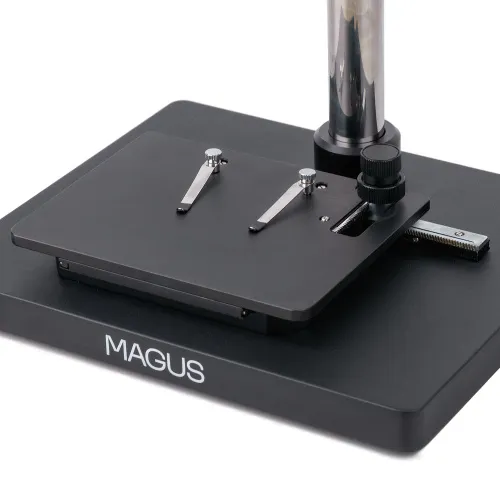

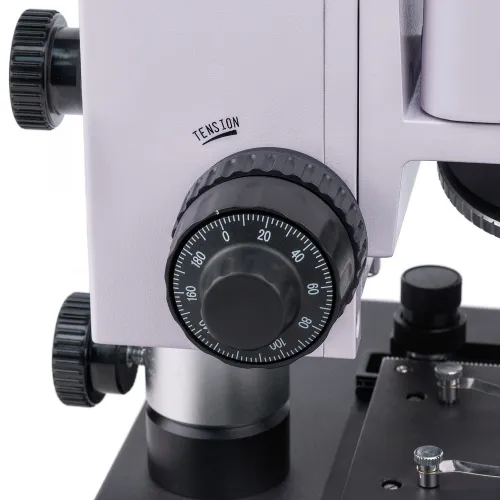

The microscope has an interesting design regarding its stand and focusing mechanism – the sample can be of any size and height. Another feature is its small size – the microscope fits easily on surfaces with a maximum height of 40cm. The coarse and fine focusing knobs are coaxial and located on each side of the microscopy body. Coarse tension adjustment can also be adjusted.
Accessories
Additional accessories for the MAGUS Metal 630 BD microscope can be ordered separately. These include compatible eyepieces, long working distance objectives for brightfield and darkfield, calibration slides, and digital cameras.
Key features of the microscope:
- Suitable for studying opaque specimens of any size and height
- Trinocular head with trinocular tube for mounting a digital camera and a 100/0 and 0/100 beam splitter
- Observations in reflected light using brightfield, darkfield, and polarization microscopy techniques
- The power of the halogen light source has been increased to 50W (suitable for darkfield)
- Field and aperture diaphragms for Köhler illumination as well as a set of colored light filters, centering of both diaphragms and a light source
- Compact stand design for mounting the microscope in small spaces
- A wide range of optional accessories
Key features of the camera:
- For fluorescence and darkfield microscopy with 4x, 10x, 20x, and 40x objectives
- 8.3MP resolution: When observing with low magnification objectives, the camera will allow you to see finer details
- 45fps and 70fps at 3840x2160px and 1920x1080px resolutions for observing moving samples, recording video, and moving the preparation without jerks and delays
- Peltier element reduces the sensor temperature during prolonged operation and eliminates thermal noise. Therefore, long shutter speeds can be used when taking photos
- SONY Exmor color CMOS backlit sensor provides a low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images
- USB3.0 interface for fast, smooth data transfer
- Software with photo, video recording, editing, external display functions, linear and angular measurements

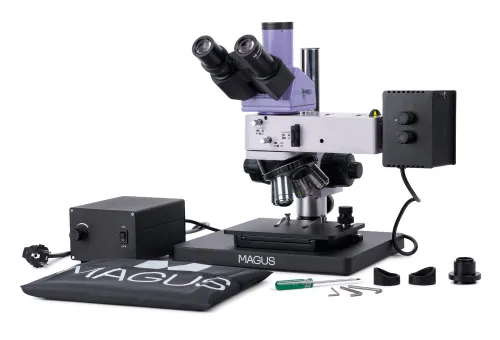

The kit includes:
- The MAGUS CLM30 digital camera (digital camera, USB cable, 12V, 3A adapter, case, Installation CD with drivers and software, user manual and warranty card)
- Stand with focusing mechanism, stage and revolving nosepiece
- Reflected light illuminator with a lamphouse
- Trinocular head
- Infinity plan achromatic objective: PL L5x/0.12 BD WD 9.7mm
- Infinity plan achromatic objective: PL L10x/0.25 BD WD 9.3mm
- Infinity plan achromatic objective: PL L20x/0.40 BD WD 7.2mm
- Infinity plan achromatic objective: PL L50х/0.70 BD WD 2.5mm
- Eyepiece 10x/22mm with long eye relief (2 pcs.)
- C-mount adapter 1x
- Hex key wrench
- Base with a power input
- Power cord
- Reflected light illuminator power cord
- Dust cover
- User manual and warranty card
Available on request:
- 10x/22mm eyepiece with a scale
- 12.5x/14mm eyepiece (2 pcs.)
- 15x/15mm eyepiece (2 pcs.)
- 20x/12mm eyepiece (2 pcs.)
- 25x/9mm eyepiece (2 pcs.)
- Infinity plan achromatic objective: PL L40x/0.60 BD WD 3.0mm
- Infinity plan achromatic objective: PL L60x/0.70 BD WD 1.9mm
- Infinity plan achromatic objective: PL L80x/0.80 BD WD 0.8 mm
- Infinity plan achromatic objective: PL L100х/0.85 (dry) BD WD 0.4mm
- Calibration slide
Product ID | 83030 |
Brand | MAGUS |
Warranty | 5 years |
EAN | 5905555018362 |
Package size (LxWxH) | 39x37x73 cm |
Shipping Weight | 22.3 kg |
Type | light/optical, metallurgical |
Head | trinocular |
Nozzle | Siedentopf |
Head inclination angle | 30 ° |
Magnification, x | 50–500 basic (*optional: 50–1000/1250/1500/2000/2500) |
Eyepiece tube diameter, mm | 30 |
Eyepieces | 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
Objectives | infinity plan achromatic: PL L5x/0.12 BD, PL L10x/0.25 BD, PL L20x/0.40 BD, PL L50x/0.70 BD; parfocal height 45mm (*optional: PL L40x/0.60 BD, PL L60x/0.70 BD, PL L80x/0.80 BD, PL L100x/0.85 BD (dry)) |
Revolving nosepiece | for 5 objectives |
Working distance, mm | 9.7 (5x); 9.3 (10x); 7.2 (20x); 3.0 (40x); 2.5 (50x); 1.9 (60x); 0.80 (80x); 0.40 (100x) |
Interpupillary distance, mm | 48 — 75 |
Stage, mm | 185x140 |
Stage moving range, mm | 35/30 |
Stage features | two-axis mechanical stage; microscope base size: 300x240 mm |
Eyepiece diopter adjustment, diopters | ±5 (on the left tube) |
Diaphragm | built-in aperture and field |
Focus | coaxial, coarse (with coarse focusing tension adjustment) and fine (0.002 mm) |
Illumination | halogen |
Brightness adjustment | ✓ |
Power supply | 220±22V, 50Hz, AC network |
Light source type | 12V/50W |
Light filters | green, blue, yellow, matt |
Operating temperature range, °C | 5...+35 |
Additional | built-in analyzer and removable polarizer, darkfield device |
User level | experienced users, professionals |
Assembly and installation difficulty level | complicated |
Application | metallurgical |
Illumination location | upper |
Research method | bright field, dark field, polarization |
Pouch/case/bag in set | dust cover |
Camera specifications | |
Sensor | SONY Exmor CMOS |
Color/monochrome | color |
Megapixels | 8.3 |
Maximum resolution, pix | 3840x2160 |
Sensor size | 1/1.2'' (11.14x6.26mm) |
Pixel size, μm | 2.9x2.9 |
Two-stage thermoelectric module (Peltier element) to set the temperature 42°C below room temperature | ✓ |
Light sensitivity | 5970mV with 1/30s |
Signal/noise ratio | 0.15mV at 1/30s |
Exposure time | 0.1ms–1h |
Video recording | ✓ |
Frame rate, fps at resolution | 45@3840x2160, 70@1920x1080 |
ADC digit capacity (bit) | 8/12 (selectable) |
Place of installation | trinocular tube |
Image format | *.jpg, *.bmp, *.png, *.tif |
Video format | output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
Spectral range, nm | 380–650 (built-in IR filter) |
Shutter type | ERS (electronic rolling shutter) |
White balance | manual, automatic |
Exposure control | manual, automatic |
Software features | image size, brightness, exposure time |
Software | MAGUS View |
Output | USB 3.0, 5Gb/s |
System requirements | Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display |
Mount type | C-mount |
Body | CNC aluminum alloy |
Camera power supply | DC, 5V, from computer USB port; a 12V, 3A adapter for Peltier element |
Camera operating temperature range, °С | -10...+50 |
Operating humidity range, % | 30 — 80 |
