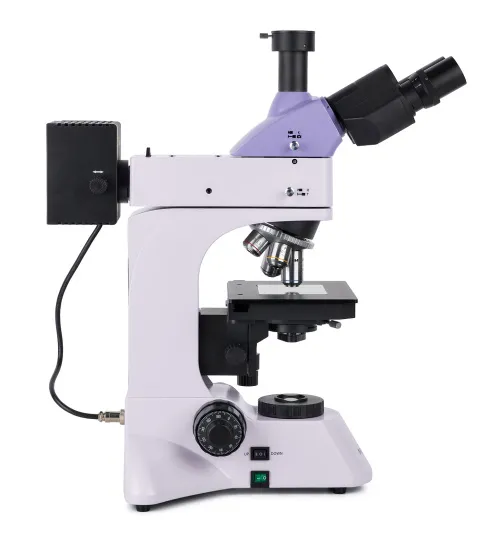

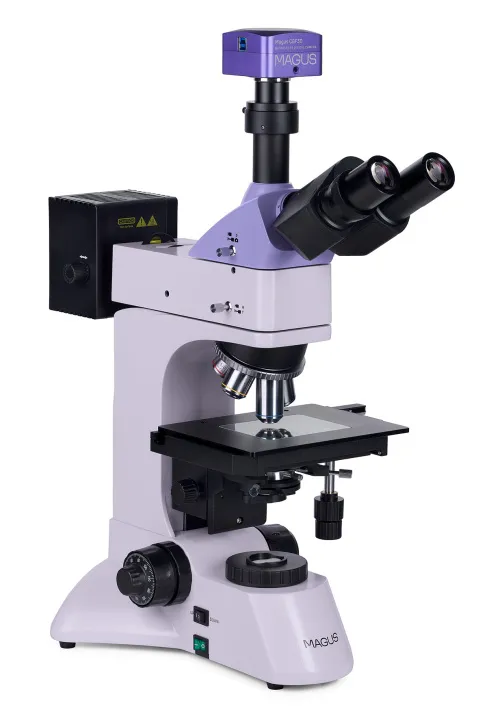

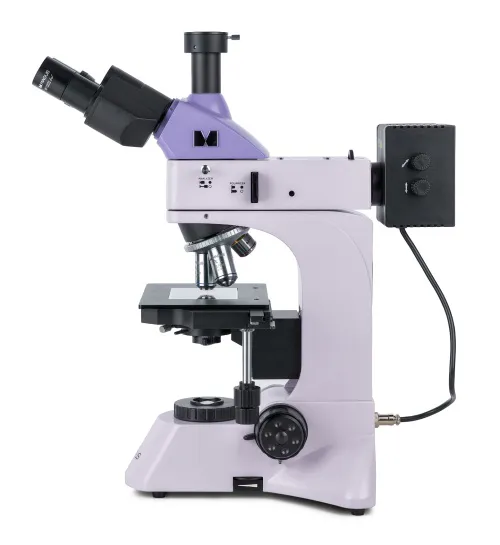

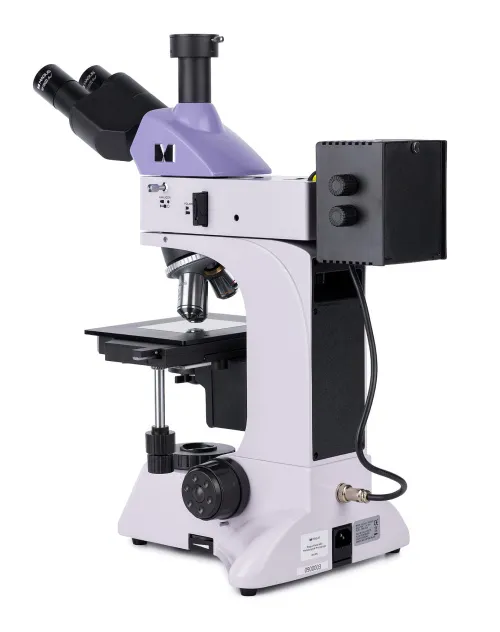

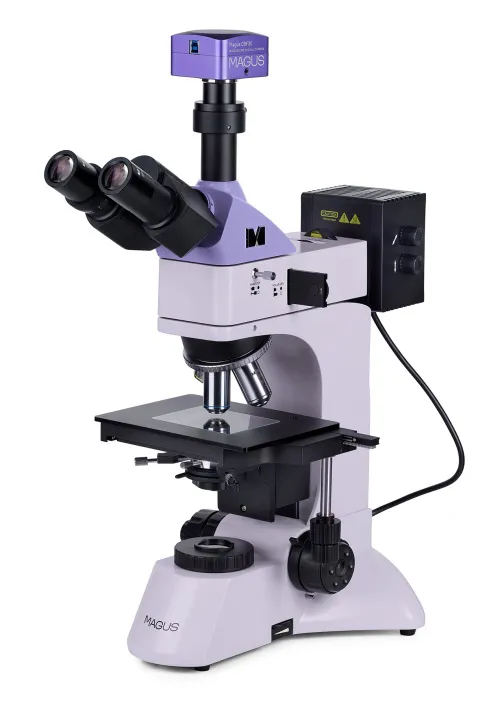

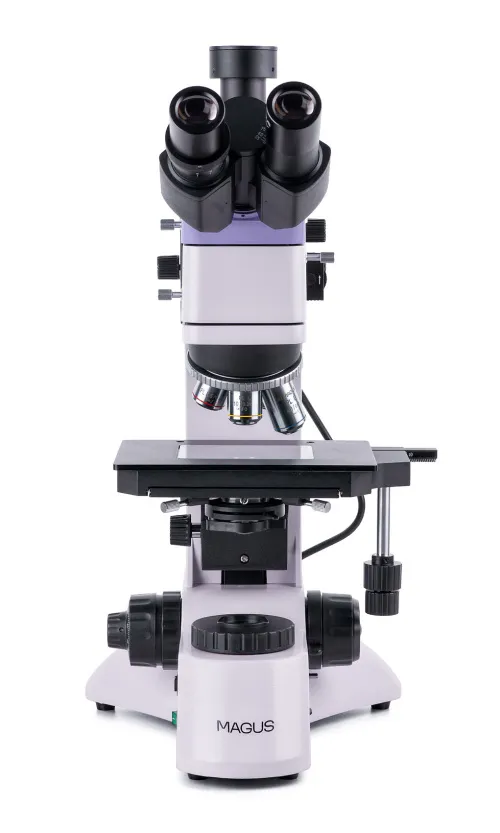

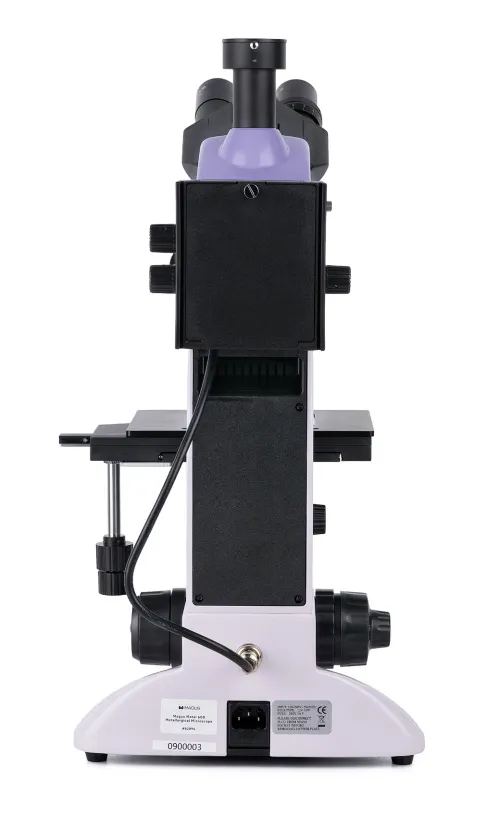

MAGUS Metal D600 Metallurgical Digital Microscope
With a camera. Magnification: 50–600х. Trinocular head, plan achromatic objectives, 30W halogen transmitted and reflected light illumination
Product ID | 83024 |
Brand | MAGUS |
Warranty | 5 years |
EAN | 5905555018270 |
Package size (LxWxH) | 35x30x75 cm |
Shipping Weight | 15.1 kg |

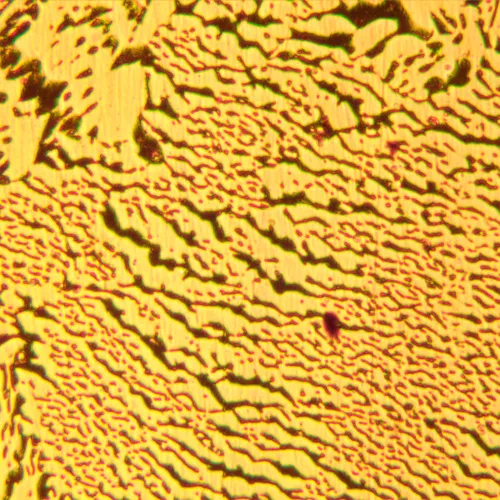

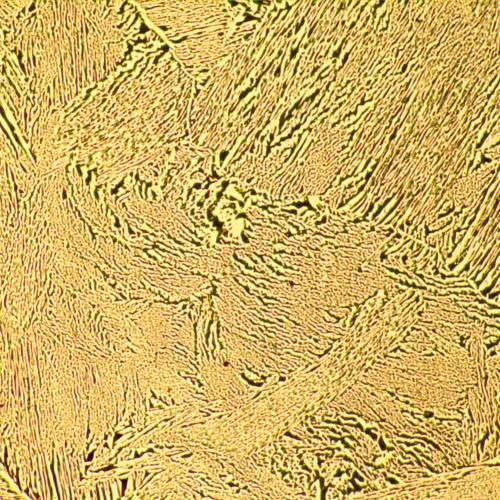

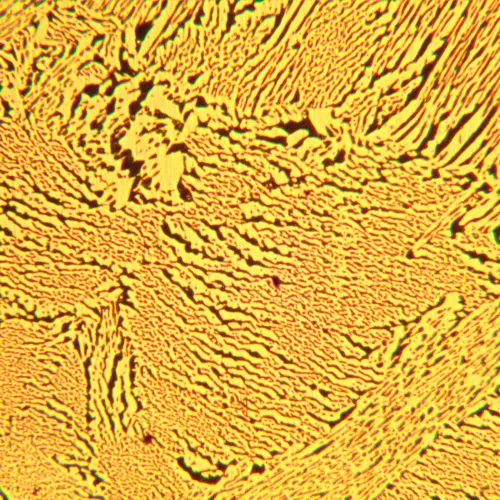

Metallurgical microscope MAGUS Metal 600 is designed for studying opaque samples (metals, alloys, paint coatings, semiconductor and other materials) in reflected light using brightfield and polarization microscopy techniques. You can study the microstructures on flat and polished samples. The transmitted light illuminator also makes it possible to examine the particles trapped on filters and translucent materials (like thin films) under the microscope. The microscope is suitable for the research and analysis conducted by geologists, metallurgists, engineers, archaeologists, and specialists in other fields of science.
Digital Camera

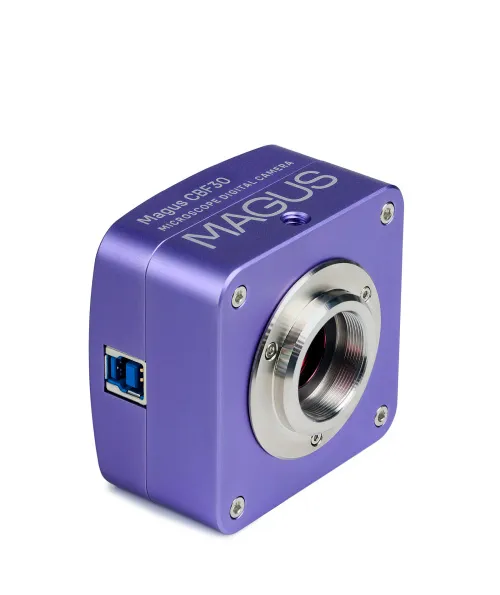

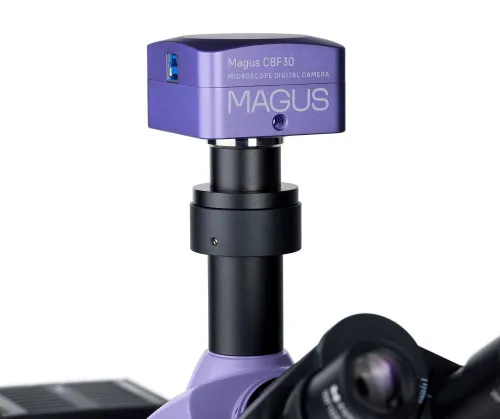

The MAGUS CBF30 Digital Camera enables you to take photographs and shoot video through a microscope, edit the resulting files, organize presentations, and make linear and angular measurements of objects (after correct calibration).
The device is designed to work on microscopes using the brightfield method and 4x, 10x, 20x, and 40x objectives.
The 6.3MP sensor enables you to shoot bright and detailed photos and videos at a maximum resolution of 3072x2048px. If necessary, the resolution can be lowered to 1536x1024px. However, this will not affect the frame rate, which will remain at 59fps, thereby ensuring smooth frame transitions without jerkiness or delays.

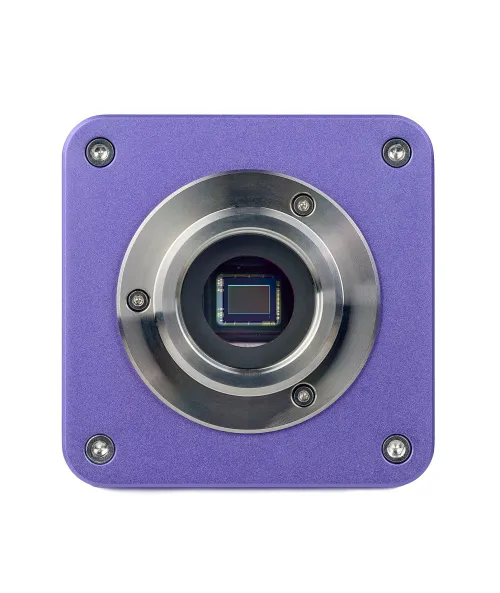

The SONY Exmor backlit color CMOS sensor enables you to use the camera even in low-light conditions. The image will remain readable and bright. Using an adapter with a magnification from 0.5x to 0.75x will provide the clearest possible image without distortion.
Optics

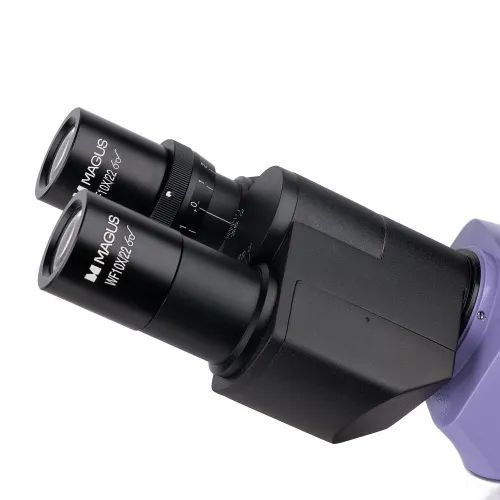

The trinocular head is equipped with a trinocular tube for camera mounting (not included). The light beam can be split in two positions: 100:0 or 0:100, which means you can direct the light beam to either the digital camera or the eyepiece tube. The trinocular head is 30° inclined, which is convenient for long observations. There is a diopter adjustment ring on the left tube.

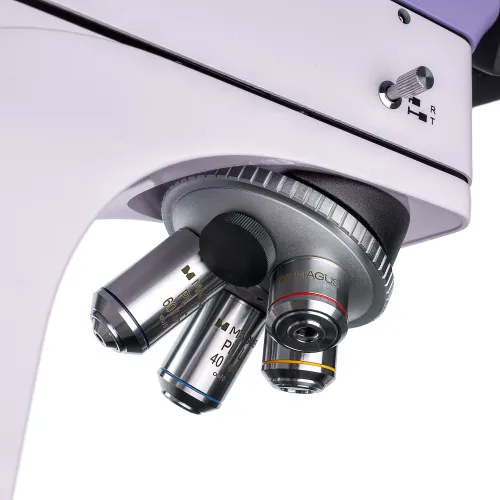

In the basic configuration, the microscope magnification ranges from 50x to 600x. In order to increase the upper magnification limit, you can mount additional eyepieces. The revolving nosepiece with objectives is oriented toward the interior. Five objectives can be mounted at the same time – four of them are included in the kit and one slot is free for installing an additional one. The microscope uses plan achromatic objectives with a long working distance suitable for brightfield microscopy.
Illumination

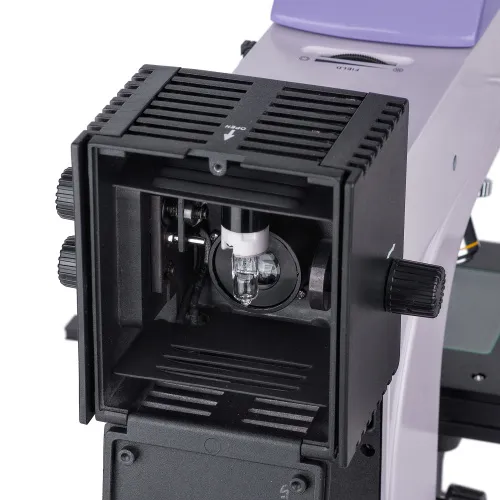

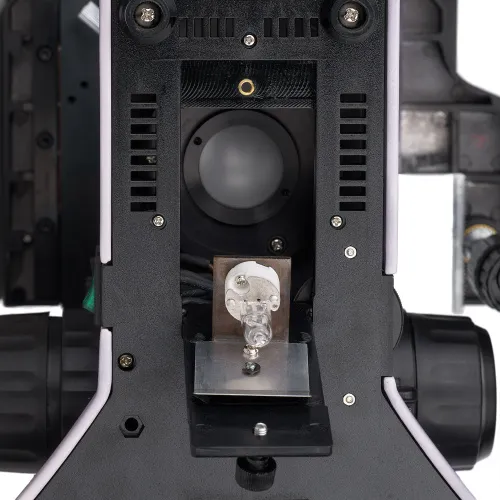

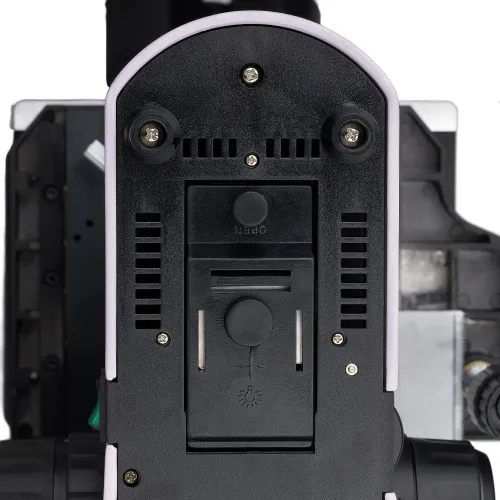

The microscope is equipped with transmitted and reflected light illumination systems. Both use 30W brightness-adjustable halogen bulbs powered by an AC power supply. Halogen bulbs emit light with a color temperature that allows for comfortable work.

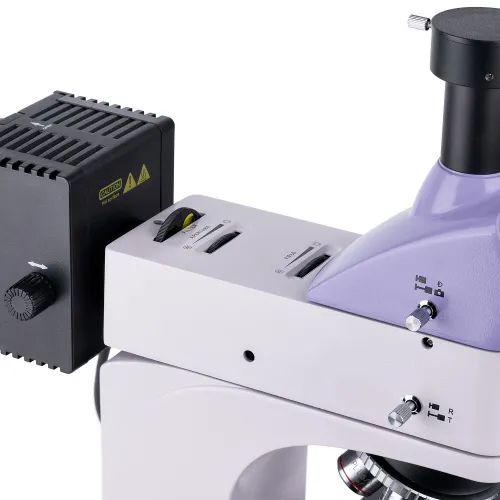

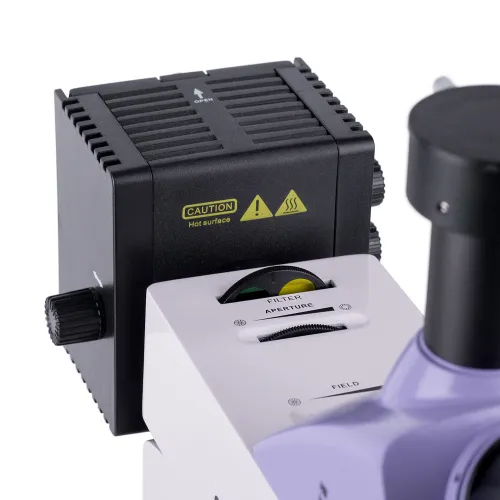

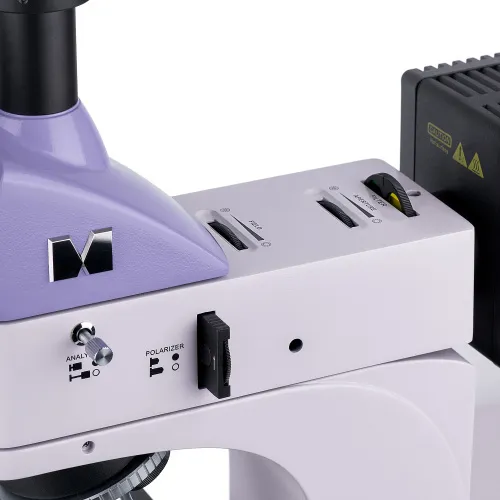

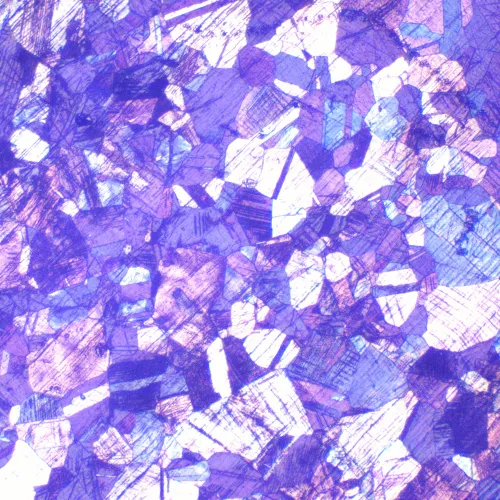

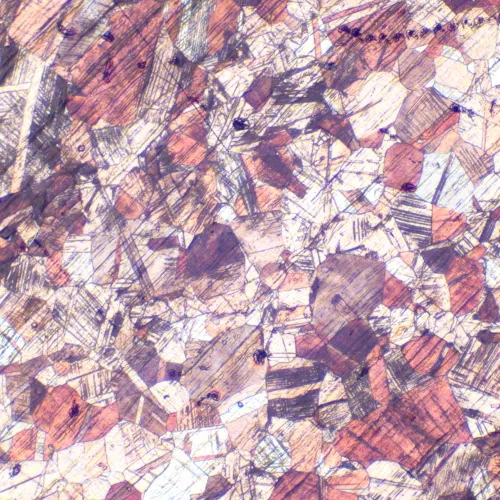

The microscope is equipped with polarization devices for reflected light observations: built-in analyzer and removable polarizer. The aperture and field diaphragms make it possible to set up the Köhler illumination, and there are also color filters included in the kit. The apertures and the reflected light source can be centered.

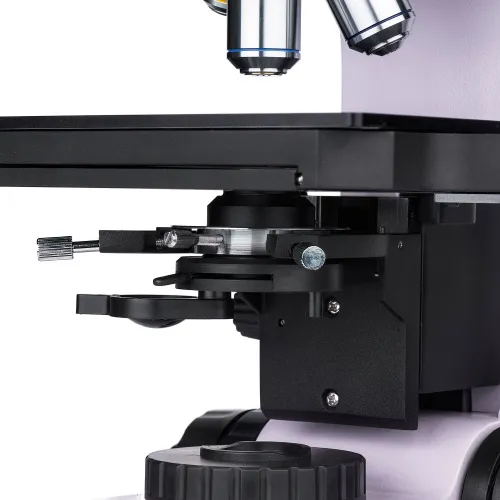

The transmitted light illumination system uses a traditional Abbe condenser, the position of which can be adjusted in two ways: centered and adjusted in height. It is complemented by a flip-up lens for use with low magnification objectives. There are aperture and field diaphragms, i.e., you can use the Köhler illumination method.
Stage and focusing mechanism

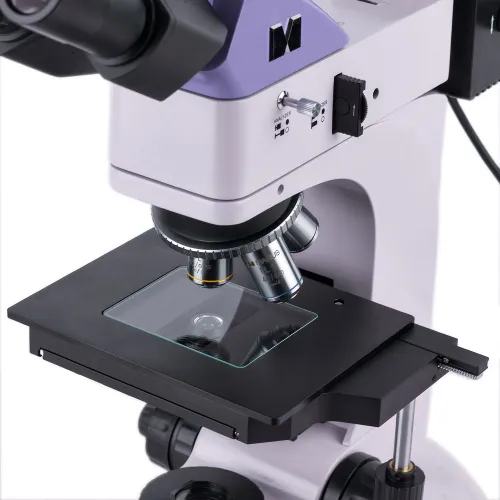

The maximum height of the specimen that can be put on the stage is 20mm. The specimen is moved by moving the stage along the two axes. It is complemented by a glass plate that is used for working with opaque specimens.

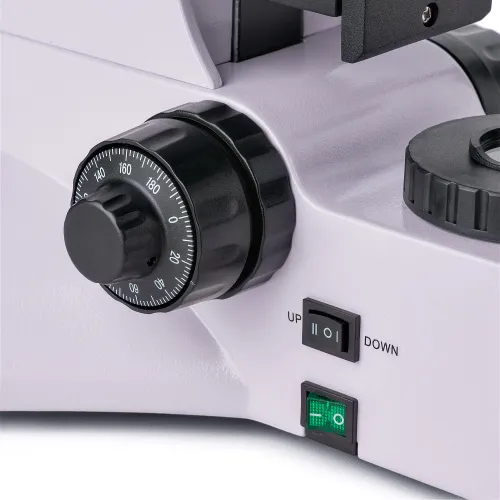

Coarse and fine focusing mechanisms are used for focus adjustment. Focusing is smooth and precise. The coarse focusing has a lock knob and tension adjustment. The focusing knobs are coaxially positioned on both sides so that you do not have to hold your hands in the air while working; instead, you can place them on the table.
Accessories
The MAGUS Metal 600 microscope can be further equipped with additional eyepieces, long working distance objectives, digital cameras, and calibration slides.
Key features of the microscope:
- Microscope for studying opaque flat and polished samples in reflected light and translucent samples in transmitted light
- Trinocular head with a trinocular tube and a beam splitter
- Transmitted and reflected light source: 30W halogen bulb
- Köhler illumination method in transmitted and reflected light, polarization microscopy technique in reflected light
- Elements (diaphragms and light sources) of the reflected light illumination system that can be centered, set of filters
- Abbe condenser with flip-up lens that is used with low magnification objectives
- Wide range of additional objectives and eyepieces
Key features of the camera:
- Recommended for use with low magnification objectives
- Color light-sensitive sensor for clear images even in low light conditions
- Frame rate of 59fps, which is enough for the observation of moving objects or fast-moving processes
- The kit includes software that fully ensures the functionality of all the camera features and, consequently, a “quick start”
- Reliable USB3.0 interface for high data transfer speeds
- Resolution adjustment so that you can choose the option that suits you the best at any given moment

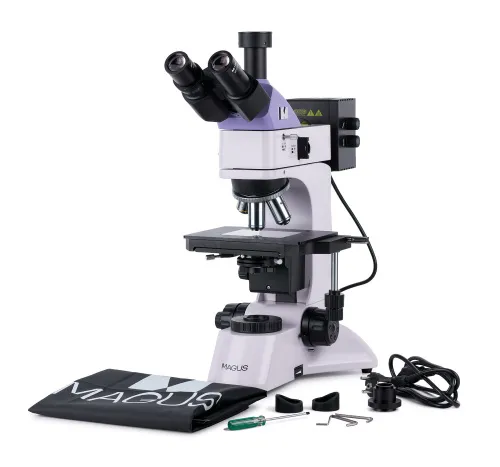

The kit includes:
- MAGUS CBF30 Digital Camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
- Base with a power input, transmitted light source and condenser, focusing mechanism, stage and revolving nosepiece
- Reflected light illuminator with a lamphouse
- Trinocular head
- Infinity plan achromatic objective: PL L5x/0.12 WD 26.1mm
- Infinity plan achromatic objective: PL L10х/0.25 WD 20.2mm
- Infinity plan achromatic objective: PL L40х/0.60 WD: 3.98mm
- Infinity plan achromatic objective: PL L60x/0.70 WD: 2.08mm
- Eyepiece 10x/22mm with long eye relief (2 pcs.)
- Glass stage plate
- C-mount adapter 1x
- Hex key wrench
- AC power cord
- Reflected light illuminator power cord
- Dust cover
- User manual and warranty card
Available on request:
- 10x/22mm eyepiece with a scale
- 12.5x/14mm eyepiece (2 pcs.)
- 15x/15mm eyepiece (2 pcs.)
- 20x/12mm eyepiece (2 pcs.)
- 25x/9mm eyepiece (2 pcs.)
- Infinity plan achromatic objective: PL L20х/0.40 WD 8.80mm
- Infinity plan achromatic objective: PL L50х/0.70 WD 3.68mm
- Infinity plan achromatic objective: PL L80x/0.80 WD: 1.25mm
- Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40mm
- Calibration slide
Product ID | 83024 |
Brand | MAGUS |
Warranty | 5 years |
EAN | 5905555018270 |
Package size (LxWxH) | 35x30x75 cm |
Shipping Weight | 15.1 kg |
Microscope specifications | |
Type | light/optical, digital, metallurgical |
Head | trinocular |
Nozzle | Siedentopf |
Head inclination angle | 30 ° |
Magnification, x | 50–600 basic (*optional: 50–1000/1250/1500/2000/2500) |
Eyepiece tube diameter, mm | 30 |
Eyepieces | 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
Objectives | infinity plan achromatic: PL L5x/0.12, PL L10x/0.25, PL L40x/0.60, PL L60x/0.70; parfocal distance 45mm (*optional: PL L20x/0.40, PL L50x/0.70, PL L80x/0.80, PL L100x/0.85 (dry)) |
Revolving nosepiece | for 5 objectives |
Working distance, mm | 26.1 (5x); 20.2 (10x); 3.98 (40x); 2.08 (60x); 8.80 (20x); 3.68 (50x); 1.25 (80x); 0.40 (100x) |
Interpupillary distance, mm | 48 — 75 |
Stage, mm | 210x140 |
Stage moving range, mm | 75/50 |
Stage features | two-axis mechanical stage, with a glass plate |
Eyepiece diopter adjustment, diopters | ±5 (on the left tube) |
Condenser | transmitted light: center-adjustable and height-adjustable Abbe condenser, NA 1.25, adjustable aperture diaphragm and flip-down lens, with locking screws |
Focus | coaxial, coarse focusing (25mm, with a lock knob and tension adjusting knob) and fine focusing (0.002mm) |
Illumination | halogen |
Brightness adjustment | ✓ |
Power supply | 220±22V, 50Hz, AC network |
Light source type | reflected and transmitted light: 12V/30W |
Light filters | green, blue, yellow, matt |
Operating temperature range, °C | 5...+35 |
Additional | built-in analyzer and removable polarizer |
User level | experienced users, professionals |
Assembly and installation difficulty level | complicated |
Application | metallurgical |
Illumination location | dual |
Research method | bright field, polarization |
Pouch/case/bag in set | dust cover |
Weight, kg | 11 |
Camera specifications | |
Sensor | SONY Exmor CMOS |
Color/monochrome | color |
Megapixels | 6.3 |
Maximum resolution, pix | 3072x2048 |
Sensor size | 1/1.8" (7.37x4.92mm) |
Pixel size, μm | 2.4x2.4 |
Light sensitivity | 425mV at 1/30s |
Signal/noise ratio | 0.15mV at 1/30s |
Exposure time | 0.02ms–15s |
Video recording | ✓ |
Video recording | yes |
Frame rate, fps at resolution | 59@3072x2048, 59@1536x1024 |
Place of installation | trinocular tube, eyepiece tube instead of an eyepiece |
Image format | *.jpg, *.bmp, *.png, *.tif |
Video format | output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
Spectral range, nm | 380–650 (built-in IR filter) |
Shutter type | ERS (electronic rolling shutter) |
White balance | manual, automatic |
Exposure control | manual, automatic |
Software features | image size, brightness, exposure time |
Software | MAGUS View |
Output | USB 3.0, 5Gb/s |
System requirements | Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display |
Mount type | C-mount |
Body | solid aluminum |
Camera power supply | DC, 5V, from computer USB port; a 12V, 3A adapter for Peltier element |
Camera operating temperature range, °С | -10...+50 |
Operating humidity range, % | 30 — 80 |
