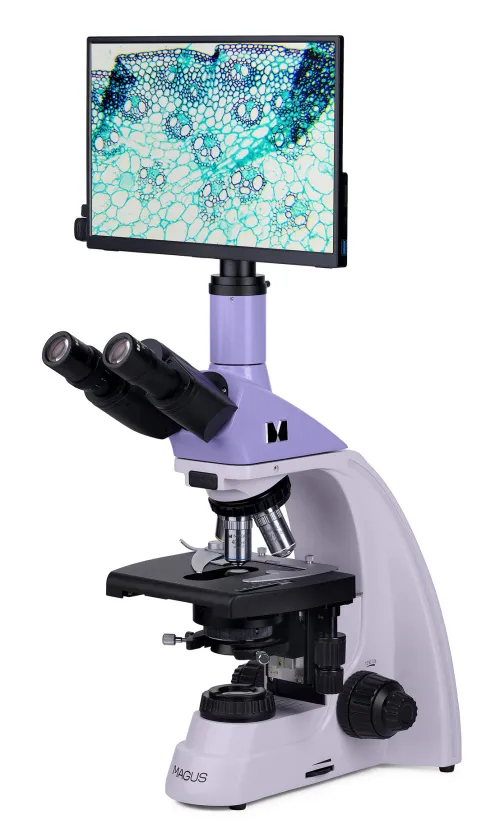

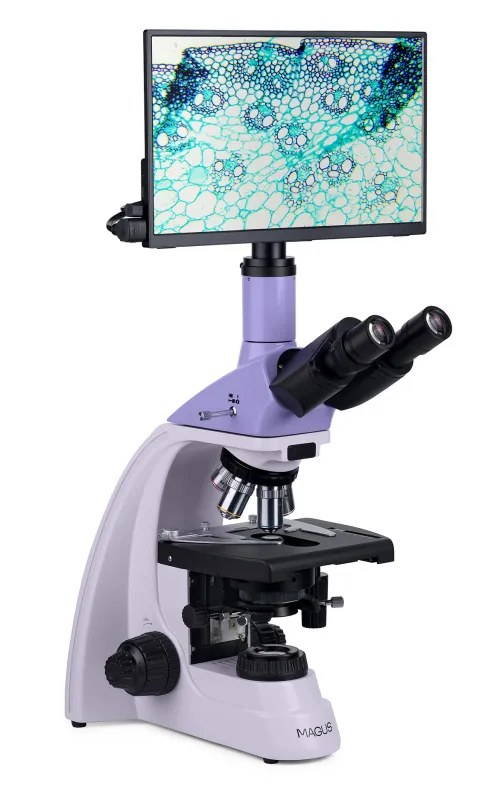

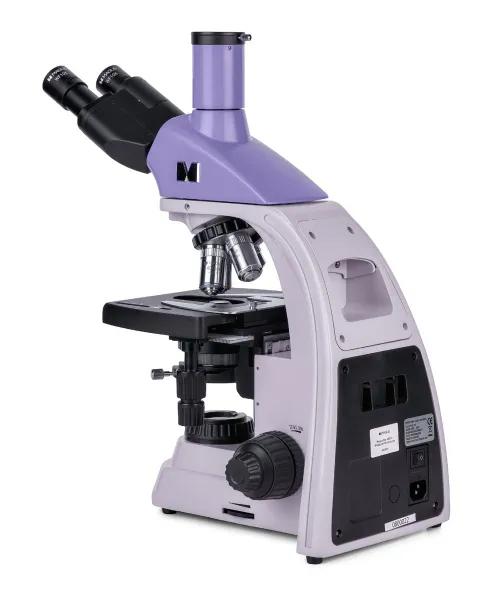

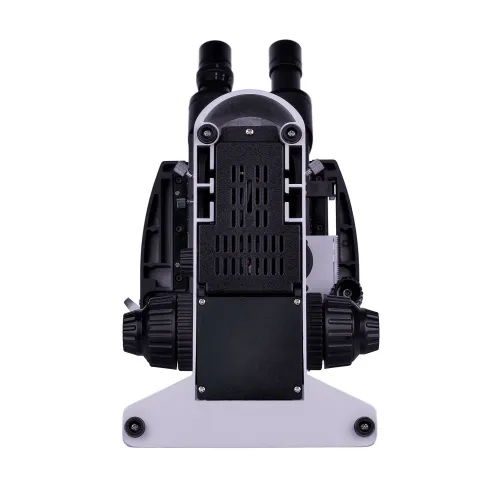

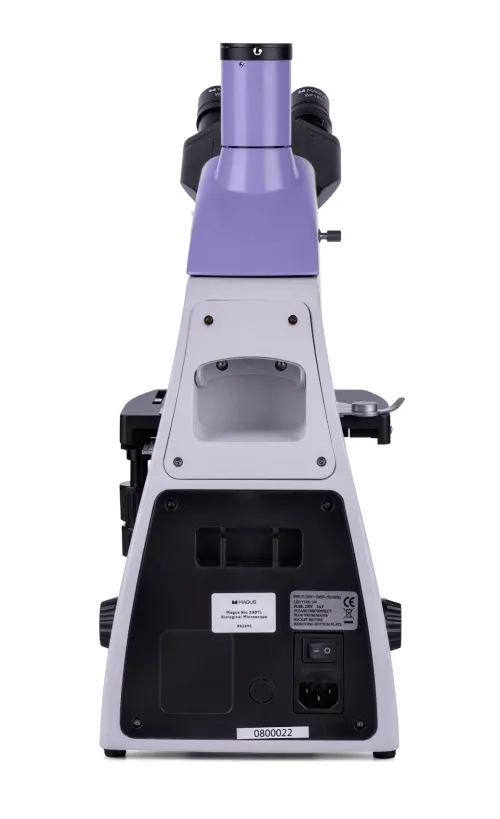

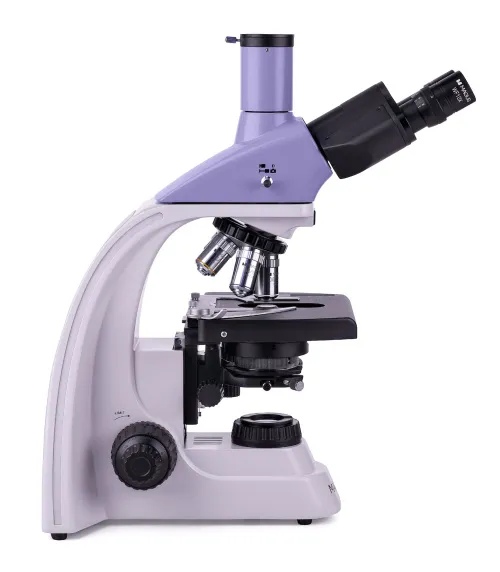

MAGUS Bio D230TL LCD Biological Digital Microscope
With a camera and monitor. Magnification: 40–1000x. Trinocular head, achromatic objectives, 3W LED
Product ID | 83007 |
Brand | MAGUS |
Warranty | 5 years |
EAN | 5905555017990 |
Package size (LxWxH) | 43x27x63 cm |
Shipping Weight | 12.65 kg |

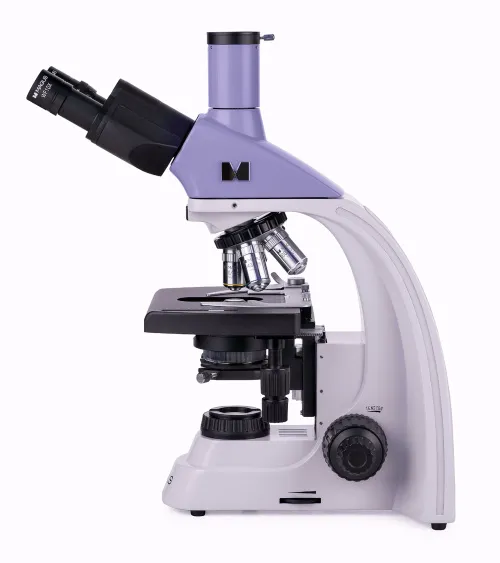

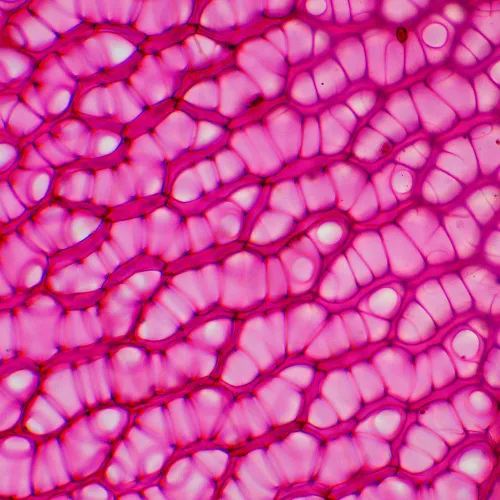

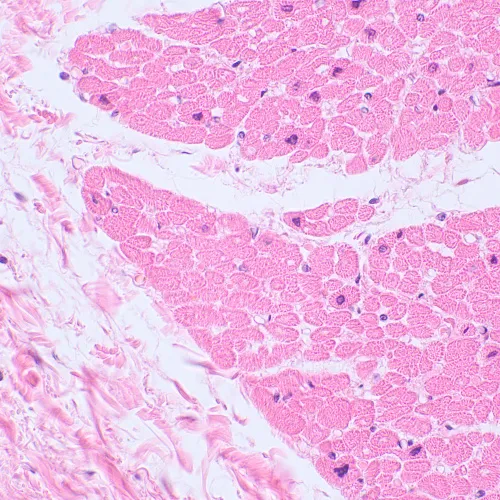

The MAGUS Bio 230TL biological microscope is an essential tool in a sanitary control laboratory as well as a diagnostic or research center. The microscope has a trinocular head and a transmitted light source (LED), and it is suitable for observing translucent and transparent samples. In the basic configuration, the brightfield technique is used for observations. With additional accessories, microscopy techniques, such as darkfield, polarized light, and phase contrast, are available for further research.
Digital camera

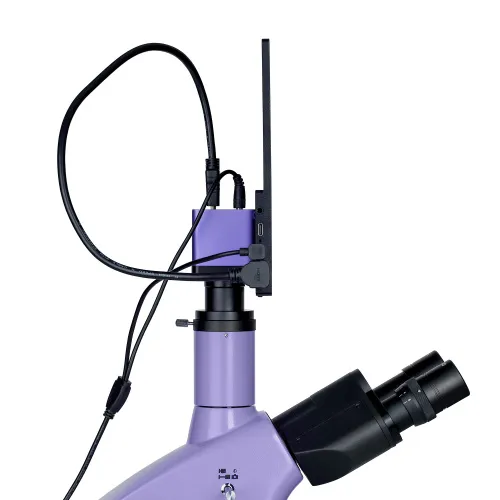

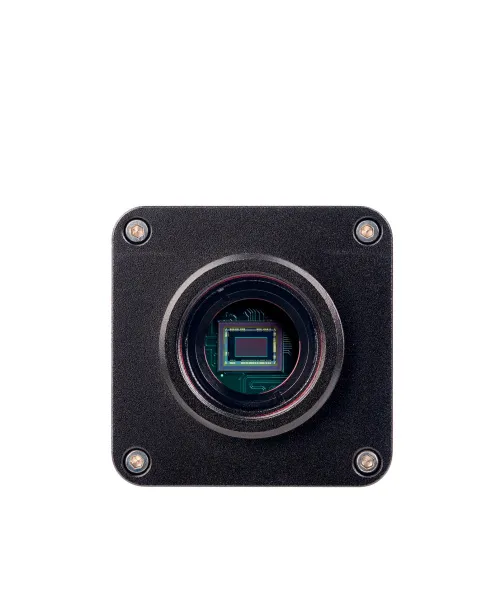

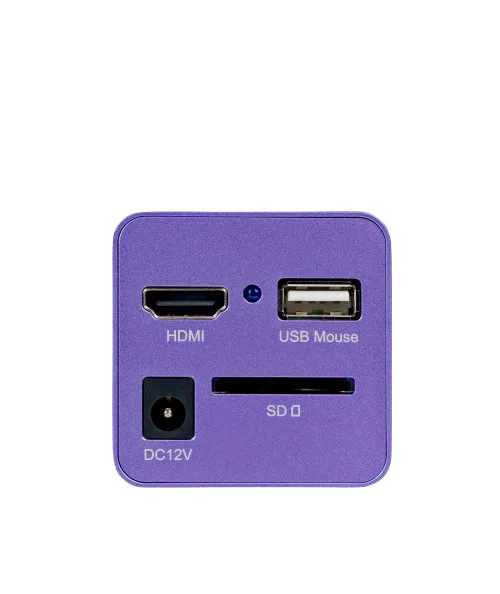

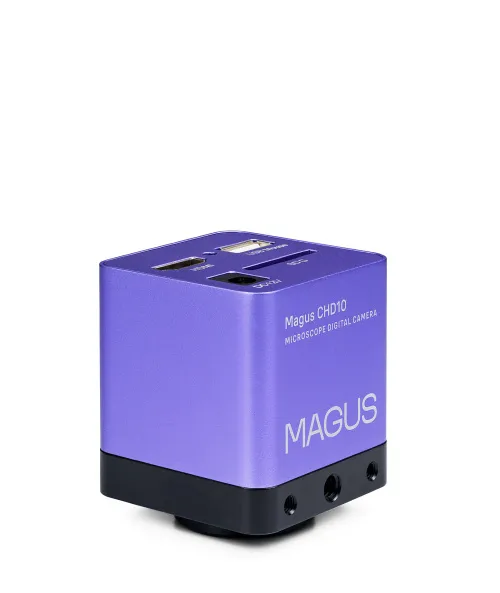

The digital HDMI-camera MAGUS CHD10 is equipped with a 2MP sensor and produces realistic Full HD images at a resolution of 1920x1080px. It is an autonomous camera that does not require connection to a computer or the installation of additional software. The camera can be connected directly to a TV, monitor, or projector to display an image. The HDMI interface provides a high and stable transfer rate from the camera to the external screen. Video is recorded at 60fps. The camera combines high FPS and high bandwidth HDMI. Therefore, videos are vivid, with no freezes or gaps between frames. At maximum resolution, the image is well-detailed, moving objects are visible without bugs, and object movement is displayed without delays.
Monitor

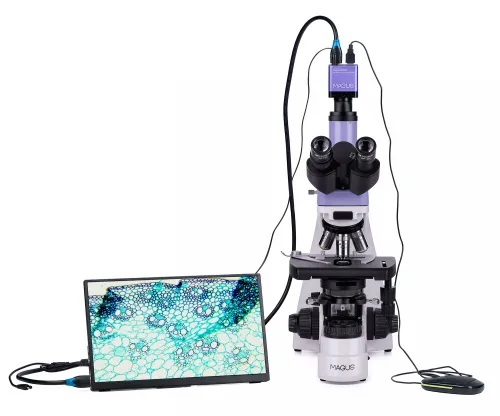

MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.

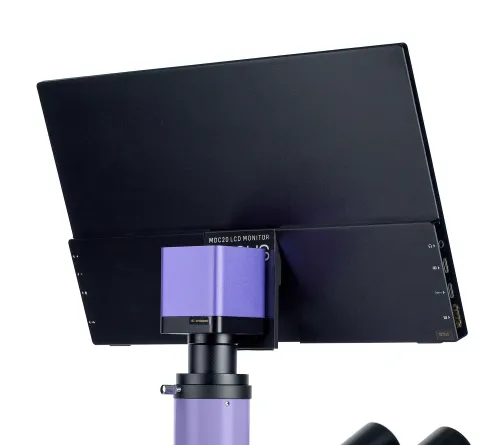

The connection to the camera occurs via its HDMI interface. The monitor displays real-time images. Its IPS LCD display has a wide viewing angle, high brightness, and good contrast. When looking at the screen even from a large angle, the image is not distorted. The screen size is 13.3''.

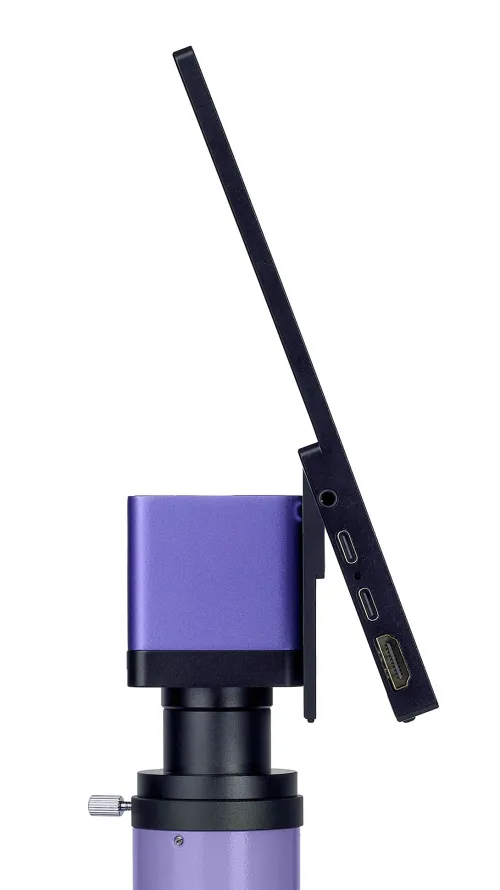

The monitor can be installed on a horizontal surface using a folding stand or mounted directly on a camera or tripod.
Optics

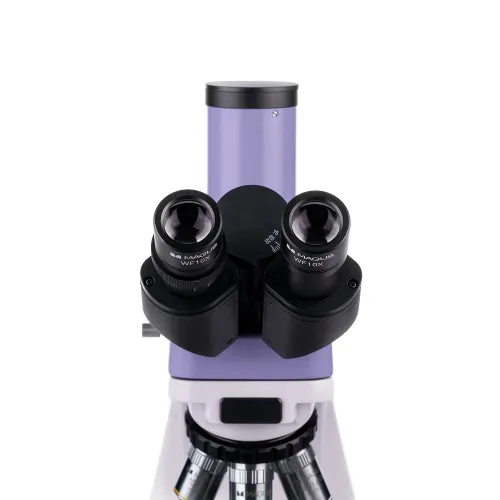

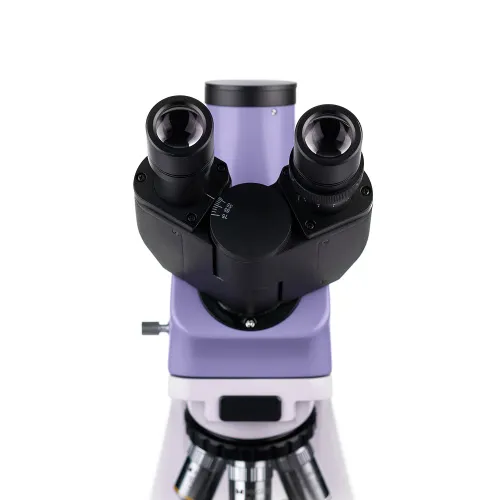

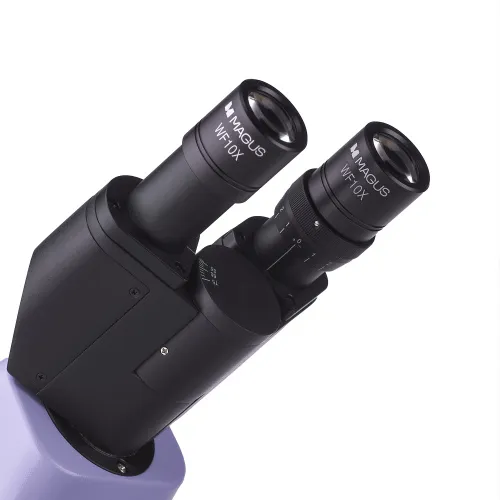

The observation tubes can rotate 360°, which enables you to adjust the eyepieces to fit the height of the observer. It is possible to adjust the diopter settings for the left tube. There is a vertical tube for mounting a digital camera (not included).

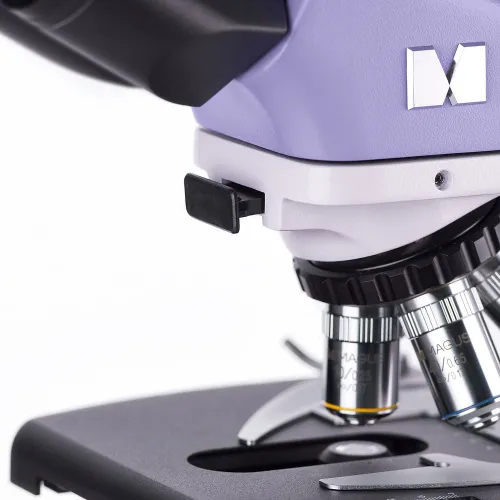

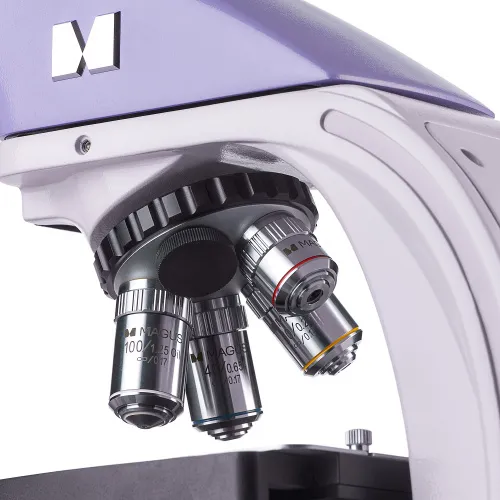

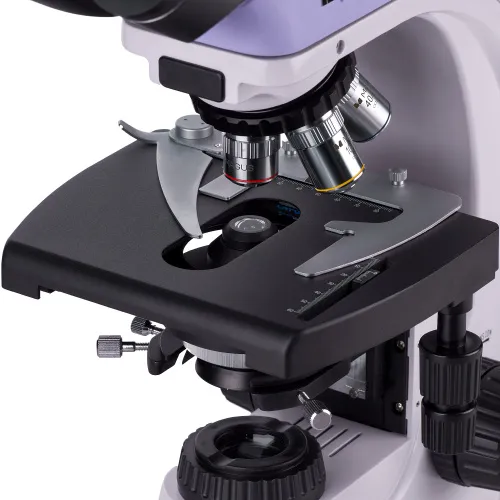

The microscope uses infinity achromatic objectives, and 5 objectives can be mounted simultaneously into the nosepiece. One slot is left free for adding an additional objective. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objectives inserted into the optical path. The magnification range of the microscope is 40 to 1000x, the upper limit can be increased up to 1500, 1600, or 2000x with additional eyepieces.
Illumination
Thanks to the LED bulb, the color temperature does not change when adjusting the illumination. The LED bulb is 3W with a lifespan of 50,000 hours, and it is powered by the AC power supply.

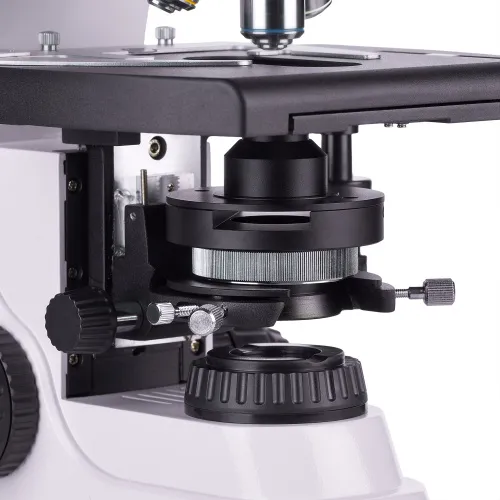

The Abbe condenser has a slot for a darkfield or phase slider. With sliders, switching between microscopy techniques is much faster. The microscope is also equipped with a field diaphragm for setting up the Köhler illumination. The condenser is height-adjustable and can be centered.
Stage and focusing mechanism

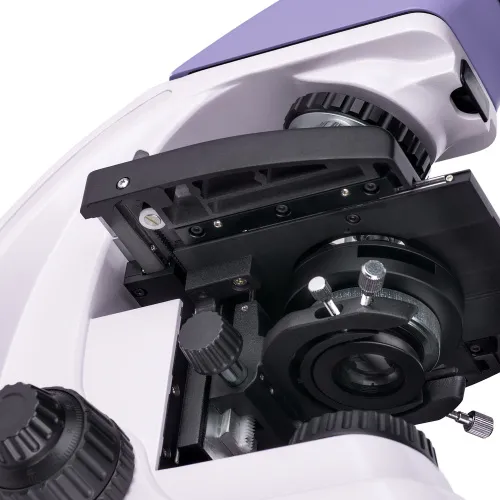

The movement of the specimen is smooth and accurate. The mechanical attachment can be removed from the stage if needed (e.g., manual scanning). Moreover, a stage without a positioning rack is easier to work with.

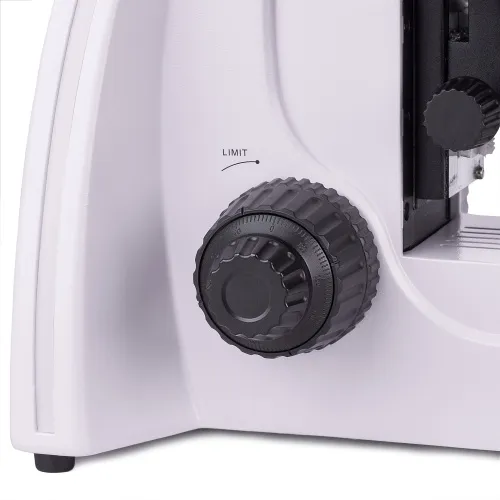

The focusing knobs are coaxial and located on each side of the microscope so that the user can place their hands freely on the table. There are fine and coarse focusing knobs. The mechanisms move smoothly and, therefore, no further effort is required. There is a coarse focusing tension adjusting knob and a coarse focusing lock knob.
Accessories
Optional accessories expand the capabilities of the MAGUS Bio D230TL LCD microscope depending on specific applications. These include eyepieces, objectives, dark field and phase contrast condensers, polarization devices, digital cameras, calibration slides, etc.
Key features of the microscope:
- Trinocular head with a vertical tube for camera, 360° rotation, diopter adjustment on the left tube
- Revolver for 5 objectives, infinity achromatic objectives
- Observations in transmitted light, light source – 3W LED lasts a long time
- Coaxial coarse and fine focusing knobs, coarse focusing tension adjusting knob, coarse focusing lock knob
- The condenser with a slot for a phase or darkfield slider
- Option to install additional accessories
Key features of the camera:
- The camera operates autonomously without a connection to a PC or the installation of any software
- HDMI interface for high and stable data transfer rate
- The camera resolution is 1920x1080px – an ideal choice for displaying images on a Full HD monitor
- 60 fps for observing moving samples, recording video, and moving the sample without jerkiness or delays
- SONY Starvis color CMOS backlit sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images
- Software with photo, video recording, editing, external display, linear and angular measurements

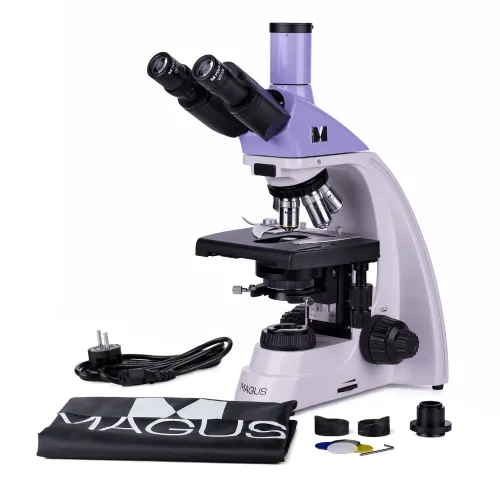

The kit includes:
- MAGUS CHD10 Digital Camera (digital camera, HDMI cable (1.5m), USB mouse, 32GB SD memory card, AC power adapter 12V/1A (Euro), user manual and warranty card)
- MAGUS MCD20 LCD Monitor
- Base with a power input, transmitted light source, focusing mechanism, stage, condenser mount, and revolving nosepiece
- Abbe condenser
- Trinocular head
- Infinity achromatic objective: 4x/0.10
- Infinity achromatic objective: 10x/0.25
- Infinity achromatic objective: 40x/0.65 (spring-loaded)
- Infinity achromatic objective: 100x/1.25 oil (spring-loaded)
- Eyepiece 10x/18mm with a long eye relief (2 pcs.)
- Eyecup (2 pcs.)
- Filter (4 pcs.)
- C-mount camera adapter
- Bottle of the immersion oil
- AC power cord
- Dust cover
- User manual and warranty card
Available on request:
- 10x/20mm eyepiece with scale
- 15x/11mm eyepiece (2 pcs.)
- 16x/11mm eyepiece (2 pcs.)
- 20x/11mm eyepiece (2 pcs.)
- Infinity achromatic objective: 20x/0.40
- Infinity plan achromatic objective: 20х/0.40
- Infinity plan achromatic objective: 60x/0.80 (spring-loaded)
- Phase-contrast device
- Phase slider
- Darkfield condenser NA 0.9
- Oil darkfield condenser NA 1.36–1.25
- Darkfield slider
- Polarization devices
- Calibration slide
Product ID | 83007 |
Brand | MAGUS |
Warranty | 5 years |
EAN | 5905555017990 |
Package size (LxWxH) | 43x27x63 cm |
Shipping Weight | 12.65 kg |
Microscope specifications | |
Type | biological, light/optical, digital |
Head | trinocular |
Nozzle | Gemel head (Siedentopf, 360° rotation) |
Head inclination angle | 30 ° |
Magnification, x | 40–1000 basic configuration (*optional: 40–1500/1600/2000) |
Eyepiece tube diameter, mm | 23.2 |
Eyepieces | 10х/18mm, eye relief: 10mm (*optional: 10х/20mm with a scale, 15x/11mm, 16x/11mm; 20x/11mm) |
Objectives | infinity achromatic: 4x/0.10; 10x/0.25; 40xs/0.65; 100xs/1.25 (oil); parfocal distance 45mm (*optional: 20x/0.40; 60xs/0.80) |
Revolving nosepiece | for 5 objectives |
Working distance, mm | 18.89 (4x); 5.95 (10x); 0.775 (40xs); 0.36 (100xs); 2.61/8.80 (20x); 0.46 (60хs) |
Interpupillary distance, mm | 48 — 75 |
Stage, mm | 180x150 |
Stage moving range, mm | 75/50 |
Stage features | two-axis mechanical stage, without a positioning rack |
Eyepiece diopter adjustment, diopters | ±5 (on the left tube) |
Condenser | Abbe condenser, N.A. 1.25, center-adjustable, height-adjustable, adjustable aperture diaphragm, a slot for a darkfield slider and phase contrast slider, dovetail mount |
Diaphragm | adjustable aperture diaphragm, adjustable iris field diaphragm |
Focus | coaxial, coarse focusing (21mm, 39.8mm/circle, with a lock knob and tension adjusting knob) and fine focusing (0.002mm) |
Illumination | LED |
Brightness adjustment | ✓ |
Power supply | 220±22V, 50Hz, AC network |
Light source type | 3W LED |
Light filters | yes |
Operating temperature range, °C | 5...+35 |
Ability to connect additional equipment | phase contrast device (condenser and objectives), darkfield condenser (dry or oil), polarization devices (polarizer and analyzer) |
User level | experienced users, professionals |
Assembly and installation difficulty level | complicated |
Application | laboratory/medical |
Illumination location | lower |
Research method | bright field |
Pouch/case/bag in set | dust cover |
Weight, kg | 8 |
Dimensions, mm | 200x436x400 |
Camera specifications | |
Sensor | SONY Starvis CMOS |
Color/monochrome | color |
Megapixels | 2 |
Maximum resolution, pix | 1920x1080 |
Sensor size | 1/2.8" (5.57x3.13mm) |
Pixel size, μm | 2.9x2.9 |
Interface connectors | HDMI 1.4 |
Memory card | SD up to 32GB |
Ability to connect additional equipment | USB mouse |
Light sensitivity | 1300mV at 1/30s |
Exposure time | 0.04ms–1000ms |
Video recording | ✓ |
Frame rate, fps at resolution | 60@1920x1080 (HDMI) |
Place of installation | trinocular tube, eyepiece tube instead of an eyepiece |
Image format | *.jpg |
Video format | *.h.264, *.mp4 |
Spectral range, nm | 380–650 (built-in IR filter) |
Shutter type | ERS (electronic rolling shutter) |
Software | HDMI: built-in |
System requirements | does not require a computer connection |
Mount type | C-mount |
Body | solid aluminum |
Camera power supply | AC adapter 12V, 1A |
Camera operating temperature range, °С | -10...+50 |
Operating humidity range, % | 30 — 80 |
Monitor specifications | |
Type of matrix | IPS |
Display diagonal, inch | 13.3 |
Display resolution, px | 1920x1080 (Full HD) |
Aspect ratio | 16:9 |
Brightness, cd/m² | 400 |
Number of displayed colors | 16.7 m |
Contrast | 1000:1 |
Horizontal/vertical viewing angle, ° | 178/178 |
Size of the visible screen area (WxH), mm | 295x165 |
Pixel pitch (WxH), mm | 0.154x0.154 |
Frequency of optical source, Hz | 60 |
Type of matrix backlight | LED |
LED backlight lifetime, h | 50000 |
Interface | HDMI |
Operating temperature range, °C | -15...+55 |
Operating humidity range, % | 10 — 90 |
Power supply | AC 110–220V, DC 5–12V/1A (Type-C) |
Power consumption, W | 12 (max.) |
