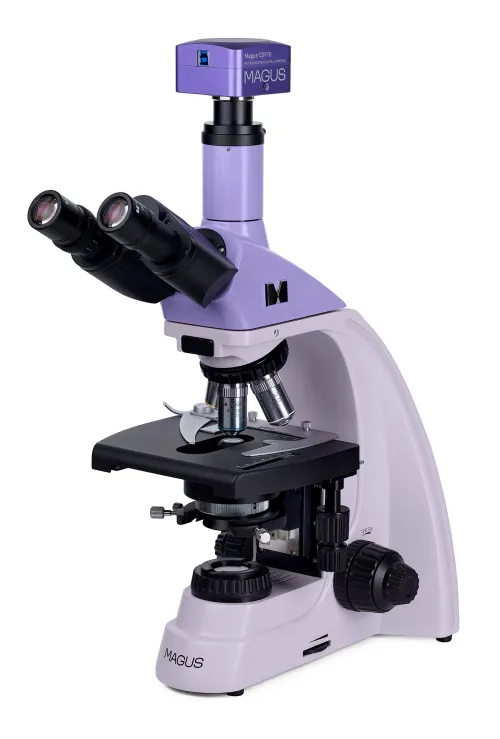

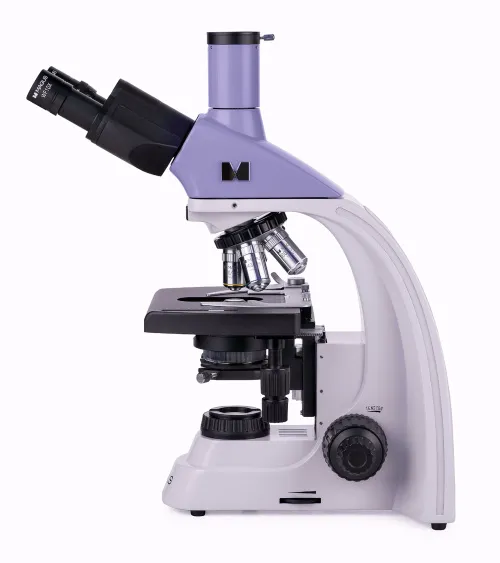

MAGUS Bio D230TL Biological Digital Microscope
With a camera. Magnification: 40–1000x. Trinocular head, achromatic objectives, 3W LED
Product ID | 83006 |
Brand | MAGUS |
Warranty | 5 years |
EAN | 5905555017983 |
Package size (LxWxH) | 43x27x63 cm |
Shipping Weight | 11.1 kg |

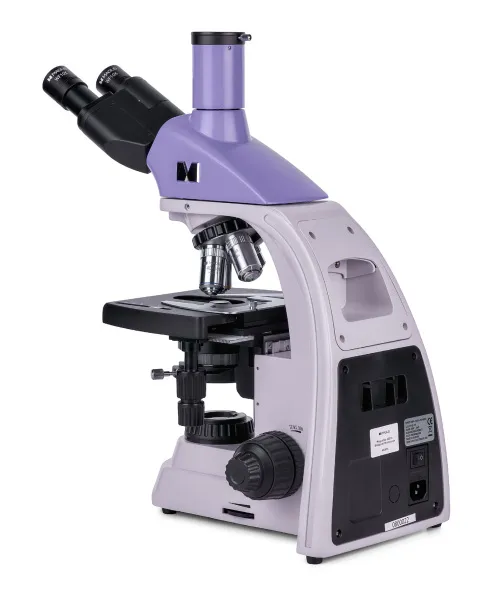

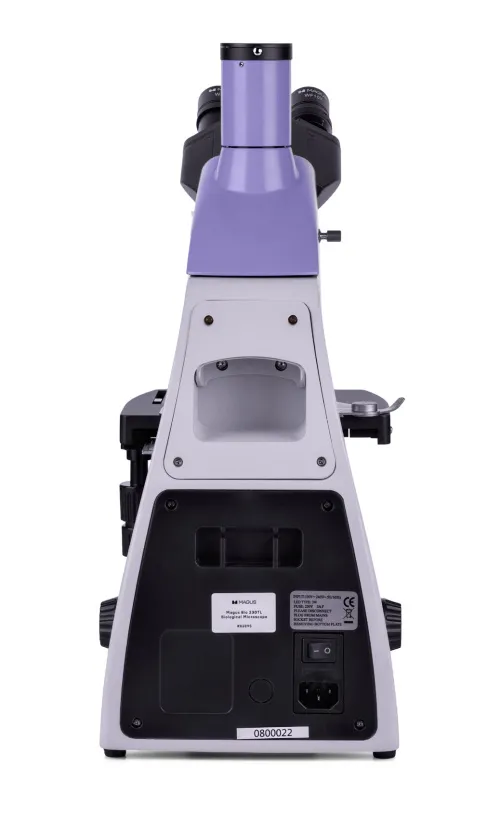

The MAGUS Bio 230TL biological microscope is an essential tool in a sanitary control laboratory as well as a diagnostic or research center. The microscope has a trinocular head and a transmitted light source (LED), and it is suitable for observing translucent and transparent samples. In the basic configuration, the brightfield technique is used for observations. With additional accessories, microscopy techniques, such as darkfield, polarized light, and phase contrast, are available for further research.
Digital camera

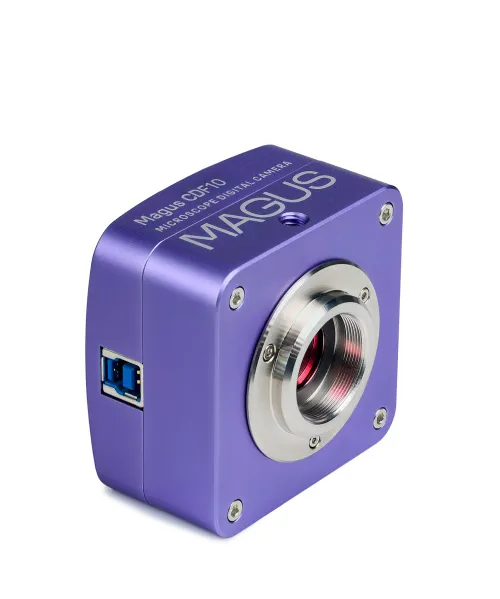

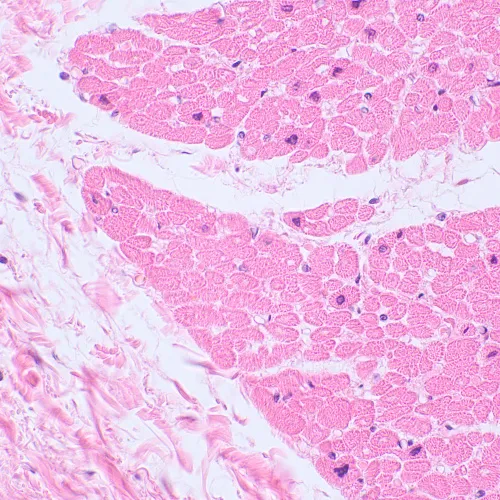

Digital camera with a 2MP sensor for studying micro-objects using the darkfield or brightfield microscopy technique. The camera is equipped with a SONY Exmor backlit color CMOS sensor. This increases light sensitivity (2350mV at 1/30s) and improves image quality in low light. Optimal performance is achieved when working with objectives with magnifications of 40x, 60x, and 100x.
The MAGUS CDF10 camera allows you to display an image of an object on a computer monitor in Full HD 1920x1080px resolution, take photos, and record videos in different formats. Data transfer between the camera and computer is carried out via a USB3.0 interface with a data transfer speed of 5Gbps. At maximum resolution, video is displayed at 125fps with smooth transitions between frames. The camera is perfect for studying moving objects and can be used for lectures or presentations.

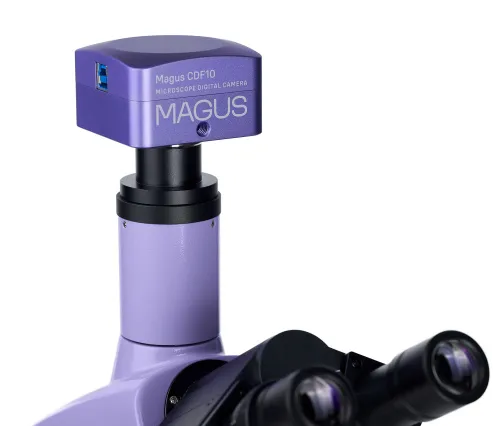

The camera can be installed in the trinocular tube or in the eyepiece tube of a microscope. A C-mount adapter is used for mounting a digital camera in the trinocular tube. The recommended adapter magnification is from 0.4x to 0.6x, which guarantees a wide field of vision without optical distortion. To mount the camera in the eyepiece tube, in addition to the adapter, you will also need an adapter ring matching the diameter of the tube.
Proprietary MAGUS View software is required to use the camera. An installation disk with drivers and software is included. Please note: before starting, the software must be calibrated for each objective you use. The calibration slide must be purchased separately.
Optics

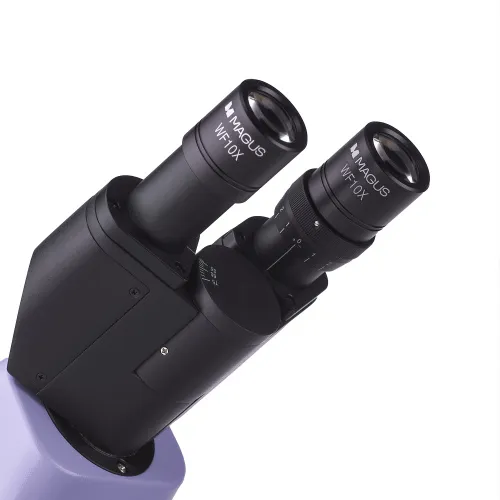

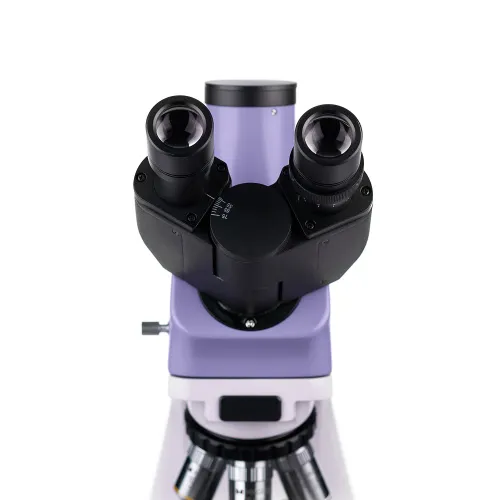

The observation tubes can rotate 360°, which enables you to adjust the eyepieces to fit the height of the observer. It is possible to adjust the diopter settings for the left tube. There is a vertical tube for mounting a digital camera (not included).

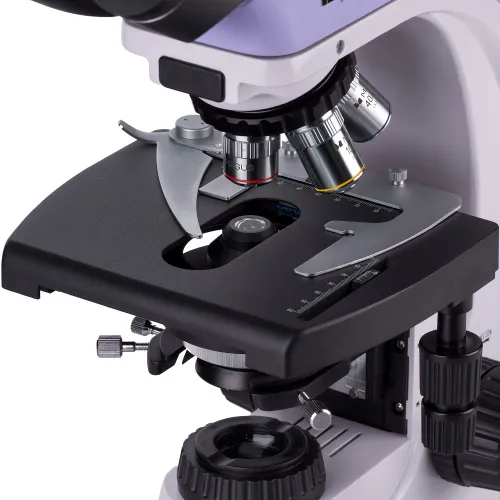

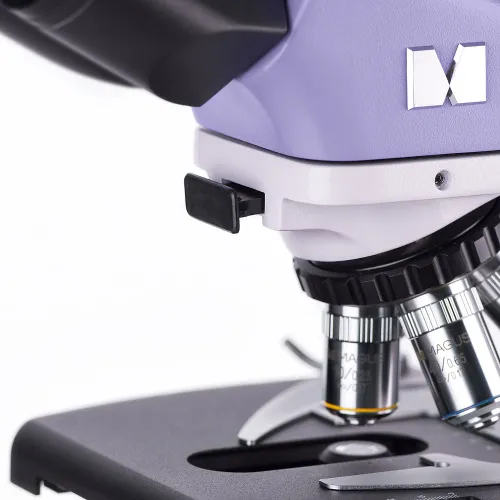

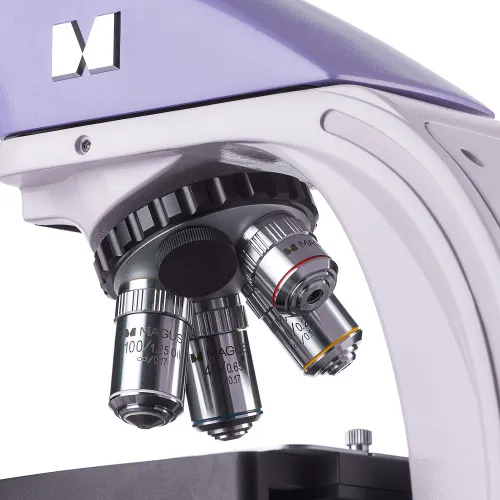

The microscope uses infinity achromatic objectives, and 5 objectives can be mounted simultaneously into the nosepiece. One slot is left free for adding an additional objective. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objectives inserted into the optical path. The magnification range of the microscope is 40 to 1000x, the upper limit can be increased up to 1500, 1600, or 2000x with additional eyepieces.
Illumination
Thanks to the LED bulb, the color temperature does not change when adjusting the illumination. The LED bulb is 3W with a lifespan of 50,000 hours, and it is powered by the AC power supply.

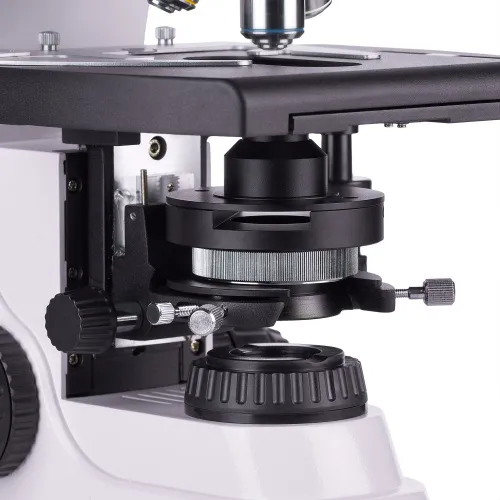

The Abbe condenser has a slot for a darkfield or phase slider. With sliders, switching between microscopy techniques is much faster. The microscope is also equipped with a field diaphragm for setting up the Köhler illumination. The condenser is height-adjustable and can be centered.

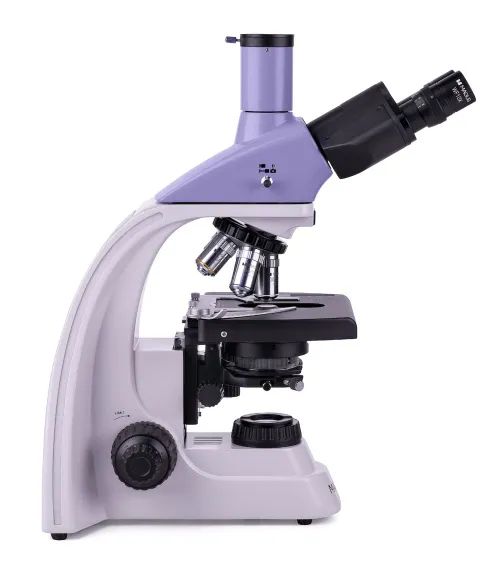

Stage and focusing mechanism
The movement of the specimen is smooth and accurate. The mechanical attachment can be removed from the stage if needed (e.g., manual scanning). Moreover, a stage without a positioning rack is easier to work with.
The focusing knobs are coaxial and located on each side of the microscope so that the user can place their hands freely on the table. There are fine and coarse focusing knobs. The mechanisms move smoothly and, therefore, no further effort is required. There is a coarse focusing tension adjusting knob and a coarse focusing lock knob.
Accessories
Optional accessories expand the capabilities of the MAGUS Bio 230TL microscope depending on specific applications. These include eyepieces, objectives, dark field and phase contrast condensers, polarization devices, digital cameras, calibration slides, etc.
Key features of the microscope:
- Trinocular head with a vertical tube for camera, 360° rotation, diopter adjustment on the left tube
- Revolver for 5 objectives, infinity achromatic objectives
- Observations in transmitted light, light source – 3W LED lasts a long time
- Coaxial coarse and fine focusing knobs, coarse focusing tension adjusting knob, coarse focusing lock knob
- The condenser with a slot for a phase or darkfield slider
- Option to install additional accessories
Key features of the camera:
- SONY Exmor backlit CMOS sensor for clear images even in low light conditions
- Installation in the trinocular tube or the eyepiece tube
- Operation in darkfield or brightfield on high magnification objectives: 40x, 60x, and 100x
- Displaying images on a computer screen; viewing, taking photos, and recording videos in a resolution of 1920x1080px
- Video frame rate – 125fps, suitable for studying and showcasing moving objects in real time without delays
- Necessary drivers and software are included

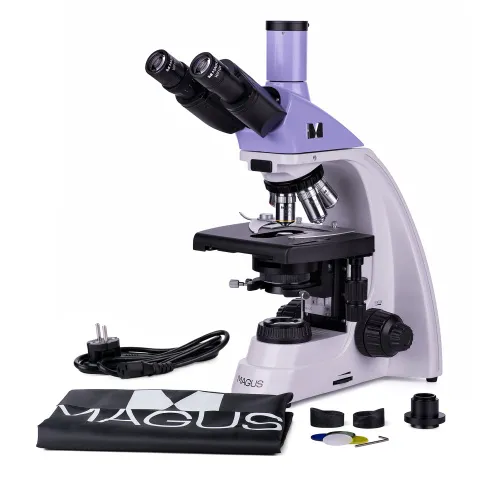

The kit includes:
- MAGUS CDF10 Digital Сamera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
- Base with a power input, transmitted light source, focusing mechanism, stage, condenser mount, and revolving nosepiece
- Abbe condenser
- Trinocular head
- Infinity achromatic objective: 4x/0.10
- Infinity achromatic objective: 10x/0.25
- Infinity achromatic objective: 40x/0.65 (spring-loaded)
- Infinity achromatic objective: 100x/1.25 oil (spring-loaded)
- Eyepiece 10x/18mm with a long eye relief (2 pcs.)
- Eyecup (2 pcs.)
- Filter (4 pcs.)
- C-mount camera adapter
- Bottle of the immersion oil
- AC power cord
- Dust cover
- User manual and warranty card
Available on request:
- 10x/20mm eyepiece with scale
- 15x/11mm eyepiece (2 pcs.)
- 16x/11mm eyepiece (2 pcs.)
- 20x/11mm eyepiece (2 pcs.)
- Infinity achromatic objective: 20x/0.40
- Infinity plan achromatic objective: 20х/0.40
- Infinity plan achromatic objective: 60x/0.80 (spring-loaded)
- Phase-contrast device
- Phase slider
- Darkfield condenser NA 0.9
- Oil darkfield condenser NA 1.36–1.25
- Darkfield slider
- Polarization devices
- Calibration slide
- LCD Monitor
Product ID | 83006 |
Brand | MAGUS |
Warranty | 5 years |
EAN | 5905555017983 |
Package size (LxWxH) | 43x27x63 cm |
Shipping Weight | 11.1 kg |
Microscope specifications | |
Type | biological, light/optical, digital |
Head | trinocular |
Nozzle | Gemel head (Siedentopf, 360° rotation) |
Head inclination angle | 30 ° |
Magnification, x | 40–1000 basic configuration (*optional: 40–1500/1600/2000) |
Eyepiece tube diameter, mm | 23.2 |
Eyepieces | 10х/18mm, eye relief: 10mm (*optional: 10х/20mm with a scale, 15x/11mm, 16x/11mm; 20x/11mm) |
Objectives | infinity achromatic: 4x/0.10; 10x/0.25; 40xs/0.65; 100xs/1.25 (oil); parfocal distance 45mm (*optional: 20x/0.40; 60xs/0.80) |
Revolving nosepiece | for 5 objectives |
Working distance, mm | 18.89 (4x); 5.95 (10x); 0.775 (40xs); 0.36 (100xs); 2.61/8.80 (20x); 0.46 (60хs) |
Interpupillary distance, mm | 48 — 75 |
Stage, mm | 180x150 |
Stage moving range, mm | 75/50 |
Stage features | two-axis mechanical stage, without a positioning rack |
Eyepiece diopter adjustment, diopters | ±5 (on the left tube) |
Condenser | Abbe condenser, N.A. 1.25, center-adjustable, height-adjustable, adjustable aperture diaphragm, a slot for a darkfield slider and phase contrast slider, dovetail mount |
Diaphragm | adjustable aperture diaphragm, adjustable iris field diaphragm |
Focus | coaxial, coarse focusing (21mm, 39.8mm/circle, with a lock knob and tension adjusting knob) and fine focusing (0.002mm) |
Illumination | LED |
Brightness adjustment | ✓ |
Power supply | 220±22V, 50Hz, AC network |
Light source type | 3W LED |
Light filters | yes |
Operating temperature range, °C | 5...+35 |
Ability to connect additional equipment | phase contrast device (condenser and objectives), darkfield condenser (dry or oil), polarization devices (polarizer and analyzer) |
User level | experienced users, professionals |
Assembly and installation difficulty level | complicated |
Application | laboratory/medical |
Illumination location | lower |
Research method | bright field |
Pouch/case/bag in set | dust cover |
Weight, kg | 8 |
Dimensions, mm | 200x436x400 |
Camera specifications | |
Sensor | SONY Exmor CMOS |
Color/monochrome | color |
Megapixels | 2 |
Maximum resolution, pix | 1920x1080 |
Sensor size | 1/2" (7.2x4.05mm) |
Pixel size, μm | 3.75x3.75 |
Light sensitivity | 2350mV at 1/30s |
Signal/noise ratio | 0.15mV at 1/30s |
Exposure time | 0.1ms–15s |
Video recording | ✓ |
Frame rate, fps at resolution | 125@1920x1080 |
Place of installation | trinocular tube, eyepiece tube instead of an eyepiece |
Image format | *.jpg, *.bmp, *.png, *.tif |
Video format | output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
Spectral range, nm | 380–650 (built-in IR filter) |
Shutter type | ERS (electronic rolling shutter) |
White balance | manual, automatic |
Exposure control | manual, automatic |
Software features | image size, brightness, exposure time |
Software | MAGUS View |
Output | USB 3.0, 5Gb/s |
System requirements | Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display |
Mount type | C-mount |
Body | solid aluminum |
Camera power supply | DC, 5V, from computer USB port; a 12V, 3A adapter for Peltier element |
Camera operating temperature range, °С | -10...+50 |
Operating humidity range, % | 30 — 80 |
