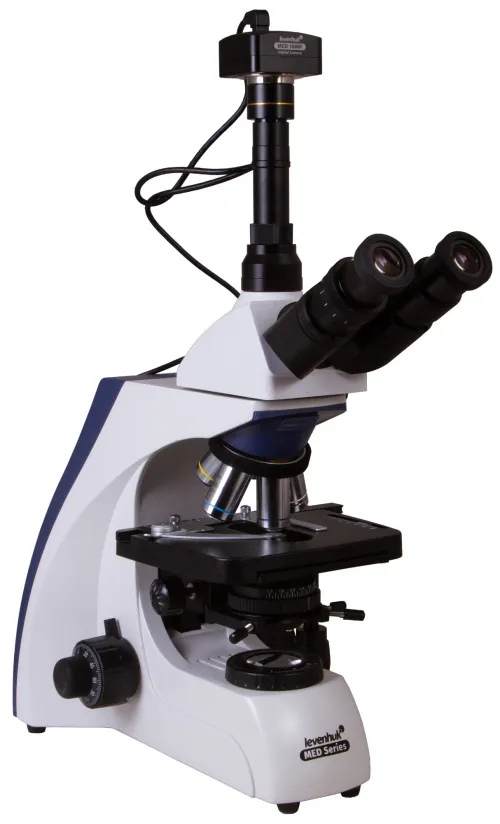

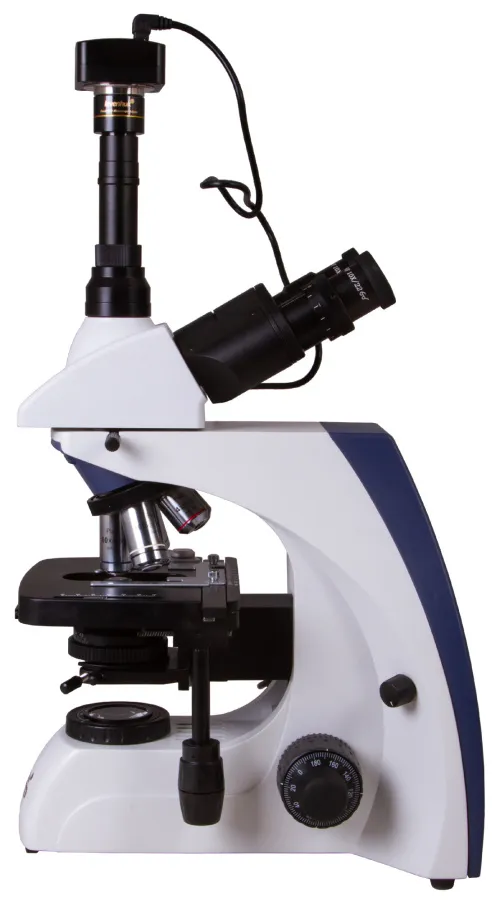

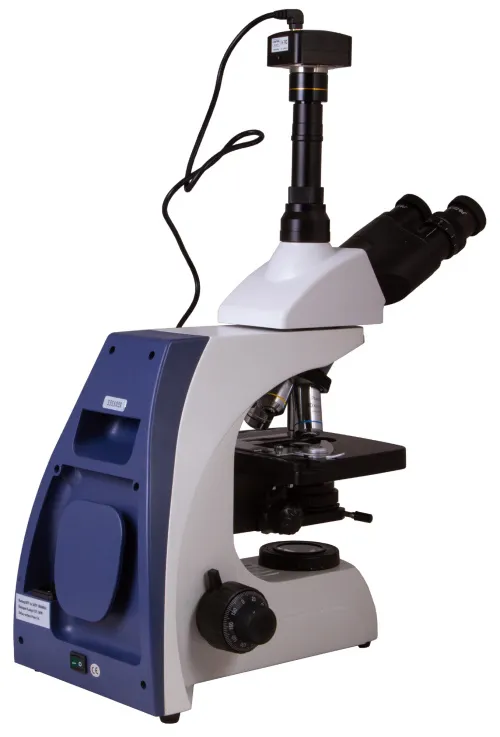

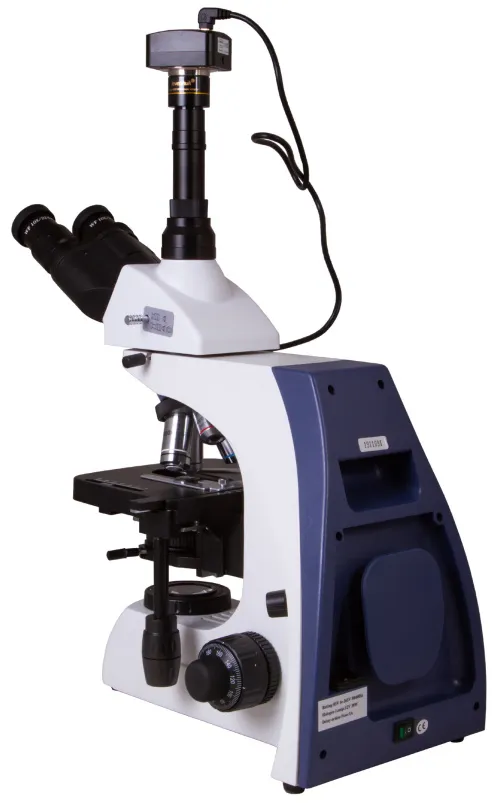

The Levenhuk MED D35T Digital Microscope for scientific research combines the capabilities of a classic biological model and a microscope for taking digital photos and videos. It comes with a 10MP camera that is connected to a computer and allows for observing an image on its screen in real-time mode. This microscope is excellent for a university department, research center, or clinical and diagnostics laboratory.
Plan achromatic infinity-corrected optics
The microscopes in the Levenhuk MED 35 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity PlanAchromat objectives and allows for obtaining clear, high contrast images with high level of flatness.
One of the most important features of an infinity-corrected optical system is that it allows for installing any additional parts in the optical path between objective lenses and an ocular tube. The additional parts include polarizers and epi-fluorescence light. All in all, modular design and simple operation make Levenhuk MED 35 optimal microscopes for using in different kinds of microscopy and working in hematological, histological, microbiological, and other laboratories.
The Levenhuk MED 35 series includes scientific microscopes for working in a laboratory

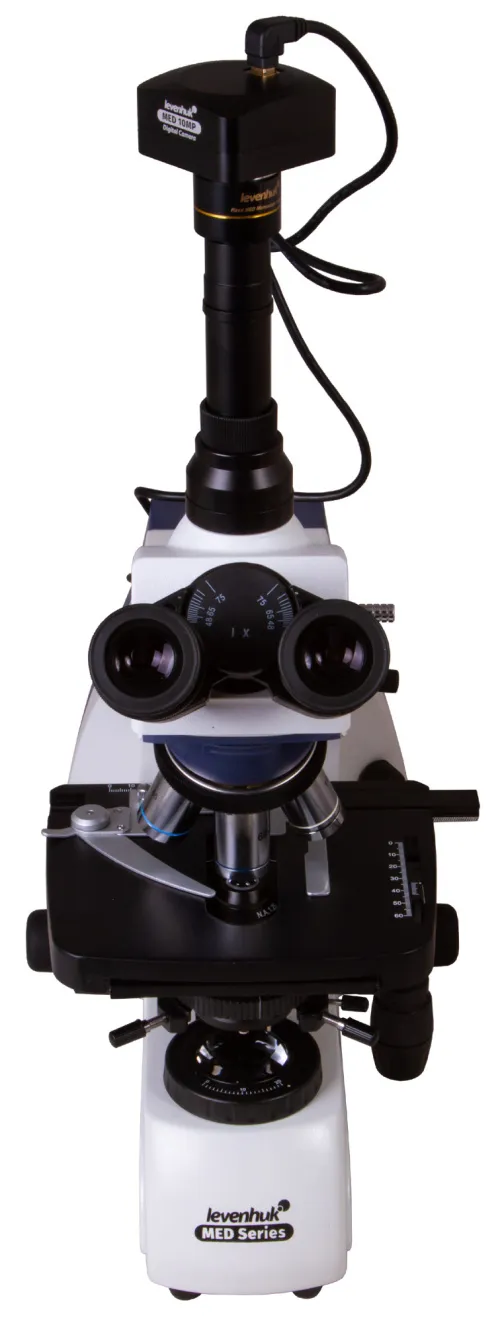

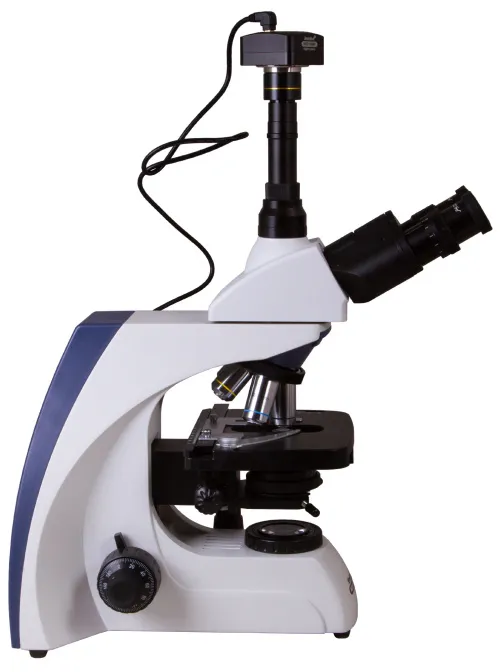

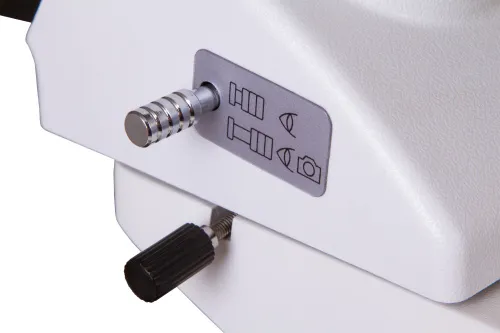

A trinocular head has a binocular visual unit and a vertical tube inclined at 30° for installing a digital camera in it. There is a beam splitter. The head is 360° rotatable, which is convenient if the sample should be observed by several researchers.
Capabilities of the optical system

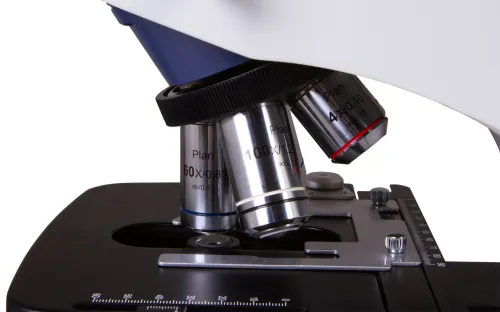

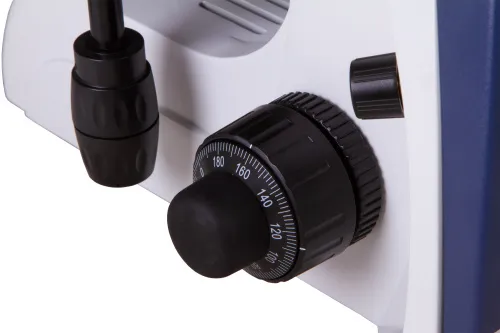

Scientific and research work with Levenhuk MED D35T microscope is practical and precise. The image is formed by wide-field 10x eyepieces with diopter adjustment and five plan achromatic objectives with various magnification. Plan achromatic optics flatten the field of view, reduce chromatic aberrations, and improve color rendering. You can conduct highly detailed observations at magnifications of 40x to 1000x. The objective lenses with 40x, 60x, and 100x magnifications are equipped with spring-loaded protective frames; the 100x objective lens is used for oil immersion observations. The sharpness is adjusted with the coarse and fine focusing adjustment knobs.
Convenient work with microscope slides

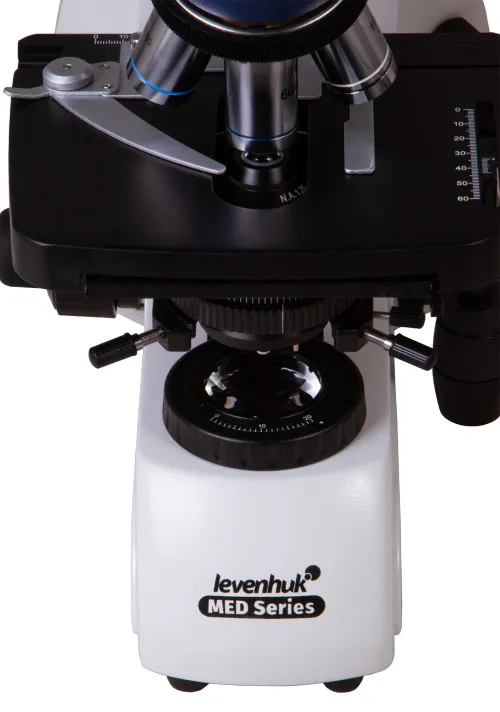

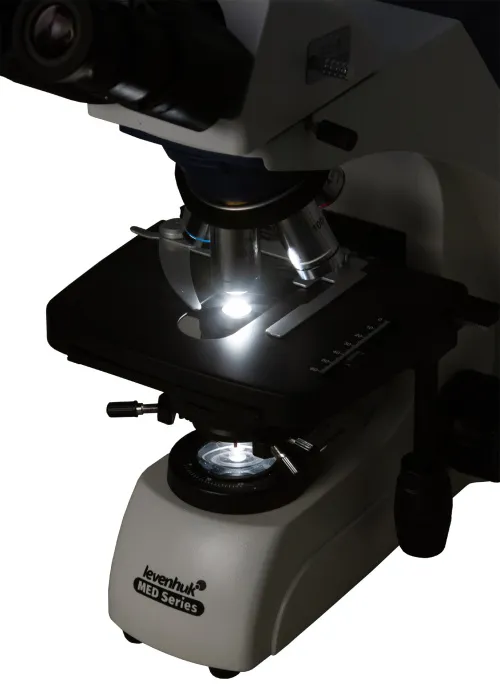

The stage is moveable along two axes and equipped with a mechanical scale. Underneath, there is a halogen light (30W) with adjustable brightness. An Abbe condenser with an iris diaphragm is used for directing an optical beam. There is a special holder for putting optical filters, which enhance the image sharpness and contrast. Three optical filters are included in the kit. You can also set up Köhler illumination. The light is powered by an AC power supply.

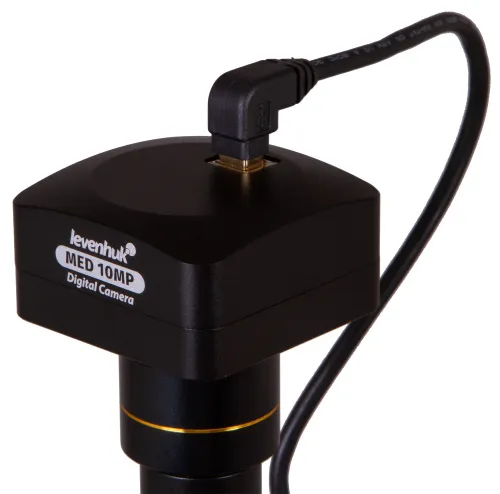

A 10M digital camera for capturing photos and videos

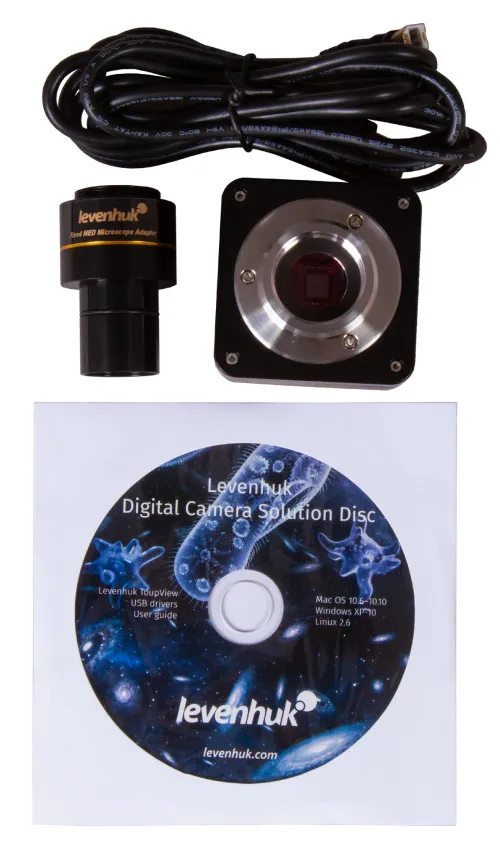

A 10MP sensor in a digital camera (included in the kit) allows for obtaining high-resolution pictures. Moreover, recording smooth videos with high frame rate is available. A camera transmits an image to a computer screen online. That makes work in a laboratory easier and more practical as well as reduces eyestrain and tension in the rotator cuff, as there is no necessity to look through the eyepieces. Special software (on an included CD) allows for the simple processing of recorded images. The software allows for adjusting size, image brightness and contrast, exposure time and white balance, calibrating a camera and objective lenses, measuring specimens or structures (several measurement units are available). A digital camera is powered and connected to a computer via a USB cable.
Scientific work with Levenhuk MED D35T Microscope provides for precise observations, allows for using modern technologies, and conducting practical extended observations.
- Magnification: 40x to 1000x
- Trinocular head with a beam splitter, wide-field eyepieces
- Plan achromatic optics with an anti-fungal coating
- Halogen light with adjustable brightness
- Setting up Köhler illumination is available
- Powered by an AC power supply
- 10MP digital camera is included

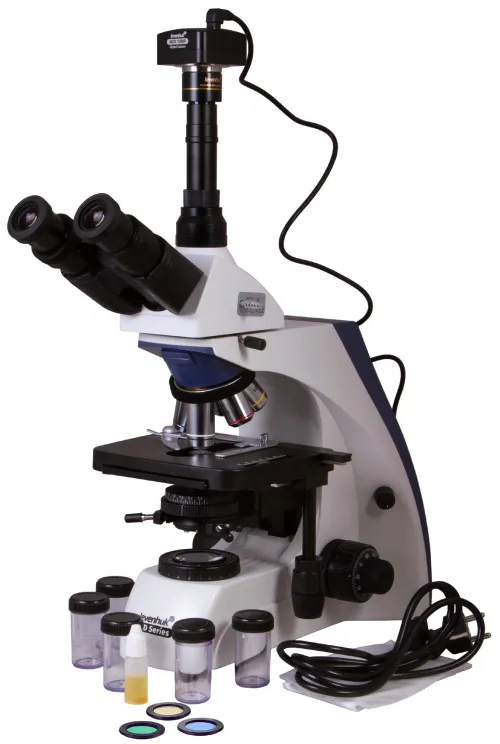

The kit includes:
- Microscope base with a stand
- 360° rotatable trinocular head
- Infinity-corrected plan achromatic objective lenses: 4x, 10x, 40xs, 60xs, 100xs (oil) with an anti-fungal coating
- Wide-field eyepieces: WF10x/22mm with an anti-fungal coating (2 pcs)
- Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
- Filters: blue, green, yellow
- Vial of immersion oil
- Fuse (2 pcs)
- Power cord for microscope
- Dust cover
- 10MP digital camera
- Camera adapter
- Camera mount
- USB cable for connecting and powering a digital camera
- Software CD and drivers
- User manual and lifetime warranty

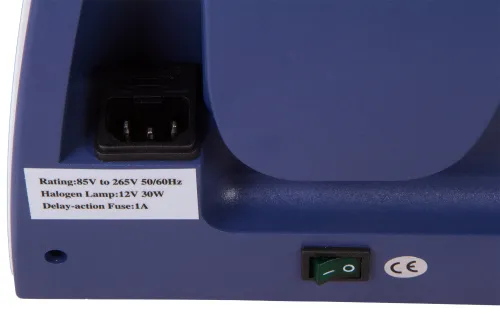

Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.
Some things you can see under a microscope:
Levenhuk MED D35T Digital Trinocular Microscope is also compatible with other Levenhuk digital cameras (additional cameras are purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece. This microscope is also compatible with any other digital microscope cameras.
