Levenhuk LabZZ M4 Stereo Microscope

see all

Found it cheaper?

Get the same price + gift!

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 40x. Stereo Microscope. Working distance: 75mm

Binocular

The microscope head is a core element of the microscope that you look through to see a magnified sample

How much the size of a sample increases when you observe it through a microscope

Elementary, for applied research

Application and use of the microscope

Availability

Product ID	70789
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555011509
Package size (LxWxH)	17x13x25 cm
Shipping Weight	0.77 kg

Description

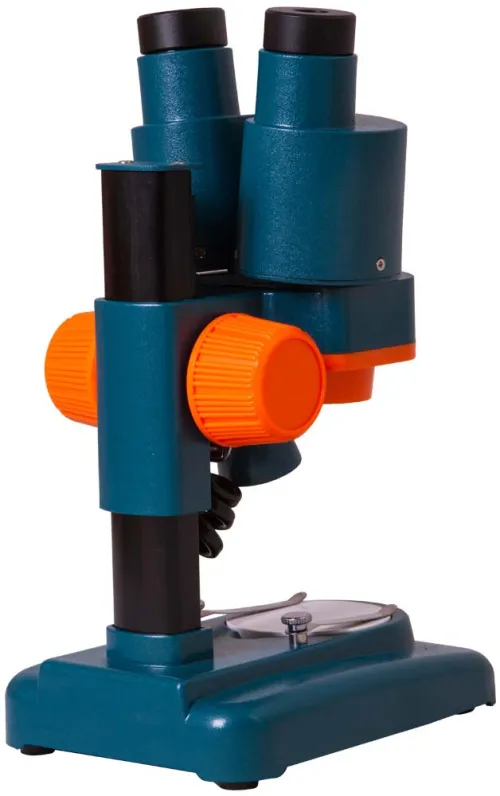

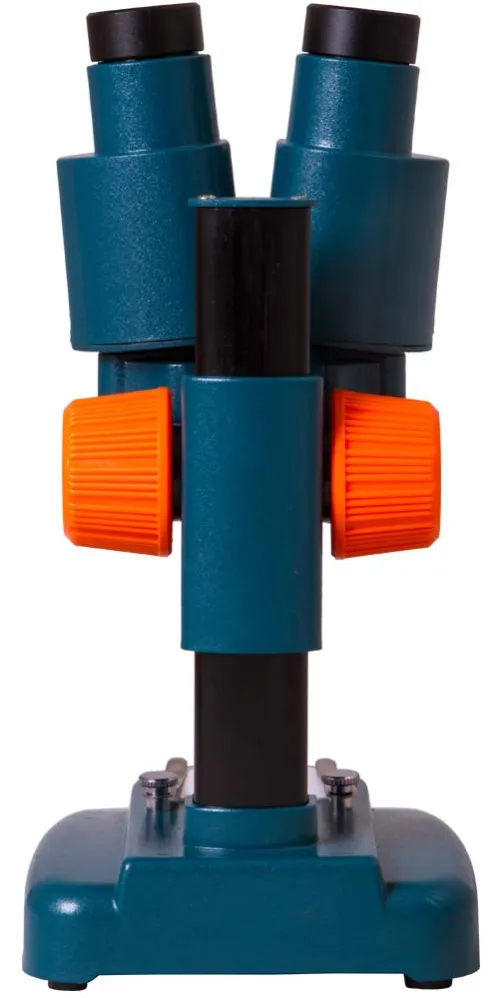

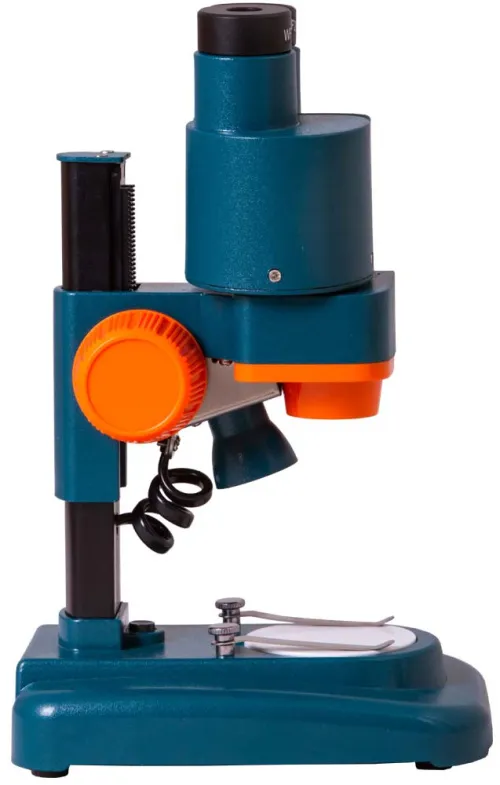

Levenhuk LabZZ M4 Stereo Microscope is perfect for studying large minerals, rocks, coins, soil samples, plants or insects. This model is designed specifically for kids. The microscope is relatively small, lightweight, and easy to handle – it will help a young biologist conduct real scientific experiments and learn more about the world around us.

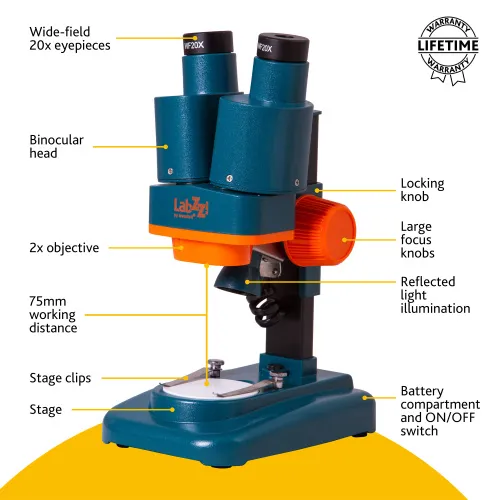

The microscope has a convenient binocular head and objective lens of 2x magnification. You can use the two 20x wide field eyepieces included in the kit, and get total magnification of 40x. Stereo images render the tiniest details of an observed object. The large field of view allows studying extended objects, and 40x magnification helps to learn textures in detail.

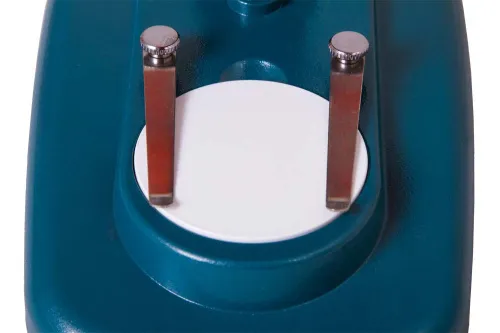

The prepared slides are affixed to the round stage and are fixed with metal clips. Under insufficient light conditions, the upper LED illumination will be helpful. It is powered by 2 AA batteries (not included).

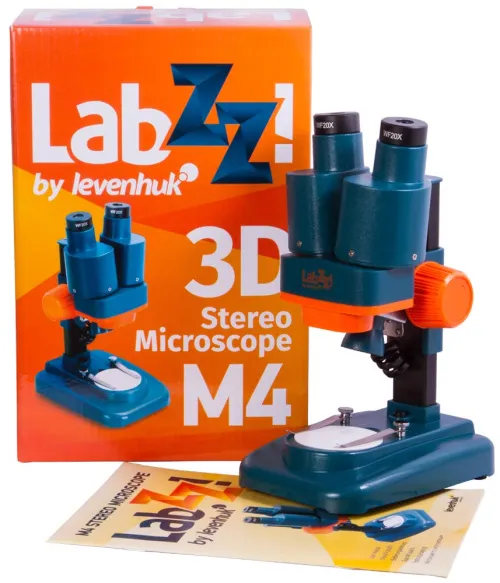

The kit includes:

Levenhuk LabZZ M4 Stereo Microscope

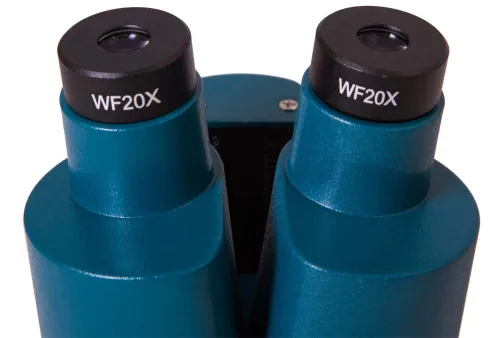

Two WF20x eyepieces
Dust cover
User manual and lifetime warranty

Levenhuk LabZZ M4 Stereo Microscope is compatible with Levenhuk digital cameras (purchased separately). Levenhuk digital cameras are installed in the eyepiece tube instead of the eyepiece.

Specifications

Product ID	70789
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555011509
Package size (LxWxH)	17x13x25 cm
Shipping Weight	0.77 kg
Type	stereo/instrumental
Head	binocular
Optics material	optical glass
Nozzle	fixed (non-rotatable)
Head inclination angle	not angled
Magnification, x	40
Eyepiece tube diameter, mm	23.2
Eyepieces	WF20x (2 pcs.)
Objectives	2x
Working distance, mm	75
Interpupillary distance, mm	50 — 75
Stage, mm	Ø50
Stage moving range, mm	fixed
Stage features	with clips, white plate

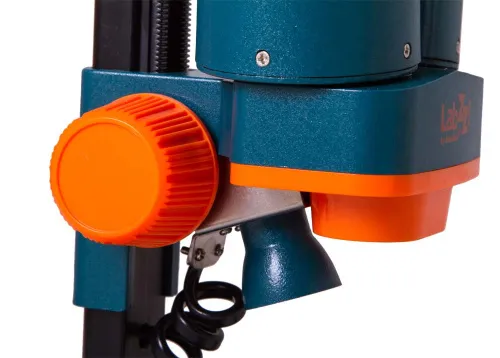

Focus	coarse: 35mm
Body	plastic
Illumination	LED

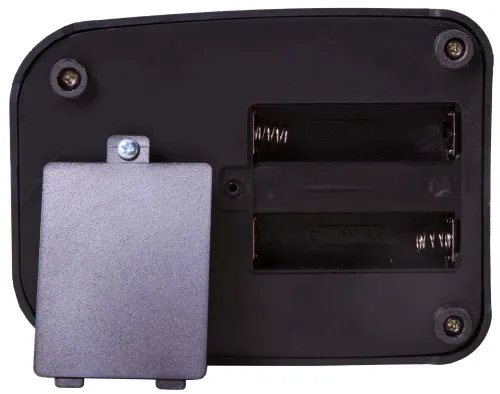

Power supply	2 AA batteries (not included)
Power supply: batteries/built-in battery	yes
Operating temperature range, °C	-5...+40
User level	elementary
Assembly and installation difficulty level	extremely simple
Application	elementary, for applied research
Illumination location	upper
Research method	bright field

References
and downloads

User manual: Levenhuk LabZZ M4 stereo microscope (pdf)

(PDF, 676.16 Kb)

High-resolution images (zip)

(ZIP, 124.87 Mb)

click to
download

Reviews

Frequently Asked Questions – Microscopes (20.04.2020)
We have gathered answers to the most frequently asked questions to help you sort things out

Eye under a microscope: insects’ photo (20.04.2020)
Find out why studying eyes under a microscope is entertaining; how insects’ and arachnids’ eyes differ and what the best way is to observe such an interesting specimen

What does hair look like under a microscope? (17.05.2020)
Read this review to learn how to observe human hair, what different hair looks like under a microscope and what magnification is required for observations

How does the aperture of a microscope objective lens work? (17.05.2020)
Learn what a numerical aperture is and how to choose a suitable objective lens for your microscope here

A spider under a microscope: photos and peculiarities of studying the slide (18.05.2020)
Learn what a spider looks like under microscope, when the best time is to take photos of it, how to study it properly at magnification and more interesting facts about observing insects and arachnids

What does a microscope consist of? (18.05.2020)
This review for beginner explorers of the micro world introduces you to the optical, illuminating and mechanical parts of a microscope and their functions

Paramecium caudatum - your first friend from the microworld (21.11.2016)

Short article about Paramecium caudatum - a microorganism that is interesting to observe through any microscope

Questions and Answers

July Gray (2018.05.05)

MICROSCOPE IS JUST BAD. I DON’T SEE ANYTHINHG. EVEN A BLACK STONE IS NOT VISIBLE . SORRY FOR THE MONEY I SPENT

Customer service:

Levenhuk LabZZ M4 Stereo Microscope shows no distortion, the problem may be that your object is too large and the microscope cannot focus on it. We had no problems with this microscope before.

July Gray (2018.05.05)

Is it possible to change the lenses in this microscope?

Customer service:

No, Levenhuk LabZZ M4 microscope is equipped with a non-removable stereo lens.

Omar Jenkins (2018.05.04)

Can I use eyepieces with another magnification?

Customer service:

Levenhuk LabZZ M4 Stereo Microscope has a standard 23.2 mm eyepiece diameter. That means you can replace the eyepiece. However, the kit of Levenhuk LabZZ M4 Stereo Microscope includes two 20x eyepieces; this is the maximum magnification of the eyepieces.

Bethany Monk (2018.04.25)

can I observe transparent samples with thi model? blood, water drop, for example

Customer service:

Levenhuk LabZZ M4 Microscope creates 3D images and is perfectly suited for observations of large minerals, stones, coins, soil samples, plants, and bugs. To observe blood, cells, and protozoa, you will need a biological microscope, for example Levenhuk LabZZ M101 Microscope https://www.levenhuk.com/catalogue/microscopes/levenhuk-labzz-m101-microscope/ .

Juli S (2018.04.21)

Hello! 8yo boy is eager to get a microscope as a birthday gift, but he has astigmatism (wears glasses). Is this option ok for him?

Customer service:

This is a great option for a child! Levenhuk LabZZ M4 Microscope creates 3D images of observed objects and is great for examination of large minerals, stones, coins, soil samples, plants, and insects.

Annita Scott (2018.04.20)

Hi! Should I buy additional blank slides? Do you have interesting prepared slides to observe with this model?

Customer service:

Levenhuk LabZZ M4 is a stereo microscope, it is designed for observations of volume samples. You don’t need to use slides to observe them. Our range of products does not include ready-to-use samples for stereoscopic microscopes.

Mathew (2018.04.19)

How wide is field of view?

Customer service:

Dear Mathew, thank you for interest in Levenhuk products. The field of view is 13mm.
Is there any additional information you might need?

Romul Thompson (2018.01.29)

hello! I need an instrument for viewing the cutting edge of a razor or knife

Customer service:

Consider Levenhuk 3ST Microscope, https://www.levenhuk.com/catalogue/microscopes/levenhuk-3st-microscope/ .

Eugen (2017.12.18)

Is this model suitable for observations of large objects (insects, fur, etc.)

Customer service:

Yes, Levenhuk LabZZ M4 Microscope is suitable for this purpose.

Dora Dora (2017.12.16)

Hello, Levenhuk! Which microscope will be preferable for a 10yo child? help me make the right decision

Customer service:

Levenhuk LabZZ M4 Microscope is suitable for users of all ages.

Valley Jo (2017.12.05)

Hello! If there any difference between Levenhuk 1ST and Levenhuk LabZZ M4 except magnification?

Customer service:

Their differences are magnification and outer design. Other characteristics are the same.

Mary (2017.10.31)

Hello! Could you please recommend some good model for a 5 year old boy?

Customer service:

Levenhuk LabZZ M4 Microscope is suitable for a 5 year old kid. You can also consider buying Levenhuk LabZZ M101 Microscope - https://www.levenhuk.com/catalogue/microscopes/levenhuk-labzz-m101-microscope/ .
