USB digital microscope with tripod. Magnification: 20–400x. Digital camera: 1.3Mpx

Digital screen/PC monitor

The microscope head is a core element of the microscope that you look through to see a magnified sample

20 — 400

How much the size of a sample increases when you observe it through a microscope

Elementary, for applied research

Application and use of the microscope

Availability

Product ID	61021
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555004303
Package size (LxWxH)	6x21x15 cm
Shipping Weight	0.36 kg

Description

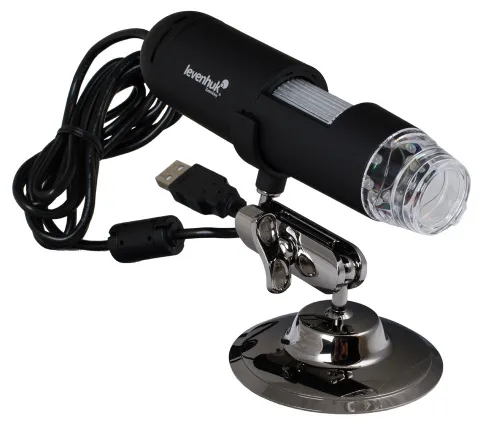

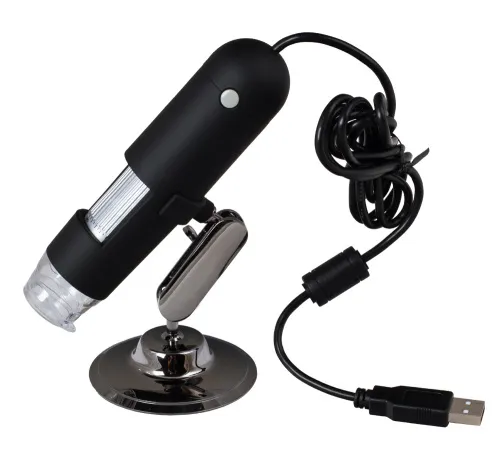

Levenhuk DTX 50 Digital Microscope is a modern USB digital microscope capable of significant magnification of up to 400x and equipped with a 1.3 Mpx digital camera that allows you to take pictures and record videos of observed samples. This model can be applied in many different areas: in electronics, jewelry, biology, zoology, and more. Convenient tripod is included in the standard kit.

Microscope is connected to a PC or laptop via standard USB 2.0 cable. Observation of samples and editing of captured images are done through the easy-to-use image processing software that is included in the kit. In addition to image processing features allowing you to take and edit images and videos, the software is also capable of measuring linear sizes, perimeters, radiuses and different angles in observed samples.

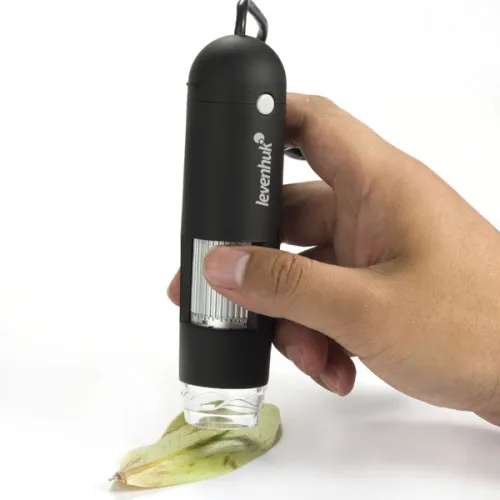

Levenhuk DTX 50 is very easy to use and doesn’t require any special knowledge or skills. Due to its compact size this microscope is highly suitable for home use. The microscope may be used with the tripod included in the kit as well as without it.

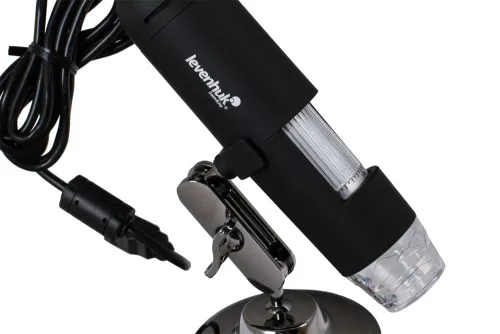

Microscope’s body is rubber-armored, which makes it pleasant to the touch and also provides for a comfortable grip and prevents the device from slipping out of your hands.

Features:

Power supply via USB

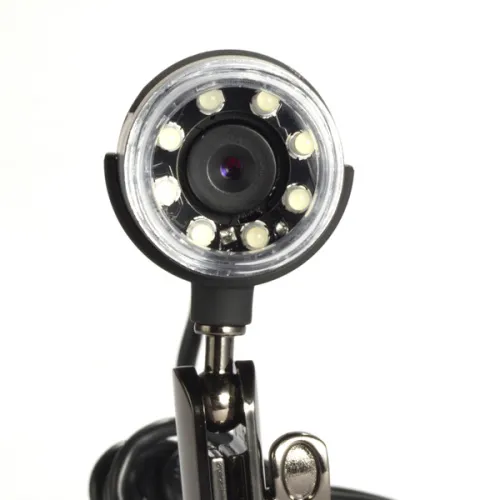

8 white LEDs with adjustable brightness
Real-time observations on your PC monitor
Able to take photos/videos
Comes with special software for measuring linear sizes, areas, angles and radiuses of studied samples
Wide range of applications
Сompatible with Windows and Mac OS

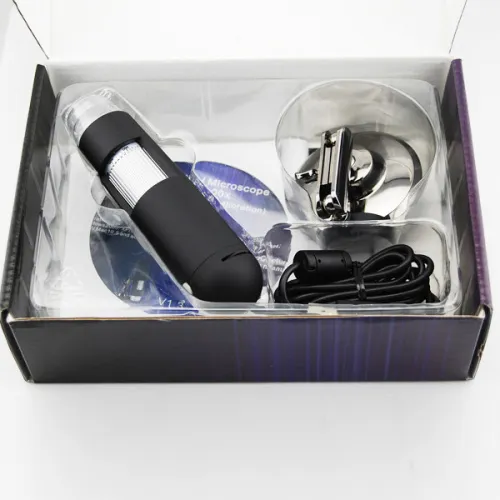

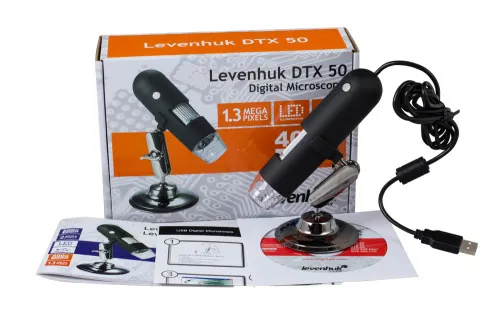

The kit includes:

Levenhuk DTX 50 Microscope

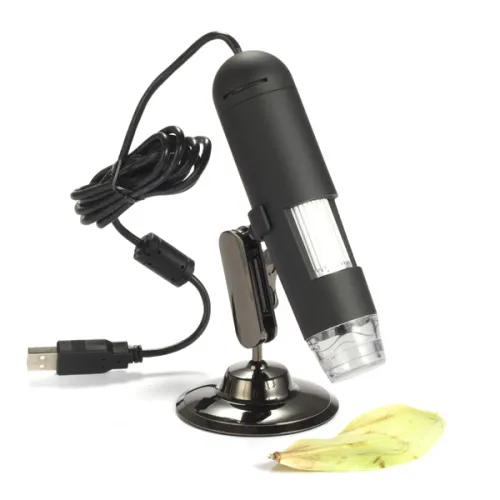

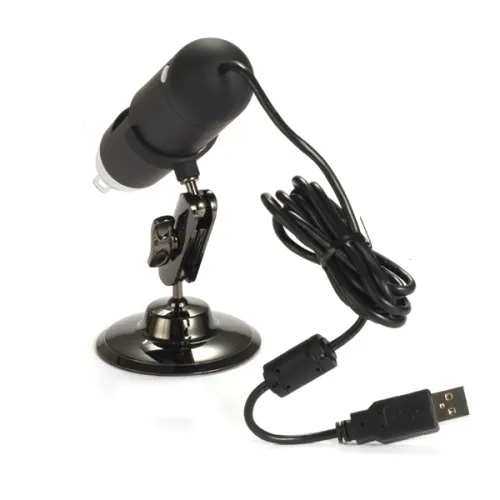

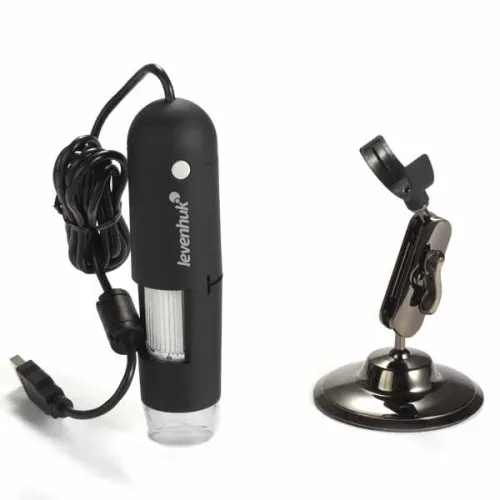

Convenient removable tripod
Protective plastic objective lens cap
Software CD
USB cable
User manual and lifetime warranty

Recommendations on using the software:

In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.

Levenhuk DTX 50 Digital Microscope is not compatible with external digital cameras.

Specifications

Product ID	61021
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555004303
Package size (LxWxH)	6x21x15 cm
Shipping Weight	0.36 kg
Type	digital
Head	digital screen/PC monitor
Optics material	optical glass
Magnification, x	20 — 400
Focus	manual, 0–150mm
Body	plastic, rubberized
Illumination	LED
Brightness adjustment	✓
Power supply	5V DC via USB cable
User level	elementary, beginners
Assembly and installation difficulty level	extremely simple
Image	1600x1200, 1280x720, 640x480
Application	elementary, for applied research
Illumination location	upper
Research method	bright field
Megapixels	1.3
Video recording	yes
Image format	*.jpg
Video format	*.avi
Software, drivers	photo and video capture and processing software with measurement function
Output	USB 2.0
System requirements	OS Windows 7/8/10, Mac 10.6 ~ 10.10; 1.8GHz Intel P4 and above, 512MB RAM, 64MB video card, USB 2.0, CD-ROM

References
and downloads

User manual: Levenhuk DTX 30/50 digital microscopes (pdf)

(PDF, 2.77 Mb)

Levenhuk DTX 30/50 Software for Mac 10.10 (zip)

(ZIP, 48.21 Mb)

Levenhuk DTX 30/50 MicroCapture PLUS Software macOS 10.14 and above (zip)

(ZIP, 27.21 Mb)

Levenhuk DTX 30/50 MicroCapture PLUS Software Windows 10/11 (zip)

(ZIP, 16.56 Mb)

High-resolution images (rar)

(X-RAR, 59.63 Mb)

Levenhuk DTX 50 MicroCapture Basic 3.1.1 software for Windows/Mac (zip)

(ZIP, 12.04 Mb)

Levenhuk DTX 50 MicroCapture Basic 3.1.1 software for Windows (zip)

(ZIP, 20.88 Mb)

click to
download

Reviews

Frequently Asked Questions – Microscopes (20.04.2020)
We have gathered answers to the most frequently asked questions to help you sort things out

Eye under a microscope: insects’ photo (20.04.2020)
Find out why studying eyes under a microscope is entertaining; how insects’ and arachnids’ eyes differ and what the best way is to observe such an interesting specimen

What does hair look like under a microscope? (17.05.2020)
Read this review to learn how to observe human hair, what different hair looks like under a microscope and what magnification is required for observations

How does the aperture of a microscope objective lens work? (17.05.2020)
Learn what a numerical aperture is and how to choose a suitable objective lens for your microscope here

A spider under a microscope: photos and peculiarities of studying the slide (18.05.2020)
Learn what a spider looks like under microscope, when the best time is to take photos of it, how to study it properly at magnification and more interesting facts about observing insects and arachnids

What does a microscope consist of? (18.05.2020)
This review for beginner explorers of the micro world introduces you to the optical, illuminating and mechanical parts of a microscope and their functions

Paramecium caudatum - your first friend from the microworld (21.11.2016)

Short article about Paramecium caudatum - a microorganism that is interesting to observe through any microscope

Questions and Answers

Elliott (2019.03.24)

Is there a link to the software? I can't use the disc.Thank you.

Customer service:

Dear Elliott, thank you for your inquiry.
All software updates are available in References and Downloads Tab.

Software for Mac:
https://loc.levenhuk.com/upload/uf/6cf/8l1h8a1d3l813vl80cso0e31rs7i8l76/lvh-software-microcapture-2-0.zip

Software for Windows:
https://loc.levenhuk.com/upload/uf/401/fpbxwpuh826c0rha2pa0hhhq1ud25es1/Levenhuk_DTX_50_MicroCapture_Basic_3.1.1_Software_Win_Mac.zip

Is there any additional information you might need?

Zack Dickson (2018.03.14)

what objects can be seen through this model? can I observe opaque samples?

Customer service:

Levenhuk DTX 50 Digital Microscope allows you to observe opaque samples such as coins, electronic circuits, etc. There’s also a possibility of biological use.

Violetta (2017.10.22)

What ready-to-use slide sets would you recommend for observatio ns with this microscope?

Customer service:

You can choose any set from our catalog here - https://www.levenhuk.com/catalogue/accessories/microscope-accessories/microscope-experiment-sets/ .

Violetta (2017.10.22)

Tell me please what objects can be seen through this microscope? Starting from the largest objects (coins, for example) and ending with the tiniest thing. We consider buying it for a 11 yo teenager… image transferring on a PC display is a big plus, as he has myopia

Customer service:

This microscope is used for work that Doesn’t require high magnification. The model is suitable for observations of objects of any size.

Irvin Dot (2017.10.20)

Hello! Does this microscope model support UVC (USB Video Class)? So that it could be used with any operating system (computer sees it as a video camera without any drivers)

Customer service:

Levenhuk DTX 50 Microscope is compatible with Win 7/8/10 and Mac 10.6~10.10. UVC (USB Video Class) is not supported.

max lintott (2016.10.04)

Are there any Windows 7 Drivers that would assist as potentially struggling connecting to usb 3.0?

Customer service:

Dear Mr.Lintott,
Thank you for your request.
DTX50 Microscope is connected to a PC or laptop via standard USB 2.0 cable.
The software for downloading can be taken from our website: https://loc.levenhuk.com/upload/uf/6cf/8l1h8a1d3l813vl80cso0e31rs7i8l76/lvh-software-microcapture-2-0.zip

Ross Bailey (2016.09.09)

Can I use this model to detect tiny parasites (0.2-0.4 mm diameter), for example dust mites?

Customer service:

Levenhuk DTX 50 Microscope is not suitable for your purpose. Please consider Levenhuk Rainbow 2L PLUS Microscope - https://www.levenhuk.com/catalogue/microscopes/levenhuk-rainbow-2l-plus-microscope/ .

Pedro Bishop (2016.07.27)

Hello again! I already asked you about Levenhuk DTX 500 Mobi... but this one is cheaper, features 400x magnification... is it suitable for measuring particle size in the range of 2-50 microns (0.002 mm - 0.05 mm)?

Customer service:

Yes, Levenhuk DTX 50 Digital Microscope is suitable for measurements in the range of 2-50 microns.

Walter May (2016.03.08)

What microscope would you advise me for searching plant pests? (sometimes they are 0.5-1 mm in diameter). I'd like to buy a model with the ability to transfer produced images to PC.

Customer service:

Levenhuk DTX 50 Digital Microscope is great for your purpose. But we would recommend something more portable, for example Levenhuk DTX 500 Mobi Digital Microscope - https://www.levenhuk.com/catalogue/microscopes/levenhuk-dtx-500-mobi-digital-microscope/ .

James Craig (2015.12.22)

what's the microscope's optical zoom? What kind of optics does it have?

Customer service:

Levenhuk DTX 50 is a digital microscope. The optics are made of optical glass.

Elias Beasley (2015.11.23)

I'm curious... is it possible to see a human hair structure through this instrument?

Customer service:

Yes, it is possible with Levenhuk DTX 50.

Marina Ortis (2015.04.27)

Hello, I can't decide between DTX 30 and DTX 50. As far as I can see, DTX 30 has better camera (2 Mpx interpolated to 5), DTX 50 produces higher magnification (up to 400x), but the camera is less than 2 Mpx. Just tell me, which one provides better images? The one with more Mpx? But if I talk from my experience with digital photography, 2 Mpx cameras don't provide the best images in terms of quality....

Customer service:

Levenhuk DTX 50 Digital Microscope provides images of higher quality.

Lydia Crisp (2015.03.05)

Ok, but I asked you about depth of field, not about magnification.

Customer service:

The depth of field will be different depending on focus and magnification values.

Lydia Crisp (2015.03.04)

what about the depth of field?

Customer service:

To obtain the maximum magnification power of the Levenhuk DTX 50 microscope, you should bring the microscope really closely to the observed object. With a focal length of 2-3 cm, the magnification will be around 20x.

Paul Jackson (2015.02.04)

Can I install this software on the tablet?

Customer service:

It depends on your operating system of choice. You can try to download and install the software using the links provided in the "References and Downloads" section.

Paul Jackson (2015.02.04)

Hi! Can I connect this microscope to my tablet? It has a USB port. Will I be able to use it without installing the software?

Customer service:

You can connect Levenhuk DTX 50 to your tablet via USB, but software installation is still required.

Andy (2014.12.01)

Hello! Can I observe stone and metal samples and their structure with this model?

Customer service:

Yes, Levenhuk DTX Microscopes are created for observing opaque objects.

Nick Quinn (2014.10.03)

Hello!Is it necessary to buy usb-camera? Or is this model already equipped with it?Thank you.

Customer service:

The Levenhuk DTX 50 model is equipped with a built-in digital camera, you don't have to purchase it separately.
