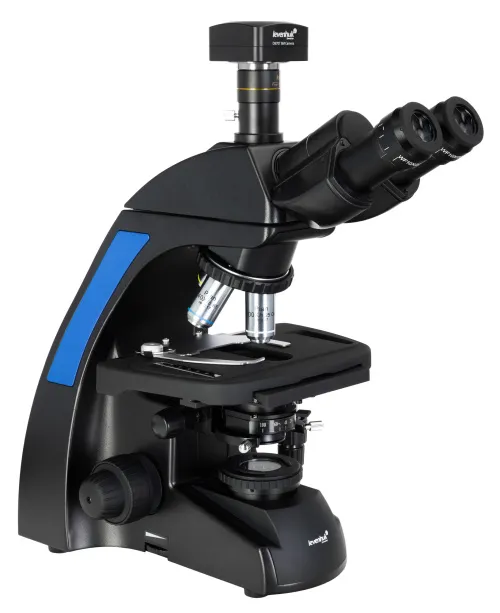

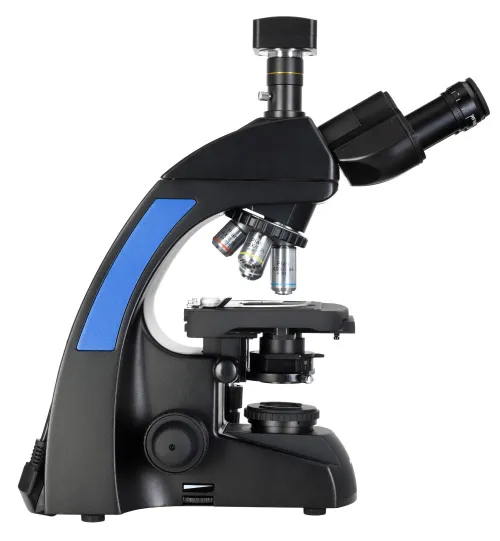

Levenhuk D870T 8M Digital Trinocular Microscope

The Levenhuk D870T is a digital microscope with an 8MP digital camera that is used for micro research in medicine, biochemistry, pharmaceuticals, biology, and ecology. Observations are only possible in the brightfield transmitted light. The camera can take photos and record videos of research for archives or future use as well as display the image on an external screen for presentation to an audience. The magnification of the microscope ranges from 40x to 1000x and uses brightness-controlled LED illumination to light the specimens.

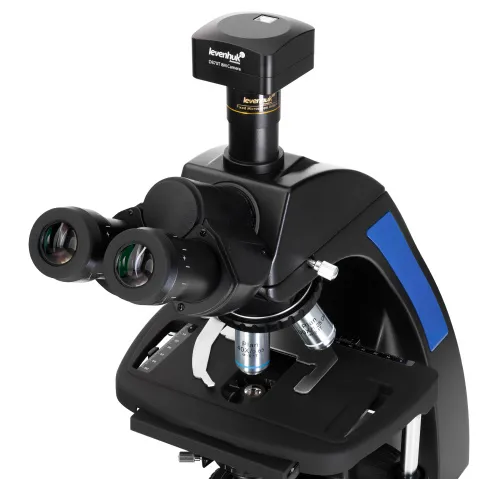

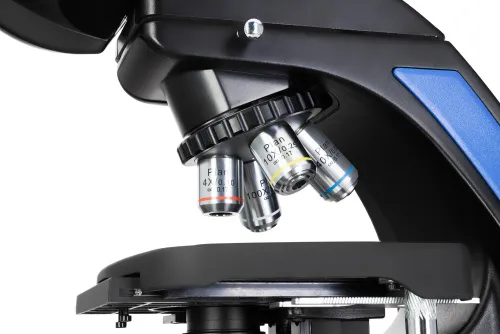

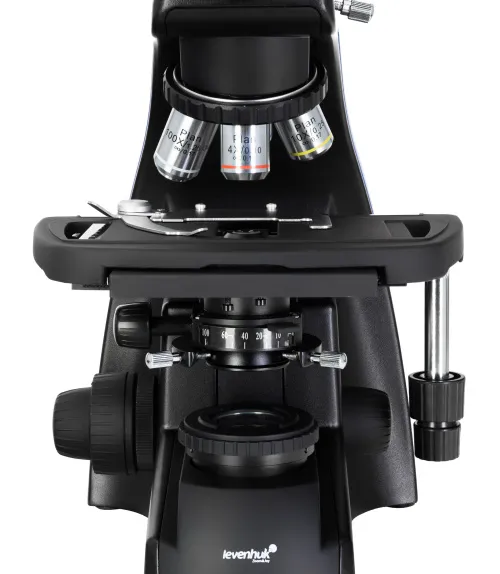

The trinocular rotating head is convenient for professional researchers who spend a lot of time examining specimens. You can look through the eyepieces with both eyes, which greatly reduces eye strain. In addition, the eyepiece tubes can be set apart to the most comfortable distance for the user. The 4-objective revolving nosepiece is oriented toward the interior, and so you can see the objective inserted into the optical path during the observation. The included objectives are plan achromatic and the eyepieces have a wide field of view.

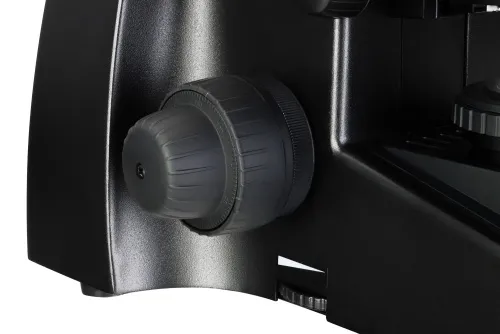

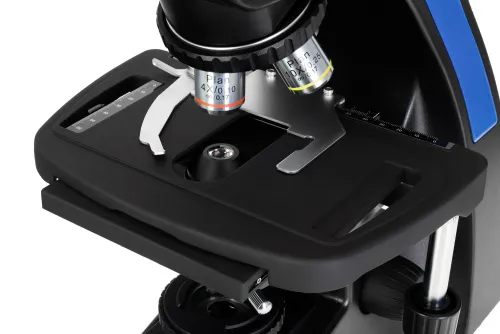

The stage is supplemented with two specimen holders. By moving the stage vertically, you can adjust the focus, and by moving it horizontally along two axes, it allows you to accurately position the part of the specimen under the microscope objective. The stage does not have a positioning rack and, therefore, it is more convenient to work with. The focusing of the microscope is adjusted by coarse and fine focusing knobs.

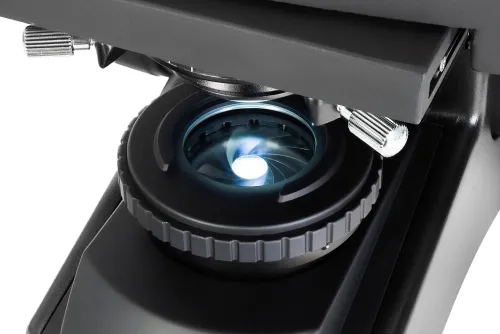

The sample is illuminated by LEDs mounted in the base of the microscope. It is long-lasting, does not require frequent replacement, and is powered by AC power. The aperture and field diaphragms allow for the Köhler illumination setup.

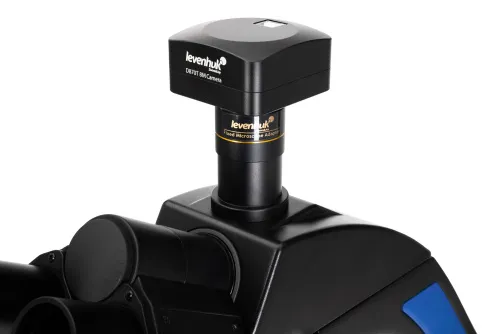

The microscope comes with not only a digital camera, but also all of the necessary software and drivers. The Levenhuk D870T microscope is compatible with Mac OS, Linux, Windows, and USB2.0 port is required for connection. If the software does not work on your computer, please contact us and inform us as to what your operating system is and its version (for Linux: platform and kernel version).

Key features:

• Laboratory microscope with digital camera and image processing software
• Trinocular head, interpupillary distance adjustment, wide-field eyepieces
• The revolving nosepiece oriented toward the interior with four objective slots, plan acromatic objectives
• For brightfield microscopy in transmitted light at magnifications from 40 to 1000x
• Brightness-adjustable LED light source, Köhler illumination setup
• Stage with two specimen holders, no positioning rack, coarse and fine focusing
• Retractable collector for easy LED replacement

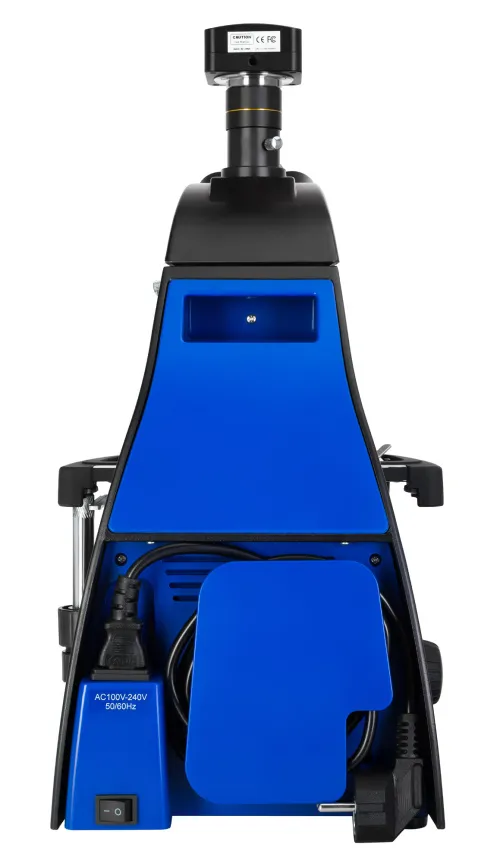

• AC power supply

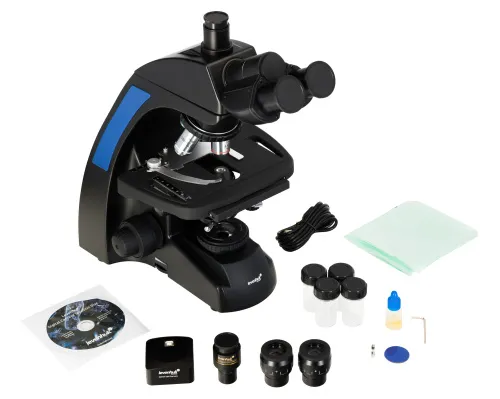

The kit includes:

• Microscope base, revolving nosepiece, condenser, stage, built-in transmitted light illuminator and power supply
• Trinocular head
• Plan achromatic objectives: 4x, 10x, 40xs, 100xs (oil)
• Eyepiece WF10x/22 mm (2 pcs.)
• Blue filter
• Bottle of the immersion oil
• Digital camera: 8MP
• USB cable
• Software CD and drivers
• AC adapter
• Dust cover
• User manual and warranty card

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.
