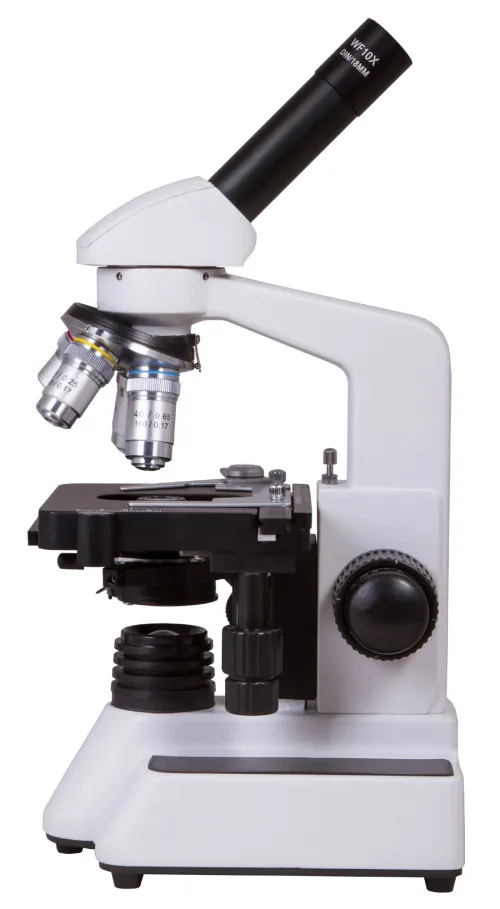

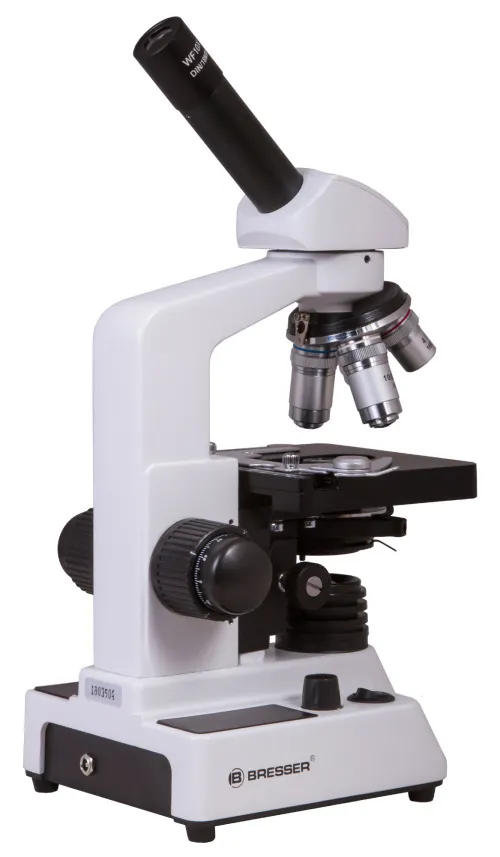

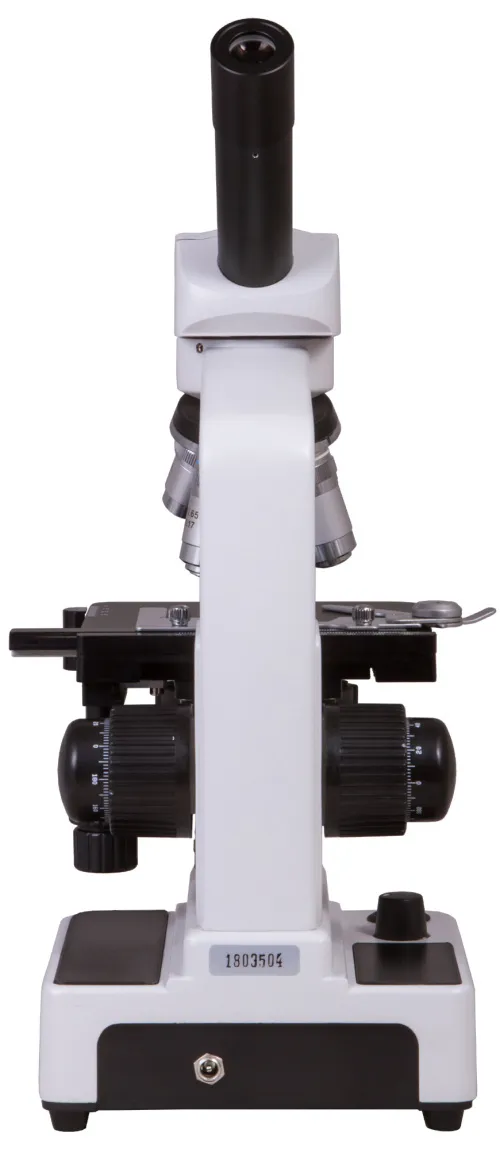

USA Bresser Erudit DLX 40–1000x Microscope
The price is valid only for the online store and may differ from the prices in retail stores.
For brightfield observations. Magnification: 40–1000x. Monocular
Monocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1000
How much the size of a sample increases when you observe it through a microscope
School/educational
Application and use of the microscope
| Product ID | 72350 |
| Brand | Bresser GmbH, Germany |
| Warranty | 2 years |
| EAN | 4007922150178 |
| Package size (LxWxH) | 46x30x22 cm |
| Shipping Weight | 3.73 kg |
Description

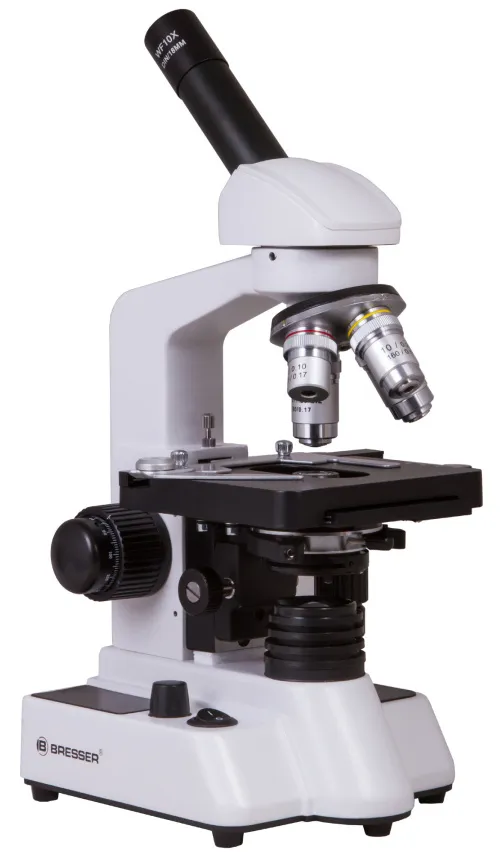

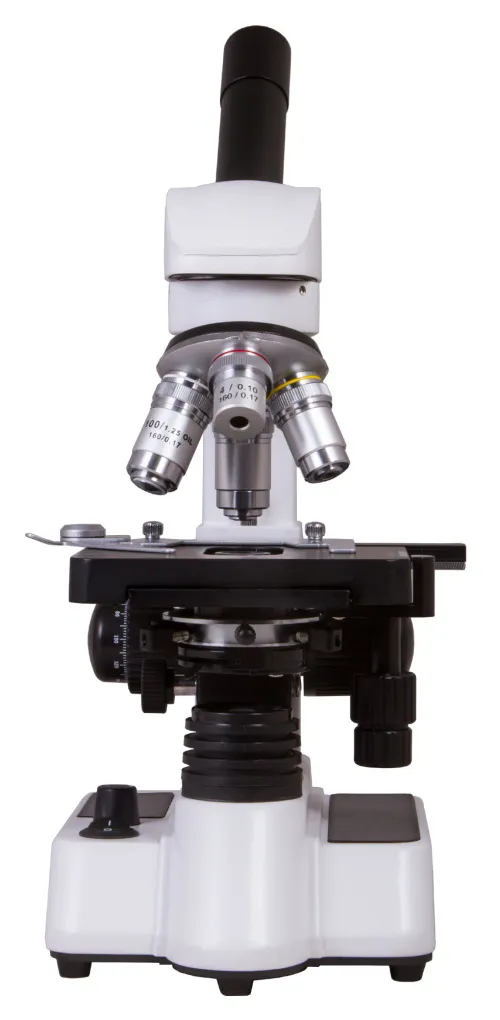

The Bresser Erudit DLX is a high-quality microscope for school, studies and hobby use. An integrated rechargeable battery makes the Erudit DLX for mobile use. The LED illuminator and the height adjustable condenser (with diaphragm and filter holder) offer an optimal illumination. The achromatic DIN objectives allow a very good image. The 40x and 100x objectives are resilient to save the preparation for damage. The microscope has a 360° rotatable monocular view, coarse and fine focusing drive, and a coaxial mechanical desk with nonius.
Features:
- Type: biological microscope
- View: monocular
- Comfortable view, 360° turnable head
- Application range: biology, botany, education, teaching
- Illumination: LED, adjustable condenser
- Level: beginner, intermediate
- Extras: rechargeable battery operation
- Coaxial mechanical stage

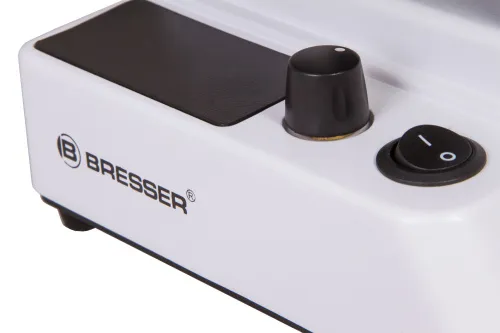

- Integrated dimmer

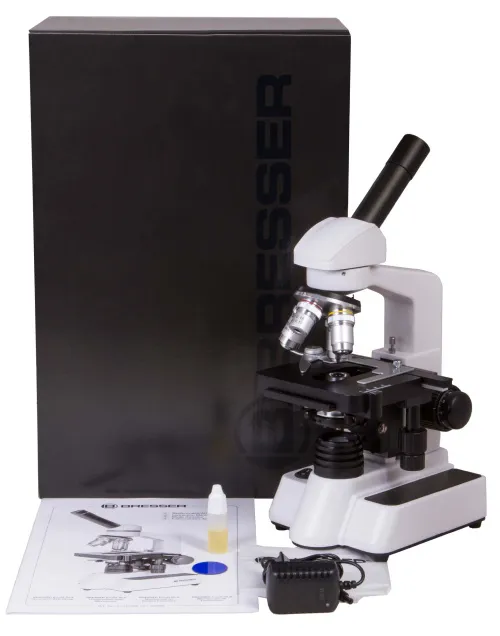

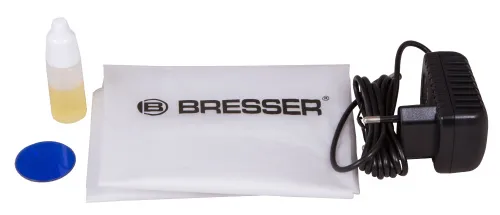

The kit includes:
- Microscope body
- Eyepiece 10x
- 4 objecitves: 4x, 10x, 40x, 100x (oil)
- Abbe condenser with field diaphragm and filter holder
- Blue filter
- Immersion oil
- Dust cover
- Power supply
- User manual
Specifications
| Product ID | 72350 |
| Brand | Bresser GmbH, Germany |
| Warranty | 2 years |
| EAN | 4007922150178 |
| Package size (LxWxH) | 46x30x22 cm |
| Shipping Weight | 3.73 kg |
| Type | biological, light/optical |
| Head | monocular |
| Nozzle | 360 ° rotatable |
| Magnification, x | 40 — 1000 |
| Eyepiece tube diameter, mm | 23 |

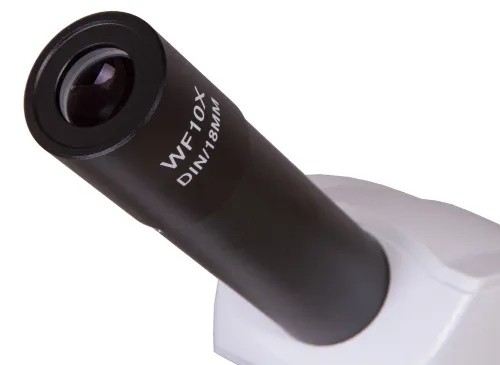

| Eyepieces | 10x with a pointer |

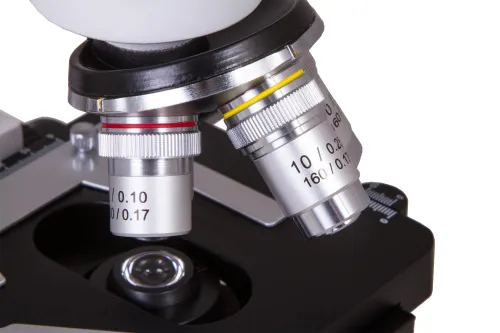

| Objectives | achromat DIN standard: 4x, 10x, 40x, 100x (oil) |
| Revolving nosepiece | for 4 objectives |

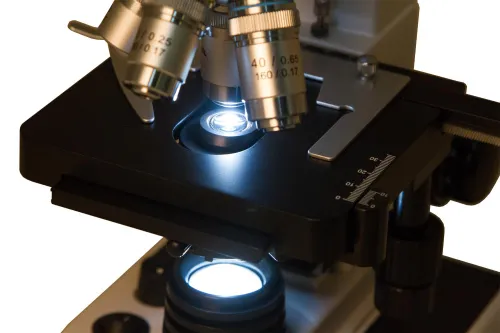

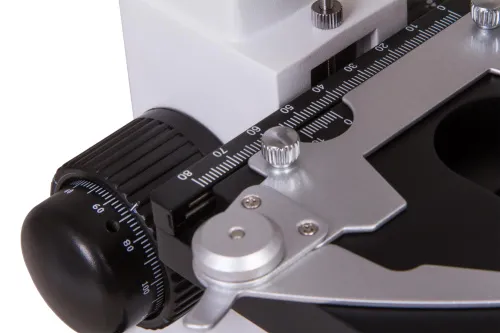

| Stage features | mechanical, two-coordinate, with a Vernier scale and mechanical stage |
| Condenser | Abbe N.A. 1.25, height adjustment, filter holder |
| Diaphragm | field |

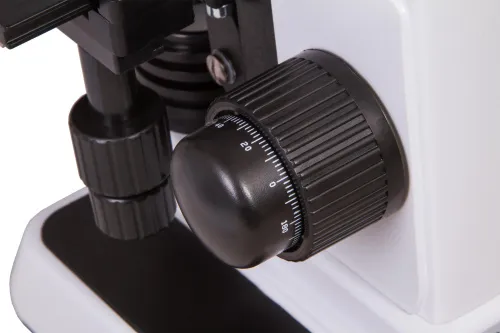

| Focus | coaxial; coarse and fine |
| Body | aluminum, plastic |
| Illumination | LED |
| Brightness adjustment | ✓ |

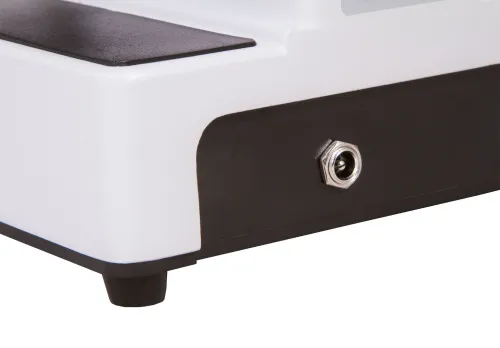

| Power supply | built-in battery, 230V AC adapter (included) |
| Light filters | blue |
| User level | beginners |
| Application | school/educational |
| Illumination location | lower |
| Research method | bright field |
| Pouch/case/bag in set | dust cover |
