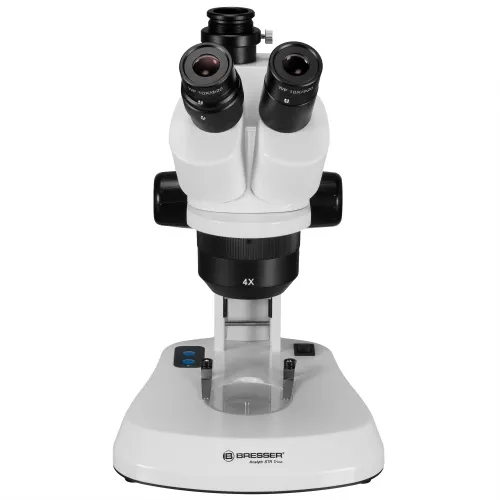

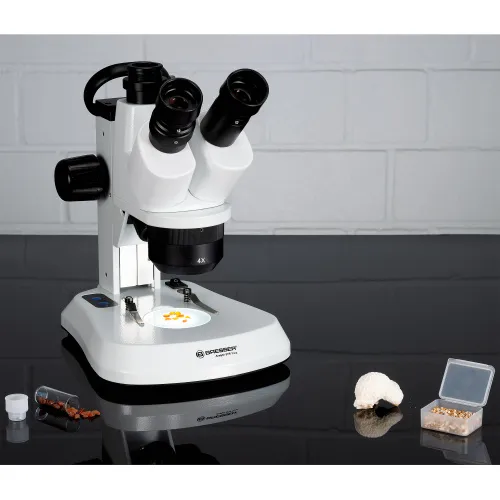

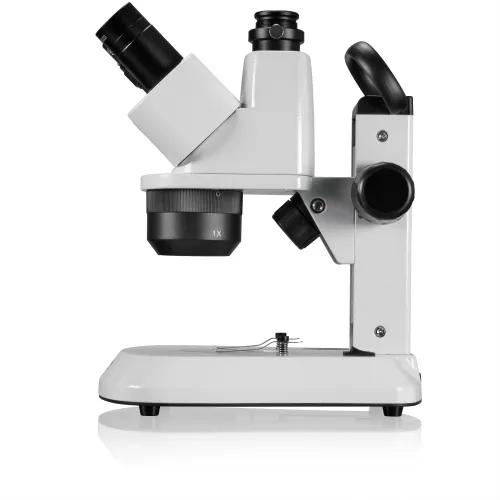

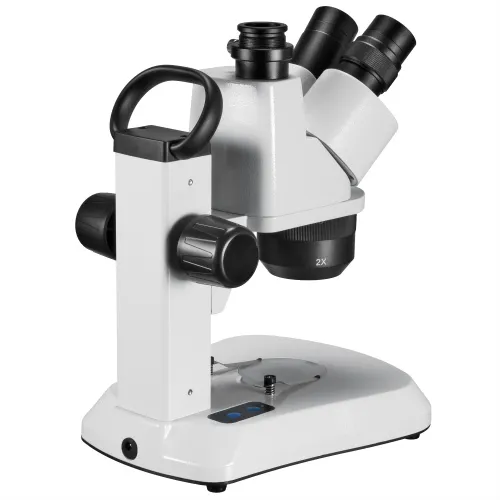

Bresser Analyth STR Trino 10x - 40x trinoculary stereo microscope

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 10–40x, trinocular head

Trinocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
10 — 40
How much the size of a sample increases when you observe it through a microscope
For applied research
Application and use of the microscope
Availability

Product ID 78982
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922071299
Package size (LxWxH) 30x25x20 cm
Shipping Weight 2.5 kg
Description

The Analyth STR Trino has 3 different objective magnifications that can be changed simply by turning the objective. This means that the magnifications 10x, 20x and 40x can be changed directly. The stereo design shows structured objects particularly vividly and three-dimensionally. The low,10x initial magnification is particularly suitable for working with children. Objects up to 20mm in size can be viewed in their entirety. The Analyth STR is therefore particularly flexible to use. It is suitable for insects, plants, minerals and much more and has its areas of application in hobby, school and work. The stereomicroscope can be used for quality control, in horticulture and agriculture, for hydrology and much more. The trinocular tube enables the comfortable connection of a camera. The microscope is compatible (depending on the adapter) for microscope cameras, SLR and system cameras. Ask us which adapter you need. The interpupillary distance and dioptric compensation are individually adjustable. The eyepieces have a large field of view of 20mm. They are equipped with removable rubber eyecups and secured against removal. The microscope can be powered either with the mains adapter or with 3 batteries (not included). This means that it can also be used on the move, for example outside in the garden or on an excursion.

Properties:

  • Microscope with 3 pairs of objectives, objective magnifications 1x; 2x; 4x
  • Wide field eyepieces with eyecups and 20mm field of view
  • Trinocular tube with 23.2mm mount
  • Bright, economical LED illumination
  • Illumination for incident and transmitted light can be switched separately
  • Dimmer via membrane keys with status display
  • Two specimen plates (black/white or glass matt), with specimen clips
  • Dust cover
  • Operating instructions
  • Stand with LED illumination, separately or jointly switchable or dimmable

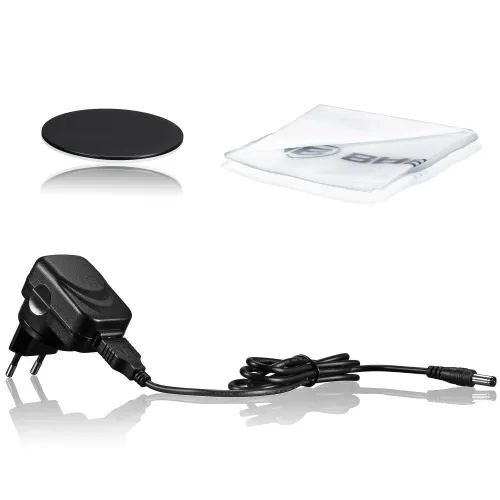

Scope of delivery:

  • Microscope with 3 magnifications, 10x; 20x; 40x
  • Trinocular tube
  • Metal stand with LED illumination, power supply and battery compartment
  • 2 eyepieces with rubber eyecups
  • Glass object plate
  • Plastic object plate (black/white)
  • Dust cover
  • Operating instructions
Specifications
Product ID 78982
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922071299
Package size (LxWxH) 30x25x20 cm
Shipping Weight 2.5 kg
Type stereo/instrumental
Head trinocular
Magnification, x 10 — 40
Eyepiece tube diameter, mm 30.5
Interpupillary distance, mm 50 — 77
Illumination LED
Brightness adjustment
Power supply 5V
Application for applied research
Illumination location dual
Research method bright field
Pouch/case/bag in set dust cover
