Levenhuk DTX 500 Mobi Digital Microscope - Exhibition Item

Found it cheaper?
Get the same price + gift!
The price is valid only for the online store and may differ from the prices in retail stores.

Portable USB digital microscope with LCD display. Magnification: 20x, 200x, 500x. Digital camera: 5Mpx

Availability

Product ID 75115
Brand Levenhuk, Inc., USA
EAN 2400000040941
Package size (LxWxH) 33x7x15 cm
Shipping Weight 0.7 kg
Type digital, portable
Description

Special price! Further discounts or special offers cannot be applied in this case.

Exhibition copy.

This item has mechanical defect (only works with adapter).
Otherwise, the product is fully functional.

Exhibition copies cannot be exchanged or returned for a refund.

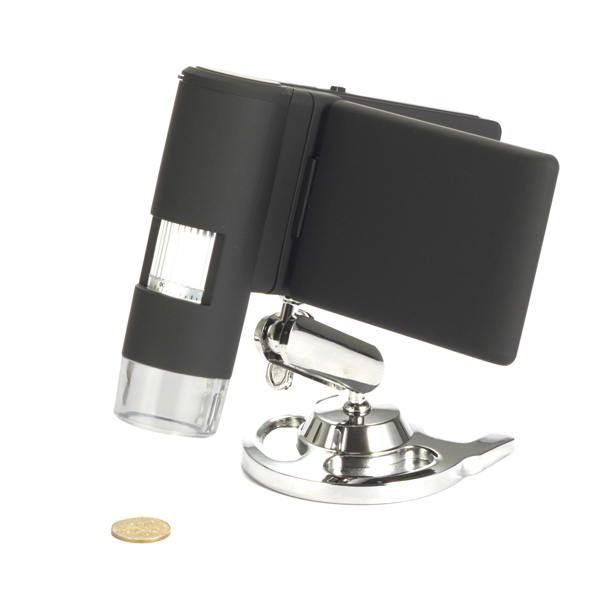

Levenhuk DTX 500 Mobi is a portable microscope with a built-in 3-inch color LCD display. This model produces magnification up to 500x and features smooth digital zoom up to 4x. Levenhuk DTX 500 Mobi is perfectly suited for microscopic observations of any surfaces, both at home and outside. All of this makes this microscope an excellent gift for any schoolchild. A handheld microscope is often used to check the quality of goods in stores and detect any possible mold growing on fruit and vegetables.

Levenhuk DTX 500 Mobi Digital Microscope allows you to easily take pictures and record videos of observed objects. All files created during your observations are stored to the microSD card. All you need to do to transfer your images and videos to your PC is connect the microscope to it using the USB cable included in the kit. The kit also includes special software allowing you to edit created files and perform precise measurements of linear sizes, radiuses and angles with an accuracy of 1 micrometer or better.

Levenhuk DTX 500 Mobi Digital Microscope is powered by the Li-ion battery included in the kit, which provides for up to 4 hours of standalone work.

Microscope’s body is rubber-armored, which makes it pleasant to the touch and also provides for a comfortable grip and prevents the device from slipping out of your hands.

Features:

  • Rotatable 3" color LCD display
  • Support of microSD cards with capacity up to 32 Gb
  • PC connection via USB 2.0 interface
  • AV output for connecting to TV or projector
  • Able to take photos/videos
  • Automatic exposure and white balance
  • 8 white LEDs with adjustable brightness
  • 4x digital zoom
  • Li-ion rechargeable battery
  • Comes with special software for measuring linear sizes, areas, angles and radiuses of studied samples
  • Сompatible with Windows and Mac OS

The kit includes:

  • Levenhuk DTX 500 Mobi Microscope
  • Tripod
  • Adapter*
  • Software CD
  • USB cable
  • AV cable
  • Li-ion rechargeable battery
  • Pouch
  • Strap
  • Cleaning wipe
  • User manual and lifetime warranty

Recommendations on using the software:

  • In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.
  • Once connected to the PC, it does not support the magnification change function.

Levenhuk DTX 500 Mobi Digital Microscope is not compatible with external digital cameras.

* Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Specifications
Product ID 75115
Brand Levenhuk, Inc., USA
EAN 2400000040941
Package size (LxWxH) 33x7x15 cm
Shipping Weight 0.7 kg
Type digital, portable
Microscope head type digital screen/PC monitor
Optics material optical glass
Head 3" rotatable color LCD screen
Magnification, x 20 — 500
Focus manual, 0–30mm
Body plastic
Illumination LED
Brightness adjustment
Power supply 110–240V adapter , 50/60Hz, 5V, 1A output, Li-ion battery 3.7V/1050mAh
Power supply: batteries/built-in battery yes
Additional battery-operated work: 4 hours; charging time: 5 hours
Megapixels 5 (with interpolation up to 12)
Video recording yes
Frame rate 30 frames per second
Image format *.jpg
Software, drivers photo and video capture and processing software with measurement function
Output USB 2.0
System requirements OS Windows 7/8/10, Mac 10.6 ~ 10.15; 1.8GHz Intel P4 and above, 512MB RAM, 32MB video card, USB 2.0, CD-ROM
Ability to connect additional equipment supports microSD memory cards up to 32GB (not included)
User level beginners, experienced users
Assembly and installation difficulty level easy
Video format *.avi
Application for applied research
Illumination location upper
Research method bright field
Pouch/case/bag in set pouch
Maximum resolution 12MP, 8MP, 5MP, 3MP, 1.3MP, VGA
