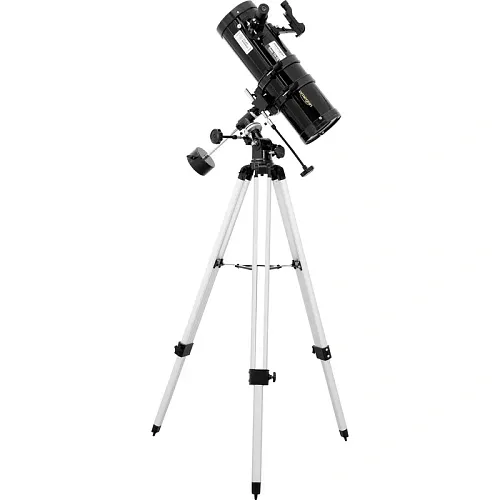

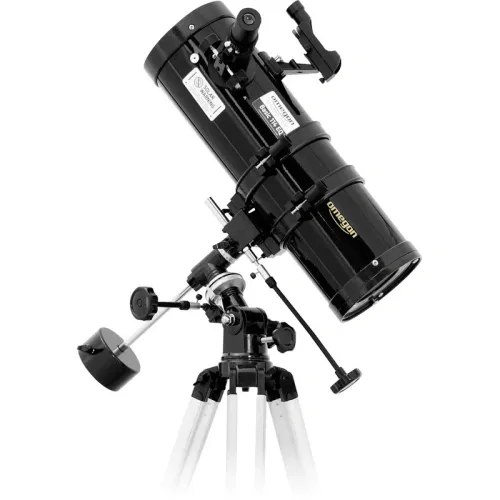

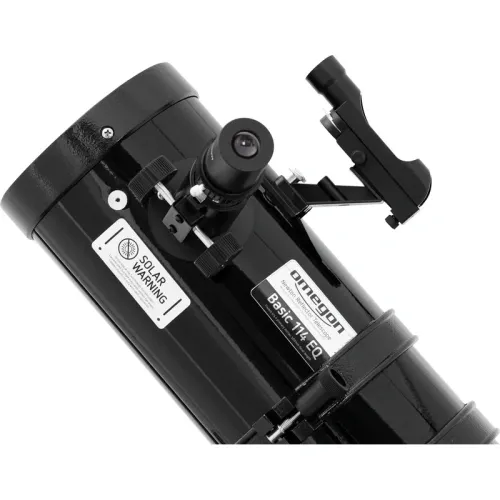

Omegon Telescope N 114/500 EQ-1
Reflector. Objective lens diameter: 114 mm. Focal length: 500mm
N 114/500 telescope:
This classic Newtonian telescope provides 114mm of aperture in a particularly light and compact design. It is therefore an ideal telescope for beginners. It is very easy to transport, simple to handle and requires no special expertise to operate. This telescope you will show you the rings of Saturn and the cloud bands and moons of Jupiter - looking like a small planetary system all of its own. The brighter nebulae and regions of star formation, such as the Orion Nebula, can also be observed. Why not go on your own personal voyage of discovery.

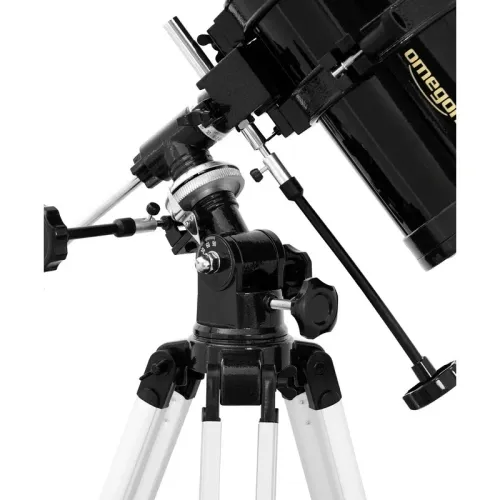

The EQ-1Mount:
This parallactic mount provides the possibility of accurately aligning the optics to the Pole Star. The correct polar elevation can be set for any observing site or geographical latitude. Slow motions on the Right Ascension and Declination axes allow objects to be precisely adjusted in the field of view and followed, with a counterweight provided for precise counterbalancing of the optics.
The EQ-1 mount comes as one of two variants, with a free-standing tripod or a table-top tripod. You can find more details in the technical data. The free-standing tripod is extendable to between 70cm and 120cm high and has a tray, providing space for eyepieces and other accessories. The table-top tripod is extremely compact and light, and thus ideal for trips or holidays. The smaller of the EQ mounts is extremely light and compact and can fit into virtually any travel bag. It is easy enough to set up for any beginner and can be just as easily used by children. A motor for tracking in right ascension is an optional upgrade.
Included in delivery of the mount:
- parallactic EQ-1mount
- tripod
- suitable counterweight
Product ID | 73085 |
Brand | Omegon |
Warranty | 2 years |
EAN | 2400000036609 |
Optical design | reflector |
Optical scheme | Newtonian |
Objective lens diameter (aperture), mm | 114 |
Focal length, mm | 500 |
Highest practical power, x | 228 |
Aperture ratio | f/4.4 |
Limiting stellar magnitude | 12.1 |
Barlow lens | 2x |
Finderscope | red dot |
Tripod | aluminum |
Mount | equatorial, EQ1 |
User level | beginners |
Observed object | planets of the Solar System and deep-sky objects |
Eyepieces | 25x, 10x |
