Measuring distances, angles, area, and volume. Pythagorean theorem feature

Laser
Type of tape measure
0.05–60
Measuring range
M, ft, in
Units of measurement
Availability

Product ID 81419
Brand Ermenrich
Warranty 5
EAN 5905555015859
Package size (LxWxH) 4x17x11
Shipping Weight 0.2
Description

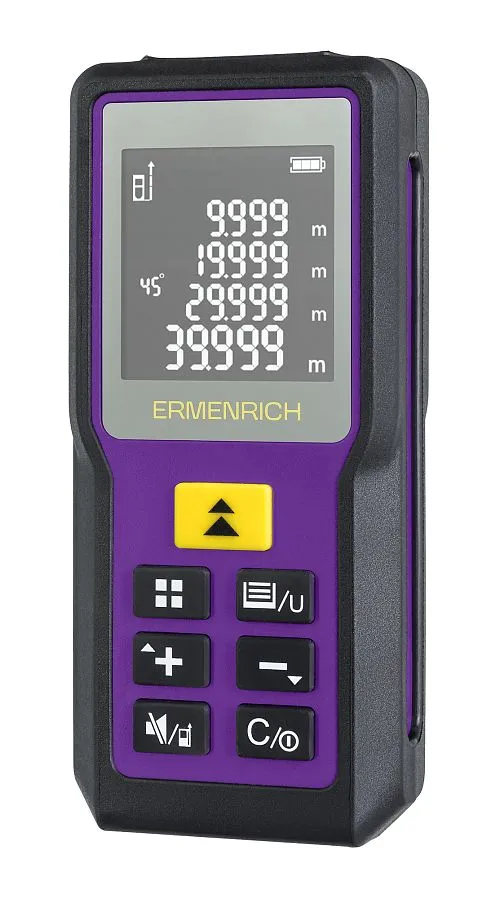

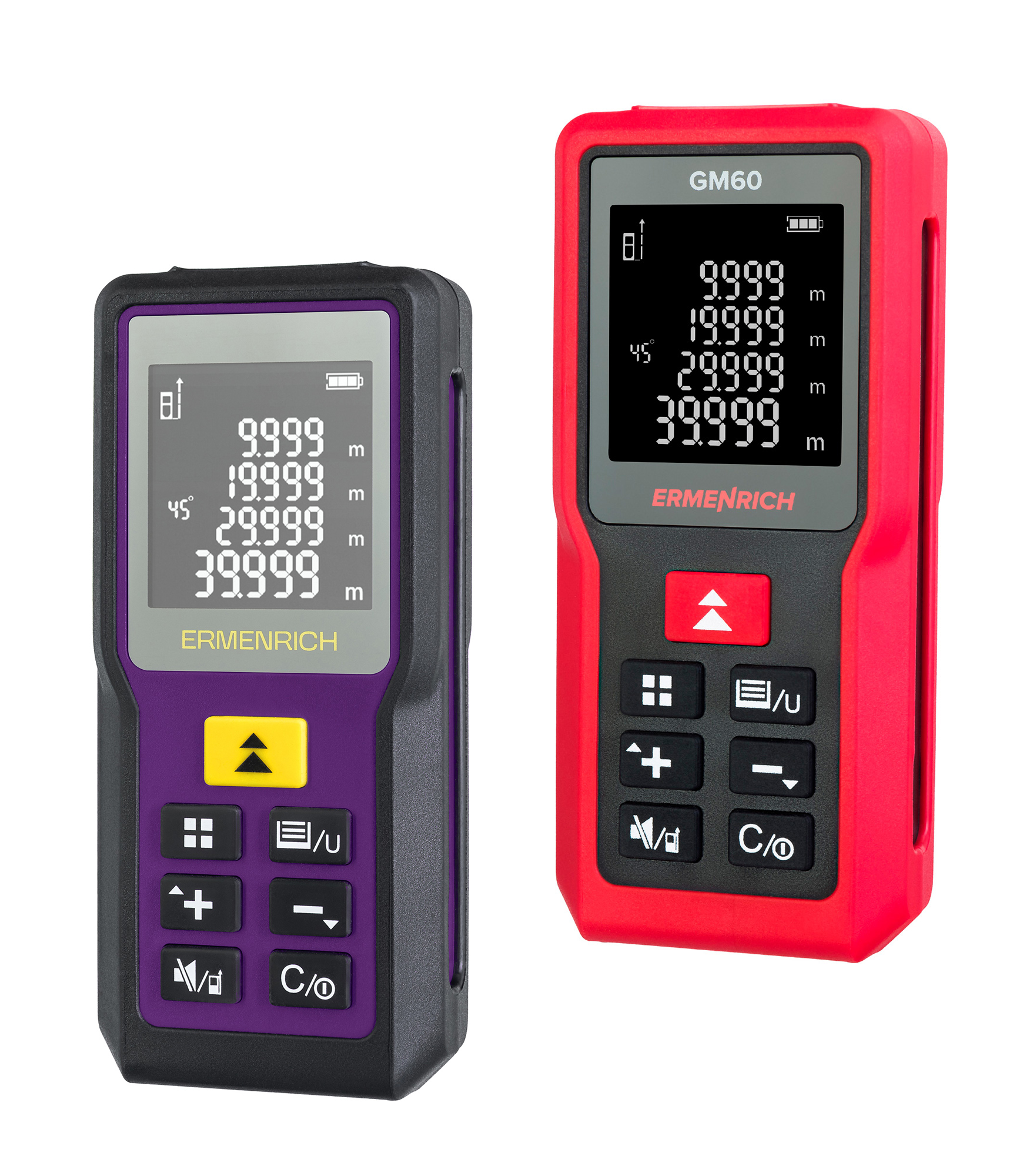

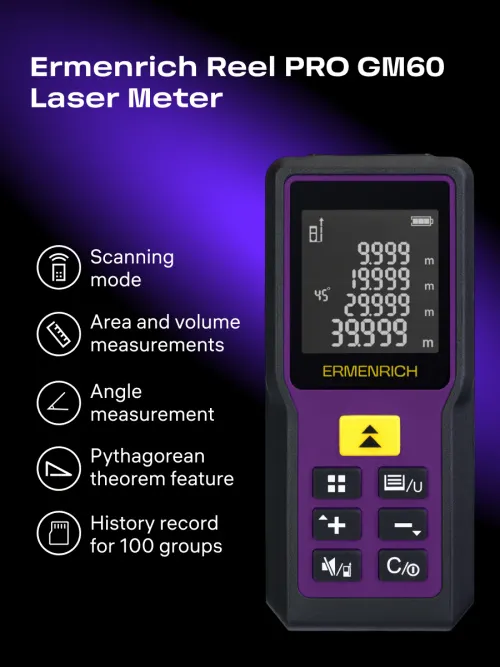

The Ermenrich Reel GM60 laser meter is a compact, versatile tool that is ideal for all types of engineering, construction, and renovation work. Not only can it measure distances and lengths of objects within 60 meters (200ft) but also other parameters such as angles, area, and volume. One of the helpful functions is the Pythagorean theorem feature. It takes indirect measurements by calculating the desired value based on two intermediate measurements. This is a great method of taking measurements when it may not be possible to hit the exact target point with a laser.

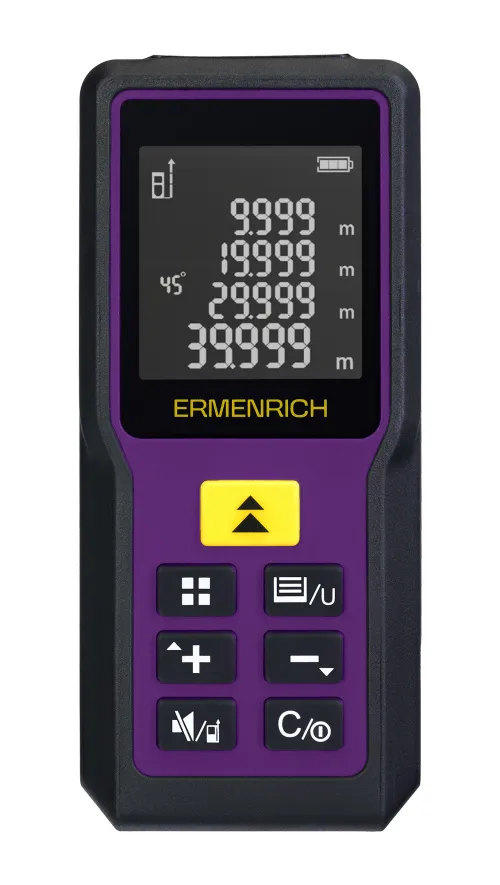

The Ermenrich Reel GM60 is user-friendly thanks to its compact design and a large 4-line display. Both single distance measurement and continuous measurement modes are available as well as a few multiple units of measurement. Professionals will appreciate its silent mode – you can work in silence by turning off audible alerts. The device is powered by 2 standard AAA batteries, one battery set lasts for over 5,000 measurements. To save power, there are auto-off function of the laser and the device itself. The history record of the device can store a large amount of data – 100 groups.

Key features:

  • Measuring distances, angles, area, and volume
  • 4-line screen, simple control buttons
  • Single distance measurement mode and continuous measurement (scan) mode
  • The Pythagorean theorem feature for calculating unknown values
  • Powered by batteries, auto-off function
Specifications
Product ID 81419
Brand Ermenrich
Warranty 5
EAN 5905555015859
Package size (LxWxH) 4x17x11
Shipping Weight 0.2
Type laser
Single distance measurement mode
Scanning mode
Measuring range 0.05–60
Units of measurement (length) m, ft, in
Measurement accuracy ±2
Angle measurements
Angle measurement range, ° ±50
Units of measurement (angles) minutes (angular), seconds (angular)
Area measurement
Units of measurement (area) m², sq.ft.
Volume measurement
Units of measurement (volume) m3, cu.ft.
Pythagorean theorem feature
Addition and subtraction
Reference point
Silent mode

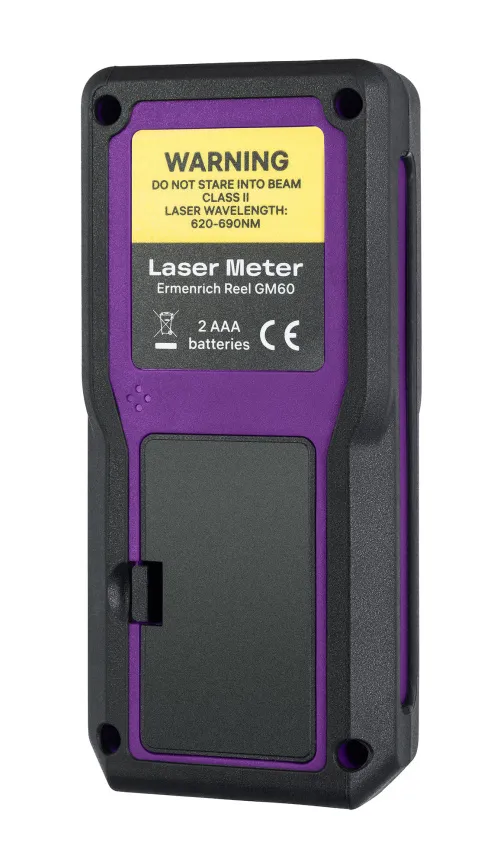

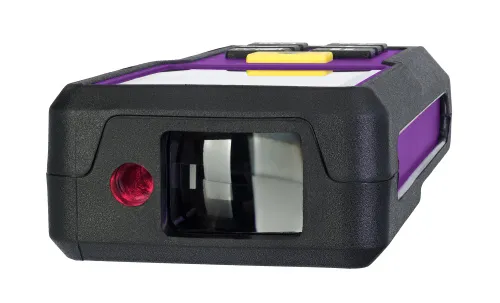

Laser designator <1mW, 620–690nm, class 1
Laser beam/device auto-off 30/180 seconds
Number of lines displayed on the screen 4
History record 100 groups

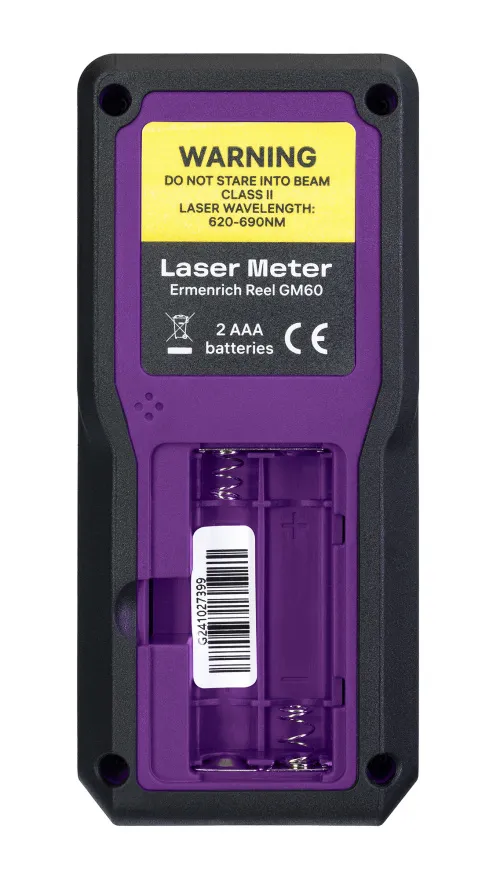

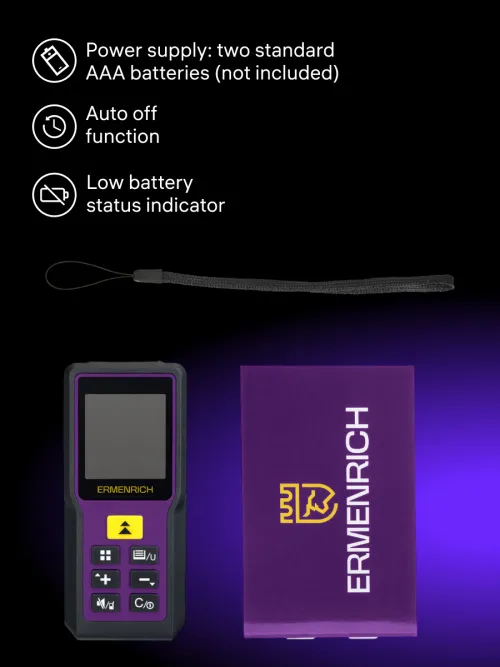

Power supply 2 AAA batteries (not included)
Battery life >5000 measurements
Visual fault locator (VFL)
Operating temperature range,°C 0...+40 (+32…+104°F)
