Ermenrich Wett MW10 Moisture Detector

Pin-type moisture detector for wood and other construction materials

Wood (lumber, paper, cardboard), construction materials (mortar, concrete, plaster)

Materials that the moisture meter can read

Pin-type

Type of the moisture meter by sensor type and measuring method

Wood: 8–60%; building materials: 0.3–2%

Measurement range: the range of values that the moisture meter can detect

Availability

Product ID	81729
Brand	Ermenrich
Warranty	5
EAN	5905555003276
Package size (LxWxH)	4x17x7
Shipping Weight	0.135

Description

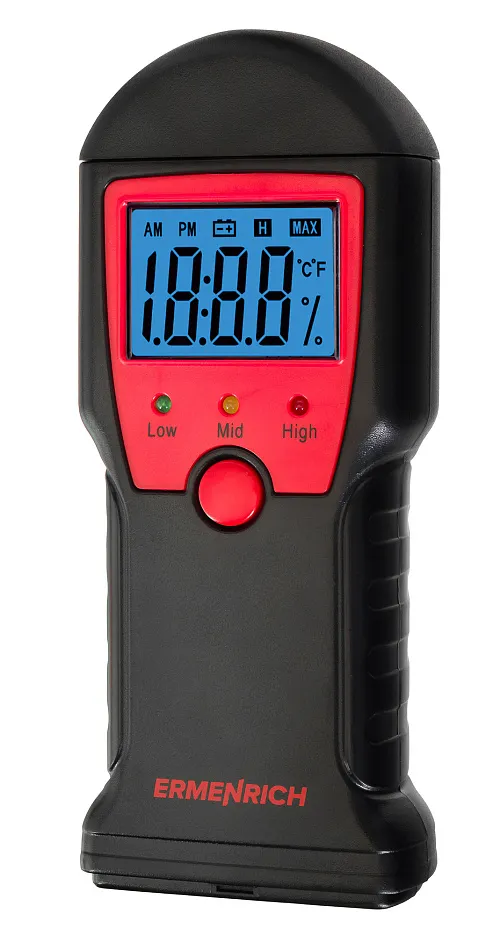

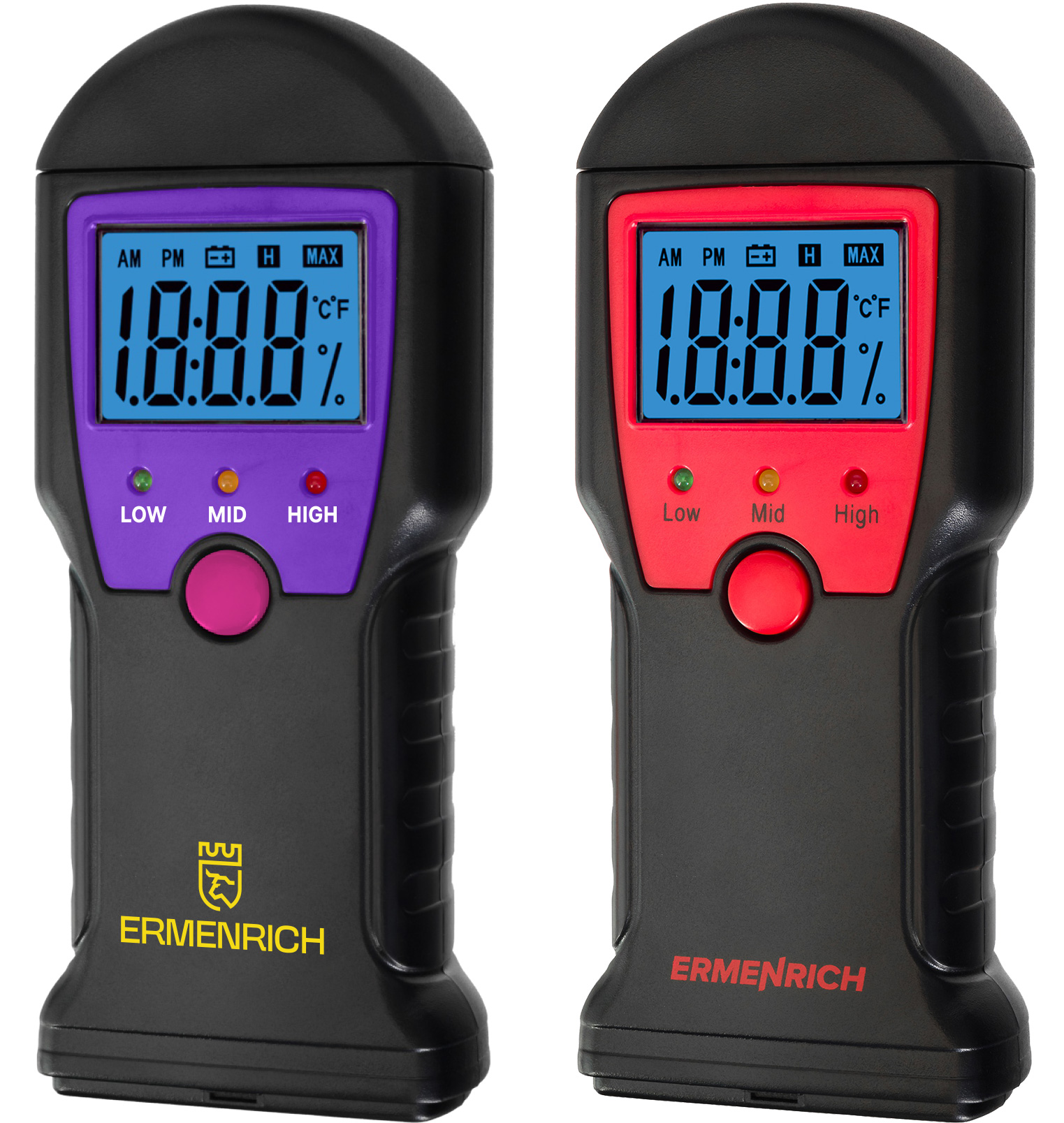

The Ermenrich Wett MW10 is a pin-type moisture detector for determining the moisture content of wood, construction mixtures and mortars. The device can also measure temperature in Celsius or Fahrenheit. Simple control with a single button. The measurements are displayed on the built-in screen with large digits and a bright blue backlight. Below the screen, there are three LED indicators that give an overall rating of how much moisture is in the material: green means low, yellow means increased, and red means high.

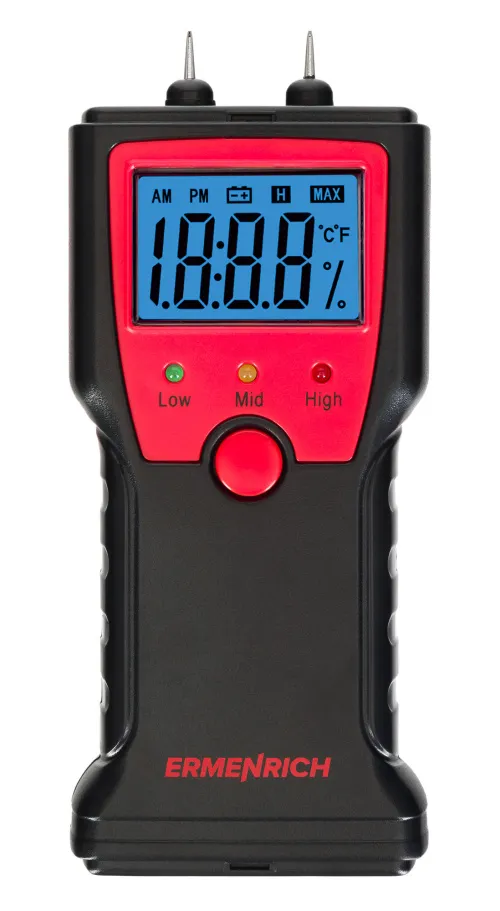

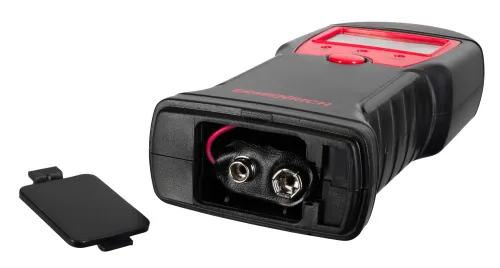

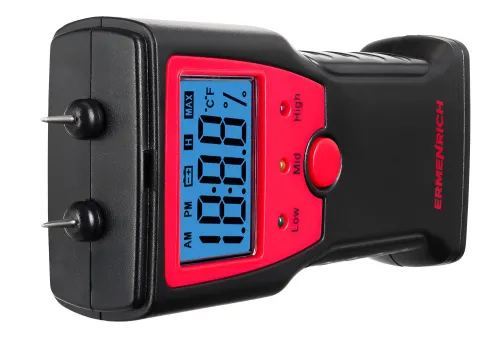

The device is quite compact, lightweight, and easy to hold in your hand. The measurement pins are hidden under the removable cover. You will find a battery compartment for a 9-volt battery at the bottom. In addition, the detector has an auto-off function and a low battery indicator displayed as an icon on the screen to monitor the battery life.

Key features:

Pin-type moisture detector
Determines the moisture content of building materials and wood
Measures temperature with an option to choose the units of measurement
Built-in backlit screen and LED indicators
Portable design, battery-powered, auto-off function

Specifications

Product ID	81729
Brand	Ermenrich
Warranty	5
EAN	5905555003276
Package size (LxWxH)	4x17x7
Shipping Weight	0.135
Materials	wood (lumber, paper, cardboard), construction materials (mortar, concrete, plaster)
Type	moisture detector, thermometer
Design	pin-type
Moisture detector (moisture content of materials)
Units of measurement	% (RH)

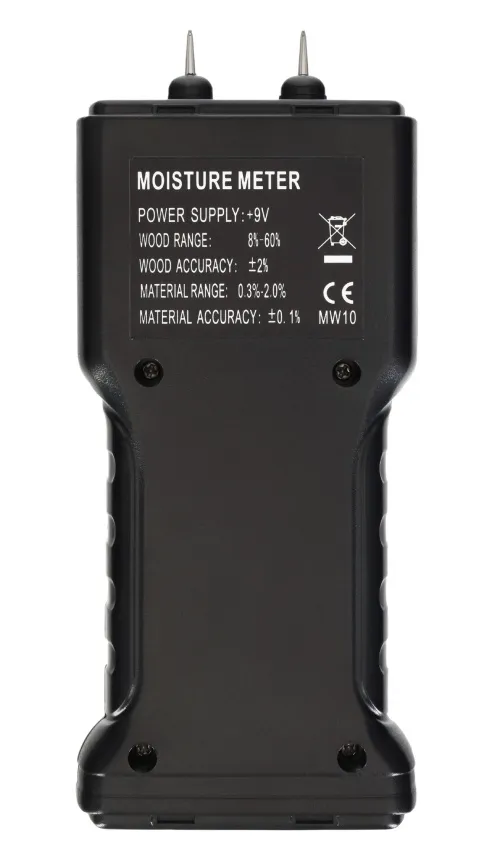

Measuring range	wood: 8–60%; building materials: 0.3–2%
Measurement accuracy	wood: ±2%; building materials: ±0.1%
Measurement resolution	wood: 0.1%; building materials: 0.01%
Light indication	green (low moisture level), yellow (increased moisture level), red (high moisture level)
Thermometer (temperature)
Units of measurement	°C, °F
Temperature measuring range, °С	0 — 40
Measurement accuracy	±2
Measurement resolution	0.1
Key features
Screen type	color
Backlight	blue
Power supply	9V battery 6F22 - 1 pc.
Operating temperature range,°C	0...+40
Auto power off	1 min
Additional	a low battery indicator
