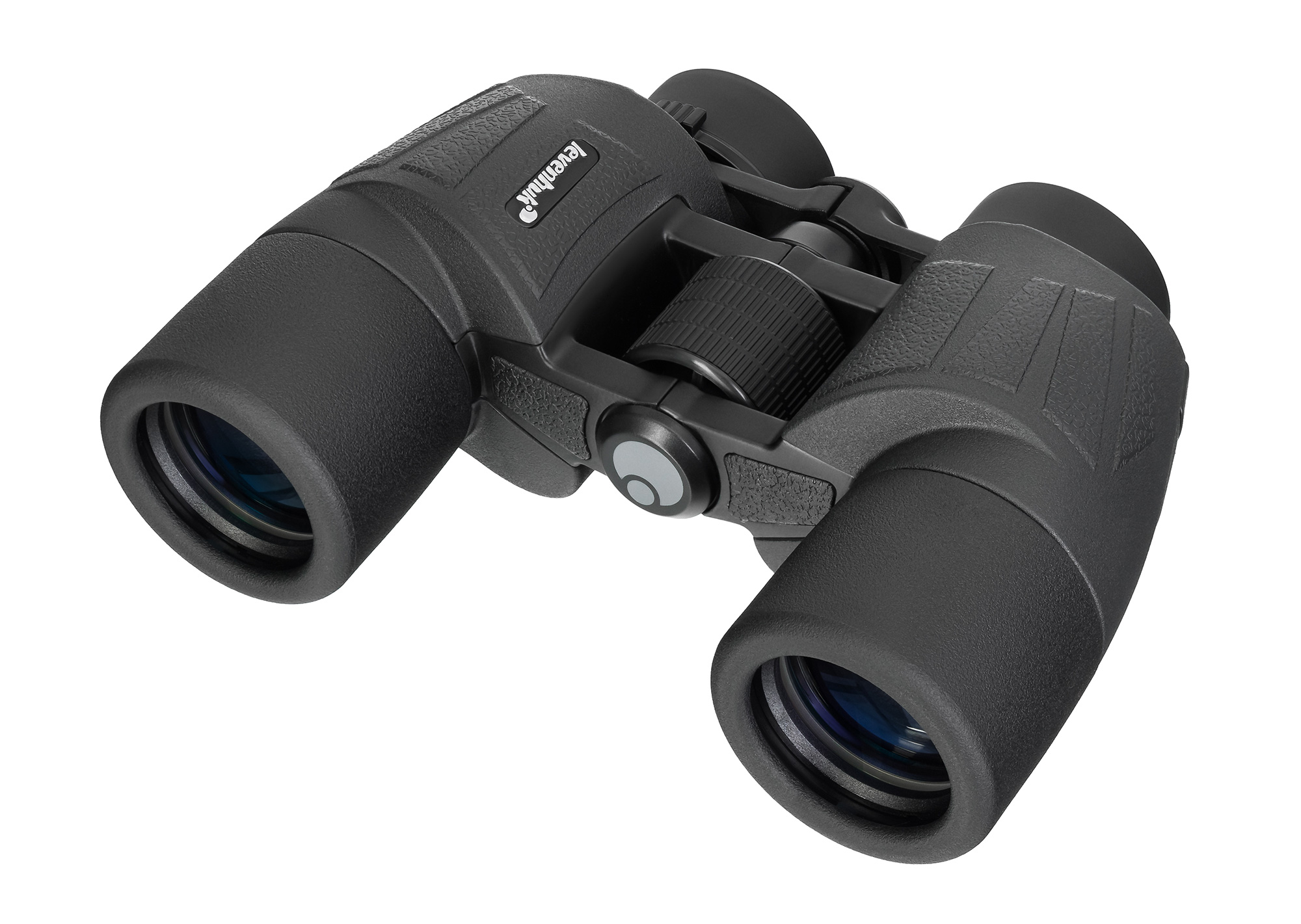

Levenhuk New Sherman BASE 10x40 Binoculars
Water-resistant, nitrogen-filled. Porro prisms. Magnification: 10x. Lens diameter: 40mm
| Product ID | 84665 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555023908 |
| Package size (LxWxH) | 20x17x8 cm |
| Shipping Weight | 1.1 kg |
Levenhuk New Sherman BASE 10x40 binoculars with Porro prisms are an excellent choice for those who enjoy observing nature. This optical device fully demonstrates its capabilities in hunting, hiking, security operations, and tactical surveillance. The binoculars provide 10x magnification, with a 6.3° real field of view (110m/1000m).
The optical elements of the Levenhuk New Sherman BASE 10x40 are made of BaK-4 barium glass and are multi-coated. It significantly improves the contrast and brightness, making images sharper and more readable. The binoculars feature a central focusing system. Diopter correction is provided within a ±4D range, enabling users to fine-tune sharpness to match their individual vision needs via the ring on the right eyepiece.

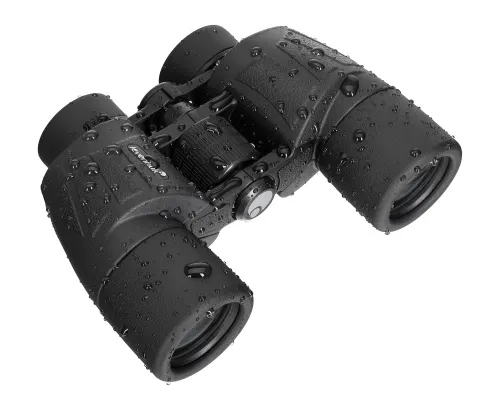

The binoculars’ body is made of aluminum alloy (silumin) and is protected against dust and water according to the IP67 standard. In addition, the body is nitrogen-filled, which prevents the lenses from fogging. The rubberized surface ensures a secure grip and adds to the overall durability of the design. The binoculars also feature a standard mounting socket for use with tripods.
Key features:
- Fully coated glass (BaK-4) optics
- Constructed from silumin (Al-Si alloy), offering an optimal balance of strength and a light weight
- Meets IP67 standards for complete waterproof performance, ensuring reliability in harsh weather
- Nitrogen filling protects the optics from internal fogging
- Personalized comfort with twist-up eyecups and vision-correcting diopter adjustment
- Tripod mountable

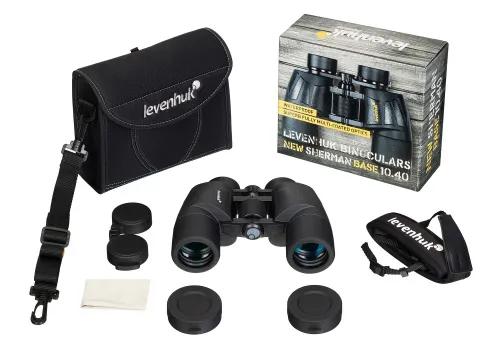

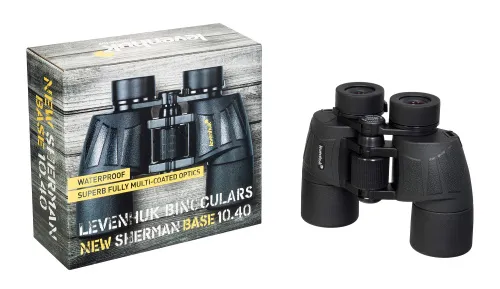

The kit includes:
- Binoculars
- Eyepiece and objective lens protective caps
- Strap

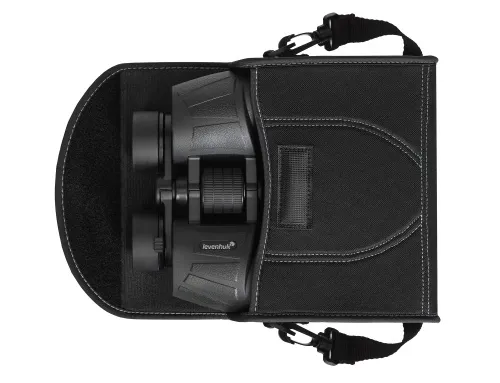

- Pouch
- Cleaning wipe
- User manual and warranty slip
| Product ID | 84665 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555023908 |
| Package size (LxWxH) | 20x17x8 cm |
| Shipping Weight | 1.1 kg |
| Prism type | Porro |
| Magnification, x | 10 |
| Objective lens diameter (aperture), mm | 40 |
| Optical design | 6 elements in 4 groups |
| Eyepieces | 4 elements in 3 groups |
| Objectives | 2 elements in 1 group |
| Optics material | BaK-4 |
| Lens coating | fully multi-coated |
| Prisms coating | fully multi-coated |
| Exit pupil diameter, mm | 4 |
| Eye relief, mm | 18 |
| Twilight factor | 20 |
| Relative brightness | 16 |
| Resolution threshold, arcseconds | 7 |
| Field of view, ° | 6.3 |
| Field of view, m/1000m | 110 |
| Close focus, m | 6 |
| Eyepiece diopter adjustment, diopters | ±4 |
| Interpupillary distance, mm | 56 — 73 |
| Focusing | central |
| Eyecups | rubber, twist-up |
| Body | rubberized, silumin |
| Body filling | nitrogen |
| Waterproof | ✓ |
| Moisture resistance | ✓ |
| Degree of moisture/water protection | IP67, complete protection against dust and temporary immersion in water |
| Hermetically sealed design | ✓ |
| Operating temperature range, °C | -10...+53 |
| Adaptable to a tripod | standard 1/4" thread, requires an adapter (not included in the kit) |
| Size | classic |
| Application | military/field, hunting and fishing |
| Assembly and installation difficulty level | extremely simple |
| Mounting on a tripod | ✓ |
| Pouch/case/bag in set | pouch |
| For eyeglass wearers | ✓ |
