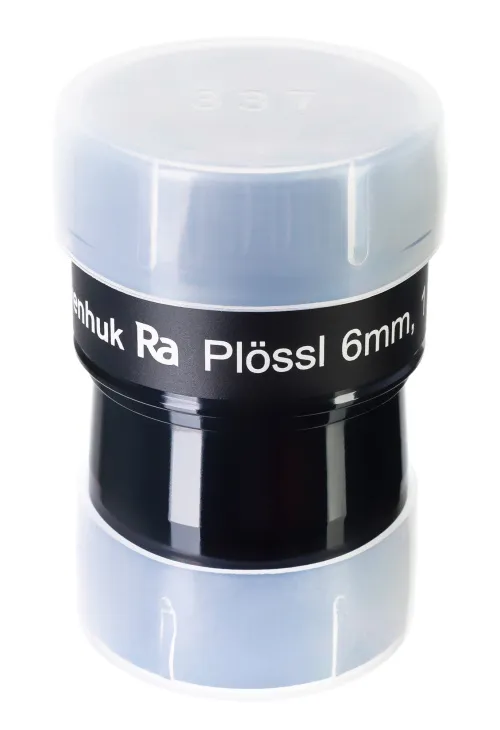

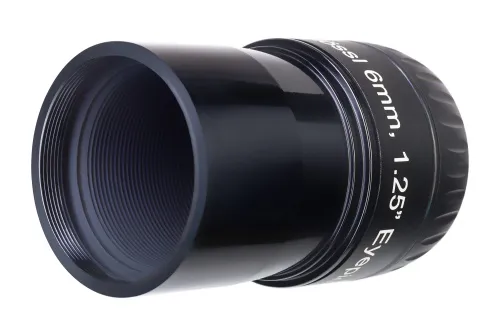

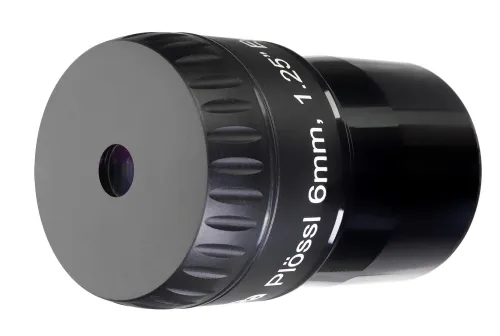

Levenhuk Ra Plössl 6mm, 1.25" Eyepiece

Classic symmetrical eyepiece. Focal length: 6mm. Field of view: 55°

Availability

Product ID	45113
Brand	Levenhuk, Inc., USA
Warranty	2
EAN	5905555006345
Package size (LxWxH)	9x4x4
Shipping Weight	0.105

Description

The Levenhuk Ra Plössl 6mm 1.25" eyepiece is well suited for observations of the solar system planets. The accessory allows for observing at a very high magnification so that it is possible to see many details of astronomical objects. Due to its barrel diameter of 1.25'', it is compatible with most telescopes, such as reflectors, refractors, and catadioptrics.

The glass optics are fully multi-coated. They reduce most of optical aberration. Therefore, the rendered image is sharp and clear, especially in the center of the field of view. The apparent field of view is 55°. This is a very good specification for eyepieces of this class.

The eyepiece's body is made of aluminum.

Features:

Multi-element eyepiece for planetary observations
Fully multi-coated glass optics render bright and clear images
Good field of view, minimum aberration
Universal eyepiece can be used with a telescope of any optical design
1.25'' barrel diameter

The kit includes:

Eyepiece
Protective caps – 2 pcs
Cleaning wipe

Specifications

Product ID	45113
Brand	Levenhuk, Inc., USA
Warranty	2
EAN	5905555006345
Package size (LxWxH)	9x4x4
Shipping Weight	0.105
Optical scheme	Plössl, 4 elements in 2 groups
Eyepiece barrel diameter, in	1.25
Optics material	optical glass
Lens coating	fully multi-coated
Focal length, mm	6
Field of view, °	55
Eye relief, mm	3.6
Eyepiece diameter, mm	6.3
Body	aluminum
Protective caps included	✓

References
and downloads

High-resolution images (zip)

(ZIP, 10.01 Mb)

click to
download

Questions and Answers

Sherry Hall (2016.04.21)

Let's say I have a 900x114 telescope, how will this eyepiece perform?

Customer service:

Levenhuk Ra Plossl 6mm Eyepiece installed on a hypothetical telescope with 900mm focal length will provide magnification of 150x.

Tiff Lewis (2016.04.13)

Is this eyepiece suitable for Sky-Watcher BK 709EQ2?

Customer service:

Yes, Levenhuk Ra Plossl 6mm Eyepiece is suitable for use with your telescope, the magnification is 150x.

Paul Morris (2015.02.28)

Hello, how does this eyepiece differ from Levenhuk Plossl 6 mm? Which one is better in terms of using with Levenhuk Ra 200N Dob?

Customer service:

The main difference between these eyepieces is their field of view. Levenhuk Ra Plossl 6 mm eyepiece has a 5 degrees wider field of view. Both eyepieces are great for the Levenhuk Ra 200N Dob telescope The magnification you will get is 200x.

RORY STUART (2014.11.26)

Hello! Is this eyepiece suitable for use with Sky-Watcher BK 809EQ2?

Customer service:

Yes, Levenhuk Ra LER 6 mm Eyepiece is perfect for your telescope.

Wayne Fisher (2014.04.23)

do these eyepieces (this model and Levenhuk Ra LER 6 mm Eyepiece) have identical specifications?

Customer service:

In terms of eye relief Levenhuk Ra LER 6 mm Eyepiece is a preferable choice.

bulena1409 (2014.04.21)

I don't wear glasses, can I buy this eyepiece to save some money but not to lose at the same time in image quality and magnification power.

Customer service:

Yes, other technical characteristics are comparable.

bulena1409 (2014.04.20)

What is the difference between this eyepiece and this one {{ {{ http://www.levenhuk.com/catalogue/accessories/telescope-accessories/telescope-eyepieces/levenhuk-ra-ler-6mm-1-25-eyepiece/.link.link }} }}

Customer service:

These two models have different optical design. LER eyepieces including Levenhuk Ra LER 6 mm Eyepiece feature quite long eye relief allowing observations in glasses.

Julie Fink (2013.09.02)

is it ok for Celestron AstroMaster 130 EQ? what is the resulting magnification of this telescope with a given eyepiece?

Customer service:

Yes, Levenhuk Ra Plossl 6 mm 1.25" Eyepiece is suitable for your telescope. The magnification is about 108x.
