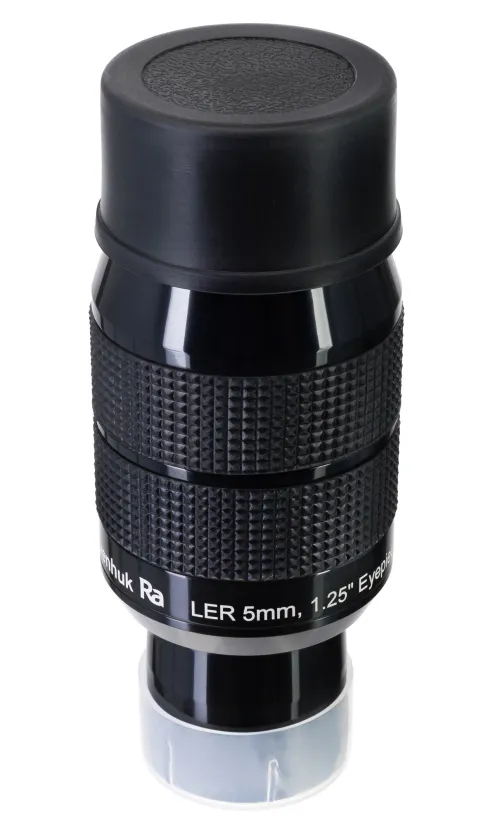

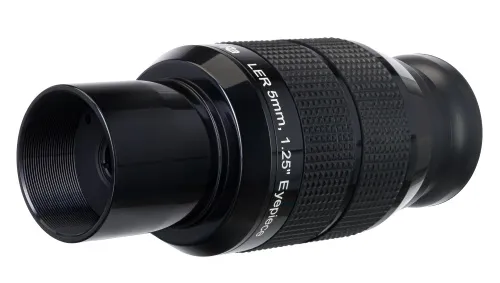

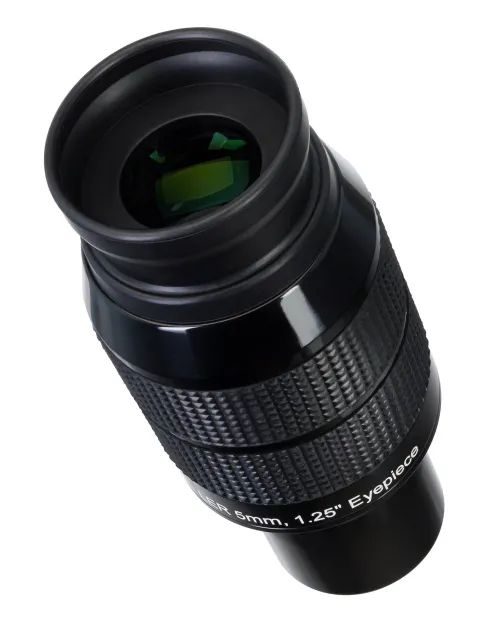

Levenhuk Ra LER 5mm, 1.25" Eyepiece

The price is valid only for the online store and may differ from the prices in retail stores.

Planetary eyepiece with long eye relief. Focal length: 5mm. Field of view: 55°

7 elements in 4 groups, Long Eye Relief

Optical design is a set of optical elements that is assembled in a certain way

1.25

The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required

Fully multi-coated

The optics coating improves the image quality

Availability

Product ID	45120
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555006406
Package size (LxWxH)	14x7x7 cm
Shipping Weight	0.325 kg

Description

The Levenhuk Ra LER 5mm 1.25" eyepiece is an optical accessory for all telescopes of any brand. It is perfect for observing the planets of the solar system. It doesn't distort the image. The eyepiece is compatible with optical systems of any aperture. It does well with apochromatic refractors and Newtonian reflectors as well as catadioptric telescopes.

The optics are made of fully multi-coated glass. The rendered image doesn't feature chromatic aberrations or field distortions. It is bright, clear, and with high resolution. The long eye relief allows for observing the entire field of view, which in this eyepiece is 55°.

The eyepiece's body is made of aluminum. The fold-down eyecup is made of rubber. It provides comfortable, long-term observations. The eyepiece barrel diameter is 1.25".

Features:

Multi-element fully multi-coated glass optics
The eye relief is sufficient to observe the entire field of view
Minimum optical distortion in the center and at the edges of the field of view
Excellent choice for use with medium-aperture amateur telescopes
Great picture detail when observing the planets of the solar system

The kit includes:

Eyepiece
Protective caps – 2 pcs
Cleaning wipe

Specifications

Product ID	45120
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555006406
Package size (LxWxH)	14x7x7 cm
Shipping Weight	0.325 kg
Type	standard
Optical scheme	7 elements in 4 groups, Long Eye Relief
Barrel diameter, in	1.25
Optics material	optical glass
Lens coating	fully multi-coated
Focal length, mm	5
Field of view, °	55
Eye relief, mm	20
Suitable for observations while wearing glasses	✓
Eyepiece diameter, mm	20.6
Filter thread	✓
Body	aluminum
Eyecup	rubber, foldable
Protective caps included	✓

References
and downloads

High-resolution images (zip)

(ZIP, 7.51 Mb)

click to
download

Questions and Answers

Paul Silva (2016.05.13)

Hello! Is this eyepiece suitable for observing galaxies, nebulae, clusters? It seems like it has a good field of view. Maybe not as good as a wide field eyepiece would have, but still... Can I use this eyepiece with Celestron 2x Barlow Lens With T Adaptor?

Customer service:

Levenhuk Ra LER 5 mm Eyepiece is designed for planetary observations. Apparent field of view: 55°. Yes, Levenhuk Ra LER 5 mm Eyepiece is compatible with the lens.

Mike V. (2016.04.12)

Hello, I have Levenhuk Skyline 90x900 EQ Telescope, can I use this eyepiece with it?

Customer service:

Yes, you can use Levenhuk Ra LER 5 mm Eyepiece with Levenhuk Skyline 90x900 EQ Telescope. The magnification you get is 180x.

Jose Baca (2016.02.21)

Hello! The apparent field of view of the Levenhuk Ra Plossl 6 mm 1.25" Eyepiece is the same - 55°. Could you name me some advantages of the Levenhuk Ra LER (compared to Plossl)? As far as I can tell, the front lens is much larger - does this mean it will be easier to catch objects?

Customer service:

Levenhuk Ra LER 5 mm Eyepiece would be the preferable choice due to its design. Levenhuk Ra LER 5 mm Eyepiece has a good eye relief of 20 mm (that means you can observe in glasses). Yes, that's right! If the front lens is large, it will be easier to catch objects.

Jay Mayes (2016.02.19)

Does this eyepiece have a filter thread? Is it suitable for Levenhuk Strike 80 NG?

Customer service:

Yes, Levenhuk Ra LER 5 mm Eyepiece has a thread for filters. Yes, it is suitable for Levenhuk Strike 80 NG Telescope.

Jeff Foster (2015.10.30)

Do you have eyepieces with focal lengths around 4.4-4.5mm in order to obtain higher increase?

Customer service:

The closest option is Levenhuk Plossl 4 mm Eyepiece - https://www.levenhuk.com/catalogue/accessories/telescope-accessories/telescope-eyepieces/levenhuk-ra-plossl-4mm-1-25-eyepiece/

Jeff Foster (2015.10.30)

Hello I have Celestron Astromaster 114 with 1000mm focal length, is this eyepiece suitable or it's better to try 4mm eyepiece? As far as I remember highest magnification is diameter X 2, so in my case its 228x. If I take 4mm eyepiece, the magnification will be about 250x, which higher than figure obtained from the calculation. At the same time I've seen info online that highest practical power of my scope is 269x. Maybe you happen to know, which is true? I mean 50x is quite a big difference and eyepieces are not all that affordable, so I want to make the right choice.

Customer service:

The highest practical power of your telescope is 228x, so it's better to opt for Levenuk Ra LER 5mm Eyepiece. With this eyepiece resulting magnification will be 200x.

Adam Wallace (2015.09.08)

Hello! I own Levenhuk Skyline 70/900. Could you please advise me some eyepiece for planetary observations? Which one is better: 5 or 6-mm one? Thanks!

Customer service:

We recommend that you consider Levenhuk Plossl 7.5 mm Eyepiece

Joan Kidd (2015.06.01)

Is Levenhuk Ra LER 5 mm Eyepiece suitable for Celestron AstroMaster 114 EQ? thx

Customer service:

Yes, Levenhuk Ra LER 5 mm Eyepiece is suitable for your telescope. Such combination will give you 200x magnification power.

Orville Freitag (2015.05.04)

Is it threaded for t-ring?

Customer service:

The Levenhuk Ra LER 5 mm eyepiece does not have a thread for connecting a T-ring.

Sam Lee (2015.02.18)

Is it suitable for Levenhuk Skyline 120x1000 EQ? Do you have eyepieces of 4.4-4.5 focal length in stock?

Customer service:

Yes, Levenhuk Ra LER 5 mm Eyepiece can be used with the Levenhuk Skyline 120x1000 EQ telescope. Unfortunately, 4.4-4.5 mm eyepieces are currently unavailable in our store.

Adrian Klein (2014.12.22)

Is this eyepiece suitable for my Sky-Watcher BKP 130650? If your answer is no, then which one would you suggest for observing planets?

Customer service:

Yes, Levenhuk Ra LER 5 mm Eyepiece is suitable for your telescope model.

Bobbie Downs (2014.11.25)

Is it suitable for CELESTRON TRAVEL SKOPE 70?

Customer service:

Yes, Levenhuk Ra LER 5 mm Eyepiece is suitable for your instrument. The magnification will be 80x.

Cole Kaufman (2014.11.18)

Hello! Is it worth to buy this eyepiece for Bresser Messier AR-152L/1200 (EXOS-2 GoTo), is it suitable?

Customer service:

Yes, Levenhuk Ra LER 5 mm Eyepiece is suitable for your telescope.

Vicente (2014.10.26)

Can I use this eyepiece with CELESTRON PowerSeeker 70AZ for observing planets at the maximum increase? And one more question.. I didn't find any information about it. I'd like to know if the lens edges are blackened to eliminate the glare... Thank you!

Customer service:

Levenhuk Ra LER 5 mm Eyepiece is perfect for your telescope. Yes, the lens edges are blackened.

Alex Burdick (2014.09.10)

Is this eyepiece suitable for Bresser Venus 76/700 ?

Customer service:

Yes, Levenhuk Ra LER 5 mm Eyepiece is suitable for your telescope.

David R. (2014.05.26)

Hello! I own Levenhuk Skyline PRO 127 MAK telescope. Will I be able to achieve its maximum magnification during planetary observations with this eyepiece? And which eyepiece would you recommend for observing galaxies?

Customer service:

Levenhuk Ra LER 5 mm Eyepiece will not work in your case. To achieve maximum magnification of the Levenhuk Skyline PRO 127 MAK telescope you should use Levenhuk Plossl 6 mm Eyepiece - https://eu.levenhuk.com/catalogue/accessories/telescope-accessories/telescope-eyepieces/levenhuk-ra-plossl-6mm-1-25-eyepiece/
