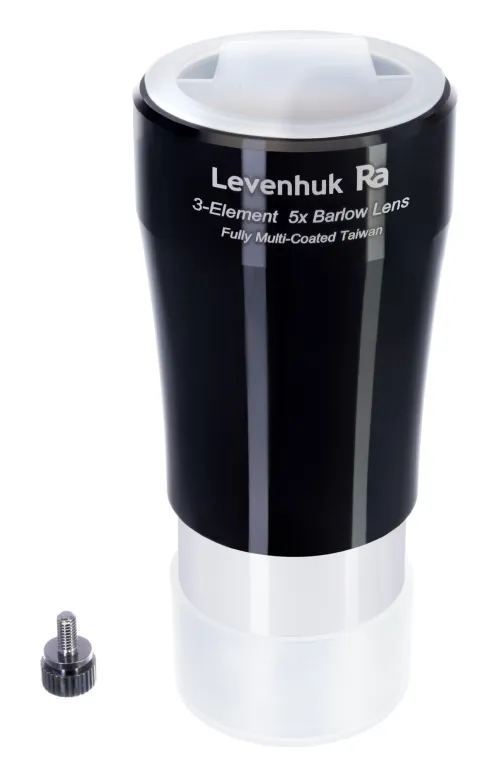

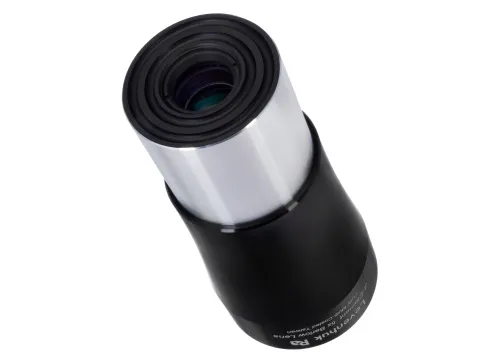

Levenhuk 5x Barlow Lens

Apochromatic. Magnification: 5x. Barrel diameter: 1.25"

Availability

Product ID	50777
Brand	Levenhuk, Inc., USA
Warranty	2
EAN	5905555003702
Package size (LxWxH)	10x5x4
Shipping Weight	0.13

Description

The Levenhuk 5x Barlow lens is a three-element apochromat with a multilayer coating of all the optical elements that increase the magnification of any telescope fivefold. This lens effectively eliminates optical distortion and creates a clear and sharp image across the entire field of view. It is compatible with any telescope or eyepiece. It also features a filter thread.

The barrel diameter is 1.25". This diameter is the most common, and so there will be no compatibility problems.

Features:

Three-element apochromat
Increases the magnification of the telescope fivefold
Fully multi-coated optics
Filter and compression ring thread
1.25" barrel diameter

The kit includes:

Barlow lens
Protective caps – 2 pcs

Specifications

Product ID	50777
Brand	Levenhuk, Inc., USA
Warranty	2
EAN	5905555003702
Package size (LxWxH)	10x5x4
Shipping Weight	0.13
Optical scheme	3-element apochromat
Eyepiece barrel diameter, in	1.25
Optics material	optical glass
Lens coating	fully multi-coated
Magnification, x	5
Filter thread	✓
Filter thread	M28.5x0.6mm
Compression ring	1.25"
Protective caps included	✓
Operating temperature range,°C	-5...+35

References
and downloads

High-resolution images (zip)

(ZIP, 4.33 Mb)

click to
download

Questions and Answers

Rico (2018.01.10)

I understand it's out of stock, my question is would this lens be practical on the skyline 76/700 AZ?

Customer service:

Rico, it's not recommended to use such a powerful lens with your telescope. The image can be blurry. Is there any additional information you might need?

Rico (2018.01.10)

Would this lens be suitable for the skyline 76/700 AZ?

Customer service:

Dear Rico, thank you for your inquiry. This products is out of stock. Is there any additional information you might need?

Luis Potter (2016.07.16)

does this lens fit into skywatcher BK114EQ2?

Customer service:

Yes, Levenhuk 5x Barlow Lens is suitable for your telescope.

Mike Jones (2016.03.23)

Hello! Is this lens suitable for Levenhuk Skyline PRO 105 MAK?

Customer service:

Yes, Levenhuk 5x Barlow Lens is suitable for use with Levenhuk Skyline PRO 105 MAK Telescope.

Julian Lam (2016.02.22)

What's the difference between cheap Barlow lenses and expensive ones?

Customer service:

The major difference is optical design and quality.

Oscar Ivey (2016.02.15)

Is it useful for Levenhuk Skyline PRO 90 MAK?

Customer service:

It's better to use short focal length eyepiece instead of the Barlow lens with Levenhuk Skyline PRO 90 MAK.

Annie Puckett (2016.01.23)

Greetings! Is this lens suitable for Levenhuk Strike 60 NG?

Customer service:

Levenhuk 5x Barlow lens has a barrel diameter of 1.25". Unfortunately, it doesn't fit Levenhuk Strike 60 NG Telescope, as it has a non-standard barrel diameter.

Ann Bird (2016.01.19)

Hello! Does this lens fit Celestron AstroMaster 130 EQ?

Customer service:

Yes, this lens is suitable for use with your. The important thing is not to exceed the highest practical power of the instrument.

Cody Knox (2015.07.07)

Thanks for your help. Can I still get even higher magnification by adding this Barlow lens?

Customer service:

Barlow lens is unnecessary in this combination. If you add a Barlow lens, you won't be able to see a thing.

Cody Knox (2015.07.05)

Hello!My telescope is Levenhuk Skyline PRO 80 MAK. I want to purchase Barlow lens, and maybe smth else that you advice in order to increase my telescope's capabilities.

Customer service:

To achieve the maximum useful magnification of the Levenhuk Skyline PRO 80 MAK telescope we recommend using 7-mm eyepiece.

Sergio 2007 (2015.03.04)

Hello, can I install this lens on my Sky-Watcher BK P1145Q1 (with 10 mm or 25 mm eyepieces)?

Customer service:

Levenhuk 5x Barlow Lens fits your telescope, but we don't recommend using it: in combination with 10 mm eyepiece the highest practical power of your telescope will be exceeded while in combination with 25 mm eyepiece it will only be 100x. To achieve the highest practical power of your telescope we recommend the following combination: Levenhuk Plossl 6.3 mm Eyepiece and Levenhuk A3x Barlow Lens. This combination allows you to get the magnification of 238x.

Scott2007 (2015.03.04)

I have Sky-Watcher BK P1145Q1 and two eyepieces: 10 mm and 25 mm. Will this lens be of any use to me?

Customer service:

If you use Levenhuk 5x Barlow Lens with 10 mm eyepiece, you will exceed the highest practical power of your telescope. On the other hand, with 25 mm eyepiece the magnification will only be 100x. We recommend using the following combination: Levenhuk Plossl 6.3 mm eyepiece + Levenhuk A3x Barlow Lens. These accessories installed on your telescope will produce 238x magnification.

Travis Sevilla (2014.09.02)

Hi! Does Levenhuk 5x Barlow Lens fit Celestron NexStar 90 SLT telescope?

Customer service:

Levenhuk 5x Barlow Lens is suitable for any telescope with 1.25" barrel diameter, but, it's important to keep in mind, which eyepieces you are going to use with it.

Katelynn (2014.08.18)

Can I use it with Celestron AstroMaster 90 Az, together with 10 and 20 mm eyepieces? Or image quality will also suffer? I want choose the best lens and place an order already.

Customer service:

The barrel diameter of this Barlow Lens allows you to use it with your telescope. But I should notice that by using this Barlow Lens with 10 and 20 mm eyepieces you will exceed the highest practical power of the telescope. We recommend considering Levenhuk Plossl 6.3 mm Eyepiece

Teres Dean (2014.08.01)

Is this lens suitable for Levenhuk Strike 900 PRO?

Customer service:

Yes, Levenhuk 5x Barlow Lens is suitable for the Levenhuk Strike 900 PRO telescope. When used together with 25 mm eyepiece from the standard kit it will give you the maximum useful magnification.

Max (2014.07.28)

Eyepieces are fine, but their capabilities are still limited. I see Saturn for instance as a small pea. Astronomical programs at the same time show that with 5x Barlow lens and 4 mm eyepiece it's possible to see detailed images of Saturn... Or will image be distorted too much?

Customer service:

The maximum useful magnification of your telescope is 300x. And with both 4 mm eyepiece and 5x Barlow Lens your telescope will produce 1520x. So yes, unfortunately image quality will be poor and you won't be able to see a thing.

Tim Pharr (2014.06.13)

Is this lens suitable for Celestron AstroMaster 70 AZ

Customer service:

Yes, Levenhuk 5x Barlow Lens is suitable for this telescope model.

Michael Hamburg (2014.04.30)

I have a Celestron Edge 11HD. How would this item perform for planetary imaging with an Imaging Source video camera?

Customer service:

Dear Michael, thank you for interest in Levenhuk products. Unfortunately, the Levenhuk 5x Barlow lens is currently out of stock.
But the 5x Barlow lens will not fit your telescope as the highest useful magnification of your telescope is 560x. With the 5x Barlow lens and 23mm eyepiece (which comes with your telescope) it will reach 608x. If you go beyond 560x, image quality will be become poorer and blurred. In order to get the highest useful magnification, you need a 5mm eyepiece. We have a 6.3 mm eyepiece in stock, the magnification will be 445x in this case.
Is there any additional information you might need?
Looking forward to your reply.

Chris Culver (2014.04.20)

How do I attach a camera to this lens?

Customer service:

Unfortunately there is no possibility of camera connection for Levenhuk 5x Barlow Lens.

Andy Wilkerson (2013.12.24)

Please tell me if this lens fits Levenhuk Skyline PRO 80MAK

Customer service:

Levenhuk 5x Barlow Lens fits any telescope, including Levenhuk Skyline PRO 80MAK.

Charlie Savage (2013.12.04)

Good day. I guess this one fits Levenhuk Skyline 70x700, right? will an image be dull and blured with SUPER 25mm (28x)?

Customer service:

Levenhuk 5x Barlow Lens + 25mm eyepiece + Levenhuk Skyline 70x700 telescope altogether provide the magnification of 140x. The image won't be blurred but you have to keep in mind that the only way to get the clearest and high-quality images is by using an eyepiece alone, without any Barlow lenses. In your case consider using the Levenhuk Ra LER 5 mm eyepiece

RICK CONLEY (2013.11.28)

Does it make sense to attach it to Dicom n800203 eq4?

Customer service:

Levenhuk 5x Barlow Lens fits any telescope with 1.25" barrel diameter. So attaching it or not depends on eyepieces you own, more exactly on how much x you want to get.

Derek Morehead (2013.05.20)

How do I use Barlow lens? Can I attach it to meade starnavigator 90mm?

Customer service:

1. Barlow lens should be inserted in the eyepiece tube in front of the eyepiece. 2. Yes, it's suitable for Meade StarNavigator 90 mm.
