MAGUS DFS1 Darkfield Slider

The price is valid only for the online store and may differ from the prices in retail stores.

For darkfield microscopy

Availability

Product ID	82924
Brand	MAGUS
Warranty	2 years
EAN	5905555019093
Package size (LxWxH)	4x12x4 cm
Shipping Weight	0.045 kg

Description

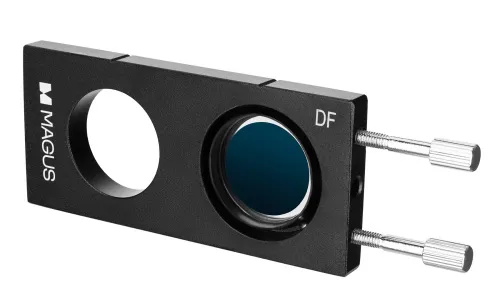

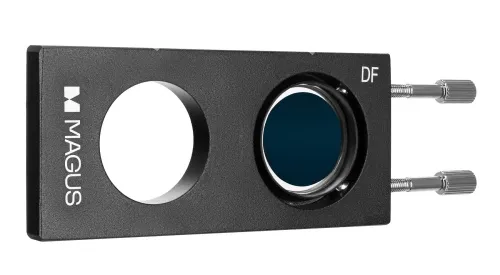

This darkfield slider (plate) is for MAGUS microscopes. It was designed for studying unstained transparent samples that can only be viewed using the darkfield technique. The slider has two holes: one with a built-in darkfield aperture and the other is free for the brightfield technique. Due to this design, you can quickly change the microscopy technique.

The MAGUS DFS1 slider is installed in the slot of the Abbe condenser. The plate is only used when working on non-oil (dry) objective with an aperture less than 0.9. The thickness of the cover glass should ideally be no more than 0.17mm and the glass slide no more than 1.2mm. Under these conditions, the contrast of the image will be maximized.

Compatibility:

MAGUS Bio 230B Biological Microscope
MAGUS Bio 230BL Biological Microscope
MAGUS Bio 230T Biological Microscope
MAGUS Bio 230TL Biological Microscope
MAGUS Bio 250B Biological Microscope
MAGUS Bio 250BL Biological Microscope
MAGUS Bio 250T Biological Microscope
MAGUS Bio 250TL Biological Microscope
MAGUS Lum 400 Fluorescence Microscope
MAGUS Lum 400L Fluorescence Microscope

Specifications

Product ID	82924
Brand	MAGUS
Warranty	2 years
EAN	5905555019093
Package size (LxWxH)	4x12x4 cm
Shipping Weight	0.045 kg
