Magnification: 20x. Aperture: 0.4

Colour Base color
VAT included
The price is valid only for the online store and may differ from the prices in retail stores.
Availability
Specifications
All specifications

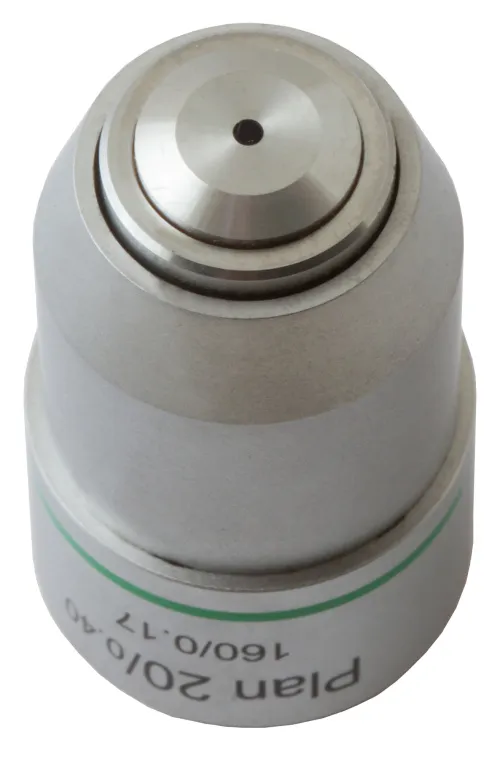

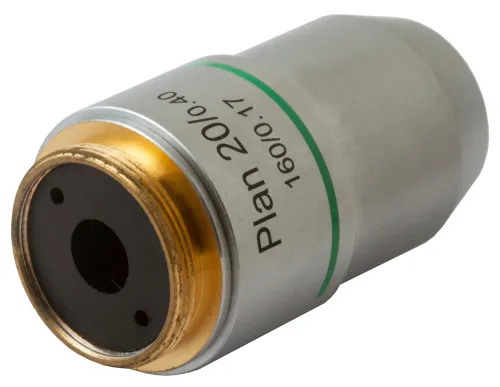

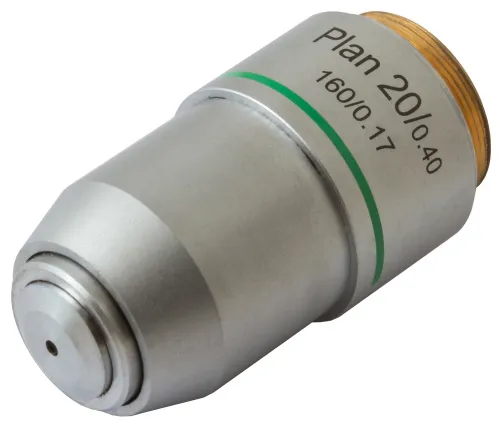

Levenhuk MED 20x is a plan achromatic objective. Its optics eliminate spherical aberrations as well as significantly flatten the field of view. The researcher sees a sharp, detailed, and clear image even when working with complex microstructures. The glass lenses provide 20x magnification. The body is made of metal.

The Levenhuk MED 20x objective can be used with any brand of microscopes.

The kit includes:

  • Objective
  • Plastic case
Specifications
Lens material optical glass
Body material copper
Optical design plan achromatic
Magnification, x 20
Aperture 0.4
Working distance, mm 1.16
Parfocal distance, mm 195
Cover glass thickness, mm 0.17
Compatible tube length, mm 160
Thread type WJ 4/5"*1/36"
Spring-loaded frame no
Oil immersion no
