Spring-loaded frame. For oil immersion. Magnification: 100x. Aperture: 1.25

Colour Base color
VAT included
The price is valid only for the online store and may differ from the prices in retail stores.
All specifications

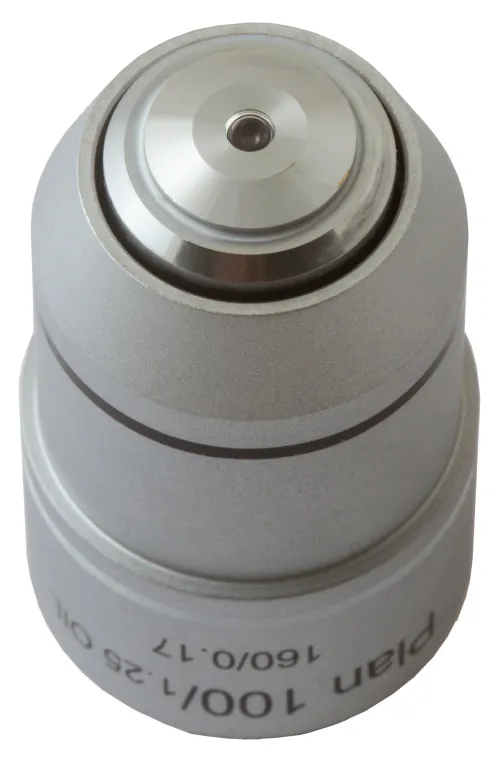

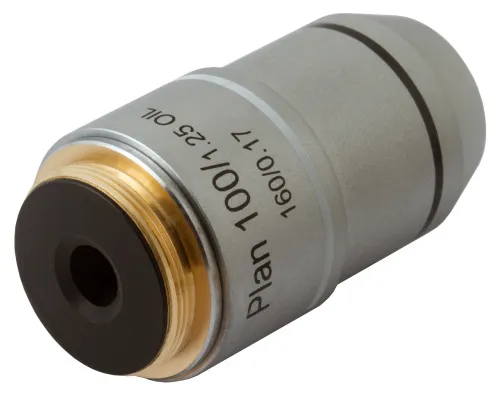

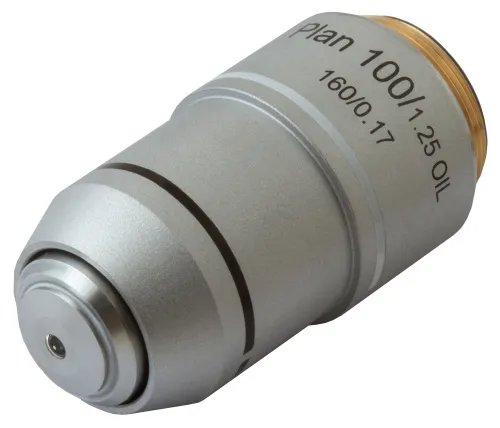

Levenhuk MED 100x is a plan achromatic objective with 100x magnification. It can be installed on the microscopes of any brand. You can use this objective for classic "dry" observations. In addition, it allows for observations using oil immersion. The front lens is equipped with the spring-loaded frame to protect the optics from accidental damage.

The plan-achromatic objective is especially effective for studying complex microstructures. It allows transmitting a quality and sharp picture without spherical and chromatic aberrations. This objective perfectly corrects the field curvature.

The Levenhuk MED 100x plan achromatic objective features glass optics and the metal body.

The kit includes:

  • Objective
  • Plastic case
Lens material optical glass
Body material copper
Optical design plan achromatic
Magnification, x 100
Aperture 1.25
Working distance, mm 0.234
Parfocal distance, mm 195
Cover glass thickness, mm 0.17
Compatible tube length, mm 160
Thread type WJ 4/5"*1/36"
Spring-loaded frame yes
Oil immersion yes
