Infinity-corrected. Spring-loaded frame. For oil immersion. Magnification: 100x. Aperture: 1.25

Colour Base color
VAT included
The price is valid only for the online store and may differ from the prices in retail stores.
All specifications

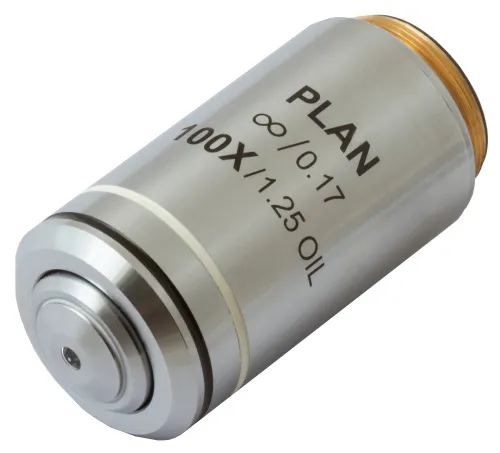

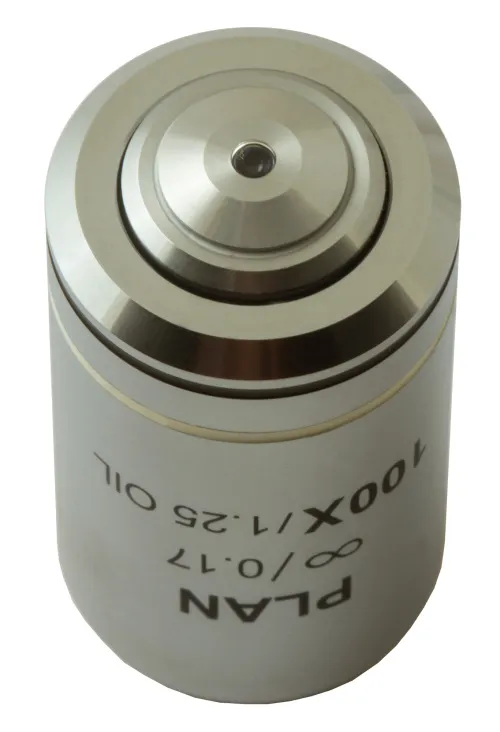

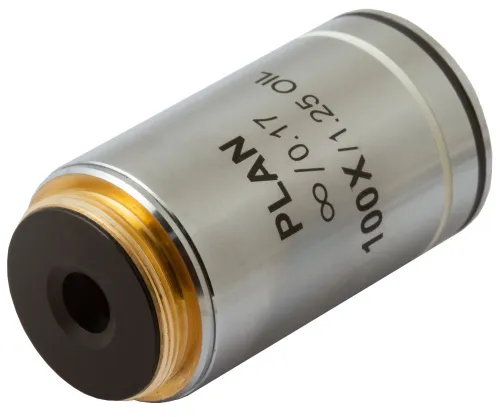

The Levenhuk MED 100x infinity plan achromatic objective is an accessory for laboratory microscopes. It is designed for infinity-corrected optical systems and allows you to conduct high-precision research at high magnification. It features 100x magnification. The plan achromatic optics perfectly correct the field curvature by flattening up the field of view. It allows for transmitting a quality and sharp picture without spherical and chromatic aberrations. You can use the objective for classic "dry" observations. In addition, it allows you to observe using oil immersion.

The objective's lenses are made of glass, and the front lens is protected by a spring-loaded frame. The objective's body is made of metal. The Levenhuk MED 100x infinity plan achromatic objective is perfect for the professional work of a microbiologist.

The kit includes:

  • Objective
  • Plastic case
Lens material optical glass
Body material copper
Optical design plan achromatic
Magnification, x 100
Aperture 1.25
Working distance, mm 0.25
Parfocal distance, mm 180
Cover glass thickness, mm 0.17
Compatible tube length, mm infinity
Thread type WJ 4/5"*1/36"
Spring-loaded frame yes
Oil immersion yes
