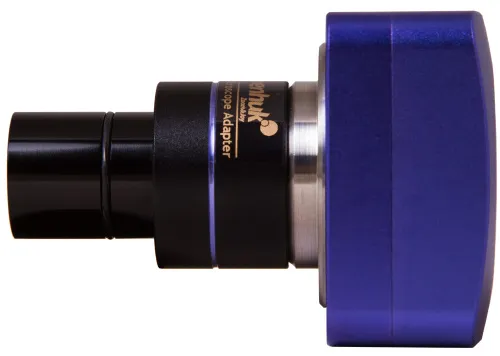

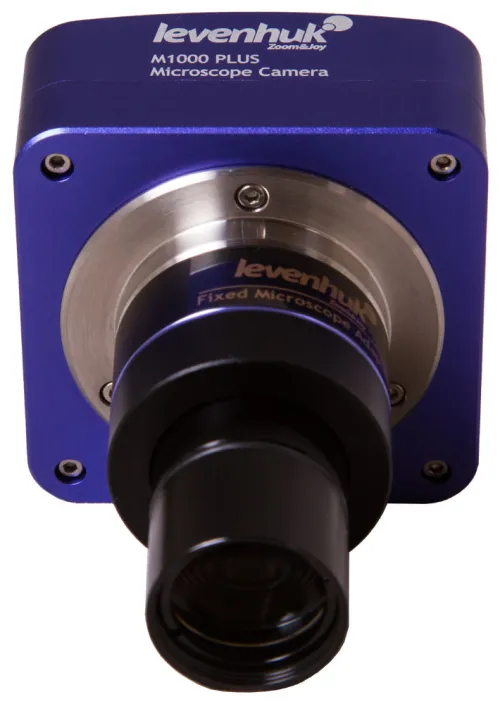

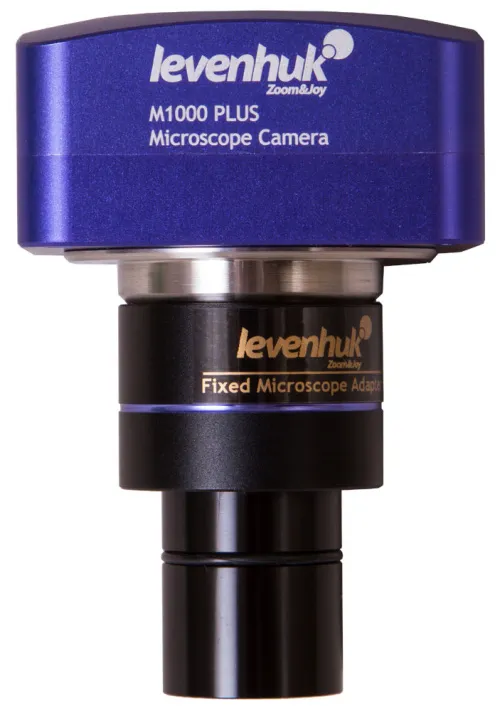

The 10-megapixel Levenhuk M1000 PLUS Digital Camera is a powerful accessory for taking photos of the microworld. It allows you to take pictures with a resolution up to 3584x2748 pixels. You can also record smooth and colorful videos, share photos of interesting moments of the research with like-minded people, and broadcast videos of your studies. The camera is compatible with biological and stereoscopic microscopes of any brand.

The camera can be installed in an eyepiece tube of any diameter: the necessary adapters are included in the kit. To connect the device to a computer, a standard USB cable is used. To process received images, use the special Levenhuk software (CD is included).

The Levenhuk M1000 PLUS Digital Camera is suitable for introduction to microphotography and for professional work with samples.

The kit includes a CD with special software that allows you to edit previously saved images: zoom them, crop them, change the contrast, and so forth.

To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac, Linux, and Windows. A USB 2.0 port is required to establish a connection. If the software does not run on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).

The latest version of Levenhuk Software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.

Levenhuk Digital Camera is compatible with microscopes of 23.2mm eyepiece tube diameter. The camera can also be mounted on eyepiece tubes of 30 and 30.5mm diameters using adapters, included in the kit.

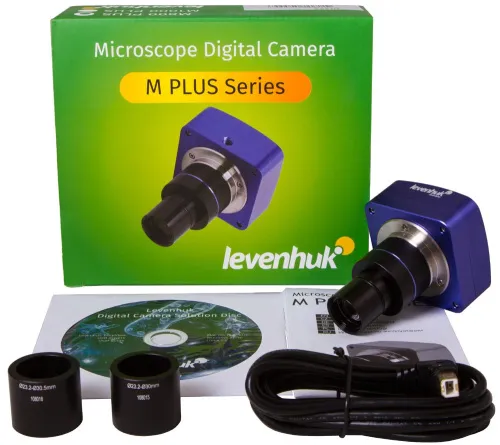

The kit includes:

  • Levenhuk microscope digital camera
  • Adapter (23.2mm)
  • 2 adapters for microscopes with different diameters of an eyepiece tube (23.2–30mm and 23.2–30.5mm)

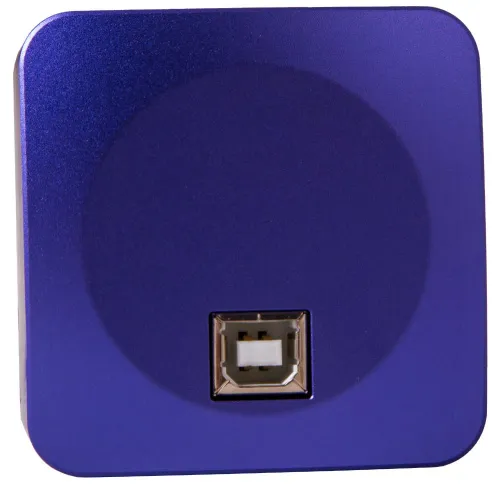

  • USB cable for connection to PC or laptop and power supply
  • Installation CD with Levenhuk image editing software and the required drivers
  • User manual and lifetime warranty
Specifications
Maximum resolution3584x2748
Megapixels10

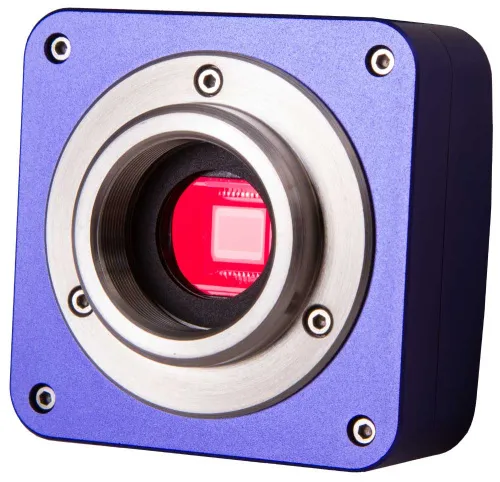

Sensor1/2.3" CMOS
Pixel size1.67x1.67
Sensitivity, v / lux.sec @ 550 nm0.31
Exposure time, ms0.4–2000
Video recordingyes
Frame rate, frames per second@resolution 1.9@3584x2748
8@1792x1374
27@896x684
Active range, dB65.2
Applicationeyepiece tube of 23.2mm diameter, instead of the actual eyepiece
Image format*.jpg, *.bmp, *.png, *.tif
Video formatrecording: *.wmv, *.avi, *.h264 (Win 8 or later), *h265 (Win 10 or later)
Spectral range380–650 (built-in infrared filter)
Method of exposureERS (Electronic Rolling Shutter)
White balanceauto/manual
Exposure controlauto/manual
Software featuresimage size, brightness, exposure time
USB featuresUSB 2.0, 480 Mb/sec.
System requirementsWindows XP (32-bit), Windows Vista/7/8/10/11 (32-bit or 64-bit), Mac OS X, Linux, CPU 2.8GHz Intel Core 2 or higher, RAM not less then 2GB, USB port 2.0, CD-Rom
SoftwareLevenhuk
Casingmetal
Power supplyvia USB 2.0 cable
Operating temperature range, °C, °F–10... 50°C; 14... 122°F
