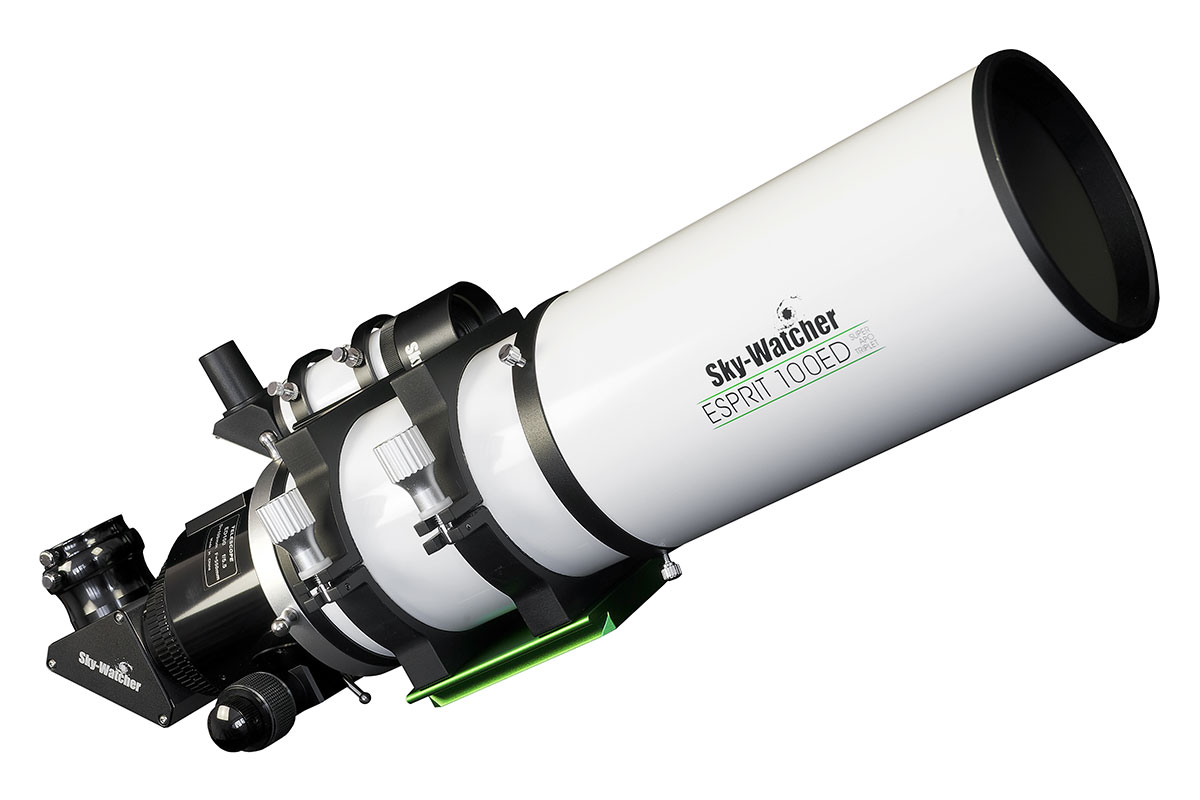

Sky-Watcher Esprit ED100 OTA

Sky-Watcher Esprit ED100 OTA

photograph Sky-Watcher Esprit ED100 OTA
photograph Sky-Watcher Esprit ED100 OTA
photograph Sky-Watcher Esprit ED100 OTA
photograph Sky-Watcher Esprit ED100 OTA
see all
photograph Sky-Watcher Esprit ED100 OTA
The price is valid only for the online store and may differ from the prices in retail stores.

Apochromatic refractor optical tube. Aperture: 100mm. Focal length: 550mm

Refractor
Optical design
100
Aperture – the diameter of the light-collecting lens (refractors and catadioptric) or mirror (reflectors) that the telescope uses to collect light
550
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability
Product ID 70507
Brand Sky-Watcher
EAN 0611901512358
Package size (LxWxH) 60x30x40 cm
Optical design refractor
Optical scheme 3-element apochromat
description
specifications
downloads
reviews
questions and answers
accessories
Description

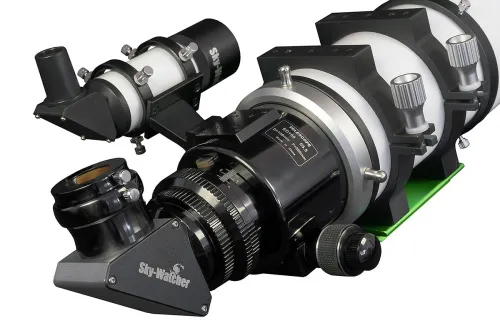

Sky-Watcher Esprit 80ED, 100ED, 120ED and 150ED Super APO refractors have a doublet field flattener to get a flat field and minimize aberration and distortion. Their wide 48mm opener ensures a larger and clearer aperture and also extremely minimized halation. Connect the triplet and doublet field flattener with a high precision thin thread to keep the optical axis perpendicular to the image.

Features:

  • Premium optical materials
  • Short focal length and full frame corrected focal plane
  • Excellent field flatness
  • Precision linear power focuser is standard
  • Metallic high-transmission lens coatings
  • Light-baffled optical systems
  • Telescope tube attachment hardware
  • Full-frame corrected focal plane
  • Zero detectable colour fringing even on bright objects
  • Knife-edge baffled optical system

The kit includes:

  • Optical tube
  • Retractable dew cap
  • Tube rings
  • D (Losmandy) dovetail bar
  • 8x50 erect-image 90° finder scope
  • 3" 1:11 dual-speed focuser
  • 2" dielectric diagonal
  • 28mm eyepiece, 2"
  • User manual and warranty
Specifications
Product ID 70507
Brand Sky-Watcher
EAN 0611901512358
Package size (LxWxH) 60x30x40 cm
Optical design refractor
Optical scheme 3-element apochromat
Optics material ED
Optics coating metal anti-reflective (MHC)
Primary mirror diameter (aperture), mm 100
Focal length, mm 550
Highest practical power, x 220
Aperture ratio f/5.5
Finderscope optical, 9x50 (with an erecting prism)
Focuser 2-speed (1:11)
Optical tube mounting mode dovetail plate (Losmandy standard)
Dovetail mount ✓

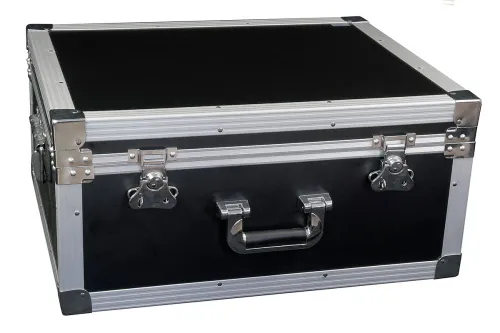

Pouch/case/bag in set case
References
and downloads
User manual: Sky-Watcher Esprit ED100 OTA (pdf) EN
(PDF, 1.61 Mb)
