Achromatic refractor. Objective lens diameter: 120mm. Focal length: 700mm

Refractor
Optical design
120
Aperture – the diameter of the light-collecting lens or mirror that the telescope uses to collect light
700
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability

Product ID 72622
Brand Meade Instruments Corp.
Warranty 2 years
EAN 0643824214767
Package size (LxWxH) 103x51x36 cm
Shipping Weight 28.1 kg
Description

Meade LX85 Telescope is an excellent deep-sky performer. It comes with a high-quality, portable GoTo German Equatorial Mount. This telescope is perfect for observing space and rediscovering the night sky.

The LX85 Mount features a vixen-style dovetail, for mounting optical tubes up to 33lbs. You will be able to track through long exposures using permanent periodic error correction (PPEC) due to an included integer gearing in the motor drive. You can seamlessly image the pictures of the night sky without performing a meridian flip.

This stable mount easily handles slight load imbalances. It also includes an integrated autoguider port so that you can easily connect to an autoguider camera to make your astrophotography experience remarkable. This telescope features AudioStar® Hand Box that includes a database of 30.000 objects. You can view any of them just by pressing a button! It plays educational content and you learn more about space and celestial objects. The kit includes two 1.25" Plossl eyepieces (9.7mm & 26mm) and a viewfinder (8x50 optical with crosshair) and a vixen-style dovetail.

Some models come with Ultra High Transmission Coatings (UHTC™) that makes star clusters brighter, allows observing more fine detail in nebulae, and greater surface features on planets.

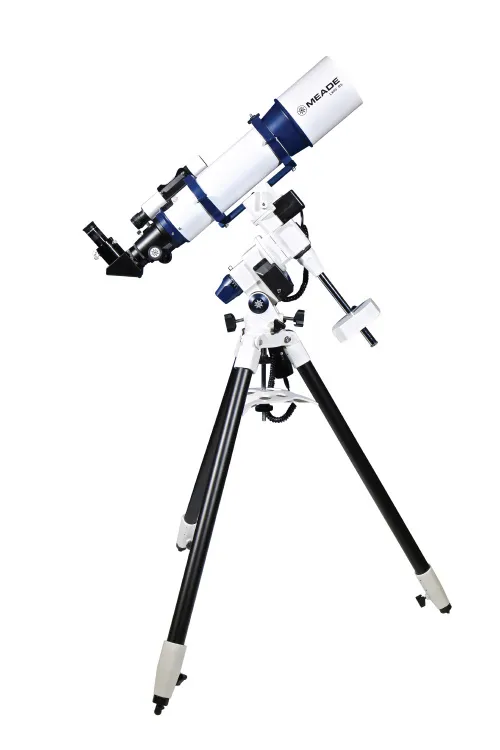

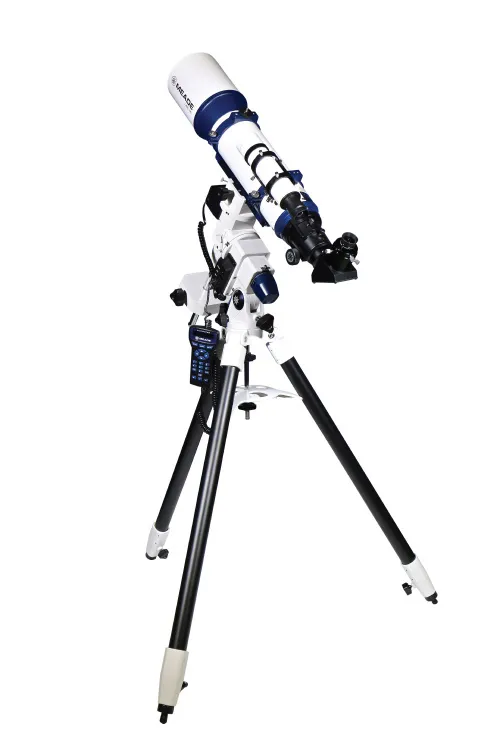

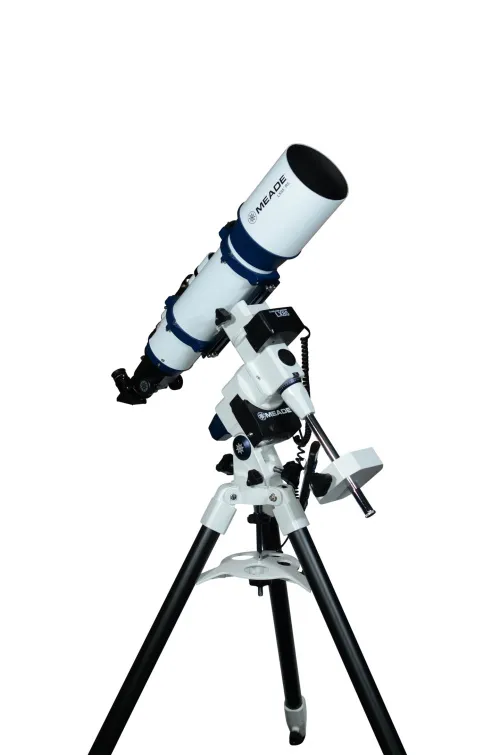

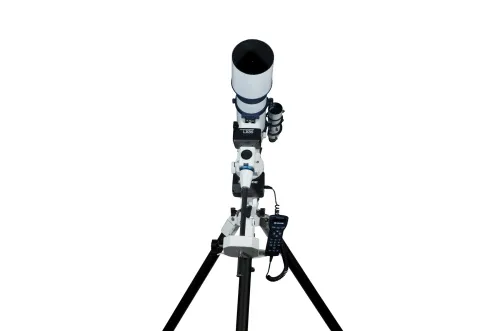

Meade LX85 5" Refractor Telescope is an Achromat Refractor with a high-quality objective lens. The OTA alone weighs 10.9 lbs and has dimensions of 5.8" x 28".

Features:

  • 120mm (4.72") Refractor
  • 700mm Focal Length
  • f/5.8 Focal Ratio
  • 9.7mm & 26mm Super Plössl (1.25") Eyepieces
  • 8x50 Optical Viewfinder with Crosshair
  • Vixen-Style Dovetail receiver
  • GoTo German Equatorial Mount with 33 lbs payload capacity
Specifications
Product ID 72622
Brand Meade Instruments Corp.
Warranty 2 years
EAN 0643824214767
Package size (LxWxH) 103x51x36 cm
Shipping Weight 28.1 kg
Optical design refractor
Optical scheme achromat
Optics coating fully multi-coated
Objective lens diameter (aperture), mm 120
Focal length, mm 700
Aperture ratio f/5.8
Resolution threshold, arcseconds 0.9
Limiting stellar magnitude 12.39
Eyepieces Plössl 9mm, Plössl 26mm (1.25")
Finderscope optical, 8x50 with reticle
Focuser 2", rack & pinion
Tripod steel
Mount equatorial
Drive stepper motor with worm gear
Additional 90 º diagonal mirror (2") ; 2"–1.25" adapter, dew shield
Periodic error correction (PEC)
Ports AutoStar remote control connector, AUX, autoguide port, 12V accessory power slot
Hand controller AudioStar
Objects database 30,000
Power supply 12V, 5A DC (optional)
Optical tube mounting mode dovetail plate (Vixen standard)
Dovetail mount
