USA Meade LX70 R8 8" Newtonian Reflector OTA
The price is valid only for the online store and may differ from the prices in retail stores.
Newtonian telescope. Primary mirror diameter: 200mm. Focal length: 1000mm
Reflector
Optical design
200
Aperture – the diameter of the light-collecting lens or mirror that the telescope uses to collect light
1000
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
| Product ID | 71692 |
| Brand | Meade Instruments Corp. |
| Warranty | 2 years |
| EAN | 0643824208971 |
| Package size (LxWxH) | 104x38x48 cm |
| Shipping Weight | 13.48 kg |
Description
The Meade LX70 R8 8" Newtonian Reflector is equipped with a high-quality f/5 parabolic primary mirror. This fast f/5 optical system provides spectacular wide-field images for the discriminating deep-sky observer and astro-photographer. Its 8" aperture allows it to resolve details down to 0.57 arc-seconds across and can be viewed using the two included 1.25" Plössl eyepieces (9mm & 26mm). With its smooth 2" Crayford-style focuser it is equipped to handle wide-field 2" eyepieces out of the box. The 8x50 optical viewfinder with cross-hair reticle makes locating faint object quickly and easily.

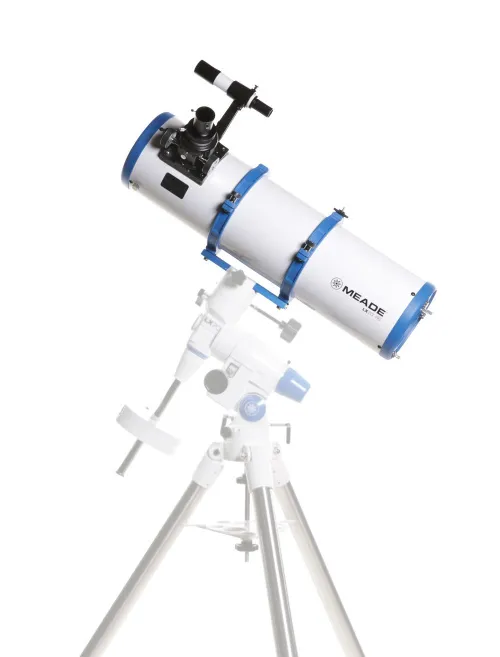

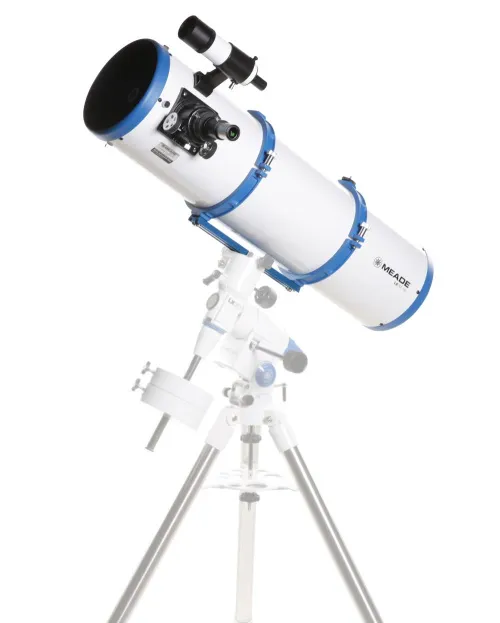

NOTE: Shown in photo with LX70 German Equatorial Mount, not included. Sold without the mount, ready for your own custom mounting.
Features:
- 200mm (8") f/5 Newtonian reflector OTA – 1000mm focal length
- Two 1.25" Plössl eyepieces (9mm & 26mm)
- 8x50 viewfinder
Specifications
| Product ID | 71692 |
| Brand | Meade Instruments Corp. |
| Warranty | 2 years |
| EAN | 0643824208971 |
| Package size (LxWxH) | 104x38x48 cm |
| Shipping Weight | 13.48 kg |
| Optical design | reflector |
| Optical scheme | Newtonian |
| Objective lens diameter (aperture), mm | 200 |
| Lens (mirror) shape | parabolic |
| Focal length, mm | 1000 |
| Aperture ratio | f/5 |
| Resolution threshold, arcseconds | 0.57 |
| Eyepieces | Plössl 9mm, Plössl 26mm (1.25") |
| Finderscope | optical, 8x50 with reticle |
| Focuser | 2", Crayford, with 1.25" adapter |
| Positioning accuracy | <1 arc-second (with StarLock) |
| Optical tube mounting mode | dovetail plate (Vixen standard), attachment rings (included) |
| Dovetail mount | ✓ |
