USA Meade LX70 R5 5" Achromatic Refractor OTA
The price is valid only for the online store and may differ from the prices in retail stores.
Achromatic refractor. Objective lens diameter: 120mm. Focal length: 1000mm
Refractor
Optical design
120
Aperture – the diameter of the light-collecting lens or mirror that the telescope uses to collect light
1000
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
| Product ID | 71690 |
| Brand | Meade Instruments Corp. |
| Warranty | 2 years |
| EAN | 0643824208957 |
| Package size (LxWxH) | 140x21x22 cm |
| Shipping Weight | 7.79 kg |
Description
The Meade LX70 R5 5" Achromatic Refractor is equipped with a high-quality air-spaced objective lens producing high resolution and incredible contrast for lunar, planetary, and deep-sky observations. Its 120mm clear aperture allows it to resolve details down to 0.9 arc-seconds across and can be viewed using the two included 1.25" Plössl eyepieces (9mm & 26mm). With its 2" rack and pinion focuser and 2" 90° diagonal, it is equipped to handle wide-field 2" eyepieces out of the box. The 6x30 optical viewfinder with cross-hair reticle makes locating faint object quickly and easily.

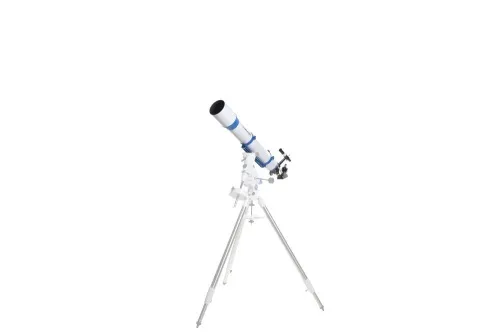

NOTE: Shown in photo with LX70 German Equatorial Mount, not included. Sold without the mount, ready for your own custom mounting.
Features:
- 120mm f/8.3 achromatic refractor OTA – 1000mm focal length
- Two 1.25" Plössl eyepieces (9mm & 26mm)
- 2" 90° diagonal with 1.25" adapter
- 6x30 viewfinder
Specifications
| Product ID | 71690 |
| Brand | Meade Instruments Corp. |
| Warranty | 2 years |
| EAN | 0643824208957 |
| Package size (LxWxH) | 140x21x22 cm |
| Shipping Weight | 7.79 kg |
| Optical design | refractor |
| Optical scheme | achromat |
| Objective lens diameter (aperture), mm | 120 |
| Focal length, mm | 1000 |
| Aperture ratio | f/8.3 |
| Resolution threshold, arcseconds | 0.912 |
| Eyepieces | Plössl 9mm, Plössl 26mm (1.25") |
| Finderscope | optical 6x30 with cross-hair reticle |
| Focuser | 2" rack & pinion, with 1.25" adapter |
| Additional | 90 º diagonal mirror (2") ; 2"–1.25" adapter |
| Positioning accuracy | <1 arc-second (with StarLock) |
| Optical tube mounting mode | dovetail plate (Vixen standard), attachment rings (included) |
| Dovetail mount | ✓ |
