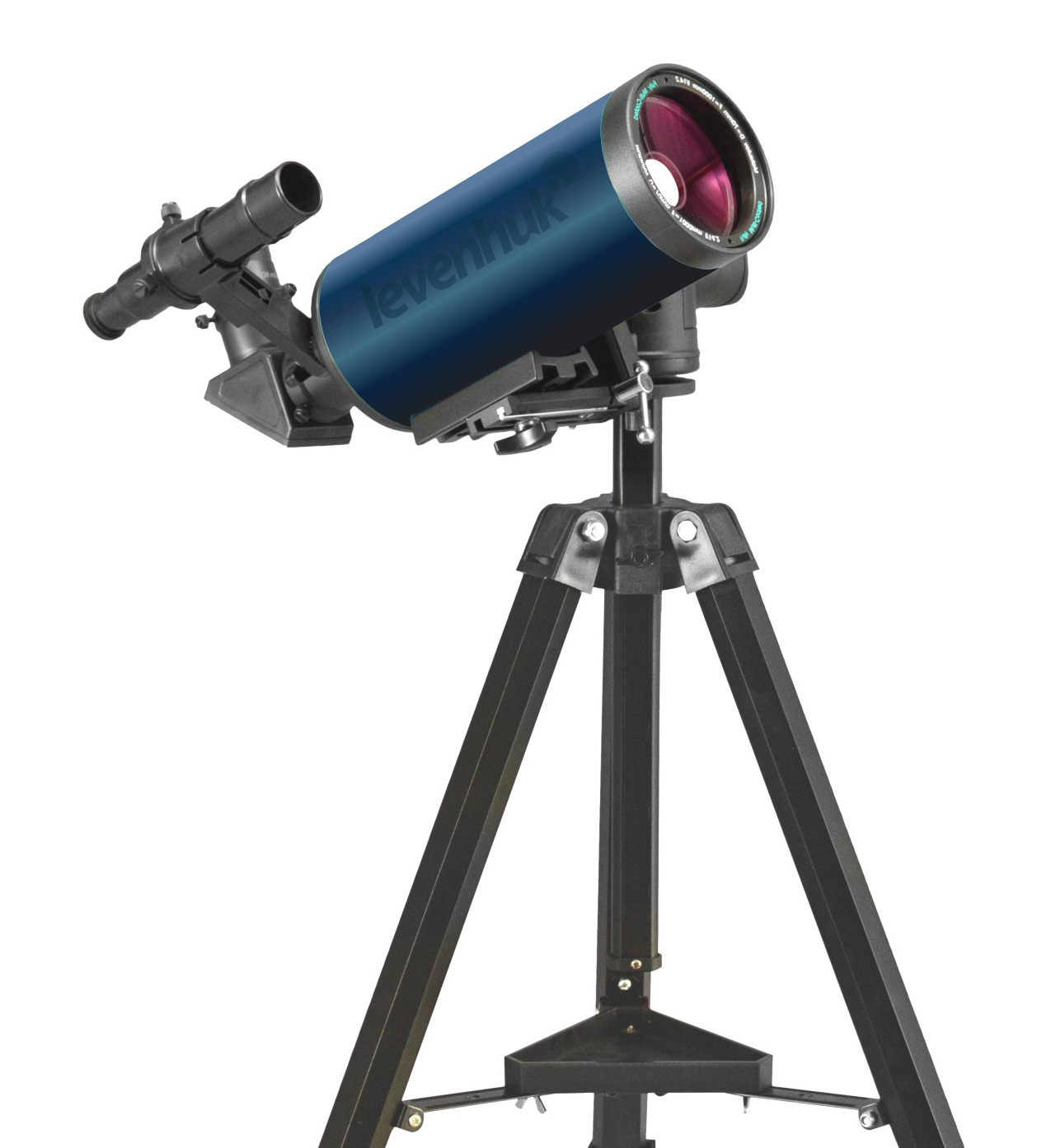

Maksutov-Cassegrain telescope. Lens diameter: 70mm. Focal length: 1000mm

Catadioptric
Optical design
70
Aperture – the diameter of the light-collecting lens or mirror that the telescope uses to collect light
1000
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability

Product ID 86252
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555027197
Package size (LxWxH) 64x32x25 cm
Shipping Weight 5.8 kg
Description

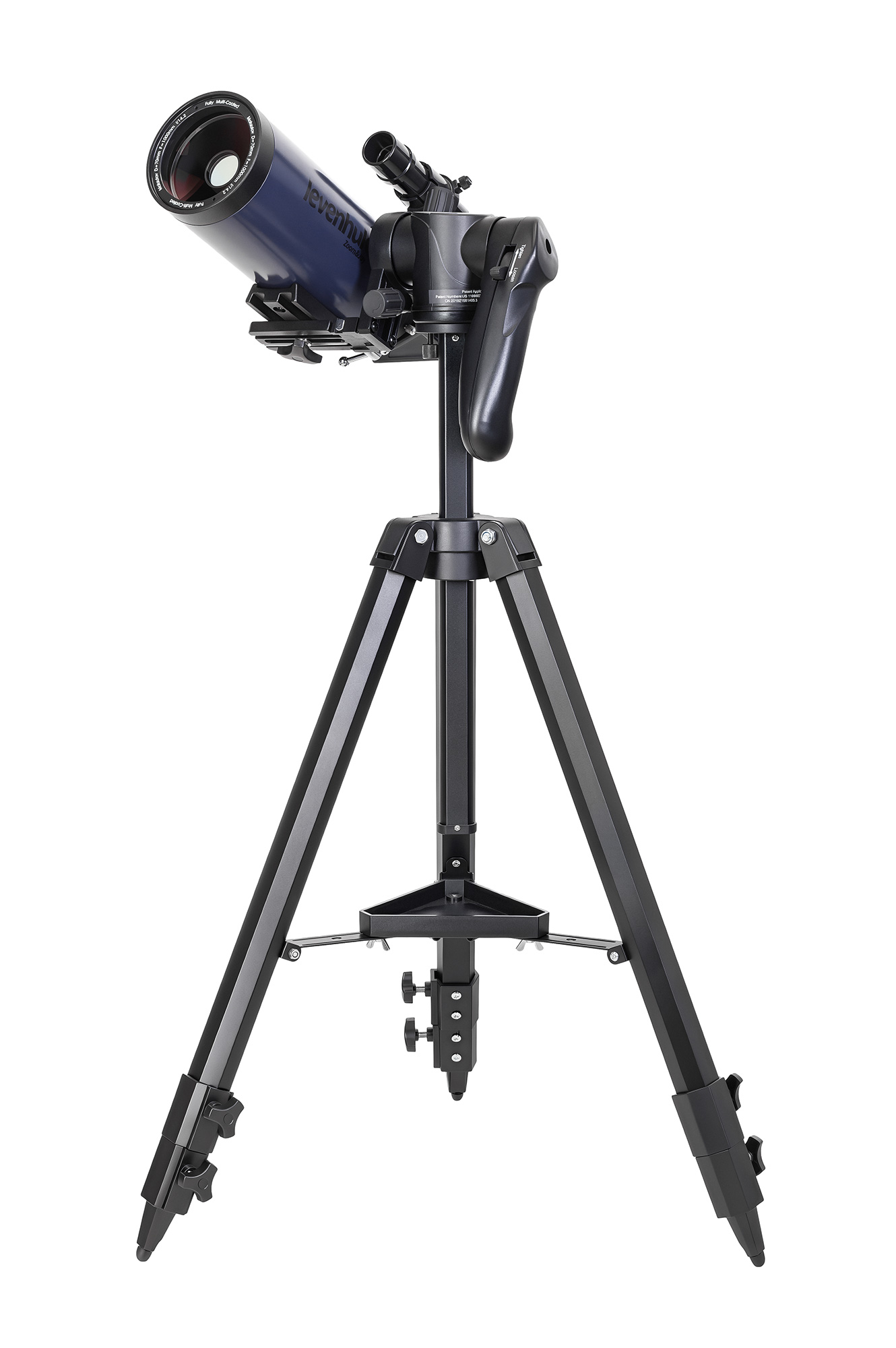

The compact Levenhuk New Skyline BASE MAK 70/1000 AZ-M is a perfect choice for beginner astronomers. It is easy to use, comes with everything you need to get started, and reveals plenty of nearby cosmic wonders: the Moon, Saturn’s rings, Jupiter’s moons, the phases of Venus, and more. You can observe Earth’s satellite in fascinating detail: You will see craters (over 8km across), vast mountain ranges, seas, and rilles along the terminator line. While the telescope is optimized for planetary observation, under good conditions with a perfectly dark sky, you can also spot dozens of bright star clusters, like the Pleiades and the Beehive Cluster, sparkling as a field of brilliant stars against the black velvet sky.

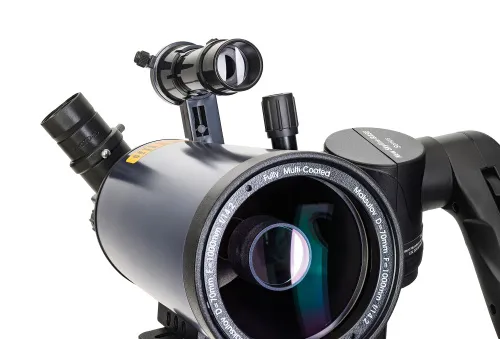

The Levenhuk New Skyline BASE MAK 70/1000 AZ-M features optical glass lenses with two specialized coatings for the best possible image quality. The first is an aluminum coating that boosts the system’s reflectivity and protects the optics. The second is a broadband anti-reflection coating that enhances contrast and eliminates stray reflections. The result is crisp, high-contrast images with excellent magnification and resolution.

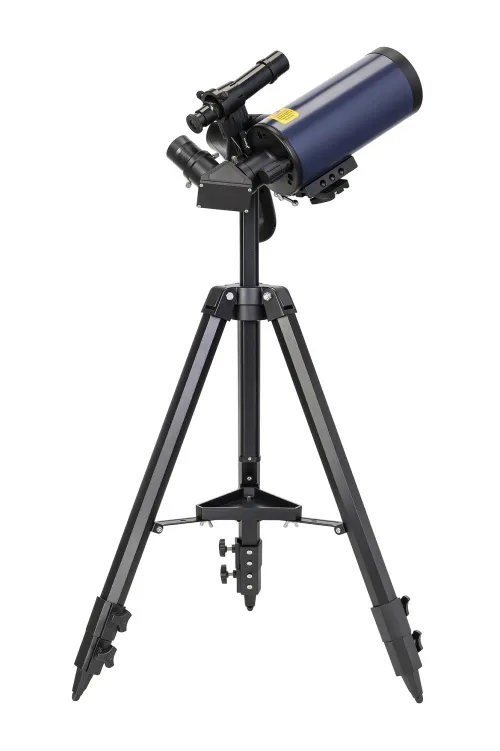

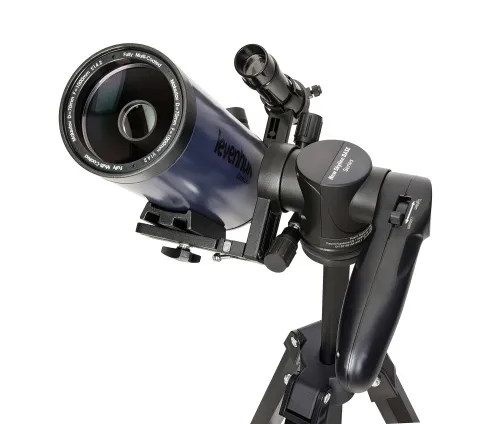

A key feature is the alt-azimuth mount, which has a large, ergonomic pan handle that is conveniently located on the observer’s right. This handle makes aiming the telescope effortless, and a handy lock at the top secures the telescope in place with one simple move. The mount also allows for classic fine-tuning with two slow-motion control knobs.

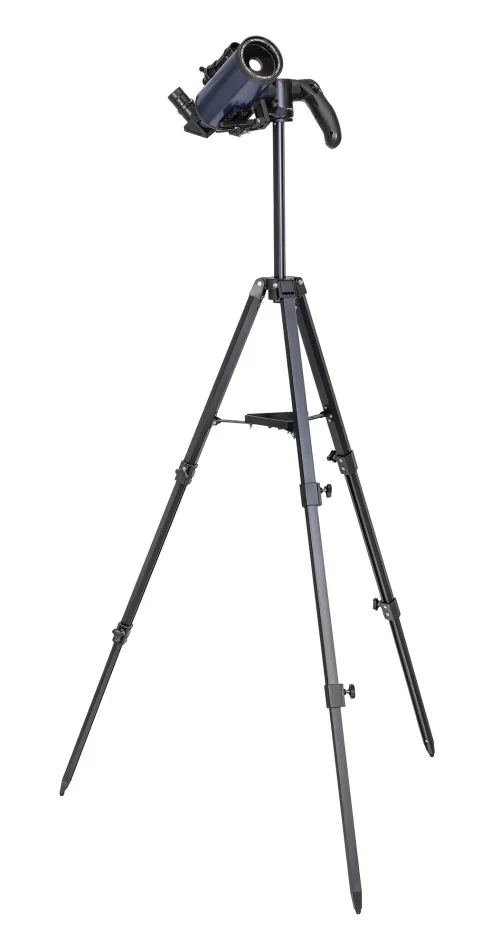

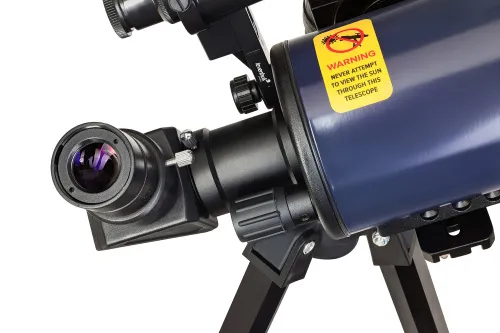

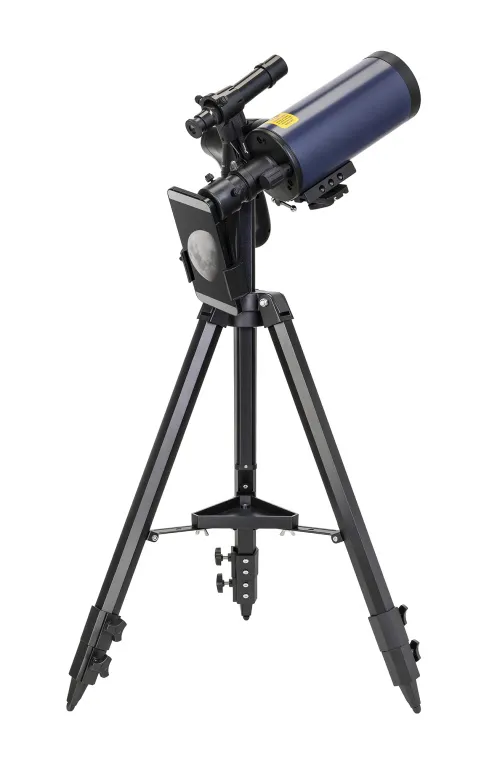

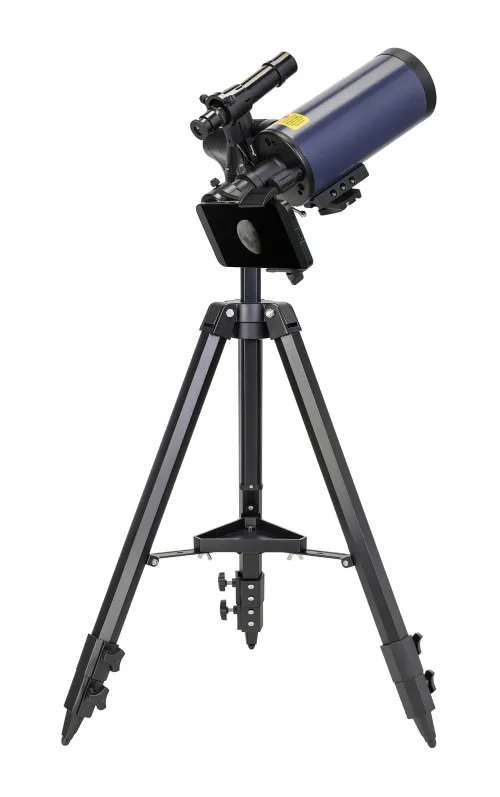

The mount sits on a sturdy aluminum tripod with a height range from 57.5cm to 141.5cm. A practical accessory tray attaches to the tripod legs, keeping everything within reach. The telescope also comes with essential accessories: a 5x24 optical finderscope, 10mm and 20mm eyepieces, a 90° diagonal mirror, and a smartphone adapter. For safe transport and storage, both the optical tube and the tripod have their own sturdy carrying bags. The tube attaches via a Vixen-style dovetail bar.

Key features:

  • Compact, portable telescope ideal for balcony viewing and travel
  • Dual-coated optics (aluminum and broadband anti-reflection) for maximum contrast and detail, with minimal stray light
  • Alt-azimuth mount with an ergonomic pan handle for intuitive manual control
  • Aluminum tripod with an accessory tray – everything you need is always at hand
  • Complete set of basic accessories included for instant observing
  • Two carry bags for the safe transport and storage of the OTA and tripod

The kit includes:

  • Telescope optical tube
  • Alt-azimuth mount
  • 5х24 optical finderscope
  • 90° diagonal mirror, 1.25”
  • PHOTO eyepiece 10mm, 1.25"
  • PHOTO eyepiece 20mm, 1.25"
  • Aluminum tripod
  • Accessory tray
  • Vixen-style dovetail plate
  • Smartphone adapter
  • Carry bag for the optical tube
  • Carry bag for the tripod
  • User manual and warranty slip
Specifications
Product ID 86252
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555027197
Package size (LxWxH) 64x32x25 cm
Shipping Weight 5.8 kg
Optical design catadioptric
Optical scheme Maksutov-Cassegrain
Optics material optical glass
Optics coating aluminum, broadband anti-reflection
Primary mirror diameter (aperture), mm 70
Lens (mirror) shape spherical
Focal length, mm 1000
Highest practical power, x 140
Aperture ratio f/14.3
Resolution threshold, arcseconds 1.7
Limiting stellar magnitude 11
Eyepieces PHOTO 10mm (100x), PHOTO 20mm (50x)
Eyepiece barrel diameter, in 1.25
Barlow lens no
Finderscope optical, 5x24
Tripod aluminum
Tripod height (adjustable), mm 575–1415
Accessory tray
Telescope control manual
Mount alt-azimuth
Slow-motion controls 2 slow-motion control knobs
Maximum payload, kg 2.5
Additional 90° diagonal mirror included, smartphone adapter included
Optical tube mounting mode dovetail plate (Vixen standard)
Dovetail mount
User level beginners
Assembly and installation difficulty level easy
Observed object planets of the Solar System, terrestrial objects
Pouch/case/bag in set bag
