Levenhuk Blitz 76 BASE Telescope
Newtonian reflector. Aperture: 76mm. Focal length: 700mm
Product ID | 77102 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555002439 |
Package size (LxWxH) | 73x25x23 cm |
Shipping Weight | 4.56 kg |

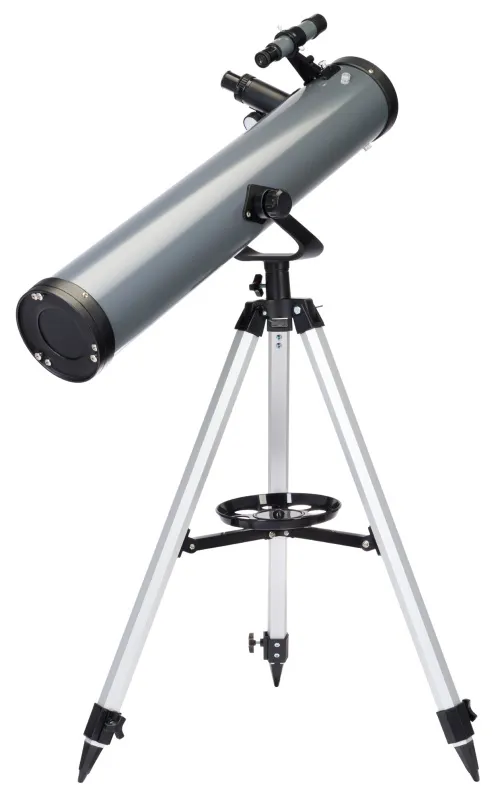

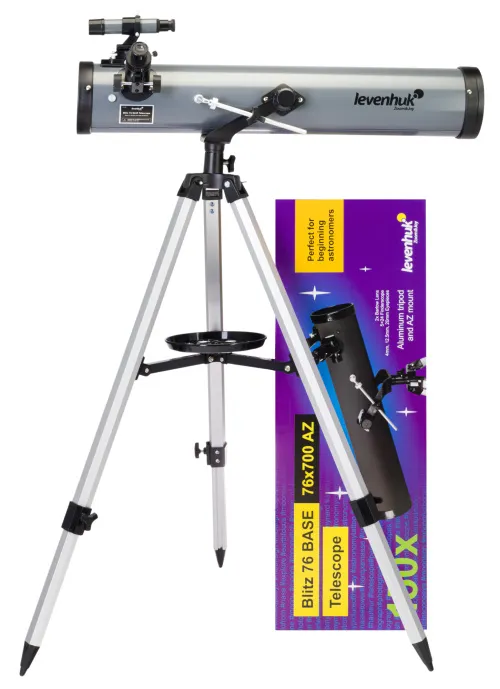

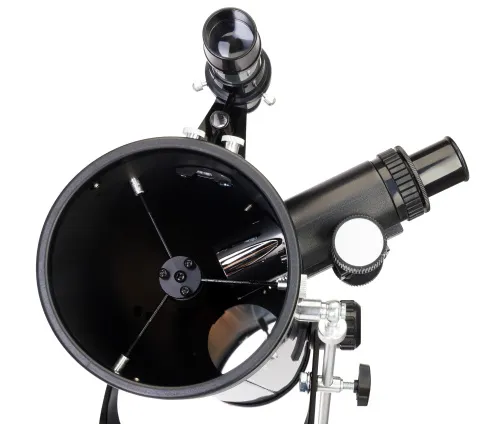

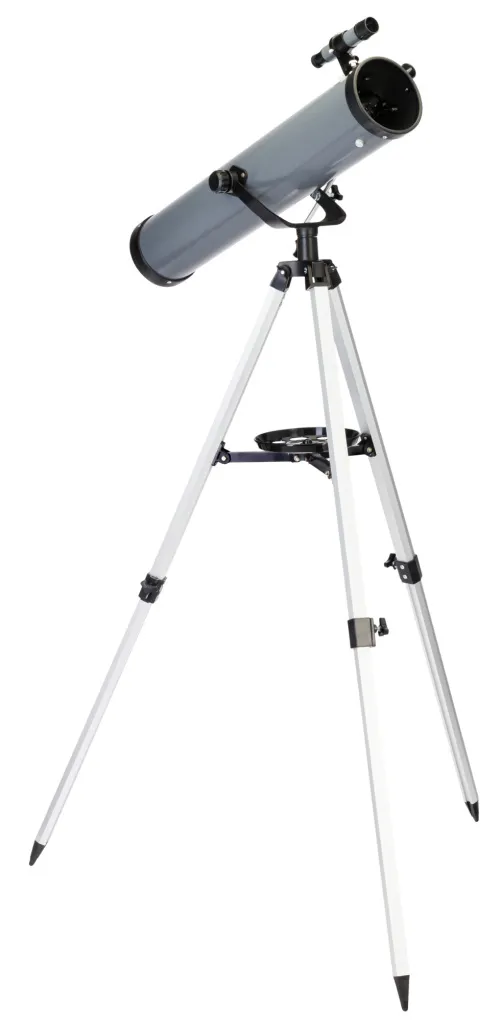

The Levenhuk Blitz 76 BASE telescope is a Newtonian reflector with a spherical primary mirror. This is an entry-level model, but it allows you to observe many objects of outer space and deep sky. You can study the Moon, earth-type planets, and binary stars as well as large globular and open clusters. Almost all objects of the Messier catalog are available for study but without a high degree of detail.
Its optics are made of glass with an anti-reflective coating. As a result, the image transmitted by the telescope is sharp and clear. You can observe with good clarity up to 152x magnification. Due to three eyepieces with a different focal length and a 2x Barlow lens in the kit, you can work with a large number of multiplicities.

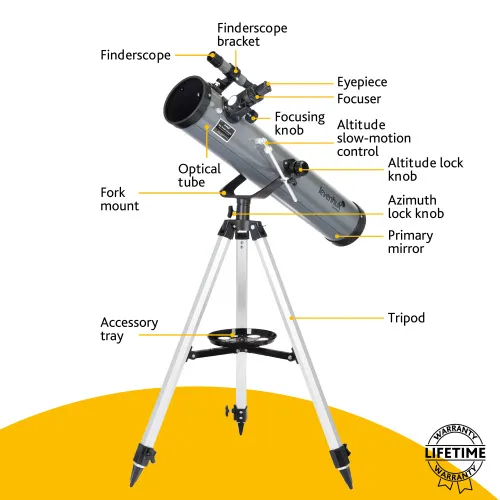

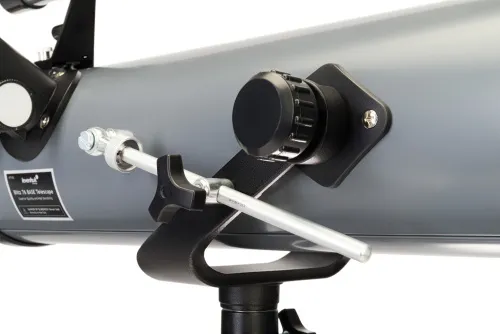

With the fork azimuth mount, using the telescope is as easy as a spotting scope. To set the telescope on the selected object, it is enough just to rotate the optical tube in the desired direction – left, right, up, or down. The mount features a microscrew on the vertical axis, which allows you to set the telescope accurately and smoothly. The aluminum tripod with adjustable height features an accessory tray.
Features:
- Classical Newtonian reflector for deep sky observations
- Fork azimuth mount
- Microscrew on the vertical axis for more accurate setting
- High-quality optics and easy operation – ideal for a beginner
- All of the required accessories for an amateur astronomer are included

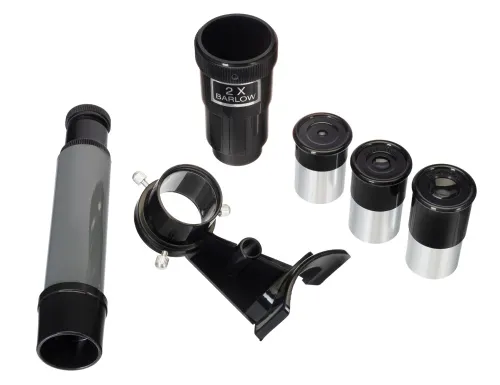

The kit includes:
- Telescope optical tube
- 4mm eyepiece
- 12.5mm eyepiece
- 20mm eyepiece
- 2x Barlow lens

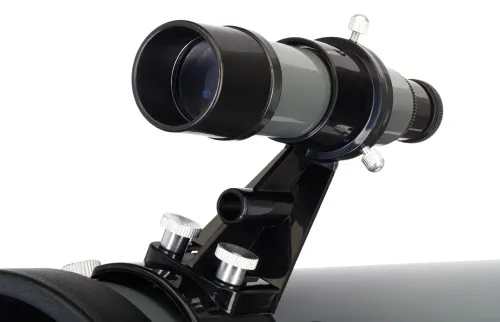

- Finder 5x24
- Azimuth mount
- Aluminum tripod with an accessory tray
- User manual and lifetime warranty
Product ID | 77102 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555002439 |
Package size (LxWxH) | 73x25x23 cm |
Shipping Weight | 4.56 kg |
Optical design | reflector |
Optical scheme | Newtonian |
Optics material | optical glass |
Optics coating | anti-reflective |
Primary mirror diameter (aperture), mm | 76 |
Lens (mirror) shape | spherical |
Focal length, mm | 700 |
Highest practical power, x | 152 |
Aperture ratio | f/9 |
Resolution threshold, arcseconds | 9.0 |
Limiting stellar magnitude | 11.5 |
Eyepieces | SR4mm (175х), H12.5mm (56х), H20mm (35x) |
Eyepiece barrel diameter, in | 0.965 |
Barlow lens | 2x |
Finderscope | optical, 5x24 |

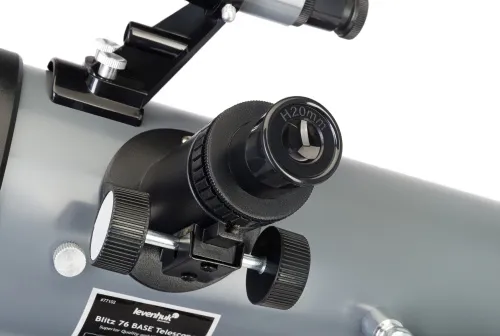

Focuser | rack & pinion |
Tripod | aluminum |
Tripod height (adjustable), mm | 600–1000 |
Accessory tray | ✓ |
Telescope control | manual |
Mount | alt-azimuth |
Optical tube mounting mode | screws |
Optical tube material | metal |
User level | elementary, beginners |
Assembly and installation difficulty level | extremely simple |
Observed object | deep-sky objects |
Extended kit | ✓ |
