Newtonian reflector. Aperture: 114mm. Focal length: 900mm

Reflector
Optical design
114
Aperture – the diameter of the light-collecting lens or mirror that the telescope uses to collect light
900
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability

Product ID 77103
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555002446
Package size (LxWxH) 96x29x27 cm
Shipping Weight 7.72 kg
Description

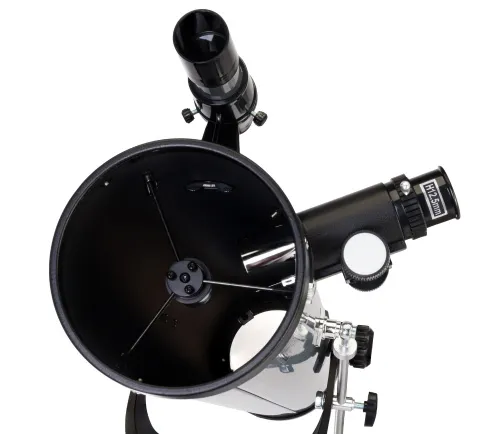

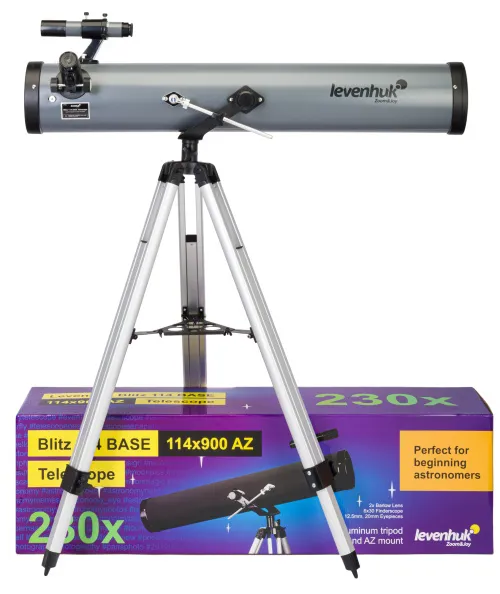

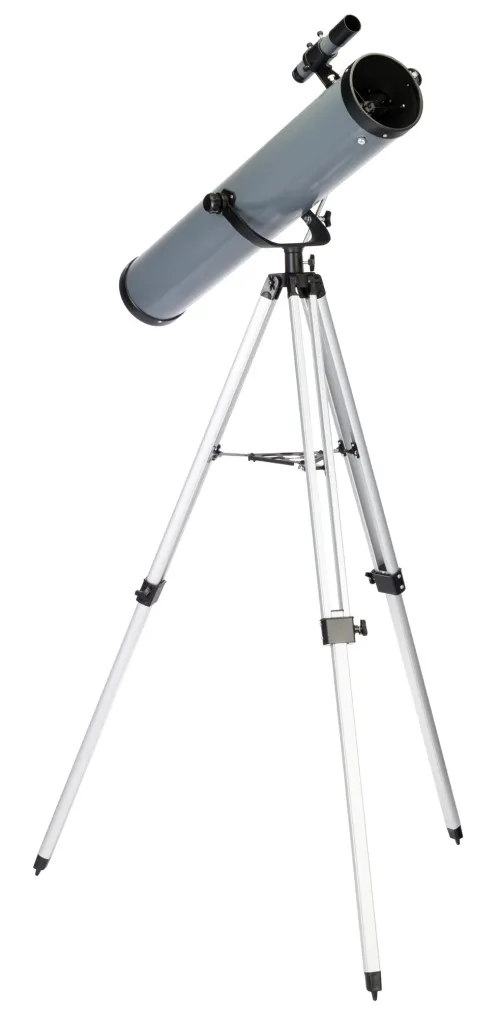

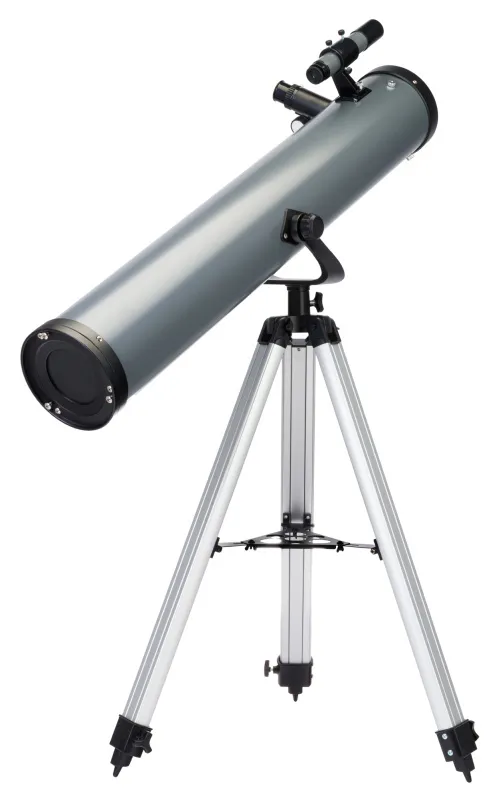

The Levenhuk Blitz 114 BASE telescope is a classical Newtonian reflector for astronomical observations. It is designed for deep sky object observations: globular clusters, binary stars as well as planetary and diffuse nebulae. Outer space is also well discernible up to Saturn. Since the telescope has a classic 1.25" focuser, and most of the optical accessories that are widely available on the market are compatible with it. However, three eyepieces and a Barlow lens are already included, so you can start observing right away.

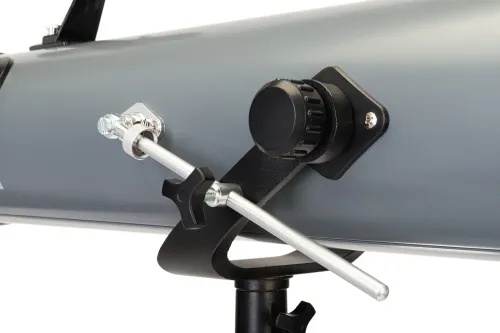

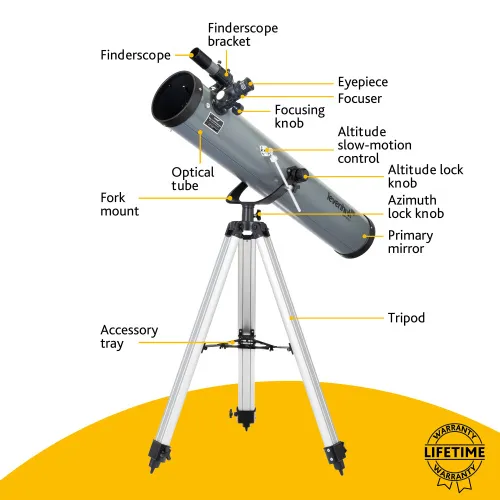

The optical elements of the telescope are made of glass with an anti-reflective coating. The mirror has a spherical shape and renders a good quality image without distortions up to the maximum useful magnification. A forked azimuth mount is used to set the optical tube on objects. A microscrew on the vertical axis allows for a more precise setting.

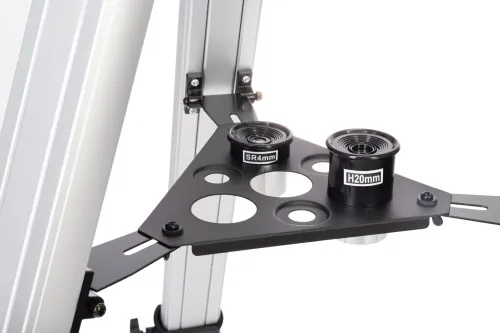

The aluminum with adjustable height tripod features an accessory tray.

Features:

  • Reflector with optimal aperture and picture resolution
  • Fork azimuth mount with a microscrew on the vertical axis
  • Glass optics with an anti-reflective coating
  • A great assistant in the study of deep space objects – galaxies, nebulae, etc.
  • Extended kit – you don't need to buy anything separately

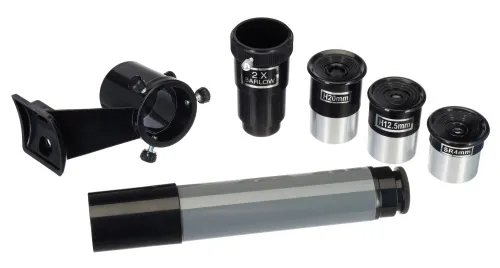

The kit includes:

  • Telescope optical tube
  • 4mm eyepiece
  • 12.5mm eyepiece
  • 20mm eyepiece
  • 2x Barlow lens
  • Finder 6x30
  • Azimuth mount
  • Aluminum tripod with an accessory tray
  • User manual and lifetime warranty
Specifications
Product ID 77103
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555002446
Package size (LxWxH) 96x29x27 cm
Shipping Weight 7.72 kg
Optical design reflector
Optical scheme Newtonian
Optics material optical glass
Optics coating anti-reflective
Primary mirror diameter (aperture), mm 114
Lens (mirror) shape spherical
Focal length, mm 900
Highest practical power, x 228
Aperture ratio f/7.9
Resolution threshold, arcseconds 7.9
Limiting stellar magnitude 12.38
Eyepieces SR4mm (225х), H12.5mm (72х), H20mm (45x)
Eyepiece barrel diameter, in 1.25
Barlow lens 2x

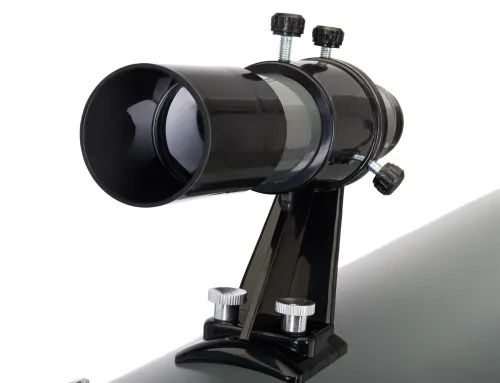

Finderscope optical, 6x30

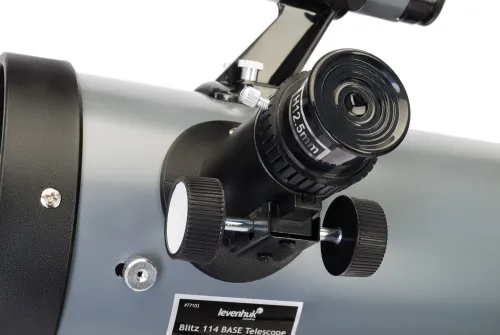

Focuser rack & pinion
Tripod aluminum
Tripod height (adjustable), mm 670–1230
Accessory tray
Telescope control manual
Mount alt-azimuth
Optical tube mounting mode screws
Optical tube material metal
User level beginners
Assembly and installation difficulty level extremely simple
Observed object deep-sky objects
Extended kit
