Schmidt-Cassegrain. Aperture: 235 mm. Focal length: 2350 mm

Catadioptric
Optical design
235
Aperture – the diameter of the light-collecting lens or mirror that the telescope uses to collect light
2350
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Availability

Product ID 60474
Brand Celestron
EAN 2400000043119
Optical design catadioptric
Optical scheme Schmidt–Cassegrain
Primary mirror diameter (aperture), mm 235
Description

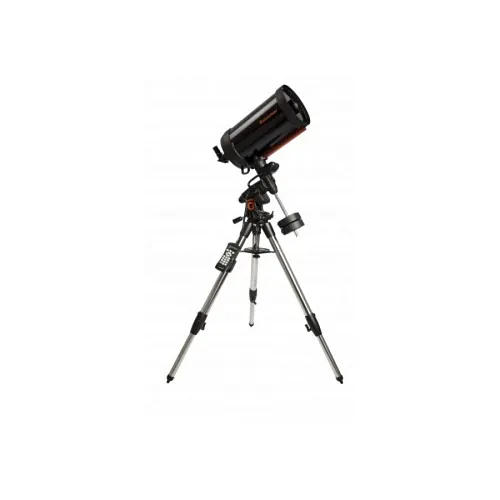

The Advanced VX (AVX) sets a standard in mid-level telescopes, providing many of the features found on Celestron’s most sophisticated German equatorial mounts at an extremely affordable price. The Advanced VX 9.25” Schmidt Cassegrain telescope is ideal for imagers and visual observers. The 9.25” optical tube offers 33% more light gathering ability than an 8” telescope. The Schmidt-Cassegrain design also eliminates chromatic aberration, making it a good choice for entry-level astroimaging. Each individual piece of this telescope (optical tube, tripod, etc.) does not exceed more than 20 lb making it easy for one person to transport and assemble.

The Advanced VX mount is designed to provide superior performance while taking advantage of Celestron’s most advanced technologies: All-Star Polar Alignment, Celestron PWI telescope control software, SkyAlign, and permanently programmable periodic error correction (PPEC).

If you’re an experienced imager, you’ll love taking this portable mount to a dark sky site and enjoying all the conveniences of a larger observatory mount. Or, if you’re new to imaging, Advanced VX will help you get started with the hobby and keep up with your needs for years to come.

Features:

  • 9.25” (235mm) f/10 Schmidt-Cassegrain includes StarBright XLT coatings for better light transmission
  • The most compact and portable of Celestron’s German equatorial mounts offers the same rigidity as our larger mounts with minimal flexure and an improved industrial design
  • Holds a maximum instrument capacity of 30 lb
  • Every feature an astroimager wants: PEC, an autoguider port, the ability to image across the meridian, and more
  • Dual saddle plate is compatible with narrow CG-5 dovetails and wider CGE dovetail. Also compatible with Vixen format dovetails longer than 100mm, but not compatible with Losmandy D format plates.
  • Latitude range allows the mount to perform between 7° and 77° latitude
  • Accessories include a 25mm eyepiece, 1.25” star diagonal and 6x30 finderscope
Specifications
Product ID 60474
Brand Celestron
EAN 2400000043119
Optical design catadioptric
Optical scheme Schmidt–Cassegrain
Primary mirror diameter (aperture), mm 235
Focal length, mm 2350
Highest practical power, x 555
Aperture ratio f/10
Eyepieces 25mm
Finderscope 6х30
Telescope control autoguide
Mount equatorial, Advanced VX
User level experienced users, professionals
Observed object deep-sky objects, planets of the Solar System
