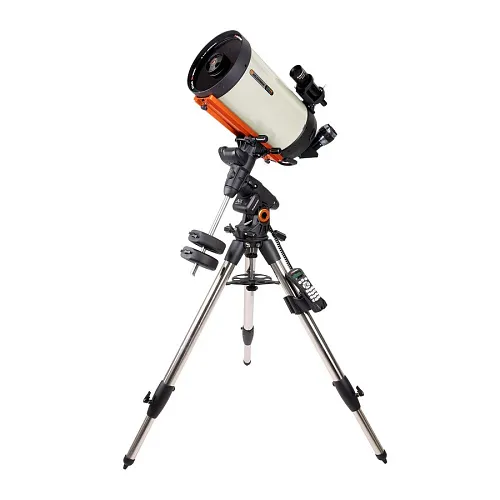

Celestron Advanced VX 9.25 ЕdgeHD Telescope
Schmidt-Cassegrain. Aperture: 235 mm. Focal length: 2350 mm
Catadioptric
Optical design
235
Aperture – the diameter of the light-collecting lens or mirror that the telescope uses to collect light
2350
Focal length – the distance from the primary lens or mirror to the point at which the light is focused
Product ID | 76653 |
Brand | Celestron |
EAN | 2400000043867 |
Optical design | catadioptric |
Optical scheme | Schmidt–Cassegrain |
Primary mirror diameter (aperture), mm | 235 |
Description
The 9.25” EdgeHD Advanced VX (AVX) telescope is a specialized instrument designed for astrograph-quality images that sets a standard in mid-level telescopes. With its EdgeHD optical tube and the sturdy Advanced VX equatorial mount and tripod, this kit provides unparalleled views of the planets, up-close views of the lunar surface (including craters and maria), and stunning deep sky images.
Features:
- 9.25” (235mm) f/10 EdgeHD optical tube fully corrects for coma and field curvature, delivering a truly flat field
- Native f/10 focal ratio can achieve the image scale necessary to capture the smallest of deep sky objects—or image at f/7 with optional focal reducer and f/2 with third-party lens assembly
- Premium patented StarBright XLT optical coatings provide maximum light transmission
- Compact and portable Advanced VX mount offers a maximum instrument capacity of 30 lb with the same rigidity as our larger mounts and minimal flexure
- Every feature an astroimager wants: PEC, an autoguider port, the ability to image across the meridian, and more.
- Dual saddle plate is compatible with narrow CG-5 dovetails and wider CGE dovetail.
- Accessories included: 23mm eyepiece - 2", 1.25” Star Diagonal, and a 6x30 finderscope
Specifications
Product ID | 76653 |
Brand | Celestron |
EAN | 2400000043867 |
Optical design | catadioptric |
Optical scheme | Schmidt–Cassegrain |
Primary mirror diameter (aperture), mm | 235 |
Focal length, mm | 2350 |
Highest practical power, x | 555 |
Aperture ratio | f/10 |
Eyepieces | 23mm |
Finderscope | optical, 9x50 |
Telescope control | autoguide |
Mount | equatorial, Advanced VX |
User level | experienced users, professionals |
Observed object | deep-sky objects |
