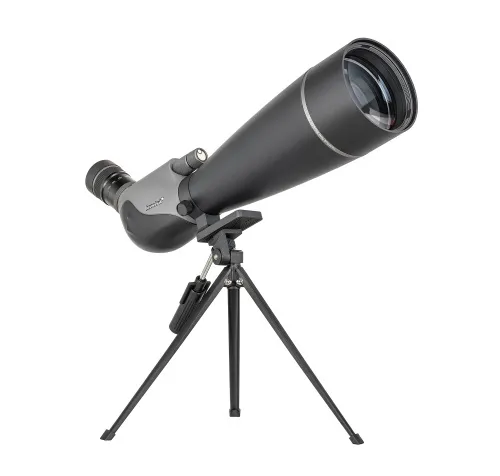

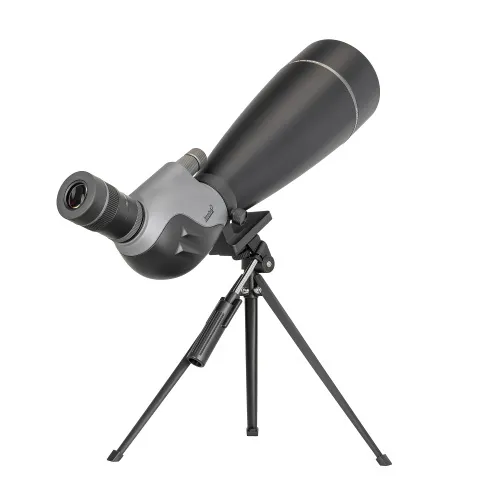

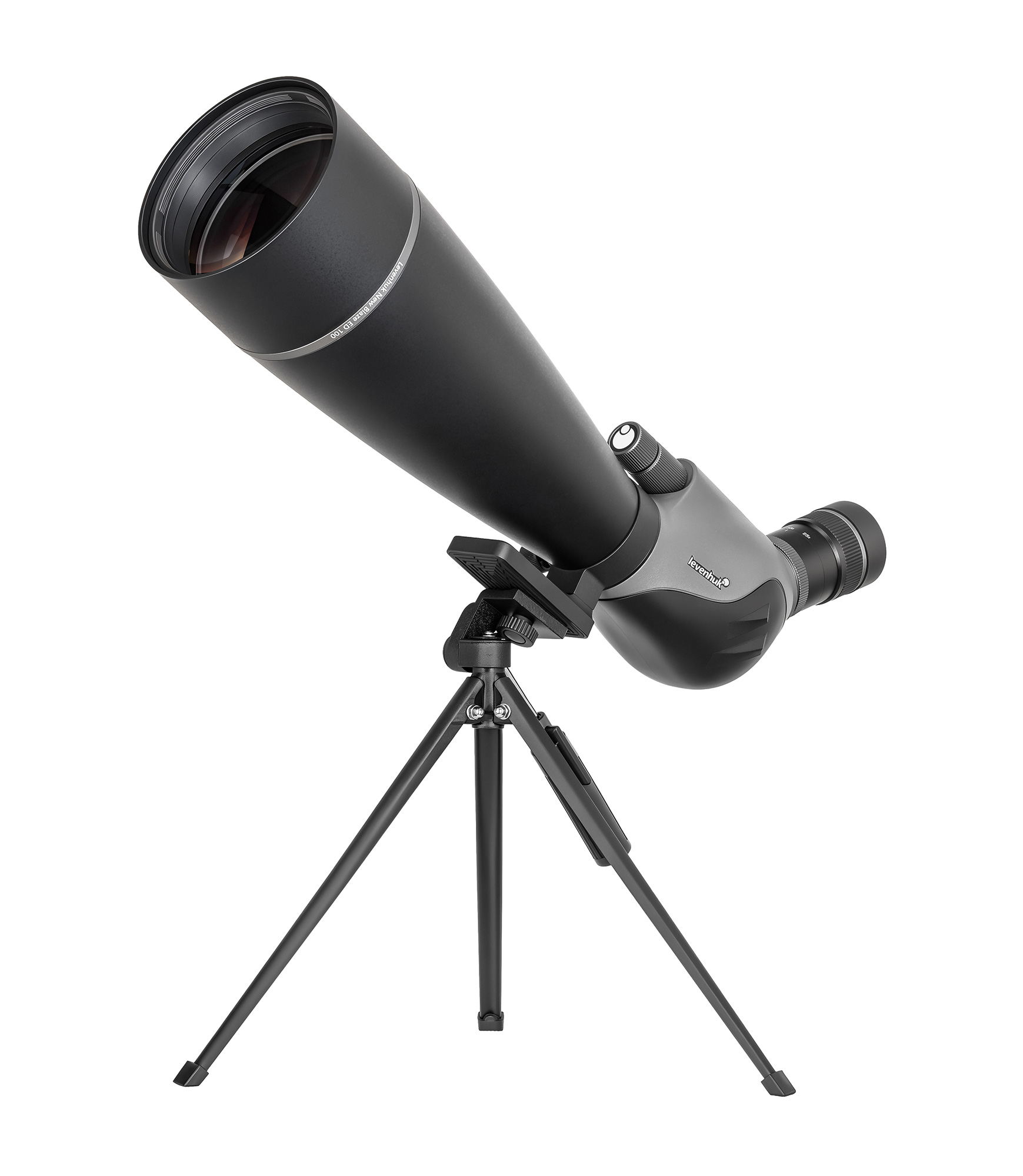

Levenhuk New Blaze ED 100 Spotting Scope
Water-resistant and nitrogen-filled. ED optics. Magnification: 25–75x. Lens diameter: 100mm
| Product ID | 85940 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555026848 |
| Package size (LxWxH) | 55x15x20 cm |
| Shipping Weight | 2 kg |

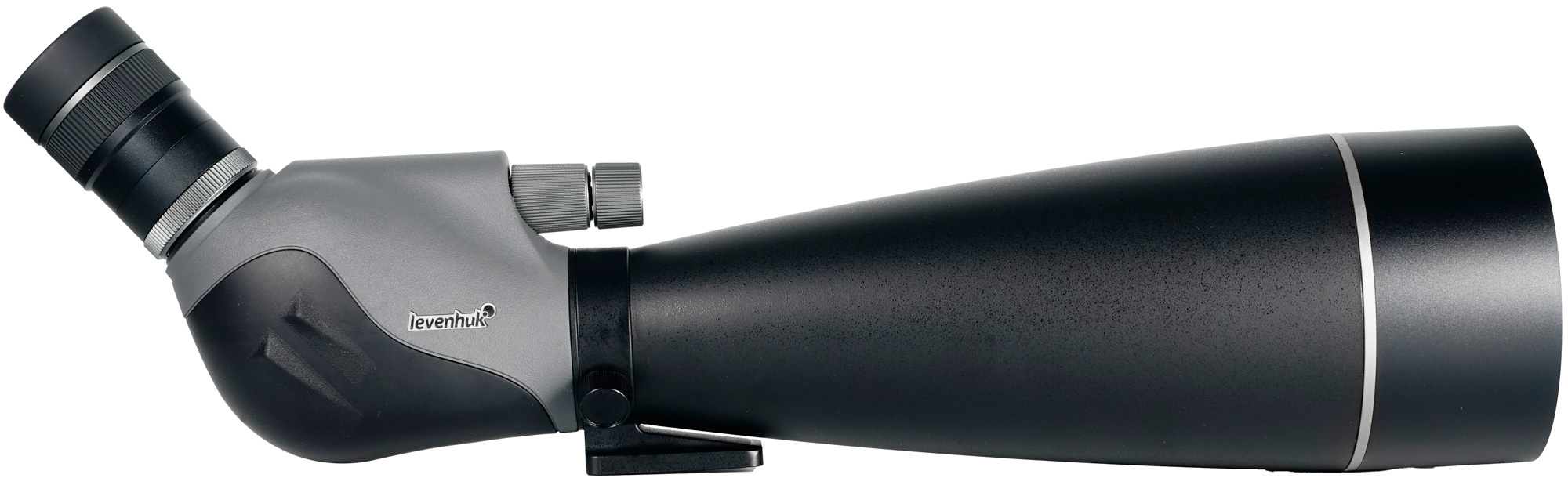

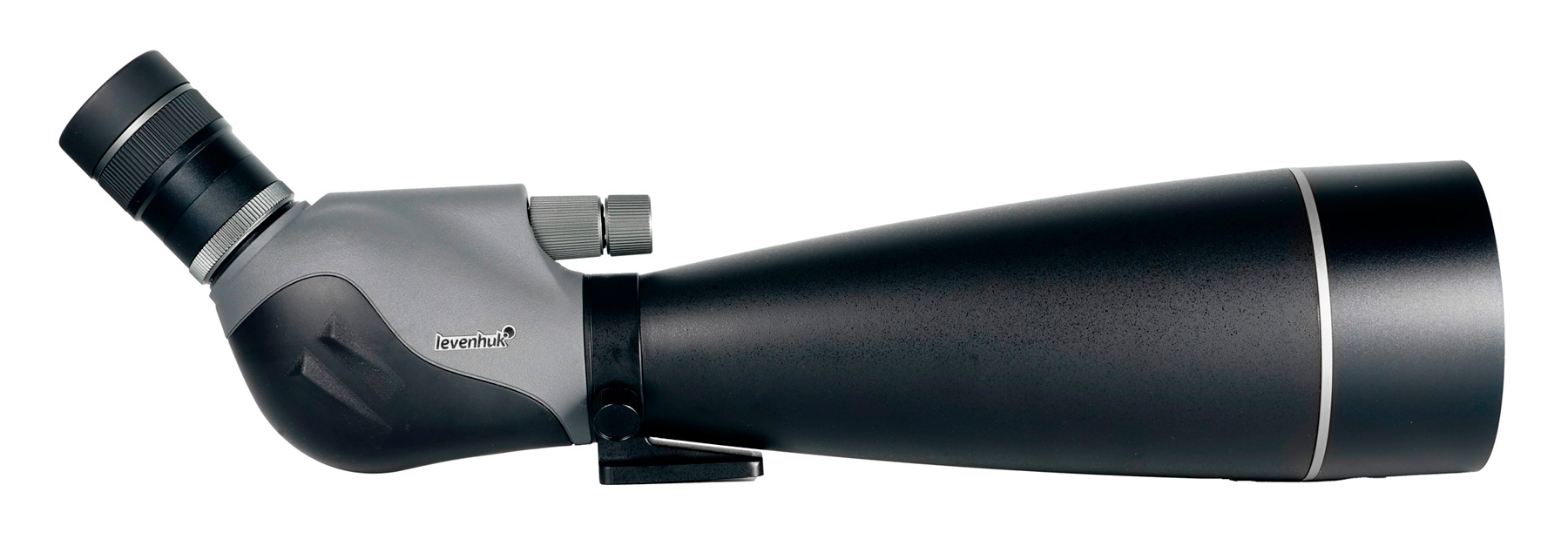

The Levenhuk New Blaze ED 100 is a high-performance spotting scope featuring a 100mm objective lens and extra-low dispersion optics. Its zoom capability offers magnification from 25x to 75x, making it well-suited for observation at very long distances. It is an ideal choice for hunting, wildlife and bird watching from afar, marine monitoring, and amateur astronomy.

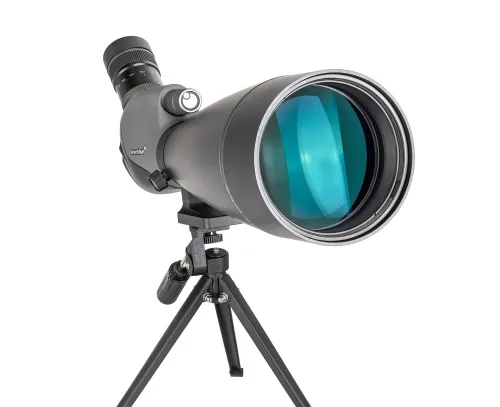

ED optics and large 100mm objective lens
The objective uses ED glass, which eliminates chromatic aberration to deliver a bright, sharp image free from color fringing. The 100mm aperture provides excellent light‑gathering capability, producing a quality image even in poor lighting conditions: during overcast weather, at dusk, or at dawn. Fully multi‑coated optics enhance light transmission, preserving natural colors and contrast across the entire field of view. The 25–75x magnification range allows smooth zoom adjustment to adapt to specific viewing conditions and object details.

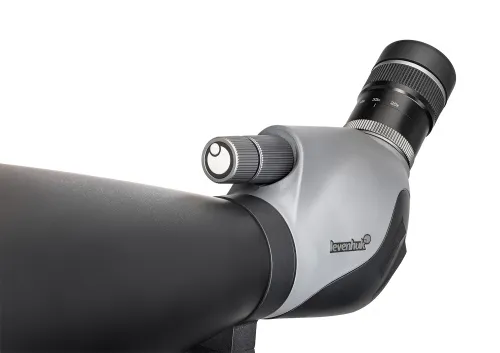

Dual‑stage focusing and ergonomic design

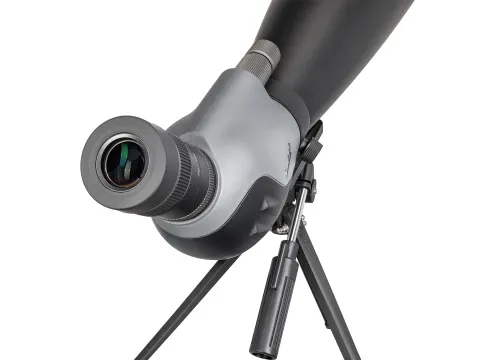

Focusing is handled by a dual‑stage system. First, quickly locate the object and then fine‑tune for perfect sharpness. The 45° angled eyepiece enables comfortable viewing of high‑altitude objects without straining your neck. Long eye relief ensures comfortable use with eyeglasses. The rubber eyecup blocks stray light and fits softly around the eye.
Reliable performance in demanding conditions

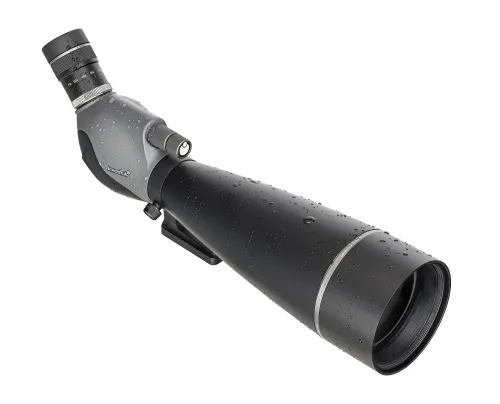

The rugged body is made of reinforced plastic with rubber armor, protecting the optics from impacts and providing a secure grip even with wet hands. Nitrogen filling prevents internal fogging during sudden temperature changes. The sealed construction allows use in all weather conditions within an operating temperature range of –20°C to +60°C.

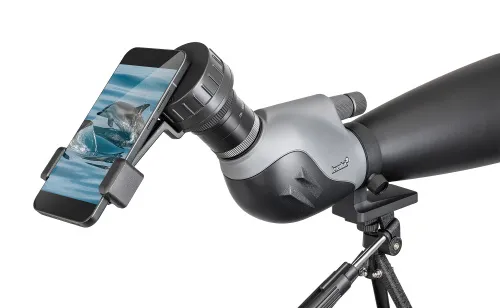

Extended capabilities for photography and videography

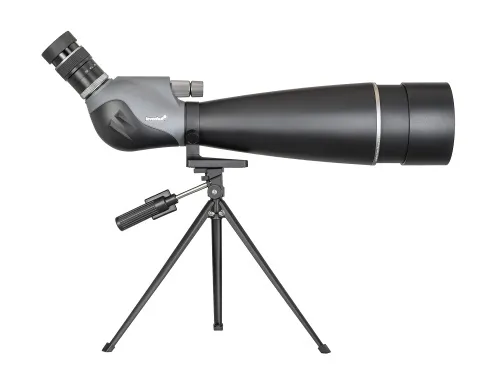

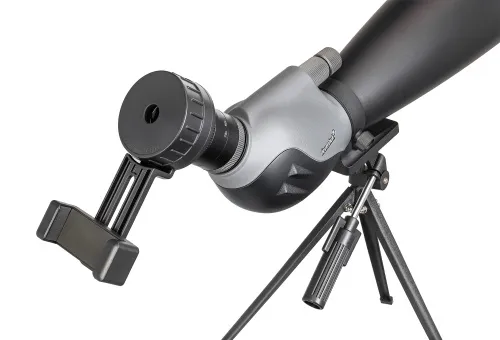

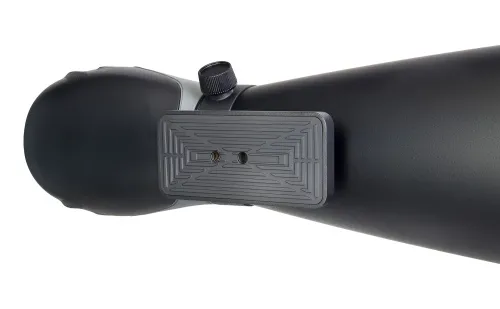

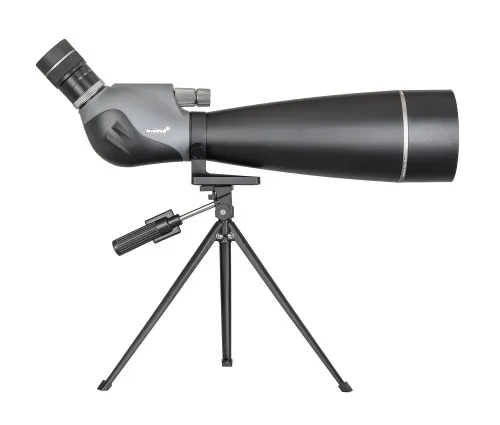

A metal tabletop tripod provides image stability at high magnifications. The kit also includes a smartphone adapter, turning the spotting scope into a powerful tool for photo and video capture. Capture and instantly share stunning, gallery‑quality images of your discoveries. If needed, the device can be mounted on any photo tripod using the standard 1/4" thread.
Key features:
- 100mm ED glass objective lens for minimal chromatic aberration and high image contrast
- 25–75x magnification range for observation at very long distances
- Dual‑stage focusing for precise sharpness adjustment
- Sealed, nitrogen‑filled body for moisture and fogging protection
- 45° angled eyepiece with long eye relief
- Rubber‑armored housing for a secure grip, impact protection, and tripod compatibility
- Tabletop tripod and a smartphone adapter are included

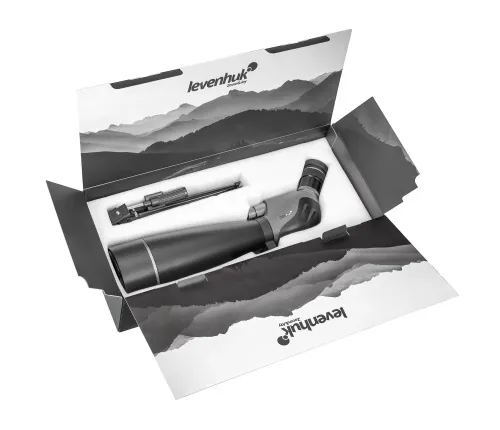

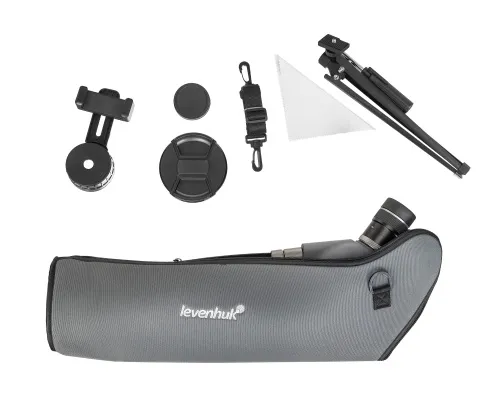

The kit includes:
- Spotting scope
- Metal tabletop tripod
- Smartphone adapter
- Eyepiece and objective lens protective caps
- Pouch with shoulder strap
- Cleaning cloth
- User manual and warranty slip
| Product ID | 85940 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555026848 |
| Package size (LxWxH) | 55x15x20 cm |
| Shipping Weight | 2 kg |
| With zoom | ✓ |
| Magnification, x | 25 — 75 |
| Objective lens diameter (aperture), mm | 100 |
| Optical axis curve | 45 ° |
| Optics material | ED |
| Lens coating | fully multi-coated |
| Eyepiece | 7 elements, metal |
| Eyepiece lens diameter, mm | 26 |
| Eyepiece diameter, mm | 51 |
| Focusing node | double (coarse and fine focusing) |
| Exit pupil diameter, mm | 4 — 1.3 |
| Eye relief, mm | 20 — 18 |
| Field of view, ° | 2 — 0.9 |
| Field of view, m/1000m | 35 — 16 |
| Close focus, m | 12 |
| Eyecup | rubber |
| Body | durable plastic with rubberized coating |
| Body filling | nitrogen |
| Moisture resistance | ✓ |
| Degree of moisture/water protection | body: IP64 rating: protection against solid objects larger than 1mm and water splashes; objective and eyepiece lenses: IP65, fully dustproof, water jet proof |
| Hermetically sealed design | ✓ |
| Mount | 1/4 |
| Tripod included | ✓ |
| Tripod | metal, tabletop |
| Application | for hunting, for stationary observations |
| Pouch/case/bag in set | pouch |
| Assembly and installation difficulty level | extremely simple |
| User level | beginners, experienced users |
