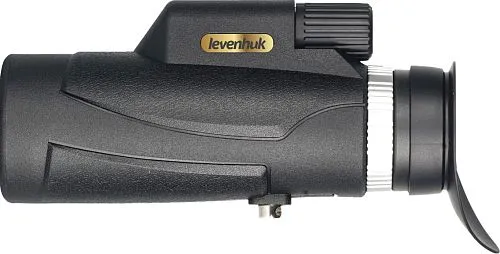

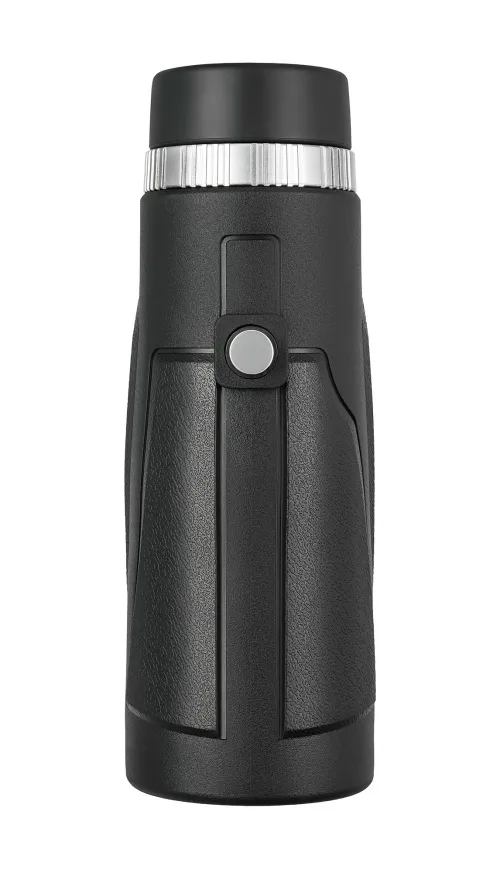

Levenhuk New Wise PLUS 10x42 Monocular
Water-resistant and nitrogen-filled. Magnification: 10x. Lens diameter: 42mm
| Product ID | 86246 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555027159 |
| Package size (LxWxH) | 18x14x8 cm |
| Shipping Weight | 0.351 kg |
The compact Levenhuk New Wise PLUS 10x42 is designed for mid- to long-range observation, making it an excellent choice for hikers, hunters, and outdoor enthusiasts who require high-quality, portable optics. With 10x magnification and a 42mm objective lens, this monocular delivers detailed views of distant subjects. Its strong low-light performance is quantified by a 20.5 twilight factor and 17.64 relative brightness.
BaK-4 glass prisms form the core of the optical system, ensuring distortion-free, high-contrast images across the entire field of view. The optical system employs a specialized coating scheme: The objective lens and eyepiece elements feature a full broadband multi-layer coating, while all other lenses are multi-coated. This combination ensures high light transmission and rich, accurate color reproduction. The optical design comprises 5 elements in 4 groups: a 2-element objective lens (1 group) and a 3-element eyepiece (3 groups).
It offers an angular field of view of 5.8°, corresponding to 102 meters at a distance of 1,000 meters. With an exit pupil diameter of 4.2mm and 15.2mm of eye relief, it provides comfortable viewing even for eyeglass wearers. The twist-up eyecup adds extra comfort during extended observation sessions. A close focus distance of just 2 meters makes the monocular suitable not only for distant objects but also for studying nature up close.
The monocular body is made of rugged ABS plastic, which is resistant to mechanical damage. It is nitrogen-purged and rated IP67, guaranteeing complete dust protection and resistance to water ingress during temporary immersion. An operating temperature range of –20°C to +55°C allows for effective use in any climate from winter hunting to summer hikes.

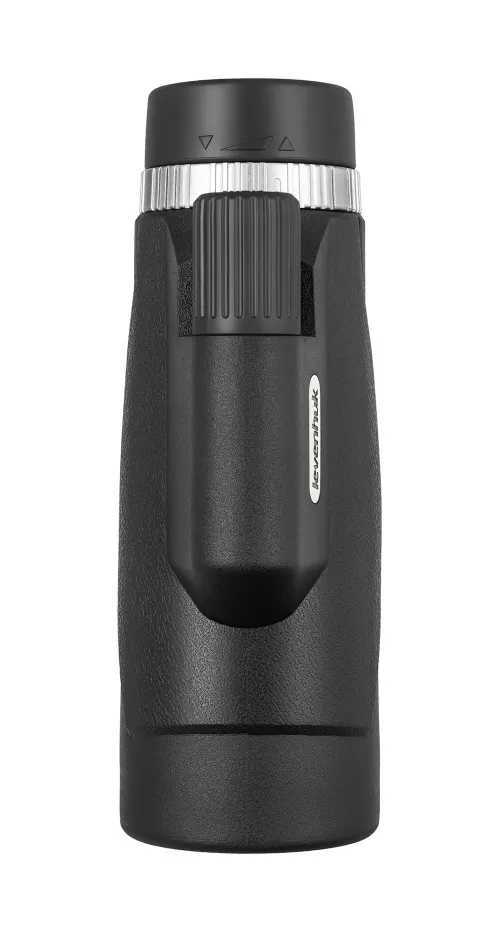

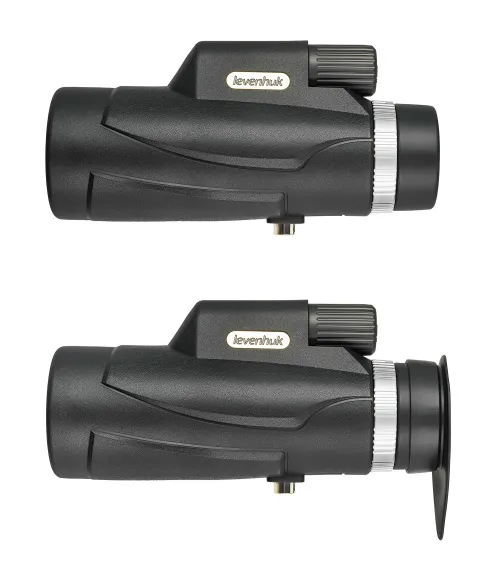

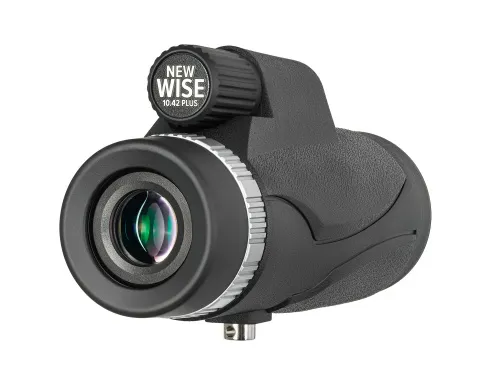

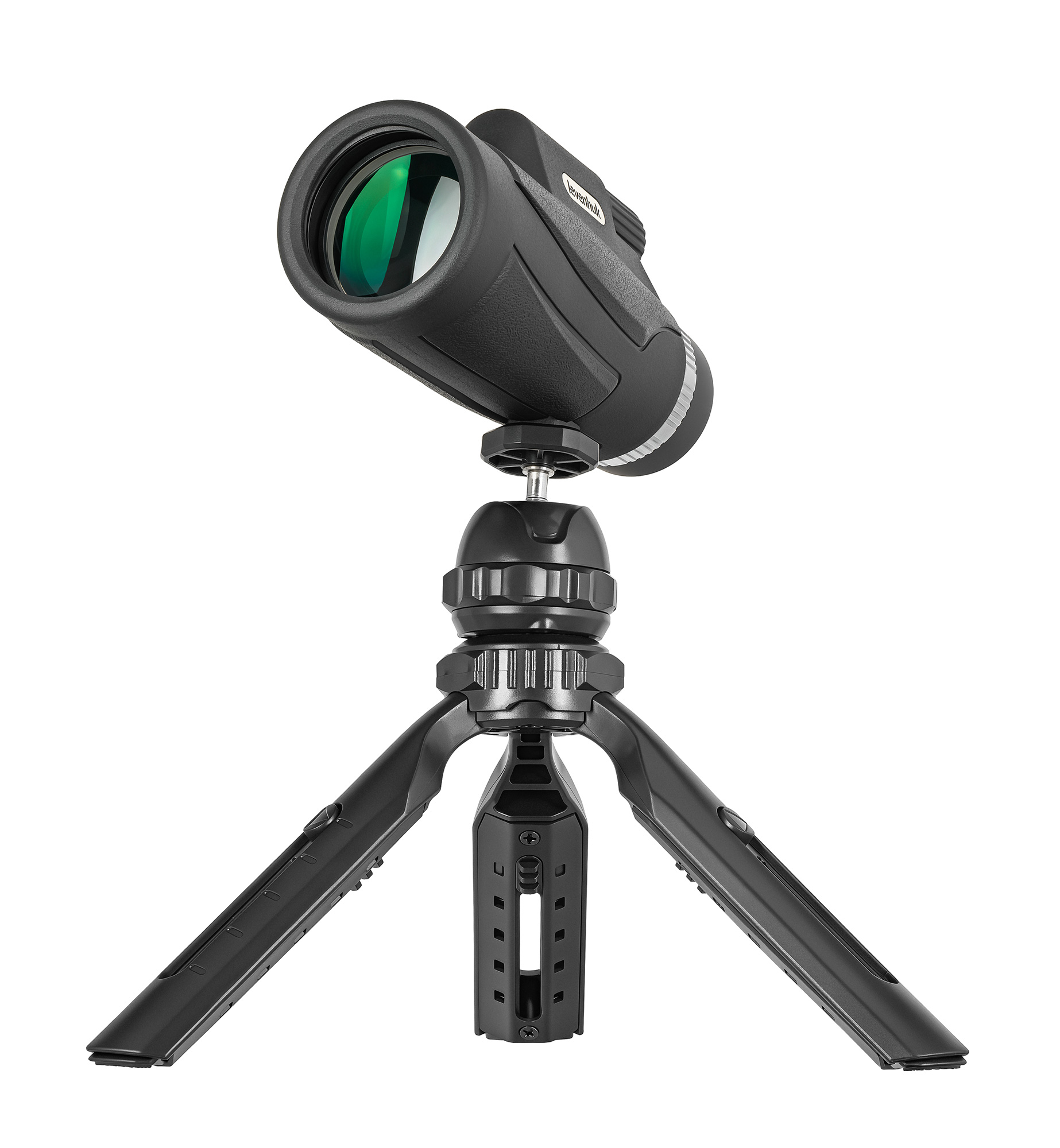

The focusing system ensures quick and precise sharpness adjustment. The eyepiece is equipped with a diopter correction mechanism offering a range of ±5D. Simply turn the corresponding ring left or right for individual eyesight adjustment. For prolonged stationary observation, the device is equipped with a standard tripod socket (tripod not included).
Its compact size and 351 grams in weight make it easily fit into a bag or jacket pocket.
Key features:
- BaK-4 optical glass with multi-layer coating on all surfaces ensures bright, high-contrast images
- 10x magnification and a 42mm objective lens for effective performance in low-light conditions
- Nitrogen-filled, waterproof housing (IP67) is well-suited for use in any weather
- Broad operating temperature range: from –20°C to +55°C
- ±5D correction, a twist-up eyecup, and a 2m close focus
The kit includes:
- Monocular
- Strap
- Pouch
- Cleaning wipe
- Eyepiece and objective lens protective caps
- User manual and warranty slip
| Product ID | 86246 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555027159 |
| Package size (LxWxH) | 18x14x8 cm |
| Shipping Weight | 0.351 kg |
| Magnification, x | 10 |
| Objective lens diameter (aperture), mm | 42 |
| Eyepiece | 18mm, 3 elements in 3 groups |
| Objective | 2 elements in 1 group |
| Optics material | BaK-4 |
| Lens coating | fully multi-coated |
| Exit pupil diameter, mm | 4.2 |
| Eye relief, mm | 15.2 |
| Twilight factor | 20.5 |
| Relative brightness | 17.64 |
| Field of view, ° | 5.8 |
| Field of view, m/1000m | 102 |
| Close focus, m | 2 |
| Eyepiece diopter adjustment, diopters | ±5 |
| Eyecup | twist-up |
| Body | high-strength ABS plastic |
| Body filling | nitrogen |
| Mounting on a tripod | ✓ |
| Waterproof | ✓ |
| Moisture resistance | ✓ |
| Degree of moisture/water protection | IP67, complete protection against dust and temporary immersion in water |
| Hermetically sealed design | ✓ |
| Operating temperature range, °C | -20...+55 |
| Pouch/case/bag in set | pouch |
