Tracing de-energized cables and live wiring in the ground or in walls

Coaxial, common wires, network cable, power cable, telephone
Tracing cable types
2 (6.6)
Maximum cable detection depth
400
The maximum voltage in the tested circuit is the maximum voltage of the cables that the device can detect
Availability

Product ID 84548
Brand Ermenrich
Warranty 5 years
EAN 5905555023090
Package size (LxWxH) 30x13x6 cm
Shipping Weight 0.6 kg
Description

The Ermenrich Ping SM100 is designed for tracing cables in walls and ceilings as well as cables buried underground. The maximum detection depth is 2 meters (6.6ft). The device can find de-energized and energized cables, i.e. it can be used to trace cables hidden under plaster, map cable lines, find drilling locations, etc. The cable tracing is performed with crosstalk protection.

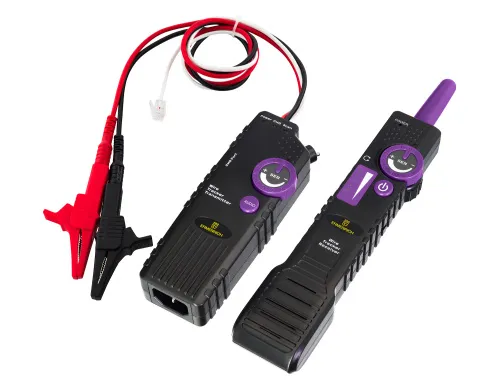

The device includes a transmitter and a receiver, the sensitivity of each unit can be adjusted individually. Both devices are powered by rechargeable batteries, and a charging cable is included. The Ermenrich Ping SM100 comes with earbuds, which will come in handy when working in noisy environments.

Key features:

  • For tracing different types of energized and de-energized cables
  • Maximum detection depth – 2 meters (6.6ft) (walls, ceilings, ground, etc.)
  • Crosstalk protection, transmitter, and receiver sensitivity adjustment
  • Powered by a rechargeable battery

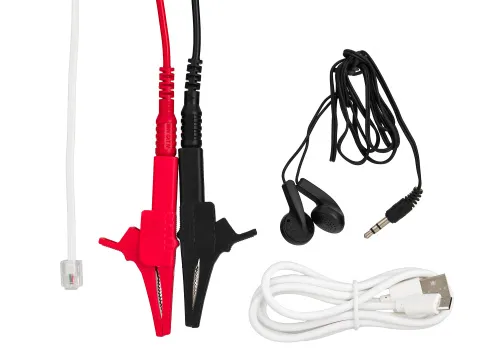

The kit includes:

  • Transmitter
  • Receiver
  • Micro USB cable
  • Earbuds

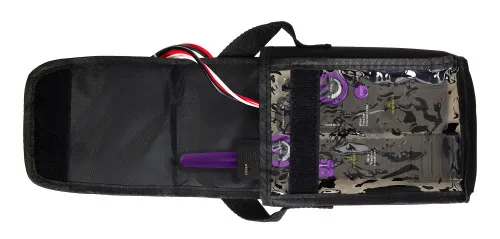

  • Carry bag
  • User manual and warranty card
Specifications
Product ID 84548
Brand Ermenrich
Warranty 5 years
EAN 5905555023090
Package size (LxWxH) 30x13x6 cm
Shipping Weight 0.6 kg

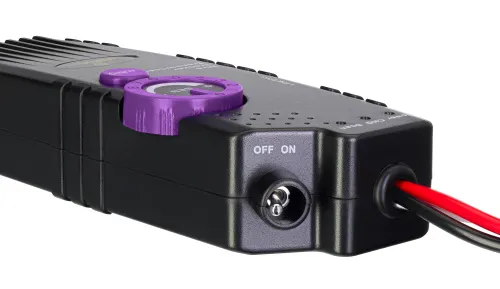

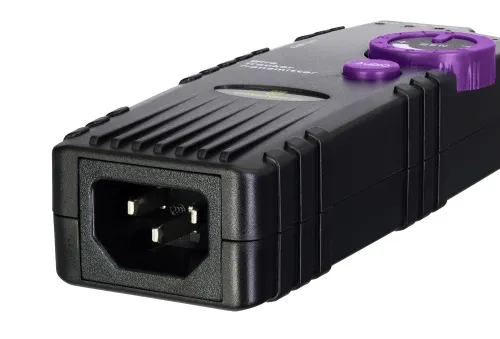

Transmitter
Ports RJ11, alligator clips, microUSB, power supply
Tracing cable types coaxial, common wires, network cable, power cable, telephone
Maximum detection depth, m (ft) 2 (6.6)
Maximum possible voltage of the circuit under test, V 400
Polarity test
Crosstalk protection
Maximum signal transmission distance, m (ft) 10000
Peak output signal voltage, V 21
Signal transmission format multifrequency impulse
Adjustable sensitivity
Maximum operating current, mA <150

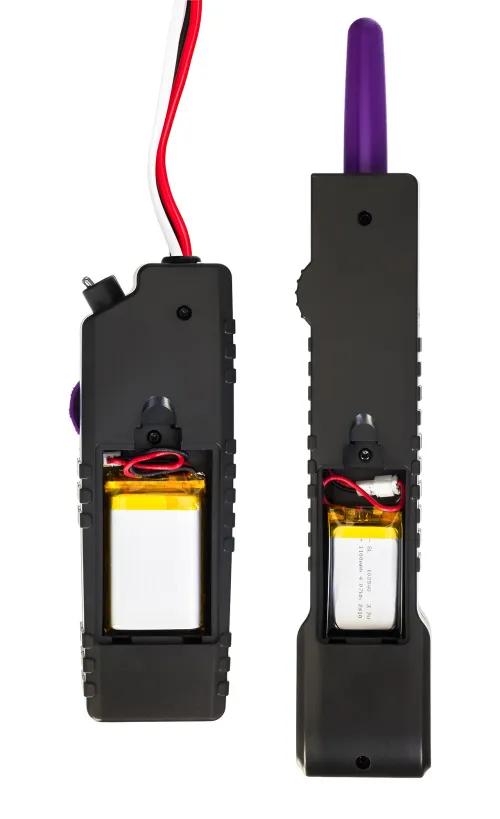

Power supply 1400mAh, 3.7V lithium battery; charging via 5V, 1A DC adapter (not included) and micro USB cable (included)
Low battery status indicator
Operating temperature range, °C -10...+40
Operating humidity range, % 30 — 60

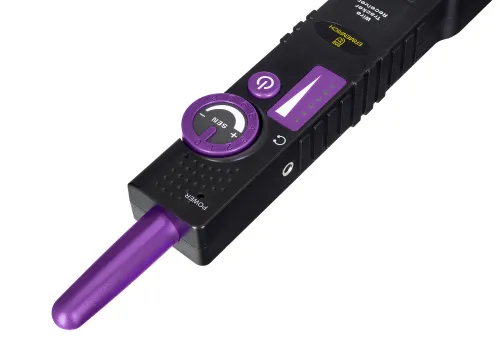

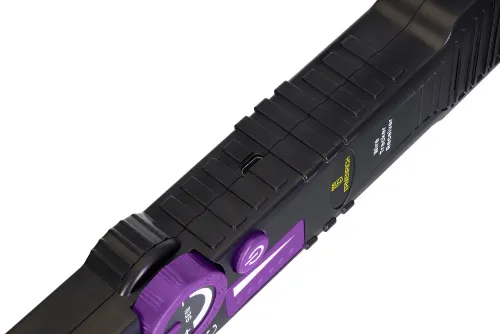

Receiver / Remote unit
Ports earbuds, microUSB
Maximum operating current, mA <80
Adjustable sensitivity
Speaker
Power supply 1400mAh, 3.7V lithium battery; charging via 5V, 1A DC adapter (not included) and micro USB cable (included)
Low battery status indicator
Operating temperature range, °C -10...+40
Operating humidity range, % 30 — 60
