Ermenrich NetGeeks NP10 Cable & PoE Tester

see all

The price is valid only for the online store and may differ from the prices in retail stores.

PoE tester for midspan/endspan identification

Telephone, STP/UTP (CAT5, CAT6) network cable

Tracing cable types

9V battery (not included)

The power source is an important element that is necessary for the quality operation of the device

Availability

Product ID	82540
Brand	Ermenrich
Warranty	5 years
EAN	5905555016849
Package size (LxWxH)	14x11x4 cm
Shipping Weight	0.21 kg

Description

The Ermenrich NetGeeks NP10 is a cable and PoE tester designed for testing network and telephone cables for Ethernet power, open circuits, short circuits as well as for identifying the location of the power supply equipment: either midspan (in the middle of the cable line) or endspan (at the end of the cable line). The tester is easy to operate, it has intuitive controls and can, therefore, be used by professionals and beginners alike.

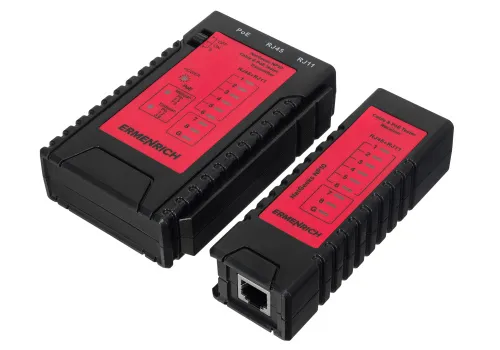

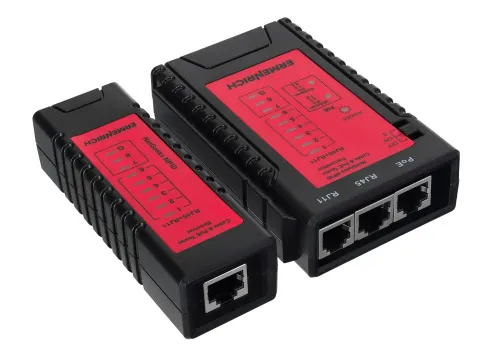

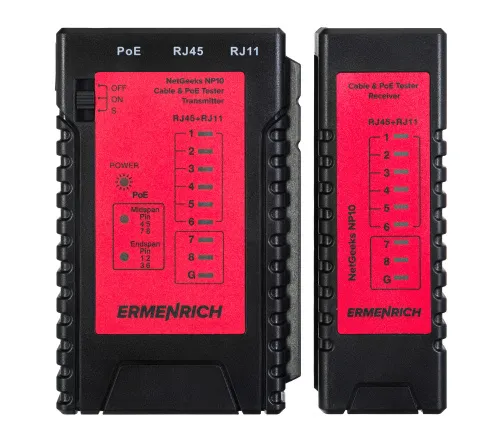

The device consists of a transmitter and a receiver. The first one has three ports: RJ45, RJ11, PoE. The second one has a single port for RJ45 and RJ11. Only the transmitter requires one 9V battery as a power supply.

Key features:

Testing network and telephone cables for PoE support
Cable testing for open and short circuits
Midspan/endspan identification
Powered by a single 9V battery

The kit includes:

Transmitter
Receiver
User manual and warranty card

Specifications

Product ID	82540
Brand	Ermenrich
Warranty	5 years
EAN	5905555016849
Package size (LxWxH)	14x11x4 cm
Shipping Weight	0.21 kg
Transmitter
Ports	RJ45, RJ11, PoE
Tracing cable types	telephone, STP/UTP (CAT5, CAT6) network cable
Cable testing	+
PoE test	✓
PoE test
Operating voltage range (DC), V	5 — 60
Key features
Power supply	9V battery (not included)
Operating temperature range,°C	–10… +40 (14… 104)
Operating humidity range, %	20…70
Receiver / Remote unit
Ports	RJ45, RJ11
