Sound level measurement. Polarized capacitance microphone

Sound level meter

Data and parameters measured by the device

30–130dBA, 35–130dBS

Measuring range that the device can capture

Color

The screen type influences readability under different lighting conditions

Availability

Product ID	82995
Brand	Ermenrich
Warranty	5 years
EAN	5905555017747
Package size (LxWxH)	23x12x4 cm
Shipping Weight	0.37 kg

Description

The Ermenrich Seek DS40 Digital Sound Level Meter is designed to measure noise levels in indoor and outdoor environments. Sound level measurements ranging from 30 to 130dB enable you to monitor and control noise levels in residential areas, workplaces, transport, and industrial spaces.

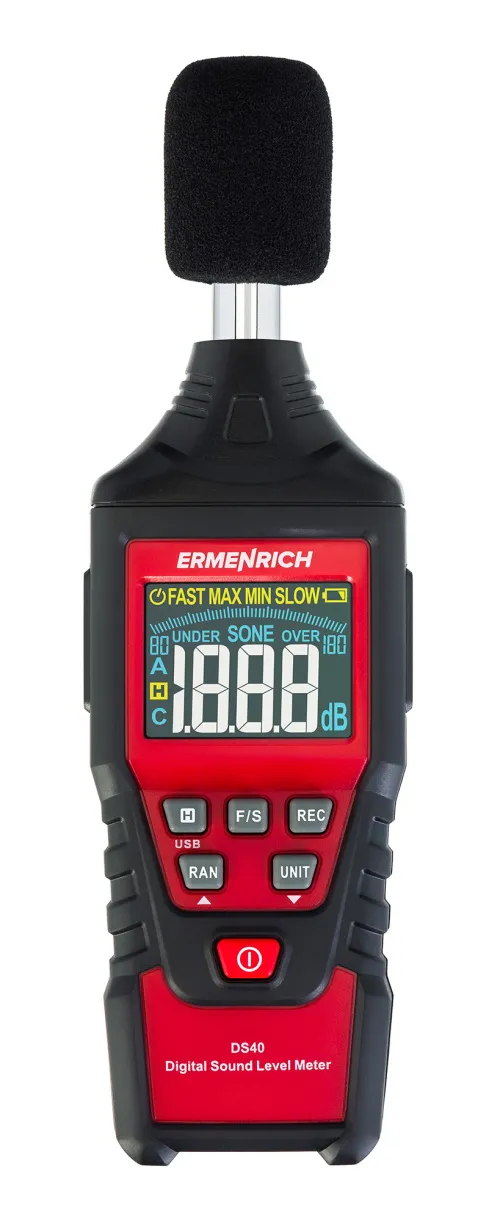

The sound level meter enables you to record current readings and it also remembers the limit (minimum and maximum) values. The measuring range can be adjusted manually or automatically. The color screen displays the noise levels numerically and graphically as well as shows a low battery warning.

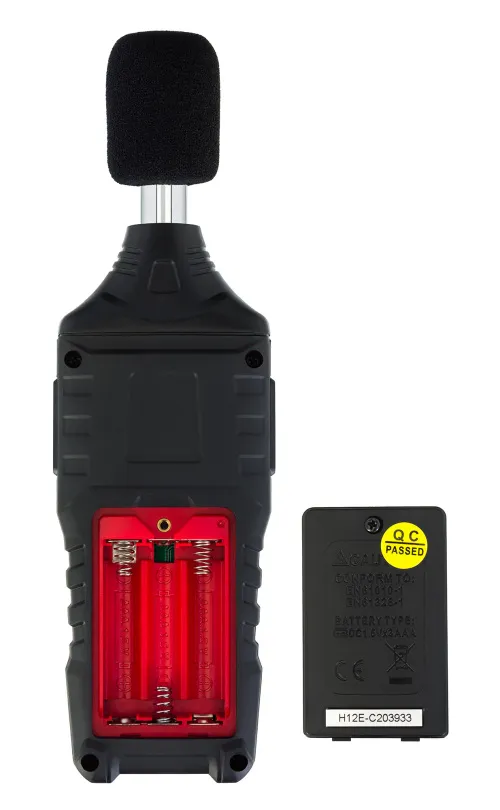

The device requires a set of 3 AAA batteries (not included). The sound level meter turns off automatically after 10 minutes of inactivity.

Key features:

Noise level measurement in the range of 30 to 130dB
Holding the current readings, storing the maximum and minimum values, adjusting the range
Color screen with a graphic scale
Compact body, convenient button controls
Powered by standard batteries, automatic shutdown after 10 minutes

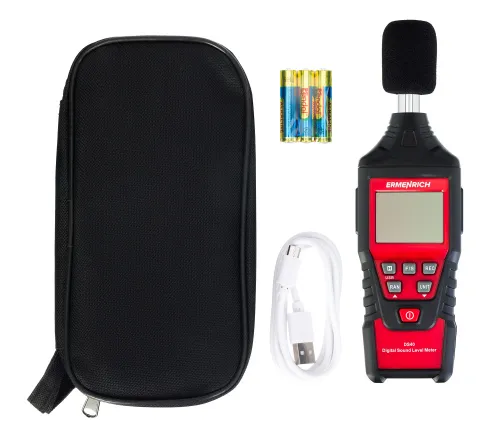

The kit includes:

Digital sound level meter

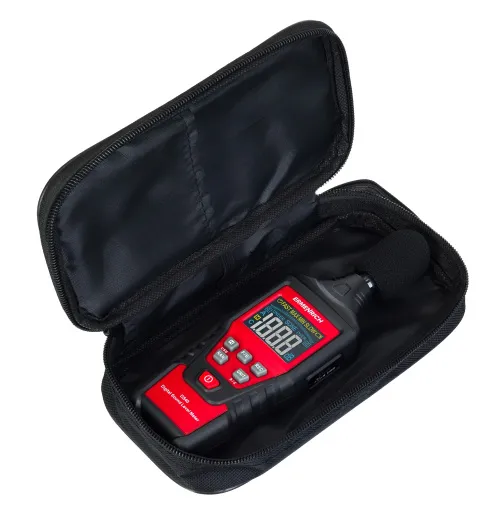

Pouch
User manual and warranty card

Specifications

Product ID	82995
Brand	Ermenrich
Warranty	5 years
EAN	5905555017747
Package size (LxWxH)	23x12x4 cm
Shipping Weight	0.37 kg
Type	sound level meter
Built-in features	sound level meter
Sound level meter (noise)

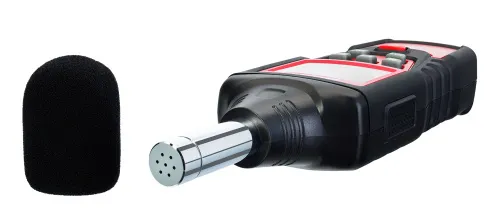

Microphone	polarized capacitance
Units of measurement	dB
Measuring range	30–130dBA, 35–130dBS
Accuracy	±1.5dB (94dB@1kHz); ±5dB (94dB@8kHz)
Frequency range, Hz	30Hz–8kHz
Dynamic range, dB	50
Weighing properties	A/C
Dynamic characteristics	125ms (fast), 1s (slow)
Special features	automatic/manual selection of the measuring range
General specifications
Hold function	✓
Limit value function (Min/Max)	✓
Display	color
Display backlight	✓
Graphic scale	✓
Low battery status indicator	✓
Power supply	3 AAA batteries (not included)
Auto power off	✓
Safety standards	EN61326-1

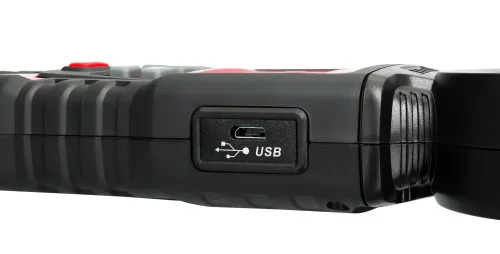

Ports	USB
