Ermenrich Ping RD20 Radiation Detector
Detector for measuring gamma, beta, and X-ray radiation. Geiger-Muller counter
Geiger-Muller counter
The dosimeter sensor detects the presence of ionizing radiation
0.05µSv to 50mSv
Measuring range that the device can capture
OLED
The screen type influences readability under different lighting conditions
Product ID | 83070 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555018645 |
Package size (LxWxH) | 14x6x2 cm |
Shipping Weight | 0.105 kg |
Description

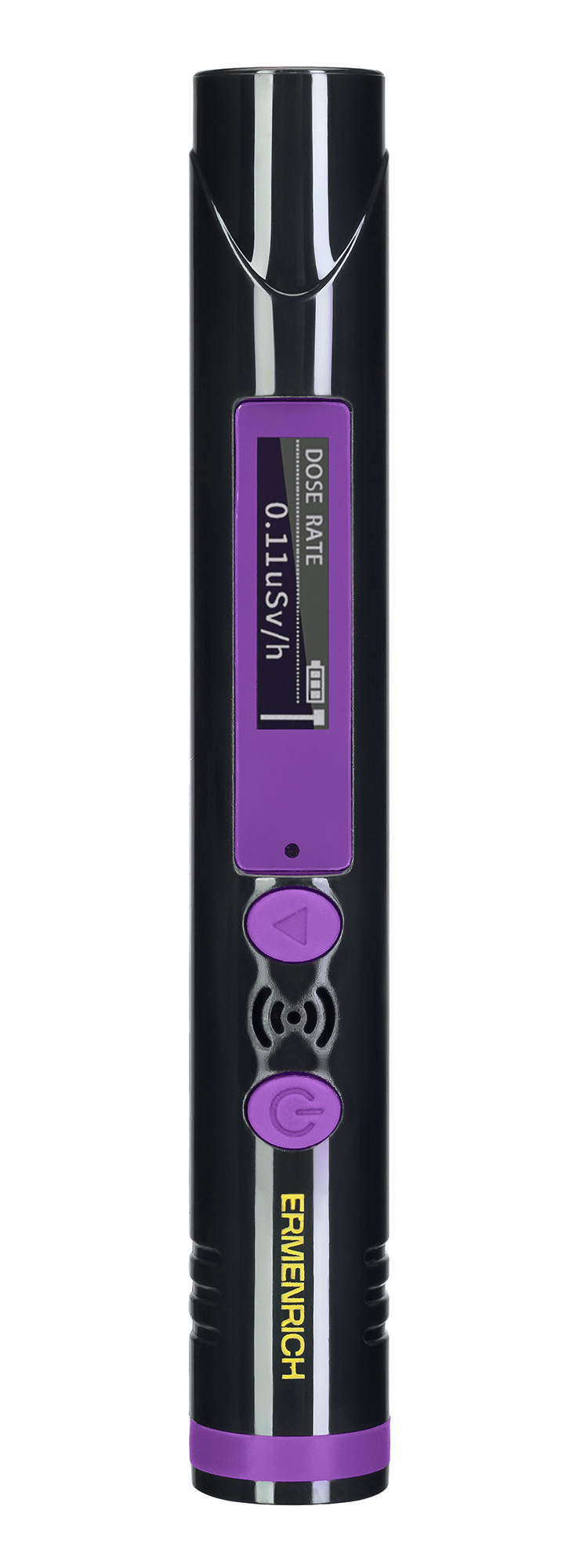

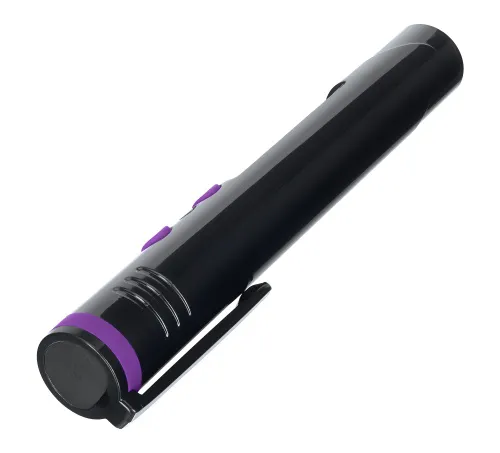

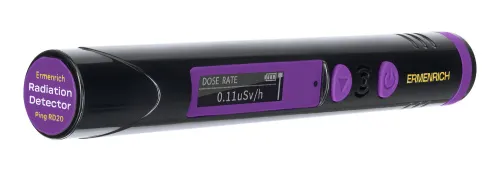

The Ermenrich Ping RD20 Radiation Detector is a compact and convenient device for determining background radiation in the environment, water, food, etc. It measures gamma, beta, and X-ray radiation in the range from 0.05µSv to 50mSv.
With its miniature size and low weight, the device has the full functionality of a dosimeter with a Geiger-Muller counter and can operate for up to 50 hours on a single charge. A 150mAh lithium battery is used for power supply. The LCD screen displays the readings and battery level.
Key features:
- Measurement of gamma, beta, X-ray radiation
- Geiger-Muller counter
- Compact body, LCD display
- Up to 50 hours of uninterrupted work
- Sound and light alerts

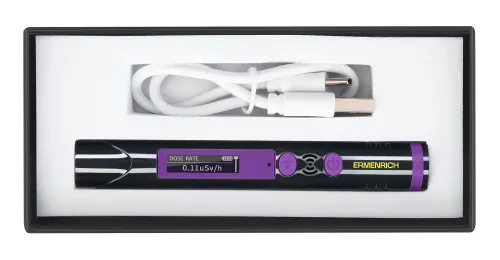

The kit includes:
- Radiation detector
- USB Type-C cable
- User manual and warranty card
Specifications
Product ID | 83070 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555018645 |
Package size (LxWxH) | 14x6x2 cm |
Shipping Weight | 0.105 kg |
Radiation measurement (gamma, beta, X-ray) | +, for gamma radiation only reference values, not exact |
Sensor | Geiger-Muller counter |
Length, mm | 48 |
Measuring range | 0.05µSv to 50mSv |
Cumulative dose measurement range | 0.1µSv to 100mSv |
Exposure dose rate (EDR) measurement range | 0.08µSv/h to 50mSv/h |
Measurement error based on data from a cesium isotope study used as a source of gamma radiation | –17%... +25% |
Measuring time, sec | <10 s |
Audible alerts | ✓ |
Light alert | ✓ |
Display | OLED |
Number of lines displayed on the screen | 1 |
Waterproof | IP3X, particle protection >2.5mm |
Battery life, h | 2 — 3 |
Operating time, h | 50 |
Low battery status indicator | ✓ |

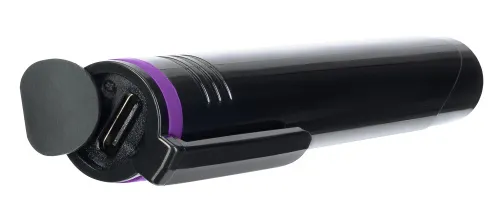

Power supply | 150mAh lithium rechargeable battery (charging via USB Type-C cable with a 5V/2A AC adapter) |
Operating temperature range, °C | -20...+50 |
Operating humidity range, % | 0 — 95 |
