Ermenrich Zing TC35 Digital Multimeter
Functions: voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple sensor, continuity test, diode test, NCV, battery test. Automatic and manual selection of the measuring limit
Product ID | 82991 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555017709 |
Package size (LxWxH) | 20x11x6 cm |
Shipping Weight | 0.53 kg |
The Ermenrich Zing TC35 Digital Multimeter combines the functionality of several electrical measuring tools: voltmeter, ammeter, ohmmeter, capacitance, and frequency meter. It can measure the duty cycle and determine the temperature. The measurement limit can be selected manually or automatically. The multimeter is compact, lightweight, has a color screen with digits, and a graphic scale. The screen backlight and built-in flashlight make it easy to work in low-light environments.
A distinctive feature of the multimeter is the Relative Measurement (REL) function. When you press the button, the reference point will be saved in the memory and the difference between the new value and the reference point will be further calculated. It is a smart device that can carry out measurements in fully automatic mode: The Smart function applies to voltage, resistance, and continuity test. The device can be switched to manual control at any time to use all functions.
The multimeter has additional modes: continuity test, diode test, phase detector, non-contact high voltage detection (NCV). There is a hold function and limit value memory function. The device is powered by batteries.
Key features:
- Multifunctional measuring instrument: voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple-based temperature sensor
- Reference points setup for relative measurements
- Smart mode for automatic resistance measurement, voltage measurement, and continuity test
- Diode test, continuity test (open and short circuit detection), non-contact hidden wiring location (NCV), phase detection

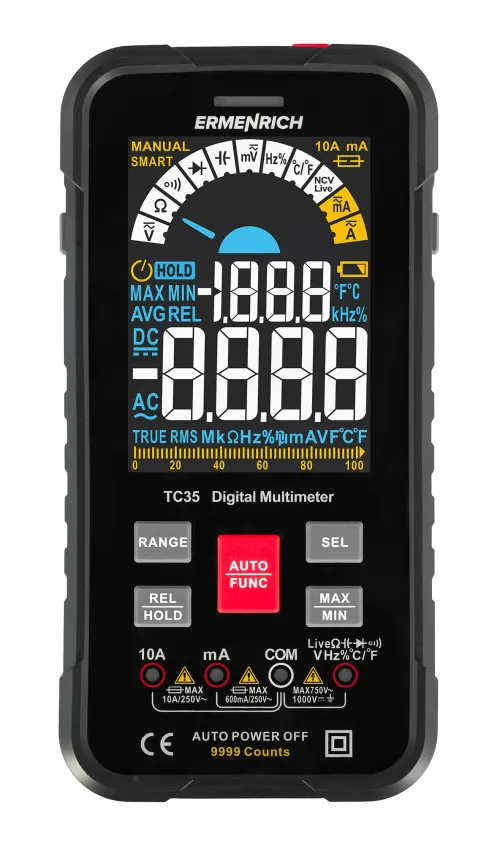

- Color screen with a graphic scale and digits, backlight for working in dark areas

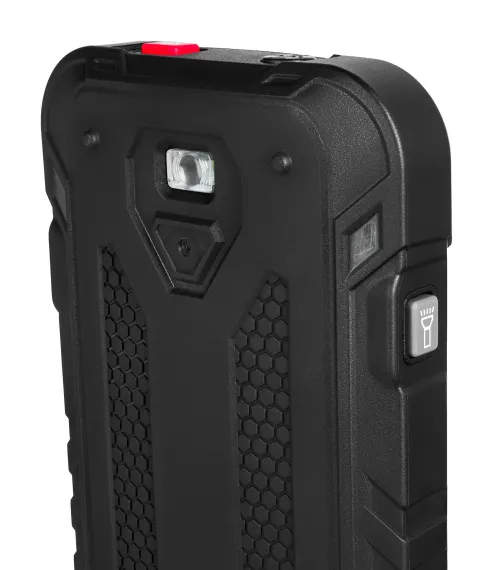

- Built-in flashlight, hold function, powered by batteries

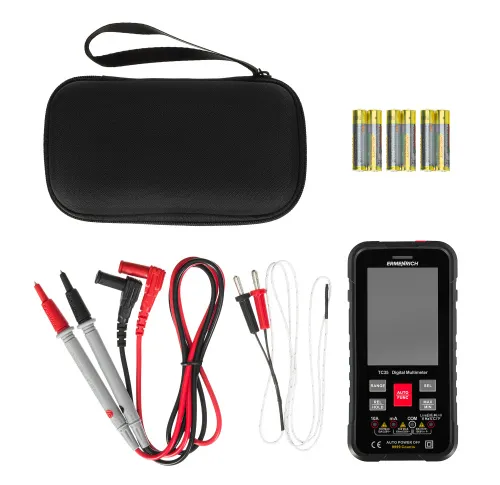

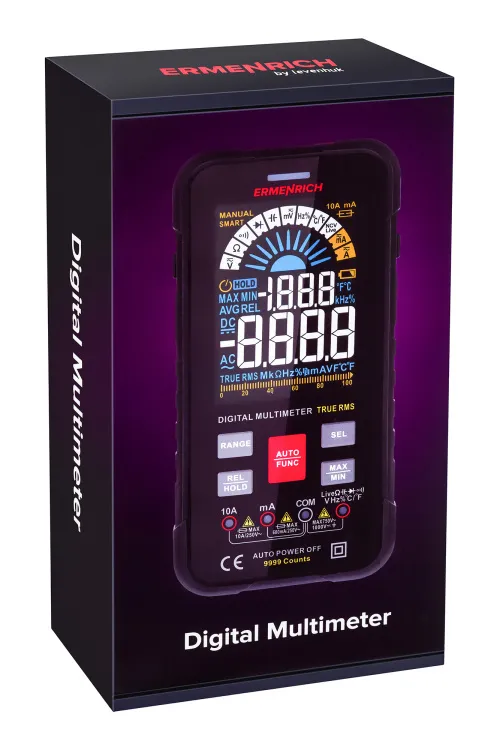

The kit includes:
- Digital multimeter
- Probes

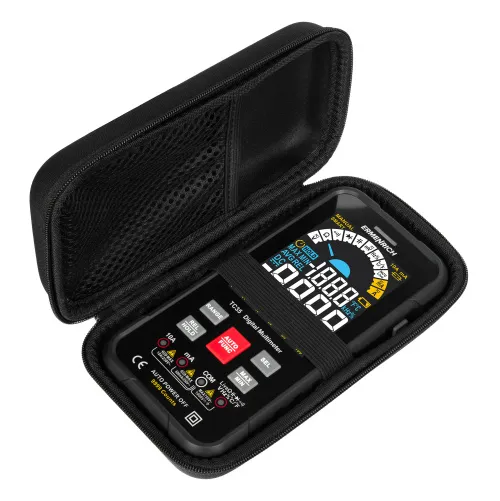

- Pouch
- User manual and warranty card
Product ID | 82991 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555017709 |
Package size (LxWxH) | 20x11x6 cm |
Shipping Weight | 0.53 kg |
Selection of the measuring limit | auto, manual |
DC voltage measuring limit | 99.99mV/999.9mV/9.999V/99.9V/1000V: error ±(0.5%+3) |
AC voltage measuring limit | 99.99mV/999.9mV/9.999V/99.9V/750V: error ±(0.8%+3) |
DC current measuring limit | 9.999/99.99/999.9mA: error ±(0.8%+3), 9.999A: error ±(1.2%+3) |
AC current measuring limit | 9.999/99.99/999.9mA: error ±(1.0%+3), 9.999A: error ±(1.5%+3) |
Resistance measuring limit | 99.99Ω/999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ: error ±(0.8%+3), 9.999MΩ/99.99MΩ: error ±(1.2%+3) |
Capacity measuring limit | 9.999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF: error ±(4.0%+3), 9.999mF/99.99mF: error ±(5.0%+5) |
Frequency measurement limits | 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz: error ±(1.0%+3) |
Duty cycle measurement range | 1–99%: error ±(1.0%+2) |
Diodes test | ✓ |
Non-contact voltage detection (NCV) | ✓ |
True RMS | ✓ |
Hold function | ✓ |
Limit value function (Min/Max) | ✓ |
Relative value measurement (REL) | ✓ |
Automatic recognition function (Smart) | + (only for DC and AC voltage, resistance and continuity) |
Phase detector (Live) | ✓ |
Overvoltage category | cat. III (1000V) IV (600V) |
Display | VA |
Display counts | 10000 |
Graphic scale | ✓ |
Flash light | ✓ |
Safety standards | EN61010-1,-2-030; EN61010-2-033; EN61326-1 |
Operating temperature range,°C | −40... +1000 (−40... +1832): error ±(1.0%+3) |
Continuity test | ✓ |
Power supply | 3 AAA batteries (not included) |
Low battery status indicator | ✓ |

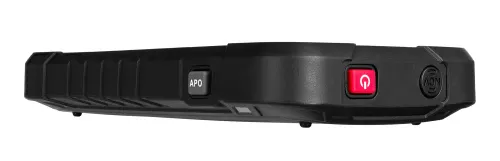

Auto power off | ✓ |
