Ermenrich Zing AL40 Battery Tester

Car battery tester

6 — 18

Current voltage measurement range: the range of voltage values that allows certain errors of the device

0...+50

Operating temperature range: limit temperature values at which no additional errors occur in electrical measuring devices

High-strength ABS plastic

The material protects the device from dust and moisture as well as provides safety and isolation

Availability

Product ID	81733
Brand	Ermenrich
Warranty	5
EAN	5905555003122
Package size (LxWxH)	5x24x16
Shipping Weight	0.365

Description

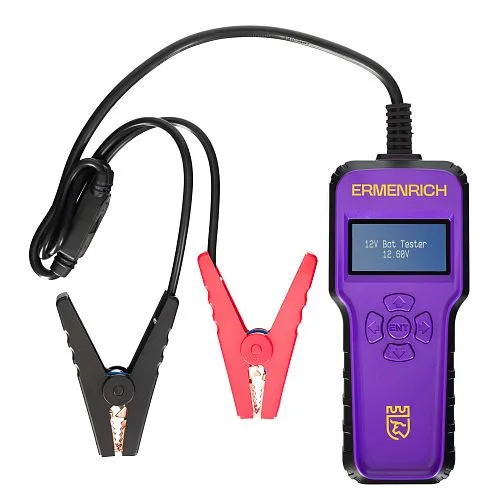

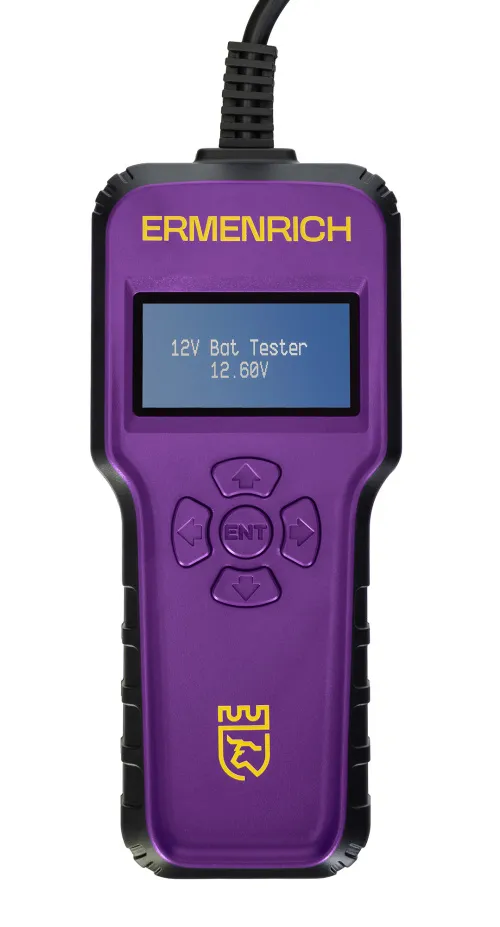

The Ermenrich Zing AL40 Battery Tester is designed to analyze the condition of the car battery as well as its performance and the main parameters. The device has a built-in screen and connects to the battery with two crocodile clips. You can operate the device and set the test parameters with simple controls.

The basic battery test detects the voltage, CCA cold cranking amps, internal resistance, and SOH and SOC values. Based on the readings, the tester will evaluate the overall battery health status: good, OK, fault. You can also use the Ermenrich Zing AL40 to test the charging system or the starting system of your vehicle.

The device does not require any external power supply, it is charged directly via the car battery that it is connected to.

Key features:

Battery test: voltage, internal resistance, cold cranking amps (CCA), SOH (battery health) and SOC (charge level)
The calculation of the overall battery health status that is based on the measurements
Car starting system testing and charging system testing
Charging via the battery under test

Specifications

Product ID	81733
Brand	Ermenrich
Warranty	5
EAN	5905555003122
Package size (LxWxH)	5x24x16
Shipping Weight	0.365
Operating voltage range (DC), V	6 — 18
Measuring standards	CCA: 100-1700, CA: 100-1700, BCI: 100-1700, MCA:100-1700, SAE: 100-1700, GB: 30-200Ah, JIS: 26A17-245H52, IEC 100-1000, EN: 100-1700, DIN: 100-1000
Safety standards	EN 61326-1:2013
Operating humidity range, %	0 — 80
Operating temperature range,°C	0...+50
Operating storage range, °C (°F)	–10…+50 (+14…+122)
Body	high-strength ABS plastic
