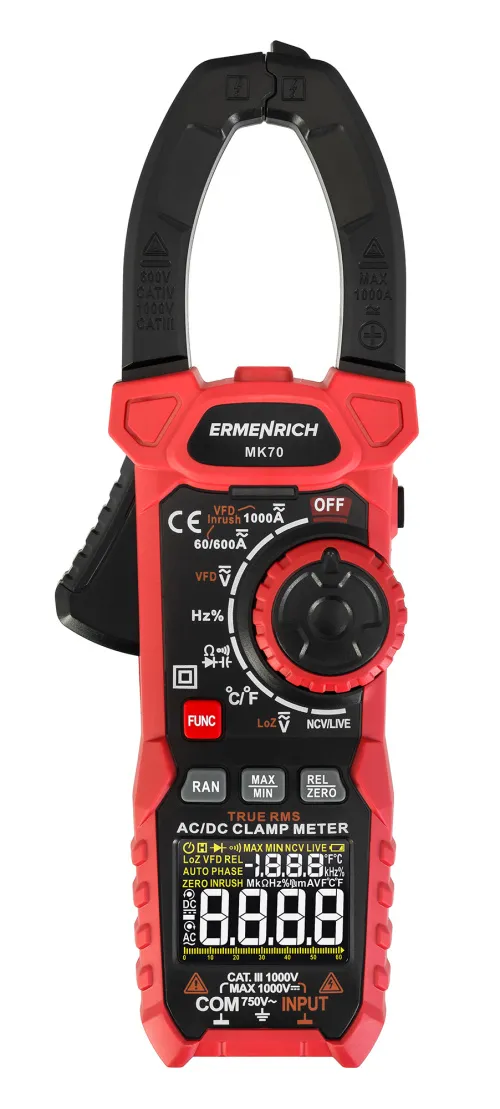

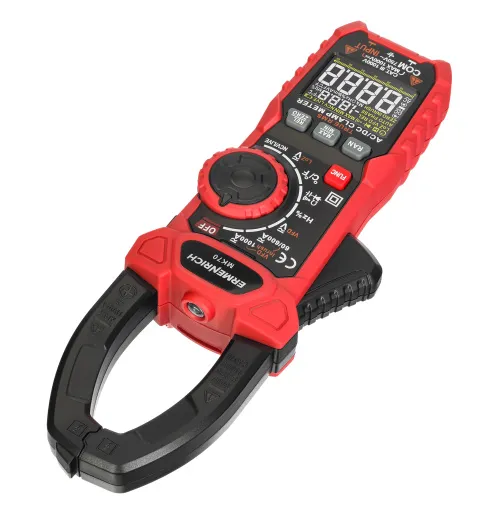

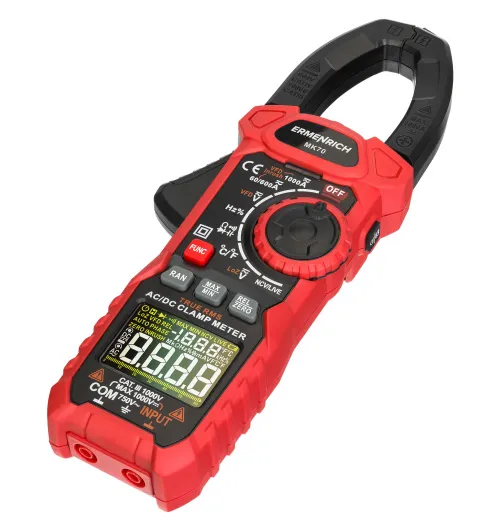

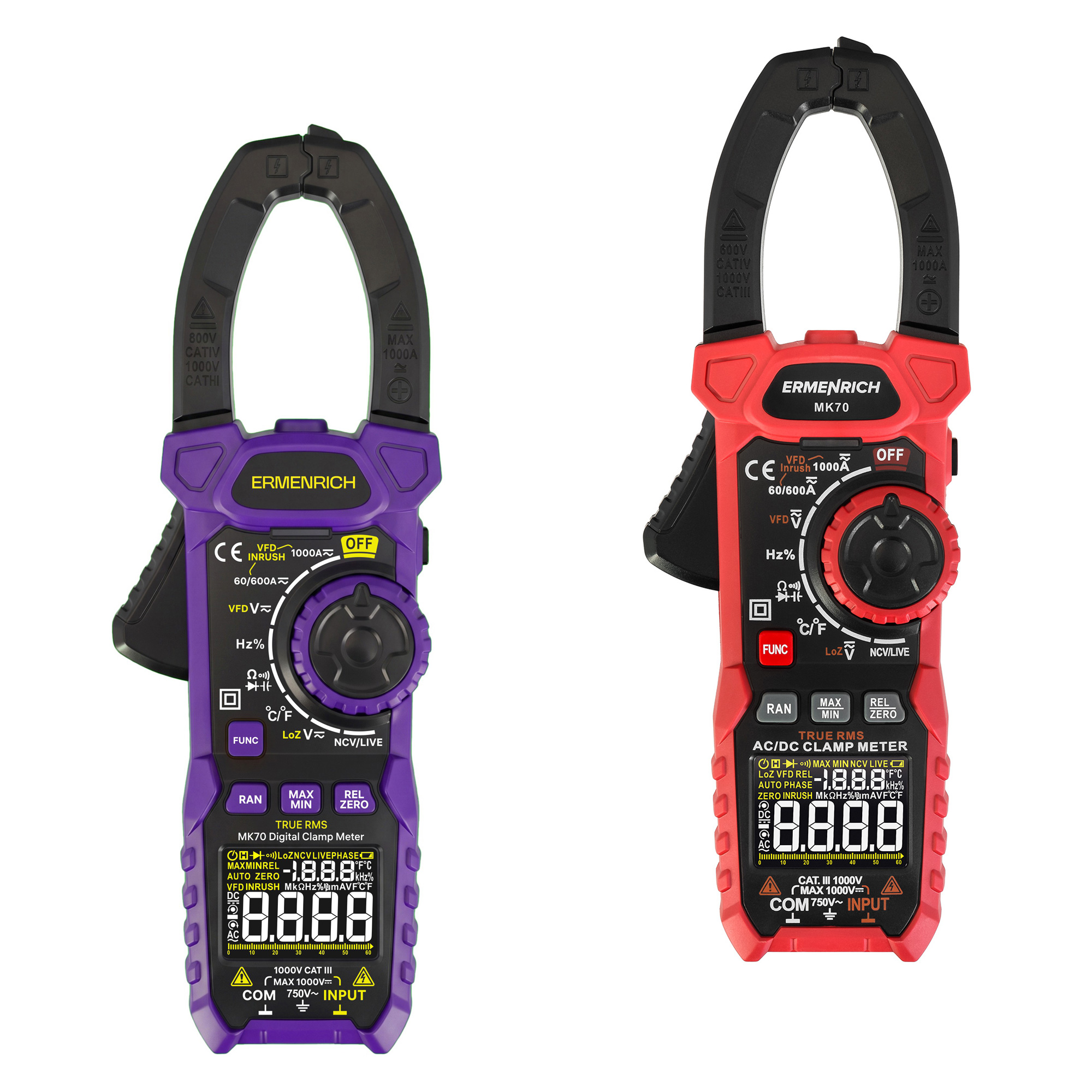

Ermenrich Ping MK70 Digital Clamp Meter
With DC current measurement. Functions: voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple, continuity test, diode test, NCV, inrush current measurement
Product ID | 82970 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555017495 |
Package size (LxWxH) | 28x13x6 cm |
Shipping Weight | 0.65 kg |
Ermenrich Ping MK70 is a clamp meter with DC current measurement function. They also measure alternating current and combine the functions of 6 more measuring instruments: ohmmeter, voltmeter, frequency meter, capacitance meter, duty cycle meter, and thermocouple-based temperature sensor. The high reliability of measurements is guaranteed by a calculation based on the true root mean square value (True RMS). The wide functionality covers the needs of not only the hobby handyman but also the professional electrician.
The digital clamp meter is also used for diagnosing electrical networks for open and short circuits, to test diodes for faults, and detect hidden wiring (NCV function). This model also has advanced functions: inrush current measurement, frequency converter, low impedance mode (low resistance voltage measurement), DC zero setting (DCA Zero).

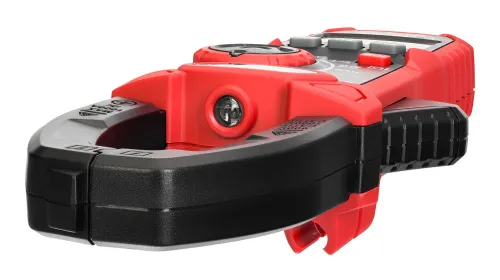

The device has auxiliary functions that increase comfort and simplify routine operations: holding readings on the screen (Hold), storing limit values (Min/Max), relative measurements through reference values (REL). In addition, the digital clamp meter is equipped with a built-in flashlight and has a convenient display with an easy-to-read indicator and a graphic scale.
The device runs on standard batteries; when the battery is low, a notification appears on the screen. The auto-off function helps the batteries last longer without needing to be replaced.
Key features:
- Digital clamp meter of the True RMS class with measurement of alternating, direct and inrush current
- Measurement of DC and AC voltage, resistance, frequency, capacitance, duty cycle, temperature
- Electrical continuity diagnostics, NCV function for locating outlets and live wires, diode testing for faults, frequency converter, low resistance voltage measurement
- Convenient functions for working with measurement results: relative measurements using reference values, holding readings on the screen, recording minimums and maximums
- Flashlight, auto-off function, battery-powered

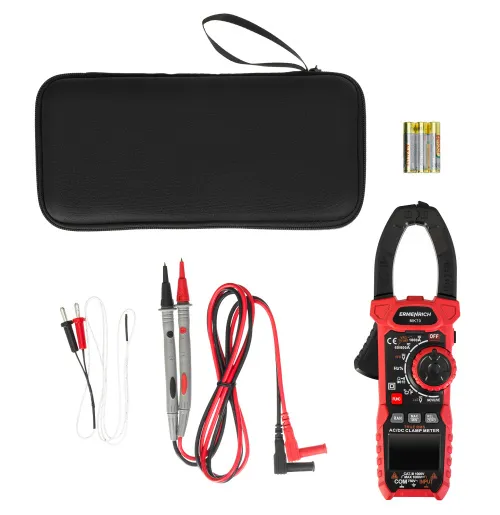

The kit includes:
- Clamp meter
- Probes

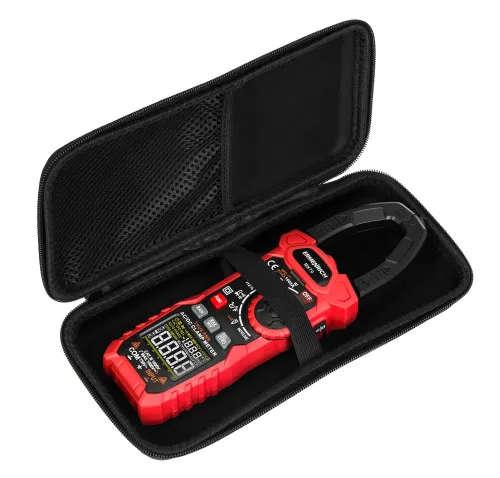

- Pouch
- User manual and warranty card
Product ID | 82970 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555017495 |
Package size (LxWxH) | 28x13x6 cm |
Shipping Weight | 0.65 kg |
Selection of the measuring limit | auto, manual |
DC voltage measuring limit | 600mV/6V/60V/600V/1000V: error ±(0.5%+3) |
AC voltage measuring limit | 600mV/6V/60V/600V/750V: error ±(0.8%+3) |
DC current measuring limit | 60/600/1000A: error ±(2.5%+5) |
AC current measuring limit | 60/600/1000A: error ±(2.5%+5) |
Resistance measuring limit | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ: error ±(0.8%+3) |
Capacity measuring limit | 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF: error ±(3.0%+3) |
Frequency measurement limits | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz: error ±(0.5%+5) |
Duty cycle measurement range | 1–99%: error ±(1.0%+2) |
Diodes test | ✓ |
Non-contact voltage detection (NCV) | ✓ |
True RMS | ✓ |
Hold function | ✓ |
Limit value function (Min/Max) | ✓ |
Relative value measurement (REL) | ✓ |
DCA Zero | ✓ |
Low impedance (LowZ) voltage measurement | ✓ |
Frequency converter (VFD) | ✓ |
Inrush current measurement (INRUSH) | ✓ |
Overvoltage category | CAT III 1000V, CAT IV 600V |
Display counts | 6000 |
Display backlight | ✓ |
Flash light | ✓ |
Safety standards | EN61010-1,-2-030; EN61010-2-033; EN61326-1 |
Operating temperature range,°C | −40… +1000°C (−40… +1832°F): error ±(1.0%+2) |
Continuity test | ✓ |

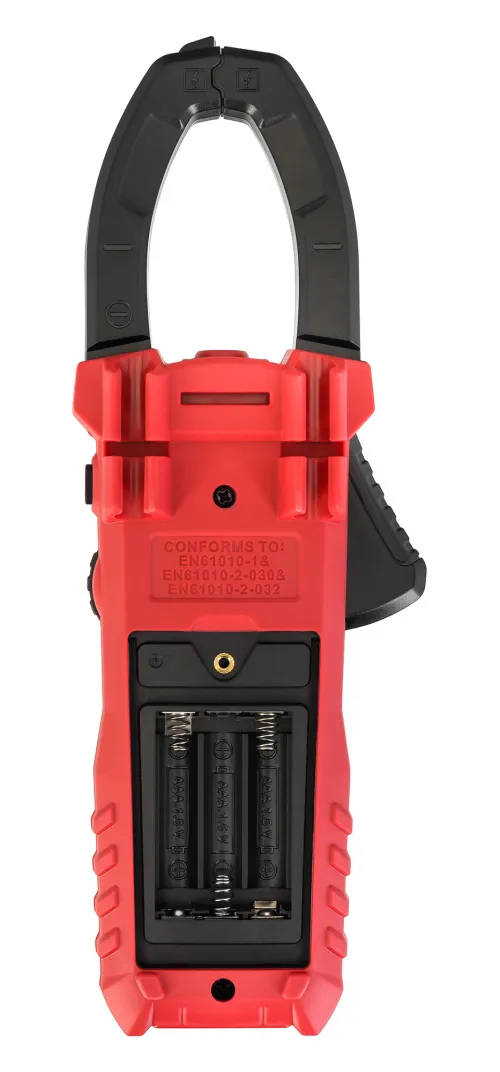

Power supply | 3 AAA batteries (not included) |
Low battery status indicator | ✓ |
Auto power off | ✓ |
