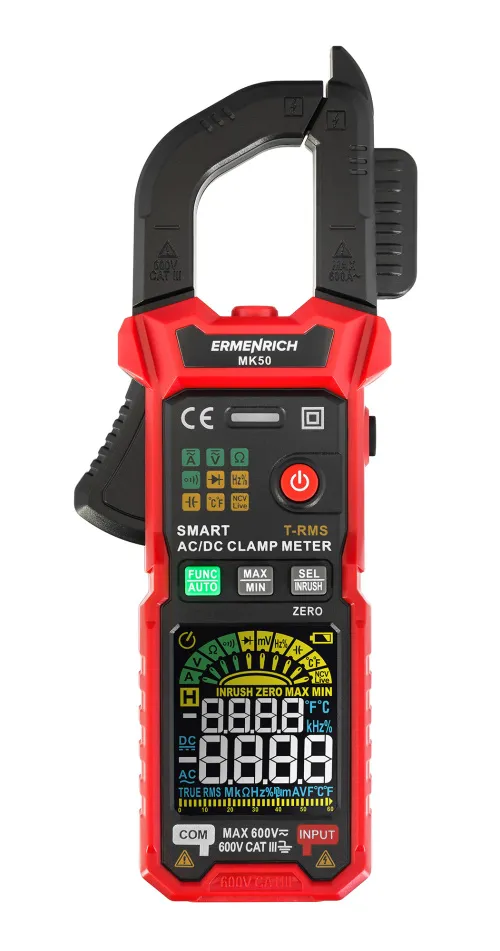

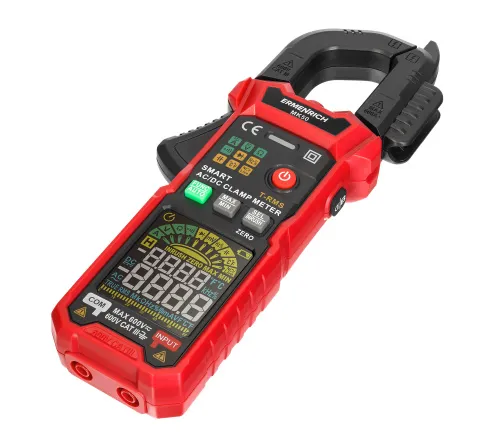

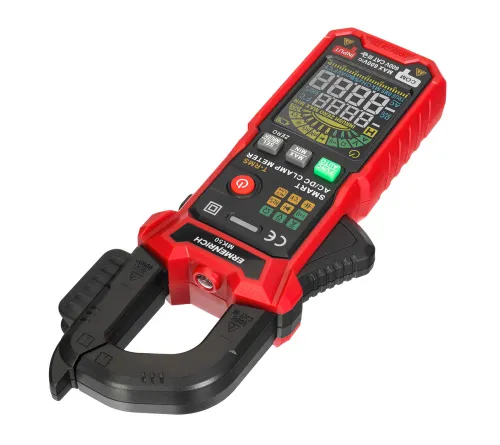

Ermenrich Ping MK50 Digital Clamp Meter
With DC current measurement. Functions: voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple, continuity test, diode test, NCV, phase detector
Product ID | 82969 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555017488 |
Package size (LxWxH) | 22x11x4 cm |
Shipping Weight | 0.45 kg |
Using the Ermenrich Ping MK50 digital clamp meter, you can diagnose electrical equipment and measure the characteristics of electrical circuits. Both AC and DC currents are measured without breaking the circuit, and the device also works as a voltmeter, ohmmeter, thermocouple and duty cycle, frequency, and capacitance meter. Wide functionality, high measurement accuracy, and ease of operation make the Ermenrich Ping MK50 digital clamp meter an excellent choice for performing professional electrician tasks and maintaining the functionality of household electrical appliances and electrical wiring.
All of the measurements are carried out using the True RMS method, i.e. true root mean square value, which increases accuracy. When measuring DC current, you can use the DCA Zero function to compensate for residual magnetization. The device is intelligent, i.e., it can detect and measure the incoming signal in fully automatic mode: The Smart function works for continuity, voltage, and resistance measurements.
The continuity function is used for diagnostics; with its help, the electrical circuit is checked for continuity, and open and short circuits are detected. A separate test function is used to determine diode faults. Clamp meters can also work as a hazardous voltage detector: The NCV function is needed to find hidden wiring and electrical outlets. There is a phase detector.

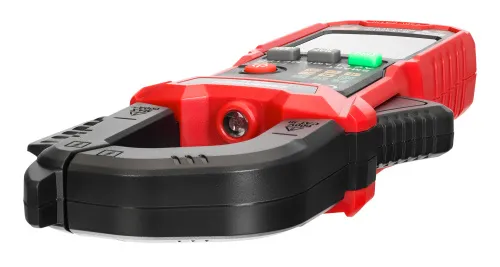

The device is compact, great for working in hard-to-access places, and it has a built-in flashlight. Powered by batteries.
Key features:
- Measures AC and DC current
- Additional measuring functions: ohmmeter, voltmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple
- Smart function: automatic operation for continuity, resistance, and voltage measurement modes
- NCV (hazardous voltage detection), continuity test (circuit continuity detection), diode testing, phase detector function
- Data Hold function and minimums/maximums memory to simplify work with the measurement results
- Built-in flashlight for working in dark rooms

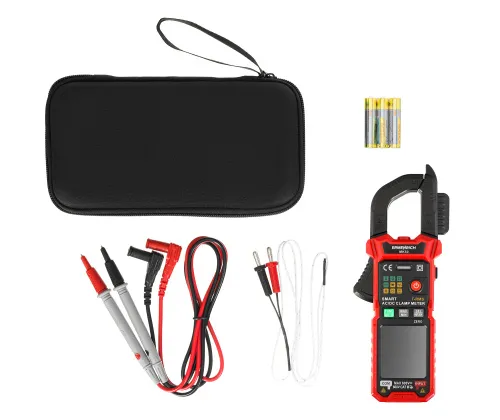

The kit includes:
- Clamp meter
- Probes

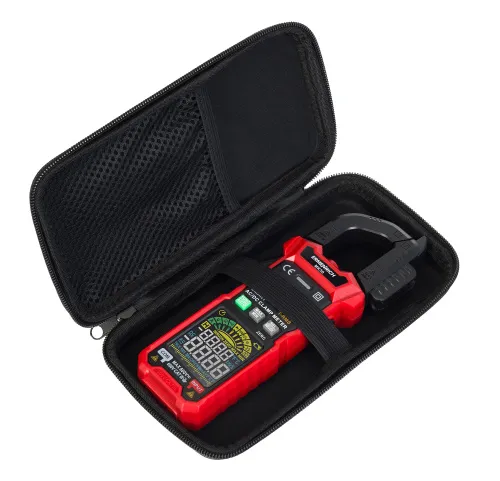

- Pouch
- User manual and warranty card
Product ID | 82969 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555017488 |
Package size (LxWxH) | 22x11x4 cm |
Shipping Weight | 0.45 kg |
Selection of the measuring limit | automatic |
DC voltage measuring limit | 600mV/6V/60V/600V: error ±(0.5%+5) |
AC voltage measuring limit | 600mV/6V/60V/600V: error ±(0.8%+5) |
DC current measuring limit | 60/600A: error ±(2.5%+5) |
AC current measuring limit | 60/600A: error ± (2.5%+5) |
Resistance measuring limit | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ: error ±(1.0%+5) |
Capacity measuring limit | 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF: error ±(4.0%+5) |
Frequency measurement limits | 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz: error ±(1.0%+3) |
Duty cycle measurement range | 1–99%: error ±(3.0%+3) |
Diodes test | ✓ |
Non-contact voltage detection (NCV) | ✓ |
True RMS | ✓ |
Hold function | ✓ |
Limit value function (Min/Max) | ✓ |
DCA Zero | ✓ |
Automatic recognition function (Smart) | + (only for DC and AC voltage, resistance and continuity) |
Phase detector (Live) | ✓ |
Overvoltage category | CAT III 600V |
Display counts | 6000 |
Display backlight | ✓ |
Graphic scale | ✓ |
Flash light | ✓ |
Safety standards | EN61010-1,-2-030; EN61010-2-033; EN61326-1 |
Operating temperature range, °C | -40...+1000 |
Continuity test | +, combined with resistance measurement mode (600Ω) |

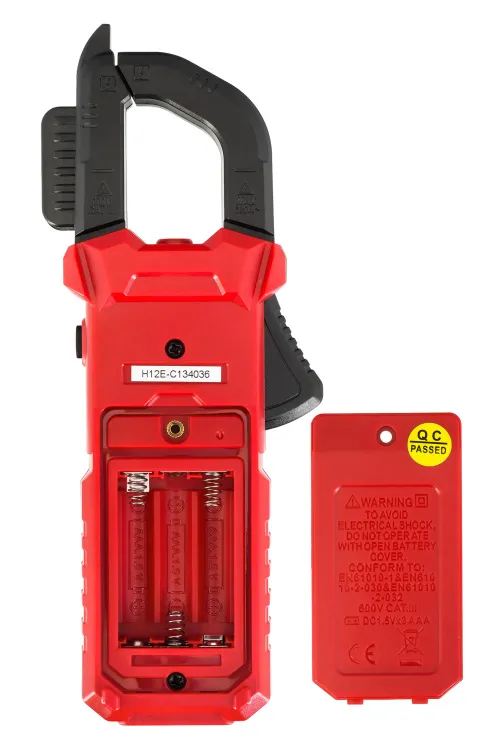

Power supply | 3 AAA batteries (not included) |
Low battery status indicator | ✓ |
Auto power off | ✓ |
