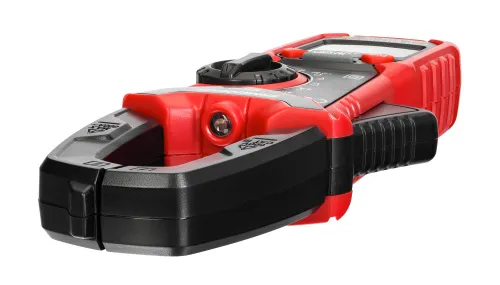

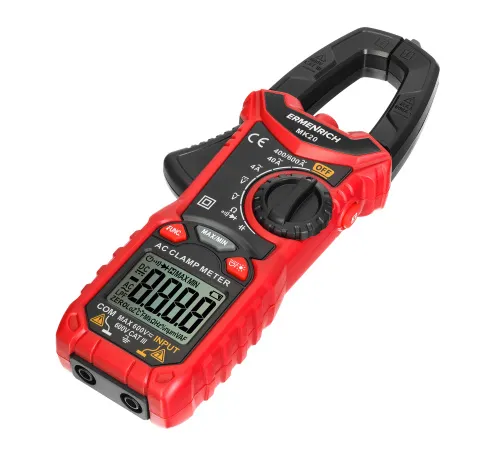

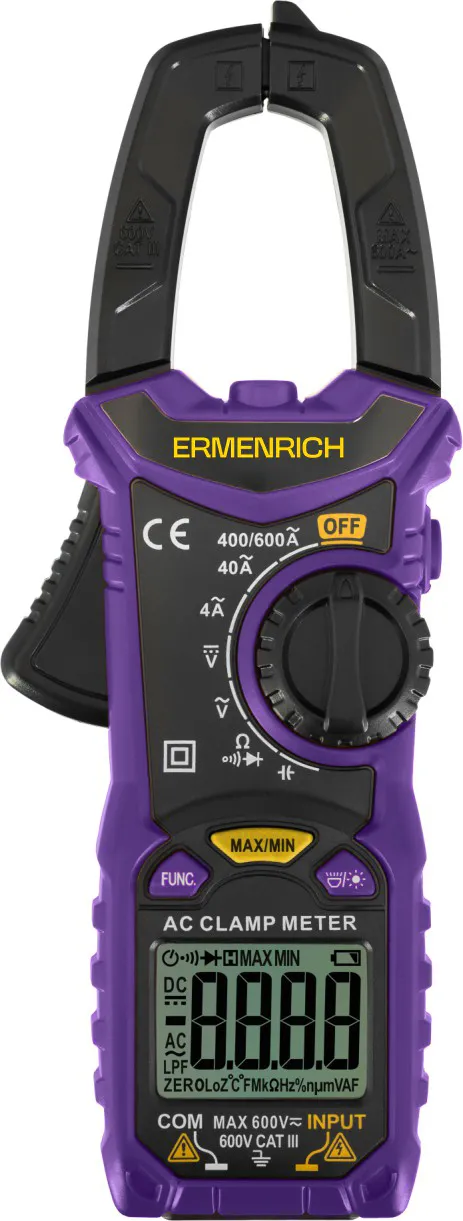

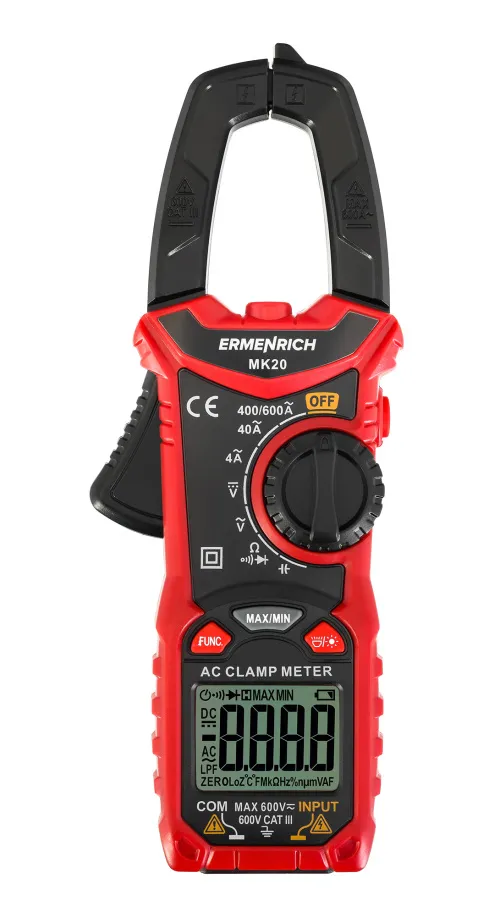

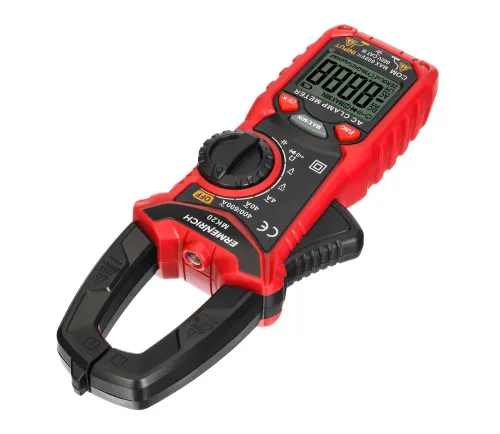

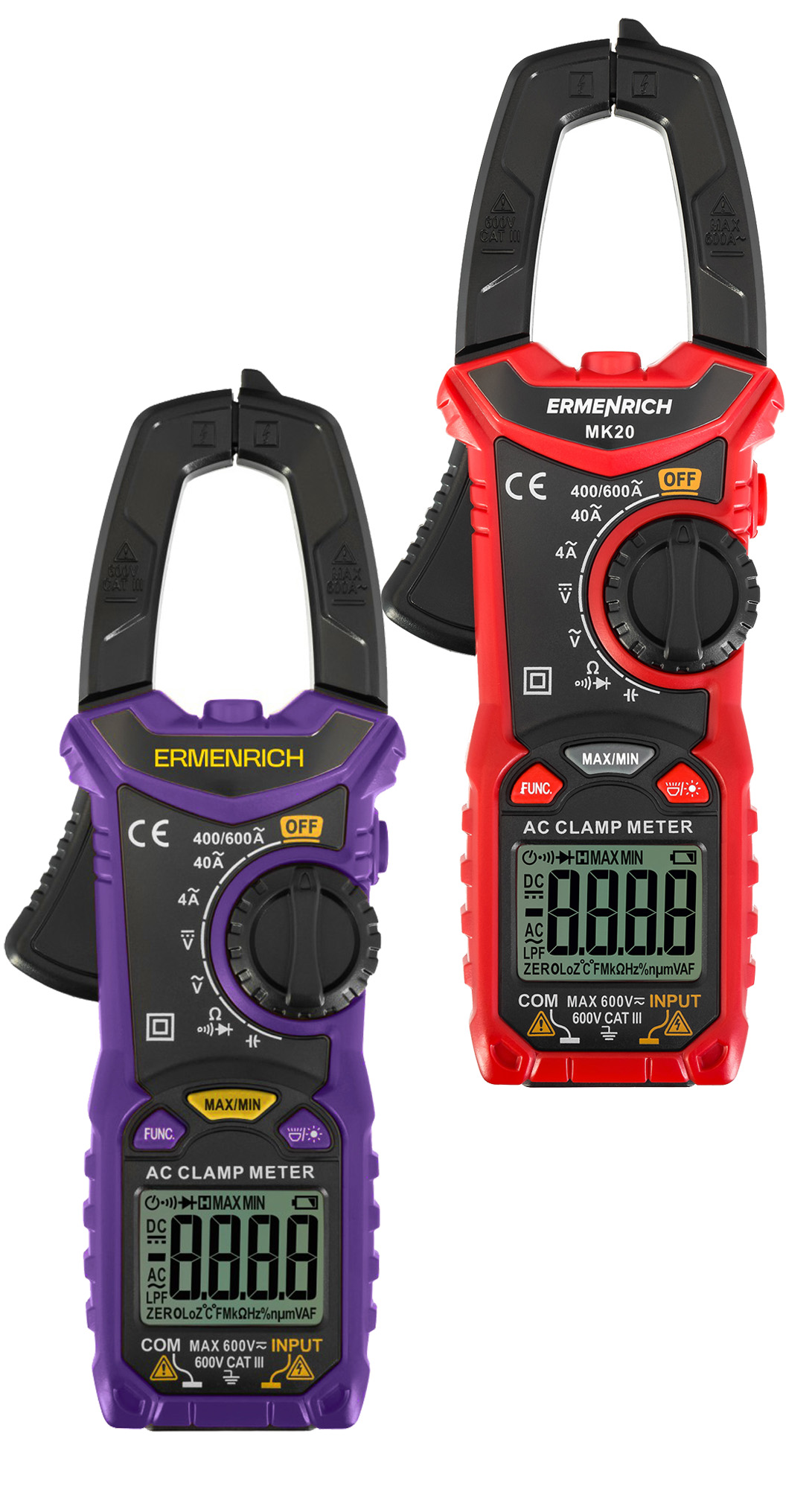

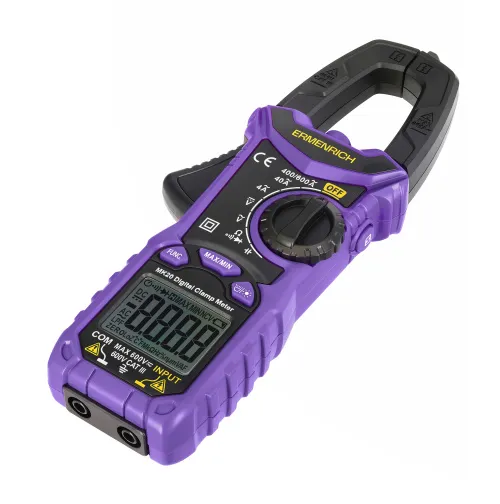

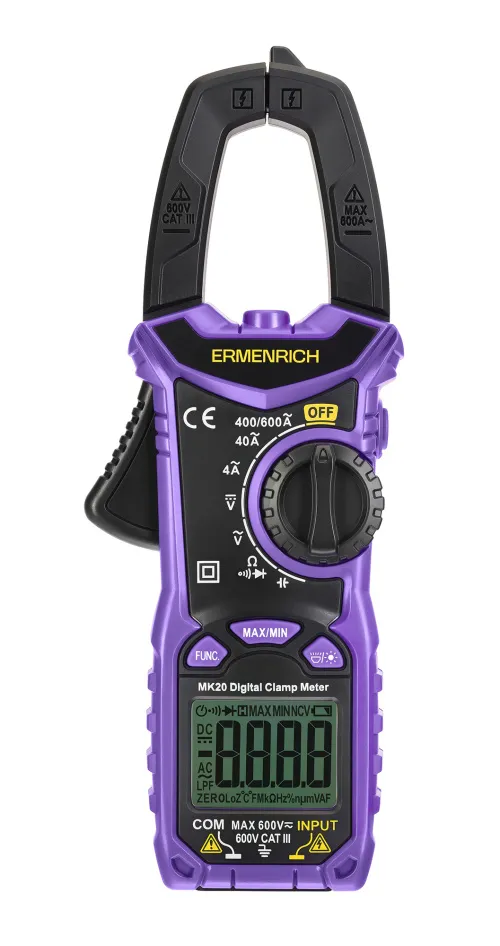

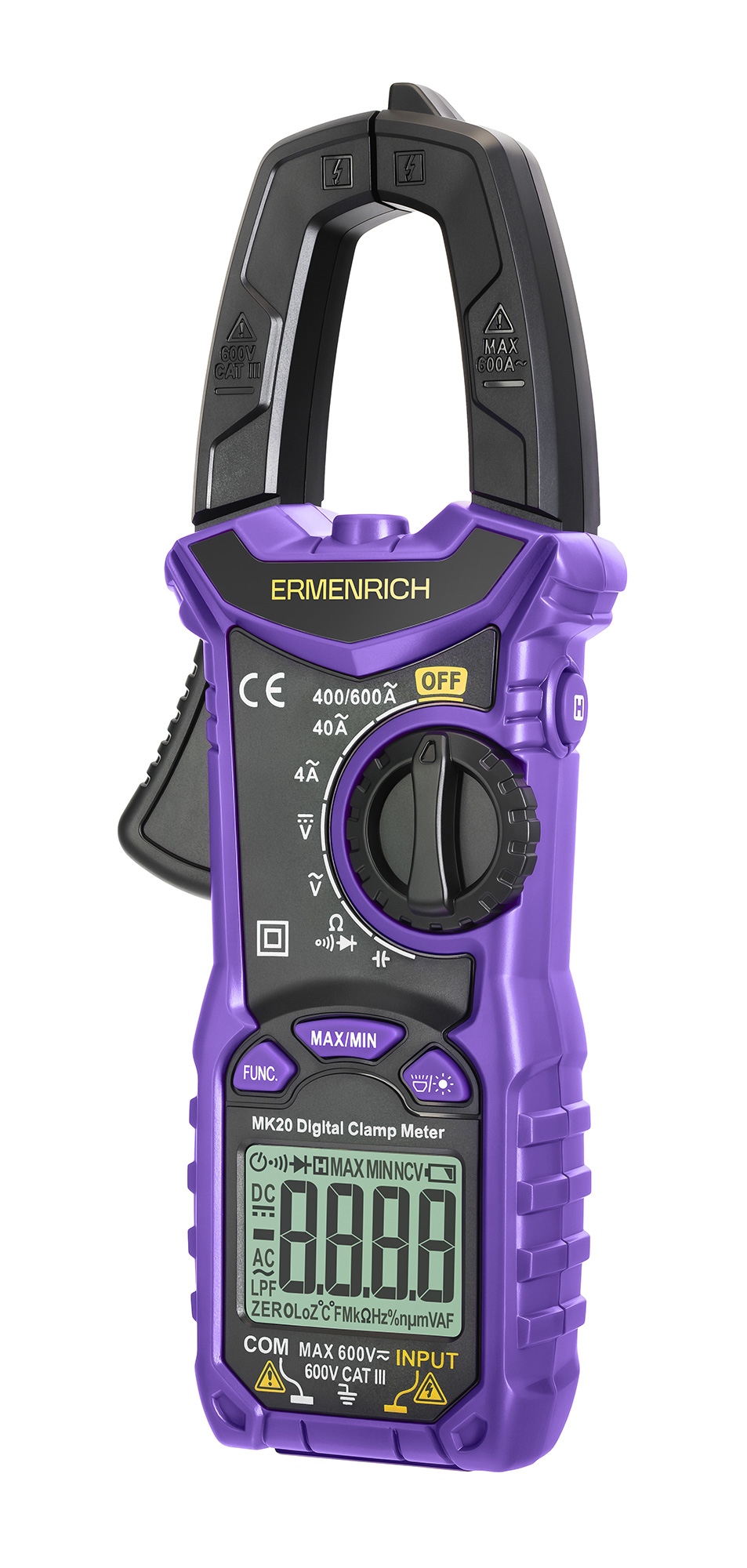

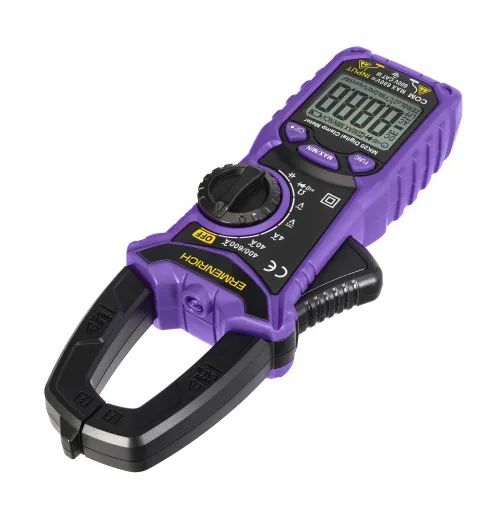

Ermenrich Ping MK20 Digital Clamp Meter
Functions: voltmeter, ammeter, ohmmeter, capacitance meter, continuity test, diode test, NCV
Product ID | 82966 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555017457 |
Package size (LxWxH) | 22x11x4 cm |
Shipping Weight | 0.41 kg |

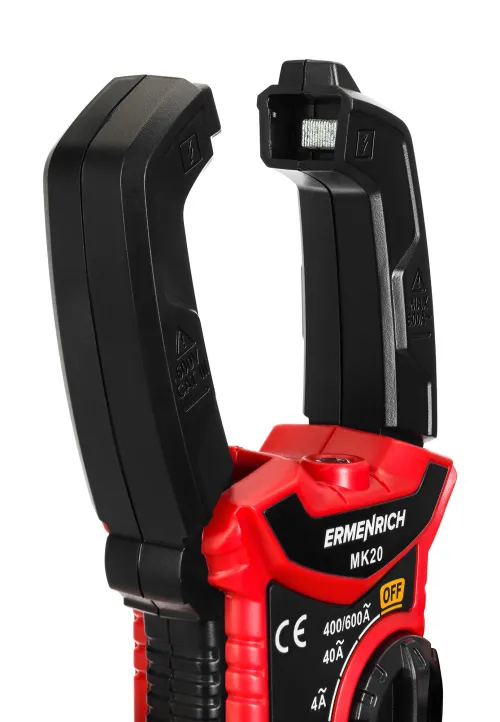

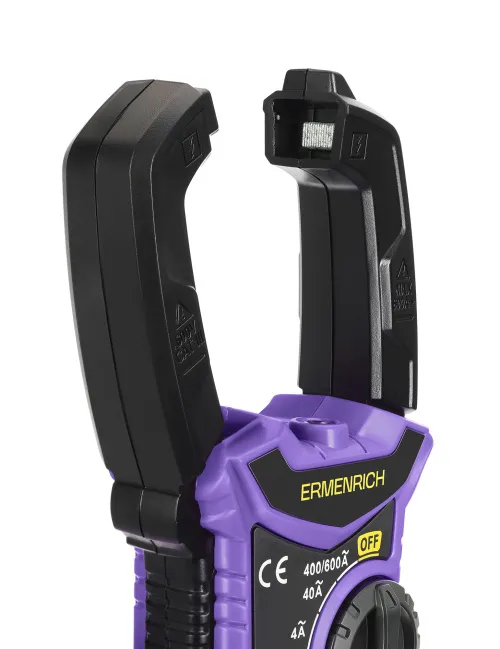

Ermenrich Ping MK20 is a digital clamp meter that can be used to measure alternating current without breaking the circuit. They also measure DC and AC voltage, resistance, and capacitance. The device has a rotary operating mode switch, is equipped with a built-in screen, and has a number of additional functions for diagnosing electrical networks and electrical equipment. Thanks to its advanced functionality, this model is an excellent choice not only for hobby craftsmen but also for professionals.
In continuity mode, the device checks the circuit for continuity: It detects open circuits and short circuits. A diode test is useful if you need to find a bad LED. The non-contact voltage (NCV) detection feature is most often used to locate hidden wiring. For the convenience of working in hard-to-access places, we recommend not neglecting the Data Hold function: It “freezes” the readings on the device screen, and so they do not have to be taken immediately after the measurement. The device can also store the minimum and maximum measurement values in memory.
Ermenrich Ping MK20 is a compact measuring device with clear and simple controls. The auto-off function allows you to save power; standard batteries are used for the power supply.
Key features:
- True RMS device for measuring AC current without turning the power off
- Additional functions: voltmeter (DC and AC voltage), ohmmeter, capacitance meter
- Can be used to test circuit continuity, test diodes, locate hidden wiring (NCV)
- Data Hold function, saves minimums and maximums
- Built-in backlit screen, battery-powered with an auto shut-off function

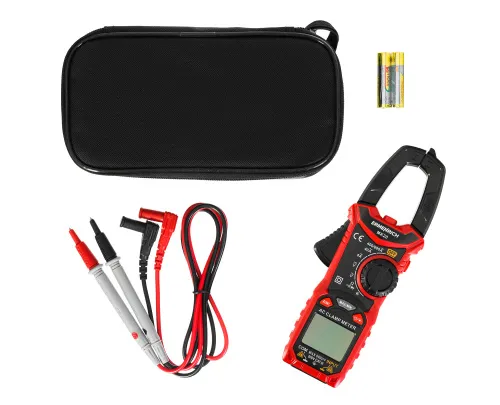

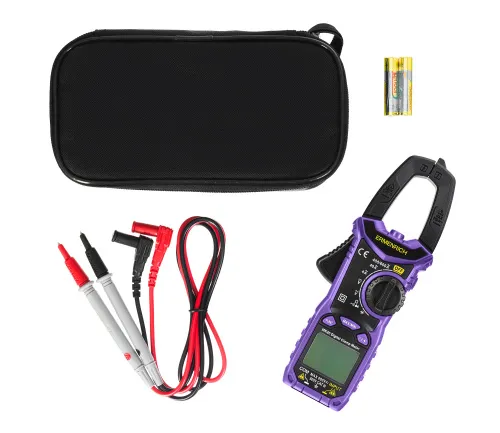

The kit includes:
- Clamp meter
- Probes

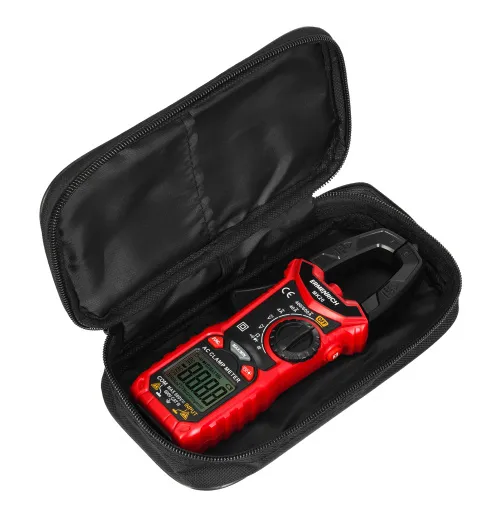

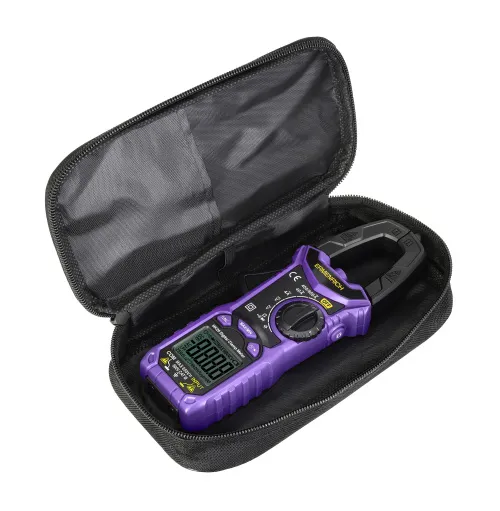

- Pouch
- User manual and warranty card
Product ID | 82966 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555017457 |
Package size (LxWxH) | 22x11x4 cm |
Shipping Weight | 0.41 kg |
Selection of the measuring limit | auto, manual |
DC voltage measuring limit | 400mV/4V/40V/400V/600V: error ±(0.5%+5) |
AC voltage measuring limit | 4/40/400/600V: error ±(1.0%+5) |
AC current measuring limit | 4/40/600A: error ±(2.5%+8) |
Resistance measuring limit | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ: error ±(1.0%+5) |
Capacity measuring limit | 4nF/40nF/400nF/4μF/40μF/400μF/4mF: error ±(4.0%+5) |
Diodes test | ✓ |
Non-contact voltage detection (NCV) | ✓ |
True RMS | ✓ |
Hold function | ✓ |
Limit value function (Min/Max) | ✓ |
Overvoltage category | CAT III 600V |
Display counts | 4000 |
Display backlight | ✓ |
Flash light | ✓ |
Safety standards | EN61010-1,-2-030; EN61010-2-033; EN61326-1 |
Continuity test | ✓ |

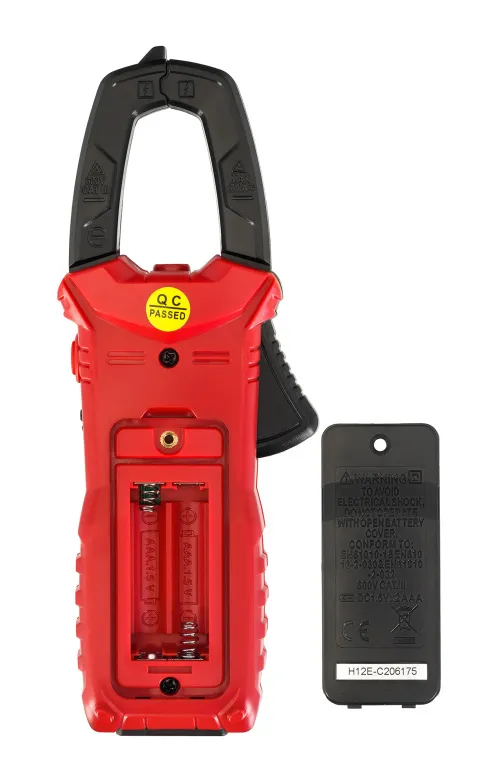

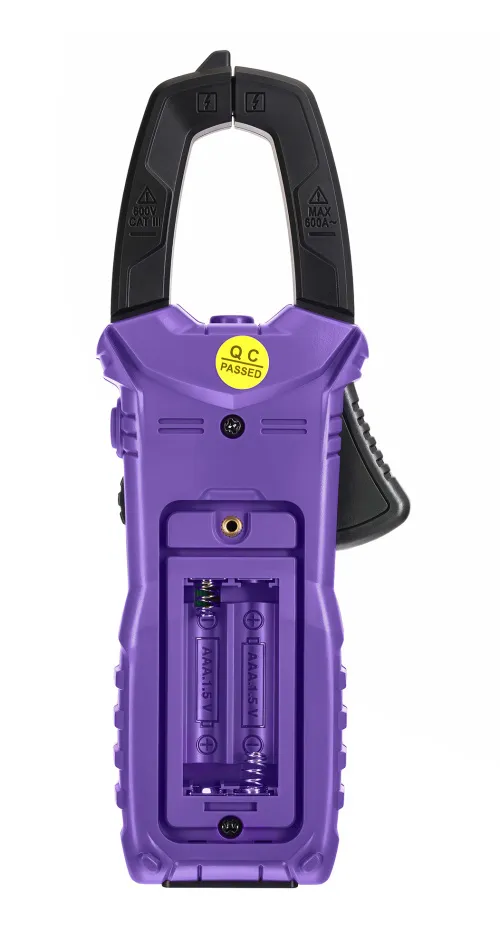

Power supply | 2 AAA batteries (not included) |
Low battery status indicator | ✓ |
Auto power off | ✓ |
