Ermenrich Verk LY60 Digital Level

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Magnetic base. For measuring angles of slope. Units of measurement: degrees, percent, mm/m, in/ft

Digital, bubble

Level type by application and design

±0.1° at 0° and 90°, the rest – ±0.2°

Accuracy: the errors in measuring long distances are extremely critical

0.05°

Resolution is the smallest change in value that can be detected and displayed by the device

Availability

Product ID	81742
Brand	Ermenrich
Warranty	5 years
EAN	5905555003221
Package size (LxWxH)	5x62x8 cm
Shipping Weight	0.7 kg

Description

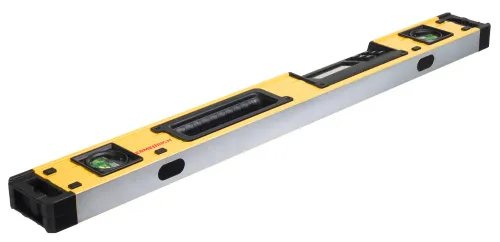

The Ermenrich Verk LY60 is a mid-length digital level for the precise horizontal and vertical alignment of objects as well as measuring various angles. It is used to measure angles over a wide range – 0–360° (4x90°). It has built-in bubble vials, so the device can also be used as a standard bubble level. The level is excellent for construction, repair, and installation for both industrial and domestic purposes. You can use it for the precise alignment of workpieces on machine tool tables, sine plates, modular fixtures, and for mounting mechanisms on foundations and piles.

Ermenrich Verk LY60 Digital Level gives readings in one of four units of measurement. IP54 dust- and waterproof-rated, high-strength body ensures long and efficient operation of the device. The bright color makes the device noticeable in a construction site or production facility. The auto-off activates after 3 minutes of inactivity and the low battery status indicator ensure that the level will run longer on a single set of batteries. There is a convenient cutout carrying handle for extra ease of carrying and use.

Key features:

High accuracy measurement of angles and vertical/horizontal slopes

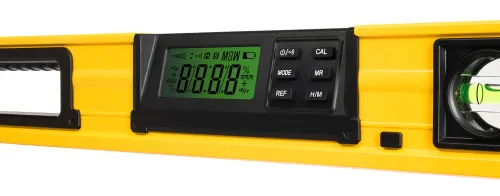

4 units of measurement available, a hold function, a zero set function
Rugged body with a magnetic base, moisture and dust-proof
Powered by batteries, a low battery status indicator, and an auto-off function

Specifications

Product ID	81742
Brand	Ermenrich
Warranty	5 years
EAN	5905555003221
Package size (LxWxH)	5x62x8 cm
Shipping Weight	0.7 kg
Level type	digital, bubble
Accuracy	±0.1° at 0° and 90°, the rest – ±0.2°
Units of measurement	mm, m, ft, in, degrees, percent
Measuring range, m	0 — 360
LCD screen	yes
Maximum resolution	0.05°
Calibration	manual
Hold function	✓
Zero set function	✓
Magnetic base	✓

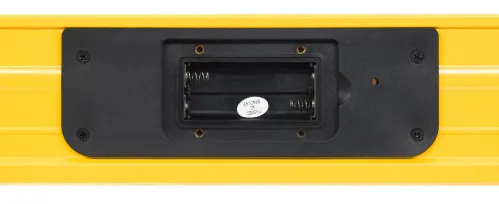

Power supply	2 AAA batteries, 1.5V (not included)
Low battery status indicator	✓
Auto power off	3 min
IP water and dustproof rating	IP54, partially dustproof, splashproof
Body	aluminum, high-strength ABS plastic, thermoplastic rubber
Operating temperature range, °C	0...+40
Length, mm	600
Additional	audible buzzer alert , built-in bubble level – 2 pcs.
